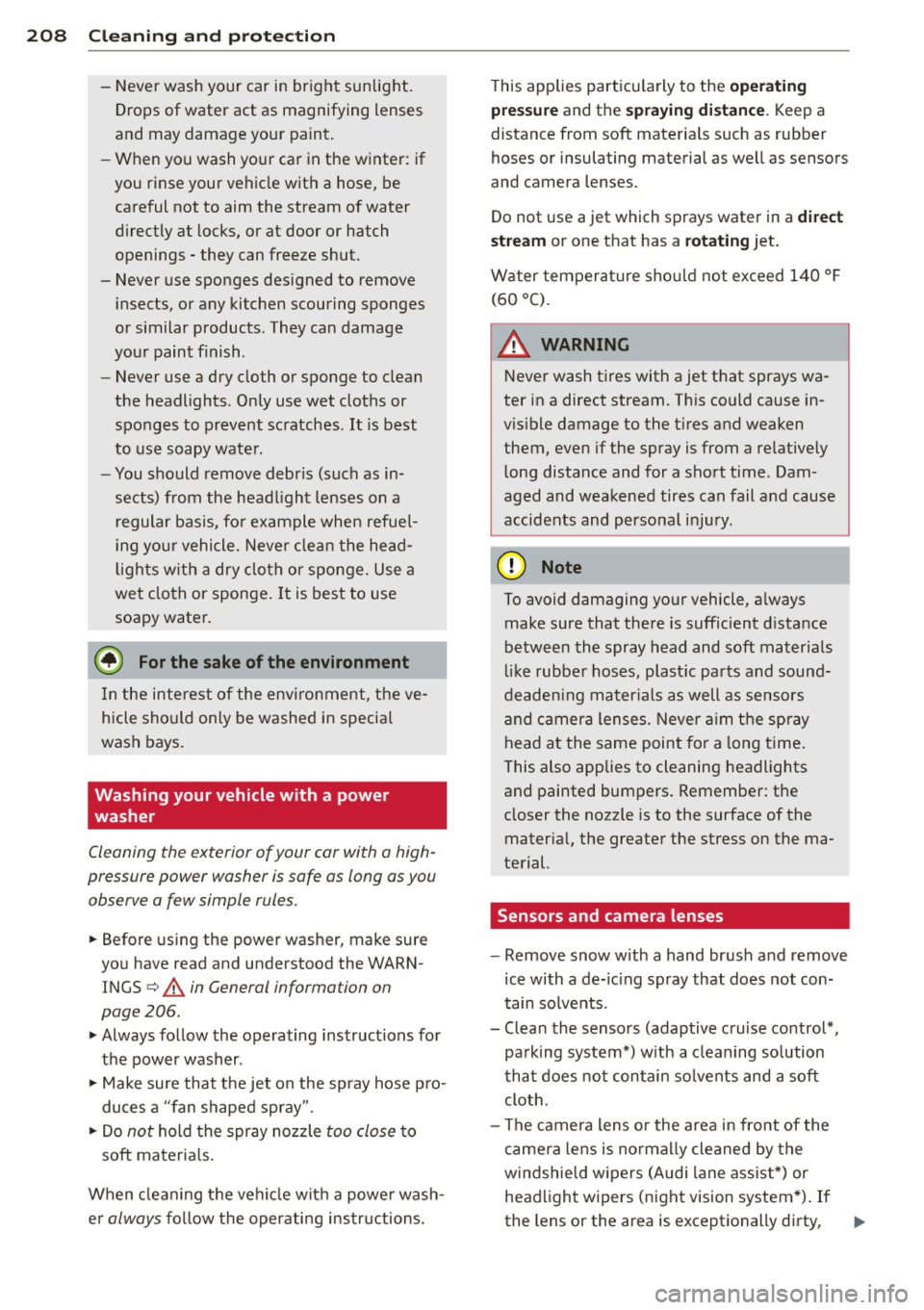

208 Cleaning and protection
-Never wash your car in bright sunlight.
Drops of water act as magnifying lenses
and may damage your paint.
- When you wash your car in the winter: if
you rinse your vehicle with a hose, be
careful not to aim the stream of water
directly at locks, or at door or hatch
openings - they can freeze shut.
- Never use sponges des igned to remove
i nsects, or any kitchen scouring sponges
or similar products . They can damage
your paint finish .
- Never use a dry cloth or sponge to clean
the headlights. Only use wet cloths or
sponges to prevent scratches .
It is best
to use soapy water.
- You should remove debris (such as in­
sects) from the headlight lenses on a
regular basis, fo r example when refuel­
ing your vehicle. Never clean the head­
lig hts w ith a dry cloth or sponge. Use a
wet cloth or sponge . It is best to use
soapy water.
@ For the sake of the environment
I n the interest of the environment, the ve­
hicle should only be washed in special
wash bays.
Washing your vehicle with a power
washer
Cleaning the exterior of your car with a high­
pressure power washer is safe as long as you observe a few simple rules.
• Before using the power washer, make sure
you have read and understood the WARN­
INGS
c:> A in General information on
page 206 .
• Always follow the operating instructions for
the power washer .
• Make sure that the jet on the spray hose pro­
duces a "fan shaped spray".
• Do
not hold the spray nozzle too close to
soft materia ls.
When cleaning the vehicle wit h a power wash­
er
always follow the operating instructions. T
his applies particu larly to the
operating
pressure
and the spraying distance. Keep a
distance from soft materials such as rubber
hoses or insulating material as well as sensors
and camera lenses.
Do not use a jet which sprays water in a
di rect
stream
or one that has a rotating jet .
Water temperature should not exceed 140 °F
(60 °().
A WARNING
Never wash tires with a jet that sprays wa­
ter in a direct stream . This could cause in­
v is ible damage to the t ires and weaken
them, even if the spray is from
a relatively
long distance and for a short time. Dam­
aged and weakened tires can fail and cause
accidents and personal injury .
(D Note
To avoid damaging your vehicle, always
make sure that there is suffic ient d istance
between the spray head and soft materials
like rubber hoses, plast ic parts and sound­
deadening materials as well as sensors
and camera lenses. Never aim the sp ray
head at the same point for a long time.
This also applies to cleaning headlights
and painted bumpers. Remember: the
closer the nozzle is to the surface of the
mater ia l, the greater the stress on the ma­
terial.
Sensors and camera lenses
- Remove snow with a hand brush and remove
ice with a de-icing spray that does not con­
tain solvents .
- Clean the sensors (adaptive cruise control*,
pa rking system*) w ith a cleaning so lution
that does not contain so lvents and a soft
cloth.
- The camera lens or the area in front of the
camera lens is normally cleaned by the
w indshie ld w ipers (Audi lane assist*) or
headlight wipers (night vision system*) . If
the lens or the area is exceptionally dirty,
111-

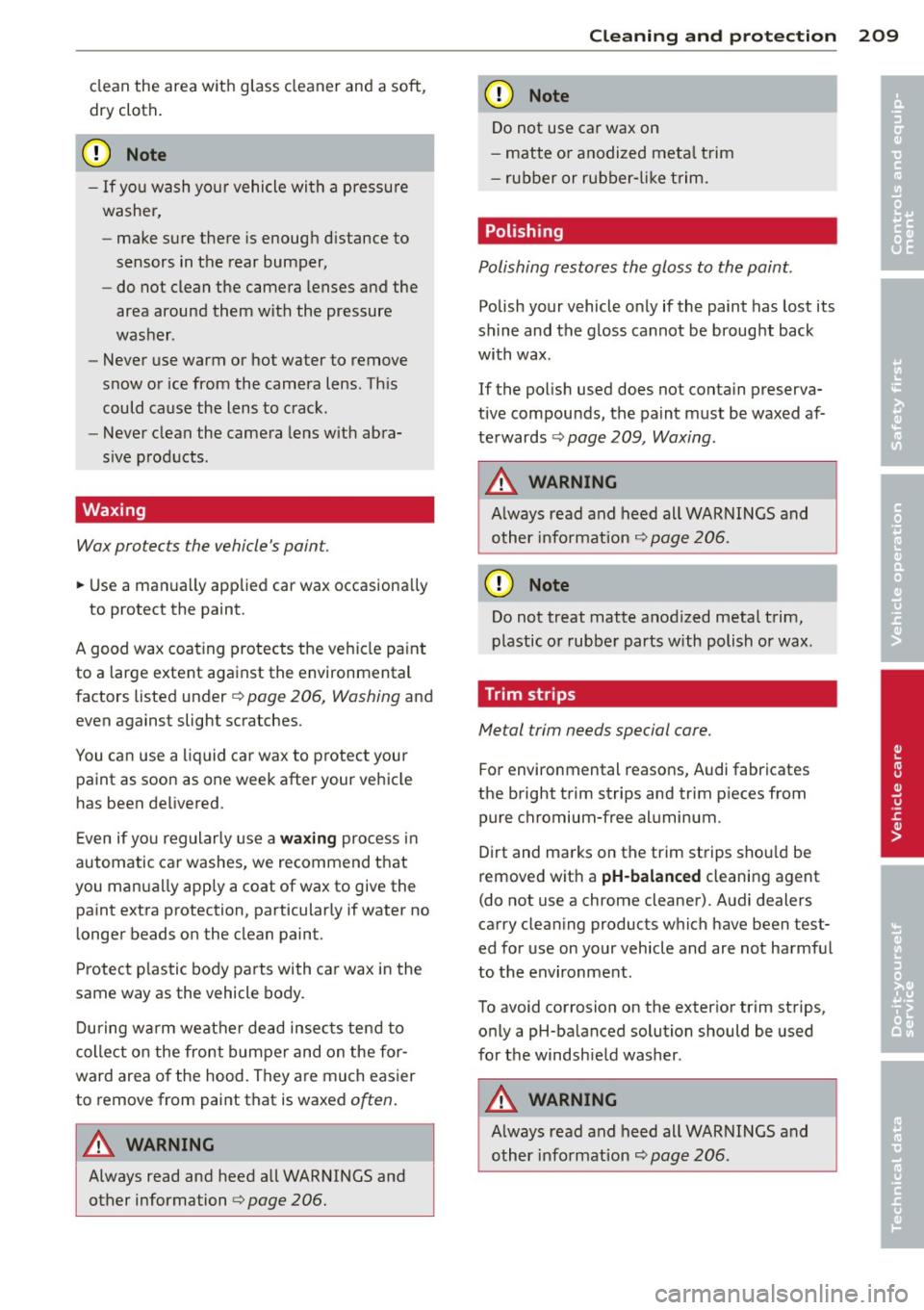

clean the area with glass cleaner and a soft,
dry cloth.
(D Note
- If you wash your vehicle wi th a pressure
washer,
- make sure there is enough d istance to
sensors in the rear bumper,
- do not clean the camera lenses and the
area around them with the pressure
washer .
- Never use warm or hot water to remove
snow or ice from the camera lens. Th is
could cause the lens to c rack.
- Never clean the camera lens w ith abra­
s ive products .
Waxing
Wax protects the vehicle's paint.
~ Use a manually app lied car wax occasiona lly
to protect the paint.
A good wax coating protects the vehicle paint
to a large extent against the environmental
factors listed under ¢ page 206, Washing and
even against slight scratches.
You can use a liquid car wax to p rotect your
paint as soon as one week after your ve hicle
has been de livered.
E ven if yo u regularly use a
waxing process in
automatic ca r washes, we recommend that
you man ua lly app ly a coat of wax to give the
pa int extra protection, particularly if water no
l onger beads on the clean paint.
Protect p lastic body pa rts with car wax in the
same way as the vehicle body.
D uring wa rm weat her dead insec ts tend to
collect on the front bumper and on the for­
ward area o f the hood. They are much easier
to remove from paint that is waxed o~en.
A WARNING
Always read and heed a ll WARNINGS and
other information
c> page 206.
Cleaning and protec tion 209
@ Note
Do not use car wax on
- matte o r anodized meta l trim
- rubber or ru bber- lik e t rim.
Polishing
Polishing restores the gloss to the paint.
Polish your vehicle o nly if the paint has lost its
sh ine and the gloss cannot be brought back
with wax.
If the polis h used does not conta in preserva­
tive compounds, the paint must be waxed af­
te rwards ¢page 209, Waxing .
_&. WARNING
Always read and heed all WARNI NGS and
other info rmation
c> page 206.
(D Note
Do not treat matte anodized metal trim,
plastic o r rubbe r parts with polish or wax.
Trim strips
Metal trim needs special care.
For environmental reasons, Audi fabricates
the bright trim strips and trim p ieces from
pure chromium-free aluminum.
Dirt and ma rks on the trim strips sho uld be
removed with a
pH -balan ced cleaning agent
(do not use a chrome cleaner). A udi dealers
carry clea ning products w hich have been test­
ed for use on your vehicle and are not harmf ul
to the environment.
To avoid corrosion on the exter ior trim st rips,
only a pH-ba lanced solution should be used
for the windsh ield washer .
_&. WARNING
Always read and heed all WARNI NGS and
other info rmat ion
c> page 206.
•
•

230 Check ing and filling
th e "min" and "max" markings. When the
engine is wa rm, the level may be slightly
above the "max" marking.
The location of the coolant expansion tank
can be seen in the engine compartment ill us­
tration ¢
page 224 .
To obtain an accurate read ing , the engine
must be switched
off .
The expans io n tank in you r vehicle is equipped
with an e lectric coolant level se nsor.
When the coolant level is too low, the warning light in the A uto-Check System ¢
page 15 will
i llum inate u nti l you add coolant and the level
has been restored to normal. Even though
there is an electric coolant level sensor , we
still recommend you check the coolant leve l
from time to time.
Coolant loss
Coolant loss may indicate a leak in the cooling
system. In the event of coolan t loss, the cool­
ing system should be inspected immedia tely
by your authorized Audi dealer. It is not
enough mere ly to add coolant.
I n a
se aled system, losses can occur only if
the boiling point of the coolant is exceeded as
a result of overheat ing.
A WARNING
T he cooling system is unde r pressure and
can get ve ry hot . Reduce the risk of sca ld­
ing from hot coolant by following these
steps.
- Turn off the engine and allow it to cool
down.
- Protect yo ur face, hands and arms from
escaping fluid and steam by cove ring the
cap with a large, thick rag.
- Turn the cap slowly and very carefu lly in
a counter-clockwise direction wh ile ap­
plying light, downward pressure on the
top of the cap .
- To avoid being b urned, do not spill ant i­
freeze or coolant on the exhaust system or hot eng ine parts . Under ce rtai n condi -
'
tions, the ethylene glycol in engine coo l­
ant can catch fire.
@ Note
Do not add any type o f radiato r leak sea l­
ant to your vehicle's engine coolant. Add ­
i ng radiator repa ir fluid may adverse ly af­
fect the funct ion and performance of your
cooling system and could result in damage not covered by your New Veh icle L imited
Warranty .
Adding coolant
Be very careful when adding engine coolant.
Before you check anyth ing in the engine com­
partment,
always read and heed all WARN­
INGS
c> .&. in Working in the engine compart­
ment on page
222 .
• Turnoff the engine .
• Let the eng ine cool down.
• Place a thick rag over the coolant expansion
tank
c> page 22 9, fig . 180 and carefully
tw ist t he cap co unter-clockwise c> ,& .
• Add coo lant .
• Twist the cap o n again
tightly.
Replacement engine coo lant must conform to
exact spec ificat ions ¢
page 229, Coolant .
Even in a n emerge ncy, if coo la nt addi-
t ive G 12++ , G12+ or G12 is not ava ilable , do
not use a d iffe ren t addit ive. Use plain water
instead unt il you can get the cor rect add itive
and can restore the correct ratio . This sho uld
be don e as soon as possible.
If you have los t a consider able amount o f
coolant, then you sho uld add cold ant ifreeze
and cold wate r on ly when the engine is cold.
Always use
new engine coo lant when refilling.
Do not f ill coolant above the "MAX" mark. Ex ­
cess coola nt w ill be fo rced o ut through the
pressure relief valve in t he cap when the e n-
gine becomes ho t.
Ill>

remain continuously illuminated. This se­
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illuminat­
ed, the system may not be able to detect or
signal low tire pressure as intended . TPMS
malfunct ions may occur for a variety of rea­
sons, including the installation of replace­ ment or alternate tires or wheels on the vehi­
cle that prevent the TPMS from functioning
properly . Always check the TPMS malfunct ion
tellta le after replacing one or more t ires or
wheels on your vehicle to ensure that the re­
placement or alternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Applies to vehicles: with tire pressure monitoring system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 189 Display : underinflatio n warning
Fig. 190 Display: System malfu nctio n
Using the ABS sensors, the tire pressure moni­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires . If the pressure decreases in one
or more tires, this is indicated in the instru-
Tires and wheels 257
ment cluster with a warning symbol [I) and a
message
r::!) fig. 189.
The tire pressure monitoring system must be
reset via MMI each t ime the pressures are ad ­
justed (e.g. when switching between partial
and full load pressure) or after changing or re­
placing a tire on your vehicle
r::!) page 258. You
can find the recommended tire pressures for
your vehicle on the label on driver's side 8-pil­
lar
r::!) page 242 .
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if:
- the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- the tir e pressure was changed, wheels rotat-
ed or replaced but the TPMS was not reset
r::!) page 258 .
Warning symbols
[I) Loss of pressure in at least one tire co& .
Check the tire or tires and replace or repa ir if
necessary. The indicator light
[I) in the instru­
ment cluster also illuminates
r::!) page 11.
Check/correct the pressures of all four tires
and resetTPMS via MMI.
lli§ffl (Tire Pressure Monitoring System) Tire
pressure! System malfunction.
If llilffl appears after switching the ignition
on or while driving co
fig. 190 and the indica­
tor light
[I) in the instrument cluster blinks
for approximately one minute and then stays
on, there is a system malfunction . See your
authorized Audi dea ler as soon as possible .
A WARNING
-If the tire pressure indicator appears in
the instrument cluster display , one or
more of your tires is significant ly under­
inflated . Reduce your speed immediately
and avoid any hard steering or braking
maneuvers. Stop as soon as possible and
check the tires and their pressures . In­
flate the tire pressure to the proper pres-
sure as indicated on the vehicle's tire .,.

and the hub. R emove a ll dirt from these
su rfaces before remo unt ing the wheel.
Tires with unidirectional tread design
Tires with unidirectional tread de sign must be
mounted with their tread pattern pointed in
the right direction.
Using a spare tire with a tread pattern
intended for use in a specific direction
When using a spa re tire w ith a tread patte rn
inte nded for use in a specific direction, please
note t he following:
- T he direction o f rotation is marked by an a r­
r ow on the side of the tire.
- If the spare tire has to be install ed in the in­
correct di rection, use the sp are tire only
temporar ily since the t ire will not be a ble to
achieve its optimum pe rformance character­
ist ics with regard to aquaplaning, noise and
wear.
- We recommend that you pay particular at­
tent ion to this fact during wet weat he r and
t h at you adjust your speed to matc h road
condit ions .
- Replace the flat tire w ith a new one and
have it installed on your ve hicle as soon as
poss ib le to restore the hand ling advantages
of a uni direct io na l ti re .
Notes on wheel changing
Pl ease rea d the information ¢ page 2 49, New
t ires and repl acing tires and wheels
if you are
goi ng to use a s pare t ire which is differen t
from the tires on your ve hicle.
Afte r you cha nge a tire:
- Check the tire pressure on the spare imme­
diately after installation .
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as
possible by your authorized Audi dealer or
a qualified service station .
- With steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of
90 ft lb (120 Nm). What do I do now? 267
-
If you notice that the wheel bolts are cor­
roded and difficult to turn while changing
a tire , they should be replaced before you
check the t ightening torque.
- Replace the flat ti re with a new one and
have it installed on your vehicle as soon as
possible. Remount the wheel cover.
Until then , drive with extra care and at re­
duced speeds.
A WARNING
- I f you are g oing to eq uip your vehicle
wit h tires o r rims which differ from those
which were factory installed, then be sure to read the information
¢ pag e 249,
N ew tires and replacing tires and
w heels.
- Always ma ke sure t he damag ed wheel o r
e ven a fla t tire an d the jack a nd tool ki t
a re prope rly se cu red in t he luggage co m­
p art me nt and a re not loo se in the pas­
senger compartment .
- I n an a ccide nt or sudde n maneuver they
could fly forward, injuring anyone in the
veh icle.
- Always s tore da mage d wheel, j ack and
t oo ls se curely in the lugg age comp art­
men t. Othe rwise, in an accident o r su d ­
den maneuver they co uld f ly forwa rd,
causing inju ry to passengers in the veh i­
cle.
- Do not use commerc ia lly available t ire
sealants. Othe rwise, the electrical com­
ponents of the tire pressure mon itor ing
system * will no lo nger work p roperly and
the sensor for the tire p ress ure monito r­
i n g sys tem * will have to be re placed by a
qua lified wor kshop. •
•

Fuse panel@ (brown)
No. Equ ipment
1 H eadlight contro l switch
I 2
Ignition lock (key identifica-
tion)
3
Rear door control mod ule
(driver's side)
5 Horn
6 Interior lights (head liner)
Steering column lever, mul-
8
tifunction steering wheel
controls, steering wheel
heating
10
Power steering column ad-
j ustment
11 Driver door control module
12
D iagnostic co nnector, light/
rain sensor
Power steering column ad-
justment
15
P ower stee ring, A/C com-
pr esso r
16 Brake booster (VS FSI)
Fuse panel © (black )
No. Equipment
1 F ront seat heating
2 Windshield wiper
3 Fr ont exterior lighting
4 Sun roof
5 Dr iver power window
6 Driver seat (pneumatic)
7 Panoramic sunroof
8 Dynamic steering
9 Fr
ont exterior lighting
I 10
Windshield/headlight *
washe r system
11
Rear power w indow (driver's
side)
12 Panoramic sunroof
Amp s
5
5
7,5 15
7,5
10/5
5
7,5 10
25
20
15
Amps
30 30
30
20
30
15
20 35
30
35
30
4 0
Fu se s and bulb s 269
Front passenger side cockpit fuse
assignment
Fi g. 2 07 Fro nt passe nger s id e co ckpit: f use pa nel w it h
plast ic brac ket
Fuse panel ® (black)
No . Equipment Amps
1 Anti-theft alarm system 5
2
Transmission control mod-
15 ule
3 Front climate control fan 40
4
Engine supply 35
6
Engine cont ro l module 5
7
Front passenger door con-7,5
t rot module
8
Fron t passe nger power w in-
30 dow
9 ESP control module 10
1 0
E S P cont ro l modu le 2 5
11
Right rear power window 30
12
Fron t passe nger seat 15

2 70 Fu ses and bulb s
Luggage compartment fuse assignment
Fig. 208 Luggage co mpar tment: fuse panel with plastic b racket
Fu se pan el A (black ) Fuse panel
@ (b lac k)
I
No.
Equ ipment Amps No
. Equipment
Amps .
l!l button, data logger, diag-
1 nostic con
nector, adaptive
5 10
Rear seat heating, refrigera-
5 j tor, interior rearview mirror
lighting system 11 Dynam
ic steer ing 5
2 Networking gateway
5 12
Selector lever, BCM-2
5
3 adaptive air suspension
5 13 Audi side ass
ist 5
4 Parking system 5 14 Engine control module
5
5 Steering column
lever
5 1
5 Starter 40
I 6 Suspension control system
5
sensor left headlight/Headlight
'
16
10/5
range control system
.
7 Belt tensioners, airbag con-
5
trol module Fuse pan el@ (red)
No. Equipment Amps
Heated washer fluid nozzles,
Homelink (garage door
8 opener), night vision system
5
control module, sport differ- 1
left reversib
le be lt tens ioner
25
2 II
R_ight reversible belt ten-
25
s1oner
ential, ioniser 3
Starter diagnos
is
5
9
Electromechan ica l park ing
5
brake con tro l module 4 DC/DC converter
7,5
5 Adaptive cruise control 7,5

Fuse panel@ (red)
No. Equipment
= '
I 6 Right headlight (headlight
with adaptive light)
I
7 ESP control module
8
9 Adaptive cruise control
Transmission control mod-
10 ule
11 Climate control system sen­
sors
Fuse panel @ (brown)
No
. II Equipment
Electromechan ical parking
1 brake
2 Suspension control system
sensor
Right rear door control mod-
3 ule
4 Smart-Modul Tank
5 Front climate control system
controls
6 Rear climate control system
controls
7 Networking gateway
8 Refrigerator
Interface for spec ial func-
9 tions
12 Selector lever
13 Ambient lighting
14 Rear exterior lighting
15 Fuel pump
16 Electromechanical parking
brake
Fuse panel @ (black)
Equipment
3 Rear sockets*
5 adaptive air suspension
6 115-V socket
7 Electromechanical parking
brake
II
Amps
10
s
5
10
5
5
Amps
5
5
7,5 5
15
10 5
15
5
10
10
20
25
30
Amps
20
15
25
30
=
Fuses and bulbs 271
Fuse panel @ (black)
No. Equipment
8 Rear seat heating
9 Rear exterior lighting
10 Rear
climate control system
blower
Rear sun shade, closing aid,
11 luggage compartment lock,
keyless
go/entry, fuel filler
door
12 luggage compartment lid
control module
Fuse panel E (red)
No. Equipment
1 Rear
seat adjustment but-
tons
3 Left rear seat
(pneumatics)
5 Trailer hitch control modu le*
6 Left rear seat
7 Right rear seat
8 Trailer hitch control module*
9 Trailer hitch control module*
10 Right rear seat (pneumatics)
Fuse panel ® (brown)
No. Equipment
1 Radio receiver/sound ampli-
fier
Sound amplifier, Bang&
2 Olufsen Advanced Sound
System
Rear Seat Enterta inment, ra-
3 dio receiver/sound amplifier
Automatic dimming interior
5 rearview mirror, rearview
camera (parking aid)
6 DVD changer
7 TV tuner
8 MMI unit/drives
9
Instrument cluster, analog
clock
10 MMI Display
Amps
25
20
20
20
30
Amps
s
7,5
20
30
30
20
15
7,5
30
30 10
5
5
5
7,5
5
5
•
•
....
