2011 AUDI A5 COUPE display

Driver information display
Driver information display
Introduction
General notes
The driver information display inside the instrument
cluster provides you, the driver, with much useful infor­
mation .
Fig. 8 Inst rument
cluster: center d isplay
Information from the driver information system is shown in the
display in the center of the instrument cluster.
When you tu rn on the ign ition and while you are driving, some func­
tions and vehicle components are scanned for their operating status. Malfunctions or required service procedures are signaled audibly and
shown by red and yellow lighted symbols and reminders to the driver
in the display .
T he driver is a lso shown information about radio and CD operation
and directions for the navigation system*. You can find additional
information on these subjec ts in the MMI manual.
The illustrations in the instrument panel display differ in some of the
vehicles.
The driver information system provides the follow ing functions: Sound system display
Outside air temperature
Gearshift indicator*
Digital
speedometer
Open door- and luggage compartment warn ing
Service interval display
Auto Check system Driver information
Speed warning
T rip computer*
Gearsh ift selector positions
(Automatic transmission*)
Adaptive cruise control*
[ i ] Tips
=::, page21
=:>page21
=:> page22
=:> page22
=:>page23
=:> page23
=:> page31
=:>page31
=:> page30
=:> page24
=:>page 152
In the event of a malfunction either a red or yellow icon appears in the
display. Red symbols ind icate
Danger => page 32. Yellow symbols
ind icate a
Warning=> page 36. •

Sound system display
Fig. 9 Di sp la y: s oun d
s ystem
If priority 1 or priority 2 fau lts are not shown by the Auto Check
Control, the name of the radio station you are tuned to or the
frequency and the recept io n range are shown in the upper area of the
display.
When the C D is in use, the title of the track be ing p layed is shown. The
CD changer * displays the number of the current CD (CDl to CD6). •
Outside temperature display
Fig . 10 D isplay :
ou tside temper ature
At temperatures below 41 °F ( +5 °C), a snowflake symbol appea rs in
front of the tempe ra tur e display.
It is intended to remi nd the dr ive r
to pay special attention to
ice on the road .
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Driver information display
If your vehicle is stationary or if you are drivi ng at very low speeds, the
t empe ra tu re disp layed m ay be s light ly hig her t han the ac tual
temperature outside due to the heat rad iat ing from the engine .
T he unit of measurement for the temperature can be set in either °F
or in °Con the MM I* or on the radio co ntrol unit. The ou ts ide tempe r­
ature display automatically shows the unit o f measurement that has
been set. For ad ditio nal info rmation, see t he MM I* or the r adio
instruction manual.
& WARNING
• Never use the outside temperatu re display to determine if a
road surface i s ic y or not . Keep in mind that road surfaces, espe­
cially bridges and o verpasses , could be ice covered and slippery
even at an out side temperature above 41 °F (+5 °C ).
• Always remember , even if the "snowflake " symbol (ice
warning ) does not appear in the di splay, black ice could be on the
road.
• Always reduce your speed and drive with special care in cold
weathe r conditions when the chance of encountering icy road
s urfaces increa se s.
[I) Tips
• If the vehicle is s tat io nary, o r if you are d riving a t a very low speed,
the temperature shown in the disp lay might be slightly higher than
t he act ual o utside temperature. This is caused by the heat being radi­
ated from the engine. •
Vehicle care Do-it-yourselt service iTechnical data

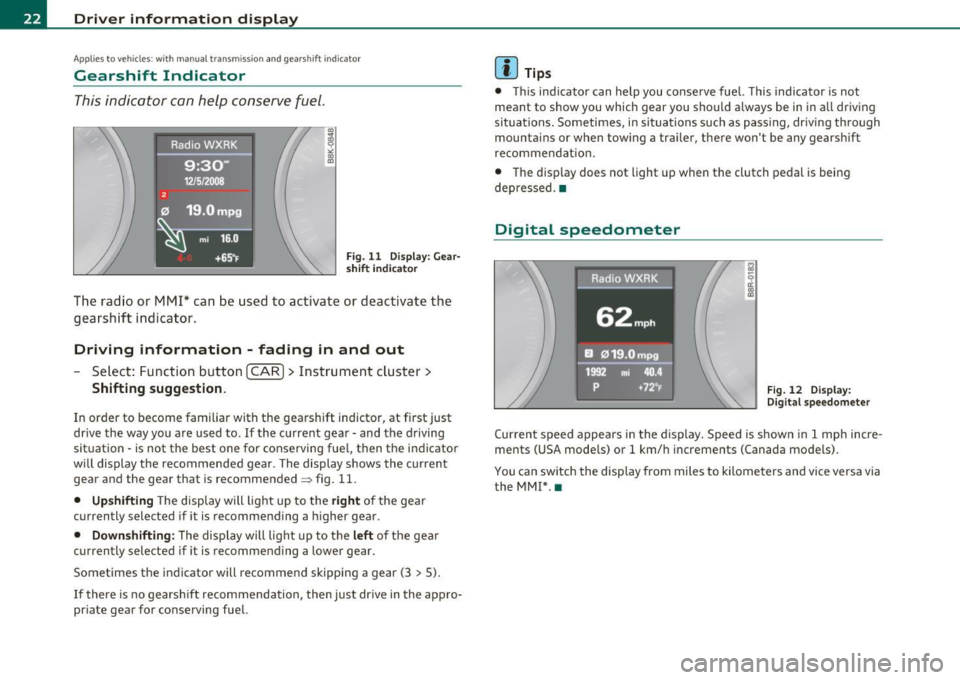

Driver information display
Appli es to veh icles : wi th manua l tra nsm iss io n and gea rshift indic ator
Gearshift Indicator
This indicator can help conserve fuel.
Fig. 11 Display: Gear­
sh ift i ndica tor
The radio or MMI* can be used to activate or deactivate the
gearshift indicator .
Driving information - fading in and out
Select: Function button [CAR]> Instrument cluster>
Shifting suggestion.
In order to become familiar with the gearshift indictor, at first just
drive the way you are used to . If the current gear· and the driving
situation· is not the best one for conserving fuel, then the indicator
will display the recommended gear . The display shows the current
gear and the gear that is recommended~ fig . 11.
• Upshifting The display will light up to the right of the gear
currently selected if it is recommending a higher gear.
• Downshifting : The display will light up to the left of the gear
currently selected if it is recommending a lower gear.
Sometimes the indicator will recommend skipping a gear (3
> 5).
If there is no gearshift recommendation, then just drive in the appro­
priate gear for conserving fuel.
[I] Tips
• T his ind icator can help you conserve fuel. This indicator is not
meant to show you which gear you should always be in in all driving
si tuations. Sometimes, in situations such as passing, driving through
mountains or when towing a trailer, there won't be any gearshift
recommendat ion.
• The display does not light up when the clutch pedal is being
depressed. •
Digital speedometer
Raaio,WXRK
62mph
EJ 019.Ompg
1992 mi 40.4
p +72°F Fig. 12 Display:
Digital speedometer
Current speed appears in the display. Speed is shown in 1 mph incre­
ments (USA models) or 1 km/h increments (Canada models) .
You can switch the display from miles to kilometers and vice versa via the MM!* .•

Open door or trunk Lid warning
The pictogram alerts you when doors or the trunk lid have
been left open.
Fig . 1 3 Disp lay: Open
door- and trunk lid
warning
The Open Door/Trunk Lid warning displays if even one door, the hood
or the trunk lid is open. This symbol also shows
which door or lid has
not been closed~ fig. 13 .
As soon as the door, the hood and the trunk lid are closed properly, the door and trunk lid warning turns off and the selected driver infor­
mation system functions are displayed again .•
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Driver information display
Service interval display
The service interval display reminds you when your next
service is due.
Fig. 14 Display:
Service interval display
The schedule for the next oil change or inspection is calculated auto ­
matically and displayed accord ingly. The display works in two stages :
Service reminder
30 days before the next service is due, a service reminder appears in
the display when you turn on the ignition~ fig. 14.
After about 5 seconds the display switches back to normal. The
distance and time remain ing are updated each time the ign ition is
turned on until the date due for service is reached.
Service due
When the due date for service is reached, the message Service due!
appears in the instrument cluster immediately after you turn on the
ignition. Additionally, a warning tone sounds. After about 5 seconds
the display sw itches back to normal.
Calling up the service schedules
If or when an oil change or inspection is due, can be shown in the
radio or MMI* display by selecting the service interval display in the
car menu. Select
I CAR ]> Service interval display. .,,
Vehicle care Do-it-yourselt service iTechnical data

Driver information display
Resetting the service interval display
Your authorized Audi dea ler will reset the corresponding service
schedule after perform ing the appropriate service on your vehicle .
You a lso have the possibility to reset the oi l change schedule after
having performed an oil change according to Aud i specifications .
Select
I CAR I> Service interval display> Reset oil change interval.
0 Note
If you disconnect the battery te rm inals, no calculations c an be made
for the service interval display dur ing this time and no service
reminder will appear . Remember that observing the proper service
interva ls is v itally important to extending the life of your veh icle,
particularly the engine, and maintaining its value . Even if the mileage
dr iven is low , the max imum per iod of one yea r from one se rvice to the
next must not be exceeded .
[ i ] Tips
• Do not reset the display between oil changes, otherwise the
display will be incorrect .
• The information in the Service Reminder remains stored even
when the vehicle battery is disconnected .•
Trip computer
Introduction
The trip computer gives you information on current and
average fuel mileage, average speed, fuel range and
driving time .
Fig. 15 Trip computer
di sp lay : Average fuel
mileage
The follow ing information is conti nuously evaluated by the trip
computer and can be displayed sequentially in the instrument cluster
display :
Fuel range
The estimated cruising range in miles (km) appears in the display.
Thi s tells you how far your vehicle will be able to travel on the current
tank of fuel and with the same driv ing style . The display changes in
increments of 6 miles (10 km).
The cruis ing range is ca lculated based on the fuel consumpt ion for
the last 18 miles (30 km). If you drive conservatively, the cruising
range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km) s ince you last cleared
the memory appears in this d isp lay. You can use this d isplay to adjust
your dr iving tech nique to achieve a des ired mileage. .,,.

Current fuel mileage
The instantaneous fuel consumption in miles per gallon (l/100 km) is
show n in this display . You can use this disp lay to adjust your driv ing
technique to achieve a desired mileage.
Fuel consumption is recalculated at intervals of 33 yards (30 meters).
Th is display switches to gallons/hour (liters/hour) when the vehicle is
not moving .
Average speed
The average speed in mph (km/h) since the last time the display was
reset appears in the display.
Elapsed time
The length of time that you have been driving since you last reset the
memory appears in this display.
Distance
The distance that has been covered since the last time the memory
was cleared appears in the display .
[I) Tips
• Fuel consumptions (average and current), range and speed are
displayed in metric units on Canadian models.
• All stored values will be lost if the vehicle battery is
disconnected .•
Controls and equip ­
ment Safety first
Driver information display
Memories
The trip computer is
equipped with two fully automatic
memories as well as an efficiency program*.
Fig . 16 Trip computer
display: memory level
1
You can switch between the trip computer 1 and 2 and the efficiency
program* by pressing the [
RESET] button @=> page 26, fig . 17 .
You can tell which memory level is currently active by the number or
the sign in the display => fig. 16. The data from the single-trip
memory (memory leve l 1) is being displayed if a
1 appears in the
display . If a
2 is shown, then the data from the total -trip memory is
being displayed (memory level 2). The fuel pump nozzle
ii indicates
the efficiency program*=>
page 27.
Single-trip memory (Trip computer 1)
The sing le-trip memory stores the trip information from the time the
ignition is turned on until it is turned off. If the trip is continued
within 2 hours from the time the ignition was turned off, the new
data will be included in the calculation of the current trip informa­
tion.
If the trip is interrupted for more than 2 hours the memory is
reset automatically.
Total-tr ip memory (Trip computer 2)
Unlike the single-trip memory, the total-trip memory is not reset
automatically. This permits you to evaluate your driving data for the
entire pe riod between manual resets. _..
Vehicle care Technical data

Driver information display
Efficiency program*
The efficiency program can he lp you to use less fuel=> page 27. •
Operation
The trip computer is controlled by two switches on the
windshield wiper lever .
B
Fig. 17 Windshield
wiper l eve r: controls
for the trip computer
-To display the trip computer memory levels, press the
[ RESET) button @=> fig. 17 repeatedly until the desired
memory level is shown in the display.
- To display trip information within a memory level, press
the top or bottom part of the function se lection switch @.
The trip computer will not operate unless the ignition is on. When you
turn on the ignition, the function that was in use when yo u last turned
the ignition off will be d isplayed.
In addition to information on the trip computer (trip computer 1 and
2 and the efficiency program*), the dig ital speedometer and informa­
tion regarding the navigation system* can also be displayed. To
switch the d isp lay between the different informat ion, tap the
[RESET I button @ briefly.
Setting values to zero
To delete one current value from the trip computer, select the
desired function and press the
I RESET I button @ for at least one
second. The following values can be set to zero
individually :
• Average fuel mileage
• Average speed
• Elapsed time
• Distance
All curre ntly displayed values are deleted in the effic iency program*.
In addition,
all the values in the single-trip or the total-trip memory
can be deleted simultaneous ly =>
page 26 .
(I) Tips
All stored values will be lost if the vehi cle battery is disconnected. •
Basic Settings for the trip computer
The radio or MM!* operating unit is used for setting the
trip computer's basic settings.
-Select: Function button [CARI> Instrument cluster > On-
board computer 1
or On-board computer 2.
Th e values in the single -trip or the total-trip memory can all be reset
to zero at the same time under
Reset in the menu.
In addition, you can determine what information from the trip
computer should be shown in the instrument cluster display.
If one
of the p ieces of driver information is turned
Off , that driver informa­
tion will not be shown in the display. The information w ill continue to
be calculated by the trip computer and can be turned back
On at any
t ime. ._

(]] Tips
The d riving information in the efficiency program* is also reset to
zero with the single-trip memory .•
Efficiency program
App lies to v ehicl es: w ith tri p comp uter with effic iency p rogram
Description
Fig . 18 Display: effi­
ciency p rog ram
- Press the I RESET] button@~ page 26, fig . 17 repeat -
edly until the efficiency program appears in the display.
The efficiency program can help you to use less fuel. It evaluates
driving information in reference to fuel consumption and shows
other equipment influencing consumption as well as sh ift recom­
mendations. Fuel economy messages~
page 28 provide tips for effi­
cient driving .
The efficiency program uses distance and consumption data from trip computer 1. If the data are deleted in the effic iency program, those
values are also reset in trip computer 1. •
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Driver inf ormation display
App lies to ve hicles : with manual t ransmiss ion an d trip com pute r wi th eff icie ncy program
Enhanced shift indicator
Fig. 1 9 Display:
enhanced shift indi­
cato r
-In the efficiency program, press the function selection
switch ~
page 26, fig. 17 ® repeatedly until the
enhanced shift indicator appears in the display.
The efficiency program also has an enhanced shift indicator . This
enhanced shift ind icator follows the same concept as the "standard"
shift indicator~
page 22. The selected and the recommended gears
are highlighted in colors like a traffic light.
The color of the circle indicates if the most suitable gear is engaged or if you should shift up or down.
Green circle without or with a
gear
Yellow circle~ fig. 19
Red circle
0 Not e
No gear or the most suitable
gear is engaged
Shift up or down one gear
Shift up two gears
This enhanced shift indicator can help you conserve fuel. It is not designed to recommend the correct gear in all driving situations.
Only the driver can decide which gear is correct in ce rtain dr iving situ -...
Vehicle care Do-it-yourselt service iTechnical data
