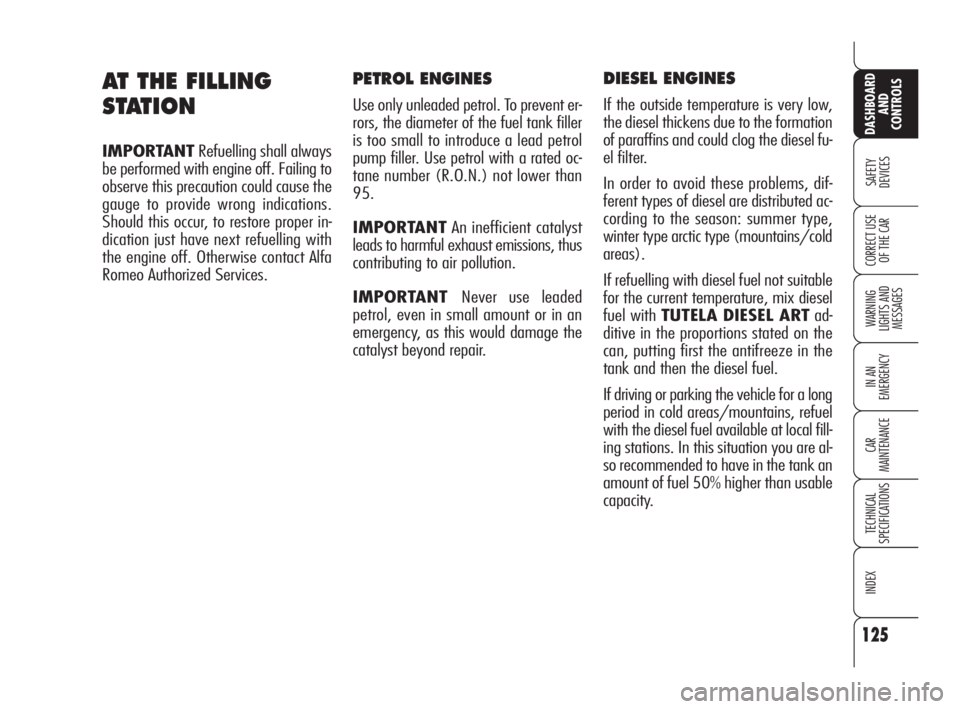

PETROL ENGINES
Use only unleaded petrol. To prevent er-
rors, the diameter of the fuel tank filler
is too small to introduce a lead petrol
pump filler. Use petrol with a rated oc-
tane number (R.O.N.) not lower than
95.
IMPORTANTAn inefficient catalyst
leads to harmful exhaust emissions, thus
contributing to air pollution.
IMPORTANT Never use leaded
petrol, even in small amount or in an
emergency, as this would damage the
catalyst beyond repair.
AT THE FILLING
STATION
IMPORTANTRefuelling shall always
be performed with engine off. Failing to
observe this precaution could cause the
gauge to provide wrong indications.
Should this occur, to restore proper in-
dication just have next refuelling with
the engine off. Otherwise contact Alfa
Romeo Authorized Services.
DIESEL ENGINES
If the outside temperature is very low,
the diesel thickens due to the formation
of paraffins and could clog the diesel fu-
el filter.
In order to avoid these problems, dif-
ferent types of diesel are distributed ac-
cording to the season: summer type,
winter type arctic type (mountains/cold
areas).
If refuelling with diesel fuel not suitable
for the current temperature, mix diesel
fuel with TUTELA DIESEL ARTad-
ditive in the proportions stated on the
can, putting first the antifreeze in the
tank and then the diesel fuel.
If driving or parking the vehicle for a long
period in cold areas/mountains, refuel
with the diesel fuel available at local fill-
ing stations. In this situation you are al-
so recommended to have in the tank an
amount of fuel 50% higher than usable
capacity.
083-128 Alfa 159 GB 3-12-2009 14:09 Pagina 125

126
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
FUEL FILLER CAP
The fuel filler cap is unlocked when cen-
tral door locking is off and it is auto-
matically locked when activating the
central door locking.
Opening
Open the flap A-fig. 109by means
of front part (see figure), turn cap Ban-
ti-clockwise and extract it. The cap has
a device Cretaining it to the flap so it
cannot be lost. When refuelling, attach
the cap to the flap, as illustrated.
Closing
Fit cap Bin its housing and turn it clockwi-
se until it clicks once or more, then close
the flap A.
When refuelling, position the cap on the
device inside the flap as shown in the
figure.IMPORTANTThe sealing of the tank
may cause light pressurising in the tank.
A little breathing off, while slackening
the cap, is absolutely normal.
The car must only be
filled with diesel fuel for
motor vehicles, in com-
pliance with European Standard
EN590. The use of other prod-
ucts or mixtures may irrepara-
bly damage the engine with in-
validation of the warranty due
to the damage caused. In the
event of accidentally filling with
another type of fuel, do not
start the engine and empty the
tank. If the engine has been run
even for only a very short time,
in addition to the tank, it is al-
so necessary to drain out the
whole fuel circuit.
REFUELLING
To guarantee full tank filling, carry out
two refuelling operations after the first
click of the fuel delivery gun. Avoid fur-
ther topping up operations that could
cause damages to the fuel system.
A
B
C
A0E0799mfig. 109
083-128 Alfa 159 GB 3-12-2009 14:09 Pagina 126

127
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
PROTECTING
THE ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
❒ three-way catalytic converter;
❒ Lambda sensor;
❒ fuel evaporation system.
In addition, do not let the engine run,
even for a test, with one or more spark
plugs disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒ diesel particulate filter (DPF) (where
required).
EMERGENCY OPENING OF
THE FUEL FILLER CAP
In case of failure, the fuel filler cap can
be opened by pulling string set on the
right side of the boot fig. 110.
A0E0130mfig. 110
Do not put naked flames
or lighted cigarettes
near the fuel filler hole as there
is danger of fire. Do not bend
too close to the hole either so
as not to breathe in harmful
vapours.
WARNING
083-128 Alfa 159 GB 3-12-2009 14:09 Pagina 127

128
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
Since this filter physically traps particu-
lates, it shall be cleaned (reclaimed) at
regular intervals by burning carbon par-
ticles. Reclaiming procedure is controlled
automatically by the engine control unit
according to the filter conditions and the
conditions of use of the car. During re-
claiming the following phenomena could
take place: idling slight increase, fan ac-
tivation, slight smoke increase, high ex-
haust temperatures. These situations
shall not be considered as faults and they
do not affect car performance and envi-
ronment. DIESEL PARTICULATE FILTER
(DPF) (where required)
The Diesel Particulate Filter is a me-
chanical filter, integral with the exhaust
system, that physically traps particulate
present in the exhaust gases of Diesel
engines.
The diesel particular filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current /
future law regulations.
During normal use of the car, the engine
control unit records a set of data (e.g.:
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulates has been trapped by the fil-
ter.
During normal service
the diesel particulate
filter (DPF) (where required)
reaches high temperatures.
Do not therefore park the car
over inflammable materials
(grass, dry leaves, pine nee-
dles, etc.): fire hazard.
WARNING
083-128 Alfa 159 GB 3-12-2009 14:09 Pagina 128

129
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
SAFETY
DEVICES
S S
A A
F F
E E
T T
Y Y

D D
E E
V V
I I
C C
E E
S S
SEAT BELTS ...................................................... 130
S.B.R. SYSTEM ................................................ 131
PRETENSIONERS............................................... 132
CARRYING CHILDREN SAFELY .............................. 135
PRESETTING FOR MOUNTING THE
“UNIVERSAL ISOFIX”CHILD RESTRAINT SYSTEM..... 140
FRONT AIR BAGS............................................... 142
SIDE AIR BAGS (Side bag - Window bag) ............. 145
129-148 Alfa 159 GB 8-04-2009 10:50 Pagina 129

130
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
SAFETY
DEVICES
Never press button C
when travelling.
Through the reel, the belt automatically
adapts to the body of the passenger
wearing it, allowing freedom of move-
ment.
When the car is parked on a steep slope
the reel mechanism may block; this is
normal. The reel mechanism prevents
the webbing coming out when it is jerked
or if the car brakes sharply, in a collision
or when cornering at high speed.

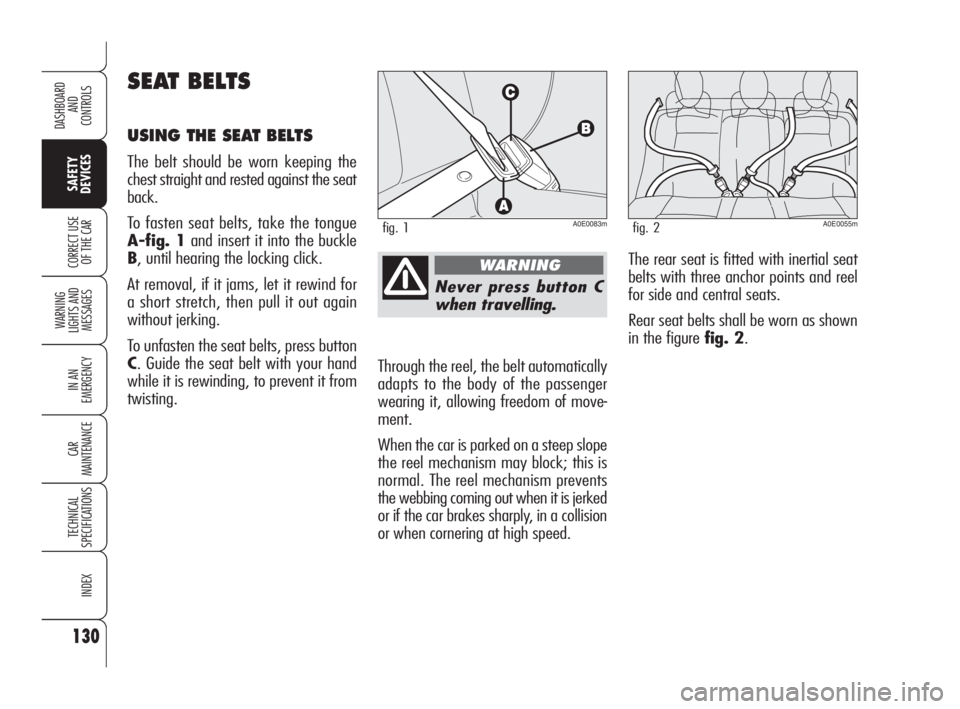

SEAT BELTS
