2011 Acura MDX buttons

ꭧ: If equippedDRIVER'S FRONT
AIRBAG (P. 10, 29)
DRIVING POSITION
MEMORY SYSTEM
(P. 166)
POWER DOOR LOCK
MASTER SWITCH
(P. 139)
PARKING BRAKE
RELEASE HANDLE
(P. 163)
POWER WINDOW
SWITCHES
(P. 158)
FUEL FILL DOOR
RELEASE BUTTON
(P. 419)
POWER TAILGATE
BUTTON (P. 141)
HOOD RELEASE
HANDLE (P. 421) PARKING BRAKE
PEDAL (P. 163)AUXILIARY INPUT
JACKS
ꭧ(P. 336)HEADPHONE
CONNECTORS
ꭧ(P. 337)
INSTRUMENT PANEL
INDICATORS (P. 65)
HOMELINK BUTTONS
(P. 360)
MOONROOF SWITCH
(P. 161) MIRROR CONTROL
AUTO BUTTON
(P. 163)
PASSENGER'S
FRONT AIRBAG
(P. 10, 29)
CLIMATE CONTROL
SYSTEM (P. 180)
AUDIO SYSTEM
(P. 190) AUTOMATIC
TRANSMISSION
(P. 437)
REAR CLIMATE
CONTROL SYSTEM
(P. 185)
GAUGES (P. 76)
AC POWER OUTLET
(P. 176)
USB ADAPTER
CABLE
ꭧ(P. 277)
AUXILIARY INPUT
JACKS (P. 304)
CONTINUED
Your Vehicle at a Glance
3
Your Vehicle at a Glance
10/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ 2: If equipped
ꭧ 3: Refer to the navigation system manual. For how to operate
Bluetooth
®HandsFreeLink by voice, see page 379.
BLIND SPOT INFORMATION
SYSTEM (BSI) OFF BUTTON
ꭧ2
(P. 476)VEHICLE STABILITY
ASSIST SYSTEM
OFF SWITCH
(P. 468)
MIRROR CONTROLS
(P. 164)BSI ALERT INDICATOR
ꭧ
2
(P. 473)
COLLISION MITIGATION
BRAKING SYSTEM ™(CMBS ™)
OFF BUTTON
ꭧ 2
(P.461)
HEADLIGHT WASHER
SWITCH
ꭧ 2
(P. 126)
HORN
ꭧ1
STEERING WHEEL
ADJUSTMENTS
(P. 133) HEADLIGHT/TURN SIGNAL/
FRONT FOG LIGHTS
(P. 127)
STEERING WHEEL
AUDIO CONTROLS
(P. 302) WINDSHIELD
WIPERS/WASHERS
(P. 125)
INSTRUMENT PANEL
BRIGHTNESS
(P. 132)
PASSENGER AIRBAG
OFF INDICATOR
(P. 36)HAZARD WARNING
BUTTON
(P. 131)
REAR WINDOW
DEFOGGER
(P. 131) ACCESSORY POWER
SOCKETS
(P. 175)
SEAT HEATER SWITCHES
(P. 156) /
SEAT HEATER AND SEAT
VENTILATION BUTTONS
ꭧ 2
(P. 157)
ACTIVE DAMPER
SYSTEM SWITCH
ꭧ 2
(P. 478)
CRUISE CONTROL BUTTONS (P. 342) /
ADAPTIVE CRUISE CONTROL (ACC)
BUTTONS
ꭧ
2
(P. 350)
PADDLE SHIFTERS
(P. 441)
DISTANCE
BUTTONꭧ2
(P. 354)
BLUETOOTH
HANDSFREELINK
BUTTONS (P. 363) VOICE CONTROL
BUTTONS
ꭧ
3
Your Vehicle at a Glance410/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

ꭧ: If equipped
DRIVING POSITION
MEMORY SYSTEM
(P. 166)
POWER DOOR LOCK
MASTER SWITCH
(P. 139)
PARKING BRAKE
RELEASE HANDLE
(P. 163) POWER WINDOW
SWITCHES
(P. 158)
FUEL FILL DOOR
RELEASE BUTTON
(P. 419)
POWER TAILGATE
BUTTON (P. 141) HOOD RELEASE
HANDLE (P. 421) PARKING BRAKE
PEDAL (P. 163)
AUXILIARY INPUT
JACKS
ꭧ(P. 336)HEADPHONE
CONNECTORS
ꭧ
(P. 337) REAR CLIMATE
CONTROL SYSTEM
(P. 185)
AUTOMATIC
TRANSMISSION
(P. 437)
AUDIO SYSTEM
(P. 190) CLIMATE CONTROL
SYSTEM (P. 180) MIRROR CONTROL
AUTO BUTTON
(P. 163)
MOONROOF SWITCH
(P. 161)
HOMELINK BUTTONS
(P. 360)
INSTRUMENT PANEL
INDICATORS (P. 65)
GAUGES (P. 76)
AC POWER OUTLET
ꭧ
(P. 176)
AUXILIARY INPUT
JACKS
ꭧ(P. 304)
USB ADAPTER CABLE
ꭧ
(P. 277)
Control Locations6410/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

ꭧ1: If equipped
ꭧ 2: To use the horn, press the center pad of the steering wheel.
ꭧ 3: Refer to the navigation system manual. For how to operate
Bluetooth
®HandsFreeLink by voice, see page 380.
BLIND SPOT INFORMATION
SYSTEM (BSI) OFF BUTTON
ꭧ 1
(P. 476)VEHICLE STABILITY
ASSIST SYSTEM
OFF SWITCH
(P. 468)
MIRROR CONTROLS
(P. 164) HEADLIGHT/TURN SIGNAL/
FRONT FOG LIGHTS
(P. 127)
STEERING WHEEL
ADJUSTMENTS (P. 133) CRUISE CONTROL BUTTONS (P. 342)/
ADAPTIVE CRUISE CONTROL (ACC)
BUTTONS
ꭧ
1
(P. 350)
STEERING WHEEL
AUDIO CONTROLS
(P. 302) WINDSHIELD
WIPERS/WASHERS
(P. 125)
INSTRUMENT PANEL
BRIGHTNESS
(P. 132)
PASSENGER AIRBAG
OFF INDICATOR
(P. 36)
HAZARD WARNING
BUTTON
(P. 131)REAR WINDOW
DEFOGGER
(P. 131)
ACCESSORY POWER
SOCKETS
(P. 175)
SEAT HEATER SWITCHES
(P. 156)/
SEAT HEATER AND SEAT
VENTILATION BUTTONS
ꭧ 1
(P. 157)
ACTIVE DAMPER
SYSTEM SWITCH
ꭧ 1
(P. 478)
HORN
ꭧ
2
BSI ALERT INDICATOR
ꭧ1
(P. 473)
COLLISION MITIGATION
BRAKING SYSTEM ™(CMBS ™)
OFF BUTTON
ꭧ 1
(P. 461)
HEADLIGHT WASHER
SWITCH
ꭧ 1
(P. 126)
DISTANCE
BUTTON
ꭧ1
(P. 354)
PADDLE SHIFTERS
(P. 441)
BLUETOOTH
HANDSFREELINK
BUTTON (P. 363) VOICE CONTROL
BUTTONS
ꭧ
3
Controls Near the Steering Wheel12410/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Your vehicle has a memory feature
for the steering wheel, driver's seat,
and outside mirror positions.
Seat, except for power lumbar,
steering wheel and outside mirror
positions can be stored in separate
memories. You select a memorized
position by pushing the appropriate
button or using the appropriate
remote transmitter (Driver 1 or
Driver 2). For more information see
page 147.Storing a Driving Position in
Memory
Store a driving position only when
the vehicle is parked.
1. Turn the ignition switch to the ON
(II) position. You cannot add a new
driving position to the memory
unless the ignition switch is in the
ON (II) position. You can recall a
memorized position with the
ignition switch in any position.
2. Adjust the seat to a comfortable position (see page 148).
Adjust the steering wheel to a
comfortable position (see page
133).
Adjust the outside mirrors for best
visibility (see page 164).
3. Press and release the MEMObutton on the control panel. You
will hear a beep. Immediately
press and hold one of the memory
buttons (1 or 2) until you hear two
beeps. The indicator in the
memory button will come on. The
current positions of the driver's
seat, steering wheel, and outside
mirrors are now stored.
MEMO BUTTON
MEMORY BUTTONS
Driving Position Memory System16610/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

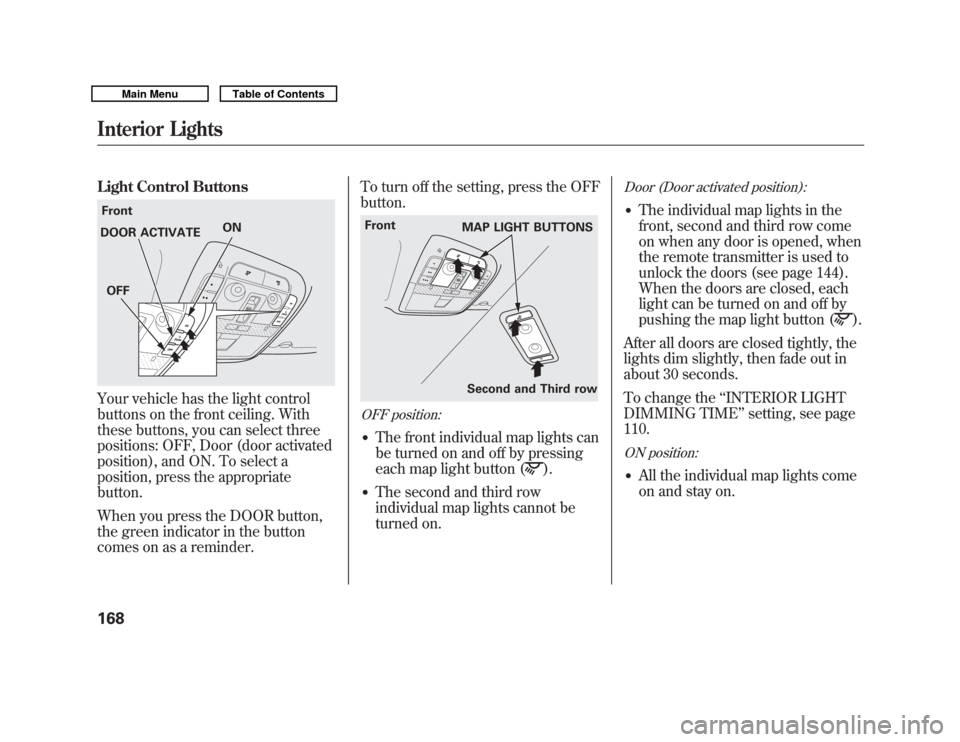

Light Control ButtonsYour vehicle has the light control
buttons on the front ceiling. With
these buttons, you can select three
positions: OFF, Door (door activated
position), and ON. To select a
position, press the appropriate
button.
When you press the DOOR button,
the green indicator in the button
comes on as a reminder.To turn off the setting, press the OFF
button.
OFF position:●
The front individual map lights can
be turned on and off by pressing
each map light button (
).
●
The second and third row
individual map lights cannot be
turned on.
Door (Door activated position):●
The individual map lights in the
front, second and third row come
on when any door is opened, when
the remote transmitter is used to
unlock the doors (see page 144).
When the doors are closed, each
light can be turned on and off by
pushing the map light button (
).
After all doors are closed tightly, the
lights dim slightly, then fade out in
about 30 seconds.
To change the ‘‘INTERIOR LIGHT
DIMMING TIME’’ setting, see page
110.
ON position:●
All the individual map lights come
on and stay on.
Front
ON
DOOR ACTIVATE
OFF
Second and Third row
Front
MAP LIGHT BUTTONS
Interior Lights16810/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Individual Map LightsTurn on the front individual map
lights by pushing each map light
button (
). Push the button again to
turn it off. When the door activated
position is selected with the light
control button, the second and the
third row map lights can be turned
on by pushing each map light button
(
). Push the button again to turn it
off. If any map light is left on when the
ignition switch is turned off and all
doors are closed, it will turn off when
the vehicle is locked with the remote
transmitter, or after 15 minutes.
Courtesy Lights
The courtesy lights between the
front map lights come on when the
parking lights are turned on. To
adjust its brightness, press either of
the instrument panel brightness
control buttons (＋
or－) with the
ignition switch in the ON (II)
position.
Second and Third row
Front
COURTESY LIGHT
CONTINUED
Interior Lights
169
Instruments and Controls
10/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Console CompartmentYour vehicle is equipped with a front
seat armrest pad that is also a
console compartment. To open the
console compartment fully, push
both buttons at the front of the
compartment.
The console compartment has a
removable tray. Pull the tray straight
up to remove it.Storage Compartment
The storage compartment with a
sliding lid is at the left-side foot of the
front passenger seat.
For the third row, a storage
compartment is located in the
passenger side armrest. To open the
compartment, push the button and
lift the lid.
Glove Box
Open the glove box by pulling the
handle to the left. Close it with a firm
push. Lock or unlock the glove box
with the master key.
An open glove box can cause
serious injury to your passenger
in a crash, even if the
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
BUTTONS
LIDS
LID
Interior Convenience Items
173
