DVD Player Error Messages
The chart on the right explains the
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
The audio system will try to play the
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the
disc.
Insert a different disc. If the new disc
plays, there is a problem with the
first disc. If the error message cycle
repeats and you cannot clear it, take
your vehicle to a dealer.Error Message Cause Solution
DISC ERROR
FOCUS Error Press the disc eject button, and remove the disc.
Check for an error indication. Insert the disc again.
If the code does not disappear or the disc cannot be
removed, consult your dealer.
MECH ERROR Mechanical Error Press the disc eject button, and remove the disc.
Check for an error indication. Insert the disc again.
If the code does not disappear or the disc cannot be
removed, consult your dealer.
HEAT ERROR High Temperature Will disappear when the temperature returns to
normal.
REGION ERR Invalid region code The disc is not playable in this unit. Eject the disc,
and insert a disc compatible with this system.
PARENT ERR Invalid parental
control level Reinsert the disc, and increase the parental control
level (see page 328).
Rear Entertainment System33410/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

If the engine has just been started, it
may take a short time for the system
to display the rearview.
The camera display brightness is
adjusted automatically by sensors. If
you use the camera display
continuously at high temperatures,
the image will gradually dim.
The rearview mirror will be hot when
you use the camera display for an
extended period of time.
If a bright light (such as sunlight) is
reflected on the mirror, the image
may be difficult to see.
Rearview Camera Guide Line
The camera display has parking
guide lines that indicate distance
from your vehicle.
1st Line 20in (0.5m)
2nd Line 39in (1m)
3rd Line 79in (2m)
4th Line 118in (3m)
NOTE●
The rearview camera has a unique
lens that makes objects appear
closer than they actually are.
●
The rearview camera display has a
limited coverage, and the size and
position of objects may appear
different than they actually are.
Make sure to check the
surrounding area carefully.
To turn off the guide lines, press and
hold the power button for more than
3 seconds. The guide lines appear
every time you shift to reverse, even
if you turned them off the last time.
SCREEN DISPLAY
ACTUAL DISTANCE 1st line2nd line
4th line 3rd line
Rearview Mirror with Rearview Camera Display
415
Features
10/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

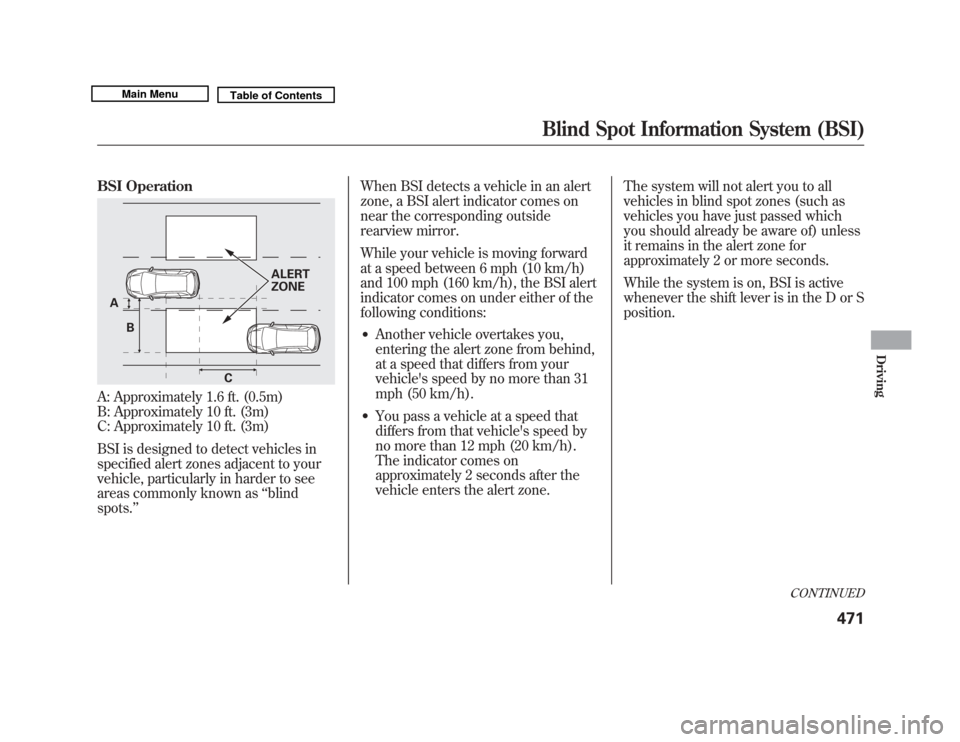

BSI OperationA: Approximately 1.6 ft. (0.5m)
B: Approximately 10 ft. (3m)
C: Approximately 10 ft. (3m)
BSI is designed to detect vehicles in
specified alert zones adjacent to your
vehicle, particularly in harder to see
areas commonly known as‘‘blind
spots. ’’ When BSI detects a vehicle in an alert
zone, a BSI alert indicator comes on
near the corresponding outside
rearview mirror.
While your vehicle is moving forward
at a speed between 6 mph (10 km/h)
and 100 mph (160 km/h), the BSI alert
indicator comes on under either of the
following conditions:
●
Another vehicle overtakes you,
entering the alert zone from behind,
at a speed that differs from your
vehicle's speed by no more than 31
mph (50 km/h).
●
You pass a vehicle at a speed that
differs from that vehicle's speed by
no more than 12 mph (20 km/h).
The indicator comes on
approximately 2 seconds after the
vehicle enters the alert zone.
The system will not alert you to all
vehicles in blind spot zones (such as
vehicles you have just passed which
you should already be aware of) unless
it remains in the alert zone for
approximately 2 or more seconds.
While the system is on, BSI is active
whenever the shift lever is in the D or S
position.
A
C
B ALERT
ZONE
CONTINUED
Blind Spot Information System (BSI)
471
Driving
10/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

SymbolMaintenance Main Items
A
●Replace engine oil
1
B
●Replace engine oil
1and oil filter
●Inspect front and rear brakes●Check parking brake adjustment●Inspect these items:●Tie rod ends, steering gear box, and boots●Suspension components●Driveshaft boots●Brake hoses and lines (including ABS/VSA)●All fluid levels and condition of fluids●Exhaust system
＃
●Fuel lines and connections
＃
1: If the message ‘‘SERVICE DUE NOW ’’does not appear more than
12 months after the display is reset, change the engine oil every
year.
＃ : See information on maintenance and emissions warranty in the
first column on page 506.
NOTE:
●Independent of the maintenance messages in the multi-
information display, replace the brake fluid every 3 years.●Inspect idle speed every 160,000 miles (256,000 km).●Adjust the valves during services A, B, 1, 2, or 3 if they are
noisy. Symbol Maintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element
If you drive in dusty conditions, replace every 15,000
miles (24,000 km).●Replace dust and pollen filterIf you drive primarily in urban areas that have high
concentrations of soot in the air from industry and from
diesel-powered vehicles, replace every 15,000 miles
(24,000 km).●Inspect drive belt
3●Replace transmission and transfer fluid
4●Replace spark plugs●Replace timing belt and inspect water pump If you drive regularly in very high temperatures (over
110°F, 43°C), in very low temperatures (under －20°F, －
29°C), or towing a trailer, replace every 60,000 miles (U.
S.)/100,000 km (Canada).●Inspect valve clearance
5●Replace engine coolant
6●Replace rear differential fluid Driving in mountainous areas at very low vehicle
speeds or trailer towing results in higher level of
mechanical (shear) stress to fluid. This requires
differential fluid changes more frequently than
recommended by the Maintenance Minder. If you
regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000
km), then every 15,000 miles (24,000 km).
Maintenance Minder
TM
Maintenance Minder
50810/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

DimensionsLength 191.6 in (4,867 mm)
Width 78.5 in (1,994 mm)
Height 68.2 in (1,733 mm)
Wheelbase 108.3 in (2,750 mm)
Track Front 67.7 in (1,720 mm)
Rear 67.5 in (1,715 mm)
Weights Gross vehicle weight rating See the tire information label attached to the driver's doorjamb.
Gross combined weight
ꭧ 1
rating (GCWR) 10,053 lbs (4,560 kg)
ꭧ 1: The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.
Air Conditioning Refrigerant type HFC-134a (R-134a)
Charge quantity 21.2 －22.9 oz (600 －650 g)
Lubricant type ND-OIL 8
Seating Capacities Total 7
Front 2
Second 3
Third 2 Capacities
Fuel tank Approx. 21.00 US gal (79.5 L)
Engine
coolant Change
ꭧ
1
1.93 US gal (7.3 L)
Total 2.43 US gal (9.2 L)
Engine oil Change
ꭧ 2
4.5 US qt (4.3 L)
Including
filter
Without
filter 4.2 US qt (4.0 L)
Total 5.3 US qt (5.0 L)
Automatic
transmission
fluid Change 3.3 US qt (3.1 L)
Total 8.5 US qt (8.0 L)
Rear
differential
fluid Change 2.6 US qt (2.5 L)
Total 3.0 US qt (2.8 L)
Transfer
assembly
fluid Change 0.4 US qt (0.4 L)
Total 0.4 US qt (0.4 L)
Windshield
washer
reservoir U.S. vehicles 4.2 US qt (4.0 L)
Canadian
vehicles
6.1 US qt (5.8 L)
ꭧ 1: Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
0.18 US gal (0.7 L)
ꭧ 2: Excluding the oil remaining in the engine
Specifications57210/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Gasoline:
Premium unleaded gasoline,
pump octane number of 91 or
higher.
Fuel Tank Capacity:
21.00 US gal (79.5 L)
Recommended Engine Oil:
API Premium grade 5W-20
detergent oil (see page 511).
Oil change capacity (including
filter):
4.5 US qt (4.3 L)
Automatic Transmission Fluid:
Acura ATF DW-1 (automatic
transmission fluid) (see page 518).Rear Differential Fluid:
Use Acura All-Wheel Drive Fluid
(DPSF) only.
Capacity:
SH-AWD differential case
2.6 US qt (2.5 L)
Transfer Assembly Fluid:
SAE 90 or SAE 80W-90 viscosity
hypoid gear oil, API service
classified GL4 or GL5 only.
Power Steering Fluid:
Acura Power Steering Fluid
preferred, or another brand of
power steering fluid as a
temporary replacement. Do not
use ATF (see page 520).Brake Fluid:
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page 519).
Tire Pressure (measured cold):
Front/Rear:
32 psi (220 kPa, 2.2 kgf/cm
2)
Compact Spare Tire: 60 psi (420 kPa, 4.2 kgf/cm2)
