Navigation System
Driving to Your DestinationViewing the Destination MapTouching View Dest. Map displays a
map of the destination vicinity. Press the
CANCEL or NAVI BACK button to
return. You can view the destination
map anytime while en route by saying,
“Display destination map.”
Map ScreenWhen you select OK on the Calculate
route to screen, the map screen
appears, showing your highlighted route
in real time.Route LineWhen driving to a destination on
verified roads in a metropolitan area, the
route line is displayed as a blue line.
When driving in rural areas on
unverified streets (light brown colour),
the route line changes to either a blue
dotted “vector line” pointing to your
destination, or a blue-pink line. See
Unverified Area Routing on page 83 for
a detailed explanation of how to enable
unverified routing, and the related
cautions and disclaimers.
NOTE:
You can always view the entire route by
simply saying, “Display entire route.”“Vector line” (unverified routing off)
Blue-pink unverified route line
(unverified routing on)

Navigation System49

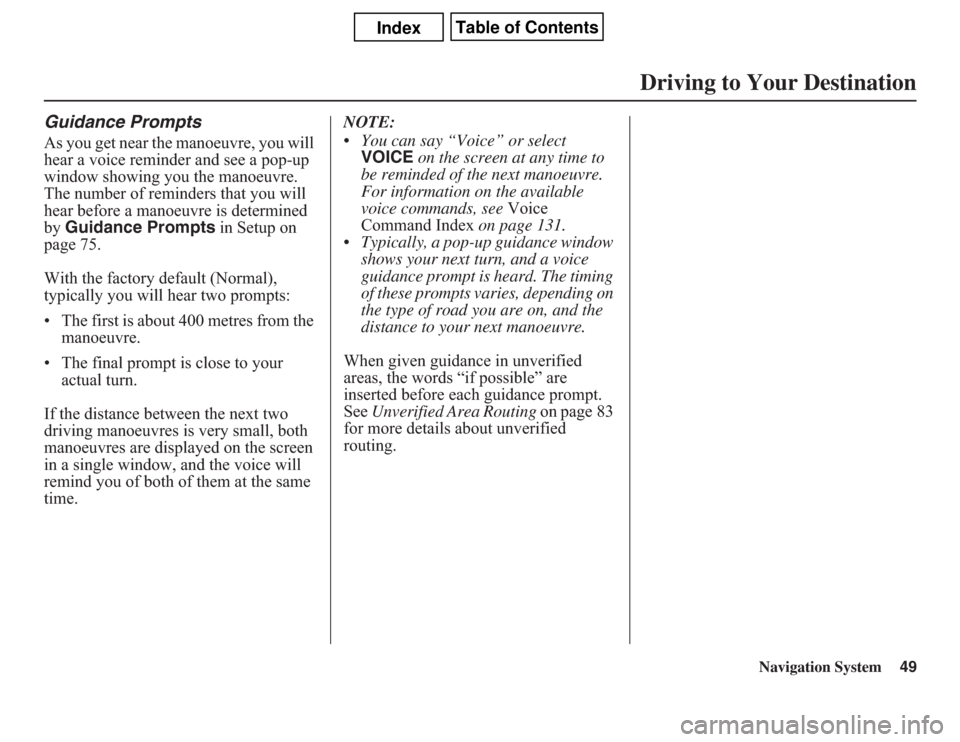

Guidance PromptsAs you get near the manoeuvre, you will
hear a voice reminder and see a pop-up
window showing you the manoeuvre.
The number of reminders that you will
hear before a manoeuvre is determined
by Guidance Prompts in Setup on
page 75.
With the factory default (Normal),
typically you will hear two prompts:
• The first is about 400 metres from the
manoeuvre.
• The final prompt is close to your
actual turn.
If the distance between the next two
driving manoeuvres is very small, both
manoeuvres are displayed on the screen
in a single window, and the voice will
remind you of both of them at the same
time.NOTE:
• You can say “Voice” or select
VOICE on the screen at any time to
be reminded of the next manoeuvre.
For information on the available
voice commands, see Voice
Command Index on page 131.
• Typically, a pop-up guidance window
shows your next turn, and a voice
guidance prompt is heard. The timing
of these prompts varies, depending on
the type of road you are on, and the
distance to your next manoeuvre.
When given guidance in unverified
areas, the words “if possible” are
inserted before each guidance prompt.
See Unverified Area Routing on page 83
for more details about unverified
routing.
Driving to Your Destination

50
Navigation System
Driving to Your Destination
Acura Dealer
School
Restaurant
AT M
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Highway Exit Information
Map Screen LegendMap Orientation
(see page 55)
Map Scale Adjustment
(Km or mile per half-inch appears
only when you ZOOM IN or OUT.)
(see page 54)
Current Map Scale
(see page 54)
ICON Button
(see page 58)
Breadcrumbs
(see Off-road Tracking on page 55) Direction of Destination
(When on route)
VOICE Button
(Announces next driving instruction)Distance to Destination
(see page 52)Time to Destination
(see page 52)
Waypoint
(When en route) (see page 63)
Vehicle Position
(Use voice command, “Display current location,” or
touch the icon to show the current location.)Blue Line
Calculated route (see page 48) Map Features
: Par k: Hospital: Shopping Mall: Golf Course
: Water Area: Cemetery: University: Indian Reservation
: Airport/Stadium/Business
Destination Icon (see page 55)
Streets
(see Map Overview on page 6, or Unverified
Area Routing on page 83)
Interstates or Highways
Verified Streets
Unverified Streets
Landmark Icon - Generic (see page 56) “North Up”
“Heading Up”
NOTE:
See Map Legend from the Information screen for further explanation (see page 69).NOTE:
If you move the joystick over an
area (map features shown
above), the name is displayed
on the screen.
One-Way Traffic Icon (80 m
scale only) (see page 56)
Current Street (see page 6)
(When audio information is displayed,
touch CURRENT STREET/AUDIO INFO
to display the current street name.)CURRENT STREET/AUDIO INFO
No Entry Icon

Navigation System51
Guidance ScreenThe
guidance
screen offers an alternative
way to view your route information.
Many of the icons and screen features are
similar to those on the
map
screen. While
driving to your destination, press the
MAP/GUIDE
button to switch between
the
map
and
guidance
screens. The
guidance
screen shows you:
Milestone to Destination – The
position of the small circular icon shows
your trip progress. As you get closer to
your destination, the indicator will
approach “DEST.”
Vehicle Heading – The white portion of
the compass symbol indicates north.
NOTE:• The map and voice guidance in
unverified areas differ from those in
verified areas.• Current manoeuvres and those within
300 metres will show on the
Countdown bar, indicating the
distance until the next manoeuvre.
Guidance Screen Legend
Highway Exit Information (see page 53)
Vehicle Heading (white indicates north) (see page 51)
Direction of Destination, “as the crow flies” (see page 52)
Distance to Next Driving Manoeuvre
Street Name of Next
Driving Manoeuvre
Distance to
Destination
(see page 52)
Time to Destination
(see page 52)
CURRENT STREET/AUDIO INFO
Current Street (see page 6)
(When audio information is displayed, touch CURRENT
STREET/AUDIO INFO to display the current street name.)
VOICE Button (announces next driving instruction)
(see page 49)
Milestone to Destination (see page 51)Scroll: to view guidance manoeuvres
Driving to Your Destination

52
Navigation System
Driving to Your DestinationDistance and Time to
DestinationWhen you select a destination, the
distance to the destination is the actual
road distance of the calculated route,
and not “as the crow flies.” When
viewing a list of destinations (points of
interest), such as restaurants, the
distance is “as the crow flies” (see Sort
by Distance to Travel on page 35).
The displayed time to the destination
may differ from the actual travel time
because the time is calculated based on
the posted road speed data and your
current speed. If part of your route
includes unverified roads, the “distance”
and “time to go” for that portion is
estimated using 40 km/h as an average
speed.
Direction ListWhen you press the MAP/GUIDE
button on the guidance screen, the
display changes to:
NOTE:
• The map and voice guidance in
unverified areas differ from those in
verified areas. See Unverified Area
Routing on page 83.
• Only manoeuvres that occur at
highway exits or contain highway exit
information will show the exit info
icon ( ) on the right end of the
items in the Direction list. If no exit
info icon is shown on the list, the Exit
Info. is grayed out.You can see the Direction list and the
distance to each manoeuvre. Press the
MAP/GUIDE button to return to the
previous screen.
You can scroll through the Direction
list screen by screen using the scroll bar,
or one instruction at a time using the
joystick.

Navigation System53
Exit Info. (Highway Exit
Information)NOTE:
Currently, only available when
travelling in the United States.
You can search highway exit
information and add new destinations or
waypoints to the calculated route as a
new destination or waypoint. The exit
info icon ( ) on the right end of the
items in the direction list indicates that
there is highway exit information
available. Say or select Exit Info., and
choose the exit and place to set as a new
destination or waypoint.
On the map screen, you can display
highway exit information using the
joystick. The exit info icon will only be
displayed on the map screen if there is
any highway exit information available.
Choose the 400, 800 metre, or
1.6 kilometre scale, then move the
crosshairs to the desired exit info icon
and click on it. Choose a place from the
list and set it as a new destination or
waypoint.NOTE:
To turn on “Highway exit information”
on the map screen, display the icon bar
and select the icon (see page 58).
Guidance ModeWhen en route to a destination, you
have two display options: single-screen
mode (the factory default) and split-
screen mode.
Single-screen mode – A map is
displayed with occasional guidance
pop-up windows as you approach a
manoeuvre.
Split-screen mode – The map is always
displayed on the left of the screen, and
the manoeuvre or direction list is
displayed on the right-hand side of the
screen.
Guidance mode can be changed in either
Setup (see Guidance Mode on page 90)
or by accessing the icon bar (see
Guidance Mode on page 54) .When you get near the manoeuvre, the
map screen changes to:
On the map screen, the location of the
manoeuvre is marked with a small
yellow square. The guidance window is
simply an enlargement of the area
indicated by the yellow square. After
you complete the manoeuvre, the
display returns to a full map screen
when the single-screen mode is set, or to
a map and direction list screen when the
split-screen mode is set.
Driving to Your Destination

54
Navigation System
Driving to Your DestinationMap ScaleUse the ZOOM buttons or say a voice command such as “Display 800 metre scale” (see page 132) to change the scale of the map.
Zooming in increases the detail, while zooming out gives you a view of a wider area. After changing the scale, give the system a
few moments to update the display.
Functions available at various map scales
NOTE:
• You can change between kilometres or miles in Setup (see Units on page 92).
• For information on the available voice commands, see Voice Command Index on page 131.Map Scale (Metric and English)
For selecting units, see page 92.80 m 200 m 400 m 800 m
1.6 km
3 km 8 km 24 km 80 km
240 km 560 km
1/20 mi. 1/8 mi. 1/4 mi. 1/2 mi. 1 mi. 2 mi. 5 mi. 15 mi. 50 mi. 150 mi. 350 mi.
POI icon symbols (like ATM) page 56 X X
Breadcrumbs (off-road tracking dots)page60XXXX
Highway exit information icons page 53 X X X
One-way traffic icon page 56 X
Unverified road display (light brown) page 83 X X X
Map orientation “Heading-up” page55XXXXX
Map orientation “North-up” page55XXXXXXXXXXX
Map features (park, golf course, etc.)page50XXXXXXXXXX
Avoid area shown on map page 87 X X X
Avoid area scales (when creating) page 87 X X X
Waypoint “flag” icons page 63XXXXXXXXXXX

Navigation System55
Map OrientationThe map can be orientated two ways:
• North-up: North pointing up as you
would normally view a paper map.
• Heading-up: The map constantly
rotates so the road you are driving on
always points up (as you see the road
through your front windshield).
NOTE:
The red arrow in both heading symbols
always shows the direction north.Touch the Map Orientation icon on the
map screen to switch between the
available orientation, or say “Display
heading up” or “Display north up.”
In the larger map scales (above 1.6
kilometre or 1 mile), the map is always
oriented with north facing upward. You
cannot change the orientation.
NOTE:
For information on the available voice
commands, see Voice Command Index
on page 131.
Destination IconThe destination icon only shows the
approximate location of the destination.
This occurs because a city block can
have as many as 100 possible addresses
(for example, the 1400 block is followed
by the 1500 block). Most cities use only
a portion of the 100 possible addresses
(for example, in the 1400 block, the
addresses may only go up to 1425
before the 1500 block starts). Therefore,
the address 1425 will be shown a
quarter of the way down the block by
the system instead of near the end of the
block where the destination is actually
located.
Tip:
When en route, you can view a map
showing your destination. Using voice
control, say “Display destination map.”
“North Up” “Heading Up”
Driving to Your Destination
