YOUR CAR
If the distance unit set is “km” the fuel con-
sumption unit will be displayed in km/l or
l/100km.
If the distance unit set is “mi” the fuel con-
sumption unit will be displayed in “mpg”.
– press button
+or –for setting;
– when accessing the “Temperature” sub-
menu: briefly press MENU
ESC: either
“°C” or “°F” will appear on the display ac-
cording to the previous setting;
– press button
+or –for setting;
When you have made the required set-
tings, briefly press button MENU
ESCto
go back to the menu screen or press the
button for long to go back to the standard
screen without storing settings.
– hold MENU
ESCpressed to go back to
the standard screen or main menu ac-
cording to the points of the menu where
you are at.Language (Selecting the language)
The messages can be displayed in the fol-
lowing languages: Italian, English, German,
Portuguese, Spanish, French, Dutch, Pol-
ish.
To set the required language proceed as
follows:
– briefly press button MENU
ESC: the
previously set “language” will flash on the
display;
– press button
+or –for setting;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
Buzzer volume
(Adjusting the failure/warning
buzzer volume)


With this function the volume of the
buzzer accompanying any failure/warning
indication can be adjusted according to 8
levels.
To adjust the volume proceed as follows:
– briefly press button : MENU
ESC; the
previously set volume “level” will flash on
the display;
– press button
+or –for setting;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Button volume
(Button volume adjustment)
This function may be used to adjust the
volume of the beep accompanying the ac-
tivation of buttons MENU
ESC, +and–can be adjusted according to 8 levels.
To adjust the volume proceed as follows:
– briefly press button : MENU
ESC; the
previously set volume “level” will flash on
the display;
– press button
+or –for setting;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.

19
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Belt buzzer (Buzzer activation for
S.B.R. indication)
This function can be only displayed after
Abarth Dealership has deactivated the
S.B.R. system (see paragraph “S.B.R. sys-
tem” in section “Safety devices”).
Service
(Scheduled servicing)
Through this function it is possible to dis-
play information connected to proper car
servicing.
Proceed as follows:
– briefly press button MENU
ESC: ser-
vice in km or mi, according to previous
setting, will be displayed (see paragraph
“Units”);
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen.NoteThe “Service Schedule” requires the
car to be serviced every 30,000 km (or
18,000 mi); this indication will appear au-
tomatically with the key on MARwhen
there are 2,000 km left (or equivalent dis-
tance in miles) and will be presented au-
tomatically every 200 km (or equivalent
distance in miles). The indications will ap-
pear more frequently where there are 200
km left. The indication will appear in kilo-
metres or miles according to the settings.
When the next scheduled service opera-
tion is approaching, the message “Service”
will appear on the display followed by the
number of kilometres or miles left when
the key is turned to MAR. Go to the
Abarth Dealership where the “Scheduled
Service” operations will be performed and
the message will be reset.Passenger bag
Front passenger’s airbag and
side bag activation/deactivation
(for versions/markets, where provided)
This function enables to acti-
vate/deactivate the front passenger’s air
bag.
Proceed as follows:
– press button MENU
ESCand, after dis-
playing the message (Bag pass: Off) (to dis-
able) or (Bag pass: On) (to enable) press-
ing buttons
+and –, press again button
MENU ESC;
- the confirmation request message will be
displayed;
- press buttons
+or –to select (Yes)
(confirming activation/deactivation) or
(No) (to abort);
- briefly press MENU
ESCto confirm set-
ting and go back to the menu screen or
press the button for long to go back to the
standard screen without storing settings.

20
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Daylights (D.R.L.)
This function enables to activate/deacti-
vate the daylight lig

ht.
Proceed as follows to switch this function
on or off:
– briefly press button MENU
ESCto dis-
play the three sub-menus;
– briefly press button MENU
ESC: (On)
or (Off) will flash on the display (accord-
ing to previous setting);
– press button
+or –for setting;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings;
– hold MENU
ESCpressed to go back to
the standard screen or main menu accord-
ing to the points of the menu where you are
at.GSI Shift up
(Gear shift suggestion)
This function allows selection of two
gear shift suggestion modes. Two
modes are available: NORMAL/SPORT
and SPORT.
NORMAL/SPORT: with this mode
active, during normal driving (SPORT
function off) gear shift suggestions are
determined by fuel economy while, with
the SPORT function on, gear shift
suggestions are intended to enhance
sports driving.
SPORT: with this mode active, gear shift
suggestions are provided only when the
SPORT function is active and are
intended to enhance sports driving.
To select one of the modes, proceed as
follows:
– press the MENU ESCbutton briefly;
the display will show a submenu;
– press the MENU ESCbutton briefly
again: the mode currently set will flash
on the display;
– press the
+or –button to change
the mode set;– press the MENU ESCbutton briefly
to save the new mode set and return to
the submenu screen, or hold the button
down to return to the main screen
without saving;
– hold the MENU ESCbutton down
again to return to the standard screen
or main menu, depending on your
location in the menu.
Exit Menu


This is the last function that closes the cir-
cular setting cycle listed in the initial menu
screen.
Briefly press button MENU
ESCto go
back to the standard screen without stor-
ing settings.
Press button
–to return to the first menu
option (Speed Beep).

21
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
TRIP COMPUTER
General features
The “Trip computer” is used to display in-
formation on car operation when the key
is turned to MAR. This function allows to
define two separate trips called “Trip A”
and “Trip B” for monitoring the car’s
“complete mission” in a reciprocally in-
dependent manner.
Both functions are resettable (reset - start
of new mission).
“Trip A” shall be used to display the fig-
ures relating to:
– Range
– Trip distance
– Average consumption
– Instant consumption
– Average speed
– Travel time (driving time).“Trip B” shall be used to display the fig-
ures relating to:
– Trip distance B
– Average consumption B
– Average speed B
– Travel time B (driving time).
Note“Trip B” functions may be exclud-
ed (see “Trip B on”). “Range” and “In-
stantaneous consumption” cannot be re-
set.
Values displayed
Range
The distance that can be travelled with the
fuel in the tank is displayed, with the the-
ory that driving will continue in the same
conditions. The display will show the read-
ing “----” when the following events take
place:
– value lower than 50 km (or 30 mi)
– the car is parked with the engine run-
ning for a long time.IMPORTANT The range depends on sev-
eral factors: driving style (see “Driving
style” in “Starting and driving”), type of
route (motorway, urban cycle, mountain
roads, etc…), conditions of use of the car
(load, tyre pressure, etc…). Trip planning
must take into account the above notes.
Distance travelled
This value shows the distance covered
from the start of the new mission.
Average consumption
This value shows the approximate aver-
age consumption from the start of the
new mission.
Instant consumption
This indicates the fuel consumption. The val-
ue is constantly updated. The message
“----” will appear on the display if the car is
parked with the engine running.

22
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Average speed
This value shows the car average speed as
a function of the overall time elapsed since
the start of the new mission.
Travel time
This value shows the time elapsed since
the start of the new mission.
TRIP button fig. 15
Button TRIP, set on the right steering
column stalk, shall be used (with ignition
key on MAR) to display and to reset the
previously described values to start a new
mission:
– short push to display the different val-
ues;
– long push to reset and then start a new
mission.New mission
Reset can be:
– “manual” resetting by the user, by press-
ing the relevant button;
– “automatic” resetting, when the “Trip dis-
tance” reaches 9999.9 km or when the
“Travel time” reaches 99.59 (99 hours and
59 minutes);
– after disconnecting/reconnecting the
battery.
IMPORTANT The reset operation in the
presence of the screens concerning the
“Trip A” makes it possible to reset only
the information associated with this func-
tion.
IMPORTANT The reset operation in the
presence of the screens concerning the
“Trip B” makes it possible to reset only
the information associated with this func-
tion.Start of trip procedure
With ignition key on MAR, press and hold
button TRIPpressed for over 2 seconds
to reset.
Exit Trip
The TRIPfunction is over when all the
values have been displayed or holding the
button MENU
ESCpressed for longer
than 1 second.fig. 15F0S015Ab

23
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Seat height adjustment
fig. 18
Operating lever Cit is possible to lift or
lower the rear area of the cushion to
achieve the most comfortable driving po-
sition.Backrest tilting fig. 19
To tilt the backrest, operate the lever D
(movement a) and push the backrest for-
ward until it locks (movement b); release
the lever Dand, pushing the backrest,
slide the seat forward (movement c).
SEATS
FRONT SEATS
fig. 16F0S0013m
fig. 17F0S0014m

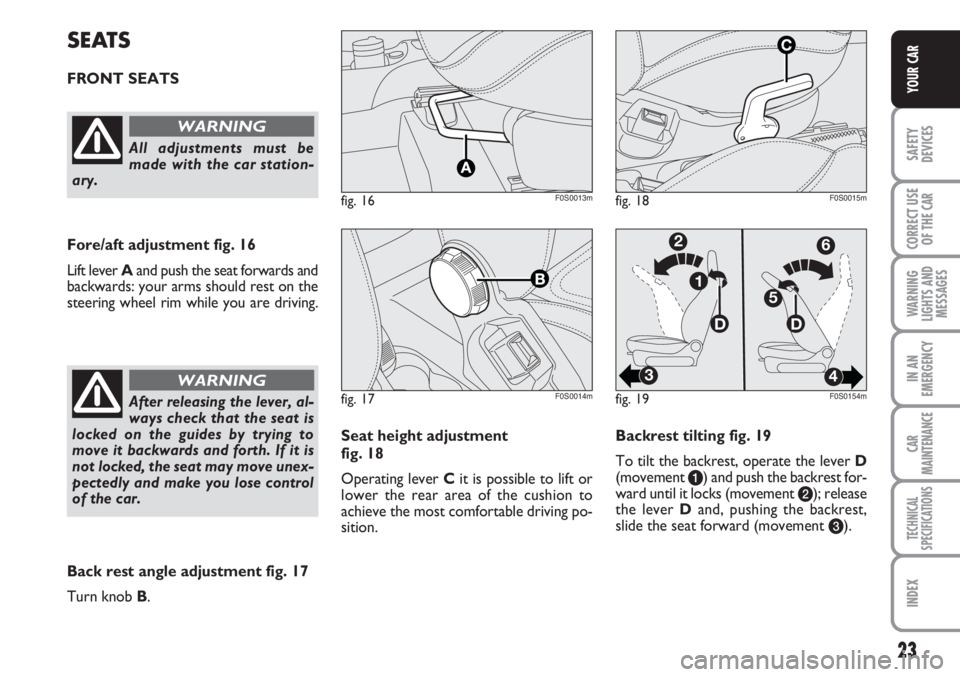

Fore/aft adjustment fig. 16
Lift lever Aand push the seat forwards and
backwards: your arms should rest on the
steering wheel rim while you are driving.
All adjustments must be
made with the car station-
ary.
WARNING
After releasing the lever, al-
ways check that the seat is
locked on the guides by trying to
move it backwards and forth. If it is
not locked, the seat may move unex-
pectedly and make you lose control
of the car.
WARNING
fig. 18F0S0015m
fig. 19
2
34
6
5
1
DD
F0S0154m
Back rest angle adjustment fig. 17
Turn knob B.

24
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Driver side and passenger side where
position memory is provided
To return the seat to its initial position,
slide the seat backward pushing the back-
rest until the seat locks (movement d)
operate the lever D(movement e) and
lift the backrest (movement f) until you
hear it snapping in position.
WARNING Using the lever Dbefore
locking the seat in the initial position caus-
es the loss of the seat initial position. In
that case, it is necessary to adjust the seat
position by means of the longitudinal ad-
justment fig. 16.
Passenger side where position
memory is not provided
To return the seat to its initial position,
slide the seat backward pushing the back-
rest to the desired position (movement
d); operate the lever D(movement e)
and lift the backrest (movement f) until
you hear it snapping in position.
All adjustments must be
made with the car stationary.
WARNING
fig. 20F0S020Ab
The type of reattachment manoeuvre has
been chosen to guarantee the safety of the
occupant. In effect, if the mechanism de-
tects an obstacle (e.g. a bag) and cannot
restore the seat to its original position, it
allows the reattachment of the actual seat,
positioning the backrest only, ensuring
that the guides are attached.
REAR SEATS fig. 20
Backrest release
❒For versions with joint seat, lift handles A
and Band guide the backrest onto the
cushion.
❒For versions with separate seats, lift han-
dle Aor Bto release respectively the left
or right part of the backrest and guide the
backrest onto the cushion.
HEAD RESTRAINTS
REAR fig. 21
(for versions/markets, where provided)
To lift out rear head restraints: press at
the same time buttons Be Cset on both
sides and take them out. Rear head re-
straints must be lifted out with backrest
released and tilted toward the passenger
compartment or with the tailgate open.
To bring the head restraint in correct po-
sition, lift it until you hear it click.
To lower the head restraint, press button
B. The specific shape of the head restraint
interferes with the correct rest of the
back of the rear passenger on the back-
rest; the shape is useful to force the pas-
senger to lift the headrest for its correct
use.
IMPORTANT Rear seat passengers shall
always set the head restraints in “fully
drawn out” position.

25
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
STEERING WHEEL
It can be adjusted vertically (for versions/
markets, where provided).
For adjustment. bring the lever A-fig. 22
downward to position 2then position the
wheel and lock it bringing lever Ato po-
sition 1.
fig. 21F0S021Abfig. 22F0S022Ab
Perform these operations
only when the car is station-
ary and the engine is not running.
WARNING
