YOUR CAR

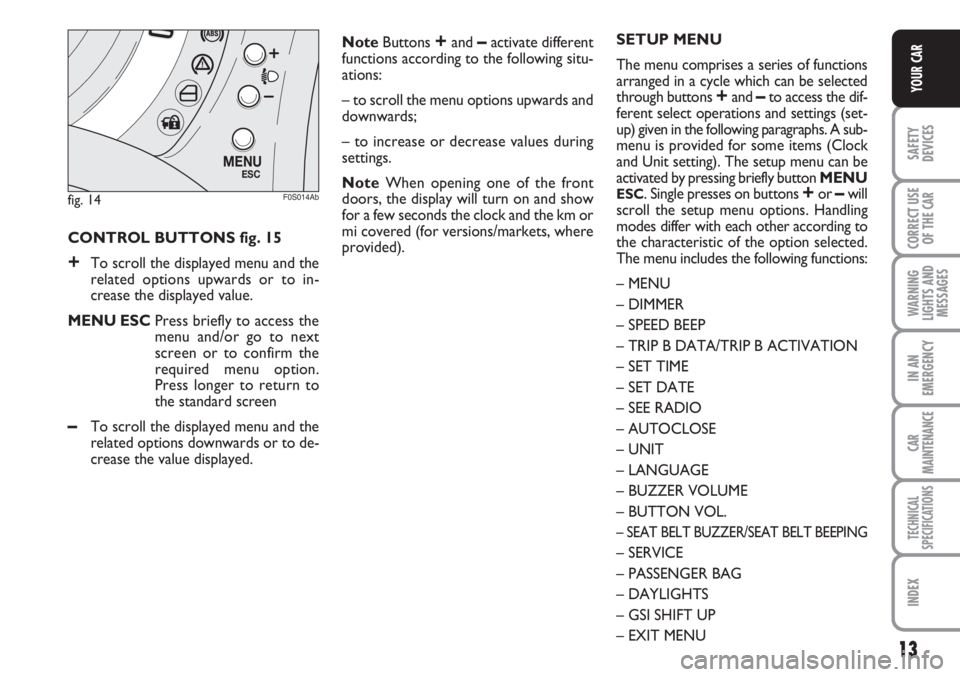

CONTROL BUTTONS fig. 15
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENU ESCPress briefly to access the
menu and/or go to next
screen or to confirm the
required menu option.
Press longer to return to
the standard screen
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.NoteButtons
+and –activate different
functions according to the following situ-
ations:
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during
settings.
NoteWhen opening one of the front
doors, the display will turn on and show
for a few seconds the clock and the km or
mi covered (for versions/markets, where
provided).
fig. 14
M E N UE S C
F0S014Ab
SETUP MENU
The menu comprises a series of functions
arranged in a cycle which can be selected
through buttons
+and –to access the dif-
ferent select operations and settings (set-
up) given in the following paragraphs. A sub-
menu is provided for some items (Clock
and Unit setting). The setup menu can be
activated by pressing briefly button MENU
ESC. Single presses on buttons +or –will
scroll the setup menu options. Handling
modes differ with each other according to
the characteristic of the option selected.
The menu includes the following functions:
– MENU
– DIMMER
– SPEED BEEP
– TRIP B DATA/TRIP B ACTIVATION
– SET TIME
– SET DATE
– SEE RADIO
– AUTOCLOSE
– UNIT
– LANGUAGE
– BUZZER VOLUME
– BUTTON VOL.
– SEAT BELT BUZZER/SEAT BELT BEEPING
– SERVICE
– PASSENGER BAG
– DAYLIGHTS
– GSI SHIFT UP
– EXIT MENU
18
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
If the distance unit set is “km” the fuel con-
sumption unit will be displayed in km/l or
l/100km.
If the distance unit set is “mi” the fuel con-
sumption unit will be displayed in “mpg”.
– press button
+or –for setting;
– when accessing the “Temperature” sub-
menu: briefly press MENU
ESC: either
“°C” or “°F” will appear on the display ac-
cording to the previous setting;
– press button
+or –for setting;
When you have made the required set-
tings, briefly press button MENU
ESCto
go back to the menu screen or press the
button for long to go back to the standard
screen without storing settings.
– hold MENU
ESCpressed to go back to
the standard screen or main menu ac-
cording to the points of the menu where
you are at.Language (Selecting the language)
The messages can be displayed in the fol-
lowing languages: Italian, English, German,
Portuguese, Spanish, French, Dutch, Pol-
ish.
To set the required language proceed as
follows:
– briefly press button MENU
ESC: the
previously set “language” will flash on the
display;
– press button
+or –for setting;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
Buzzer volume
(Adjusting the failure/warning
buzzer volume)
With this function the volume of the
buzzer accompanying any failure/warning
indication can be adjusted according to 8
levels.
To adjust the volume proceed as follows:
– briefly press button : MENU
ESC; the
previously set volume “level” will flash on
the display;
– press button
+or –for setting;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Button volume
(Button volume adjustment)
This function may be used to adjust the
volume of the beep accompanying the ac-
tivation of buttons MENU
ESC, +and–can be adjusted according to 8 levels.
To adjust the volume proceed as follows:
– briefly press button : MENU
ESC; the
previously set volume “level” will flash on
the display;
– press button
+or –for setting;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
