77
ACCESS

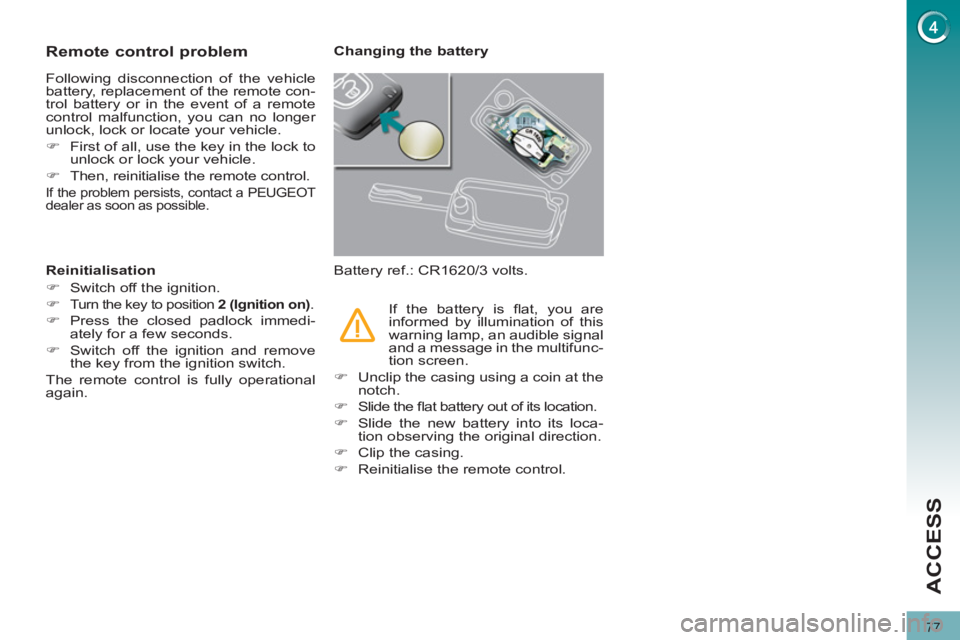

Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
Page 80 of 328
78
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to fi nd the key code and the transponder
code required to order a new key.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the
ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition
switch when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system; this
could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicle.
Page 81 of 328
79
ACCESS
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function.
Locking the vehicle with full
alarm
Do not make any modifi ca-
tions to the alarm system, this
could cause malfunctions.
To be effective, this deactivation
must be carried out each time
the ignition is switched off.
Reactivation of the interior
volumetric protection
)
Unlock the vehicle using the unlock-
ing button on the remote control.
)
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp in
button A
switches off.
Locking the vehicle with
exterior protection alarm only
Activation
)
Switch off the ignition and get out of
the vehicle.
)
Lock or deadlock the vehicle using the
locking button on the remote control.
The alarm is activated; the indicator lamp
in button A
fl ashes once per second.
Exterior perimiter protection
The system detects opening of the vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
)
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp in button A
switches off.
Deactivation of the interior
volumetric protection
)
Switch off the ignition.
)
Within ten seconds, press button A
until the indicator lamp is on contin-
uously.
)
Get out of the vehicle.
)
Lock or deadlock the vehicle using the
locking button on the remote control.
The exterior protection alarm alone re-
mains activated; the indicator lamp in
button A
fl ashes once per second.
Page 82 of 328
80
ACCESS

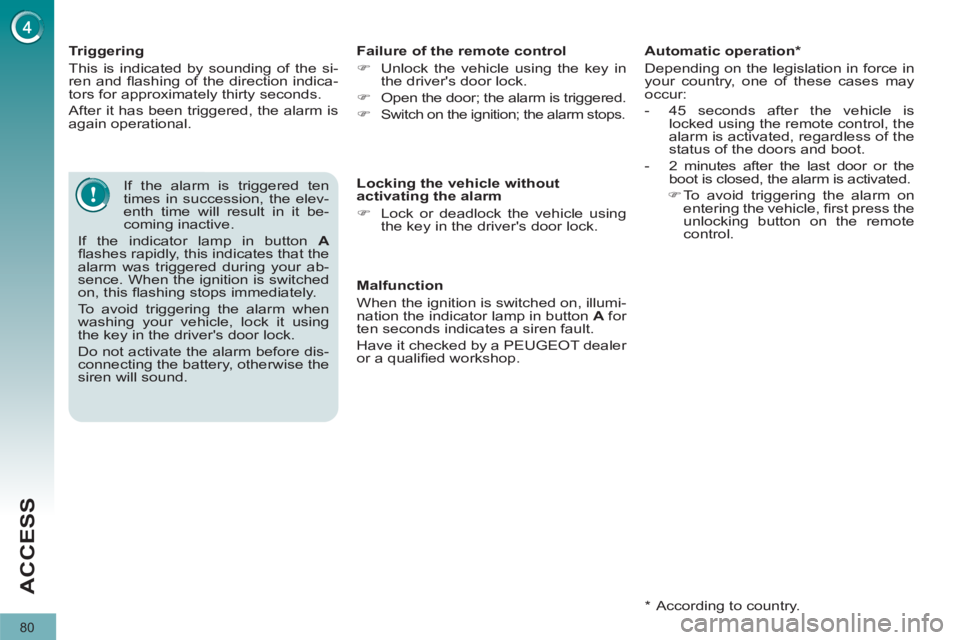

Triggering
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, the alarm is
again operational.
If the alarm is triggered ten
times in succession, the elev-
enth time will result in it be-
coming inactive.
If the indicator lamp in button A
fl ashes rapidly, this indicates that the
alarm was triggered during your ab-
sence. When the ignition is switched
on, this fl ashing stops immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Do not activate the alarm before dis-
connecting the battery, otherwise the
siren will sound.
Failure of the remote control
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is triggered.
)
Switch on the ignition; the alarm stops.
Malfunction
When the ignition is switched on, illumi-
nation the indicator lamp in button A
for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the
boot is closed, the alarm is activated.
)
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
* According to country.
Page 85 of 328
83
ACCESS
DOORS
)
After unlocking the vehicle completely
using the remote control or the key, pull
the door handle.
From inside
)
Pull the door control (front or rear)
to open the door; this unlocks this
vehicle completely.
The interior door controls do
not operate when the vehicle
is deadlocked.
Closing
When a door is not closed correctly:
-
when the engine is running
,
this warning lamp comes on,
accompanied by a message
in the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accom-
panied by an audible signal and a
message in the multifunction screen
for a few seconds.
Opening
From outside
Page 86 of 328
84
ACCESS
A confi rmation message ap-
pears in the multifunction
screen, accompanied by an
audible signal.

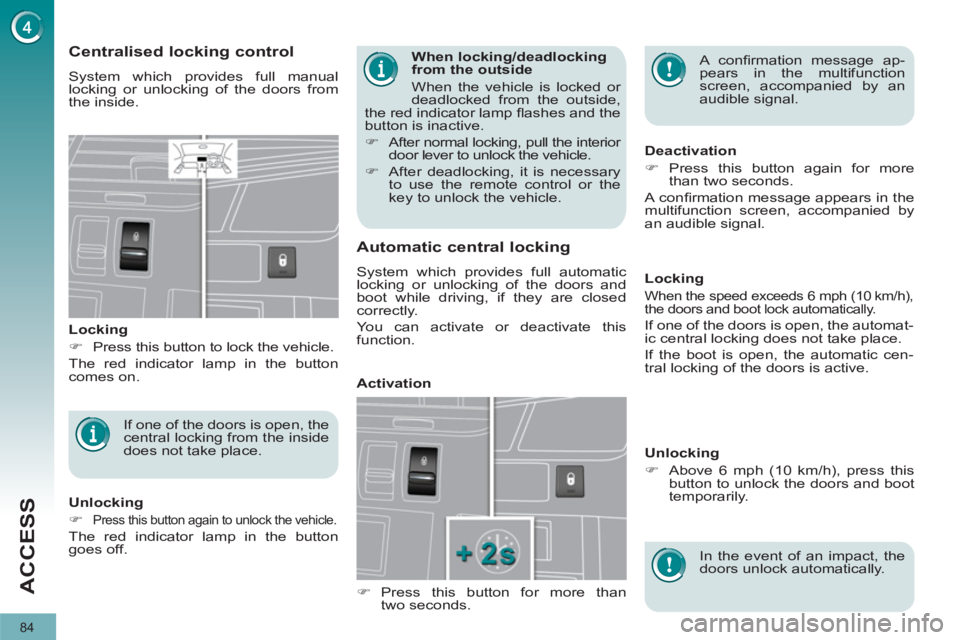

Centralised locking control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
)
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on.
Automatic central locking
System which provides full automatic
locking or unlocking of the doors and
boot while driving, if they are closed
correctly.
You can activate or deactivate this
function.
Locking
When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.
If one of the doors is open, the automat-
ic central locking does not take place.
If the boot is open, the automatic cen-
tral locking of the doors is active.
Deactivation
)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen, accompanied by
an audible signal.
If one of the doors is open, the
central locking from the inside
does not take place.
Unlocking
)
Press this button again to unlock the vehicle.
The red indicator lamp in the button
goes off.
Activation
In the event of an impact, the
doors unlock automatically.
Unlocking
)
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.
)
Press this button for more than
two seconds.
When locking/deadlocking
from the outside
When the vehicle is locked or
deadlocked from the outside,
the red indicator lamp fl ashes and the
button is inactive.
)
After normal locking, pull the interior
door lever to unlock the vehicle.
)
After deadlocking, it is necessary
to use the remote control or the
key to unlock the vehicle.
Page 87 of 328
85
ACCESS

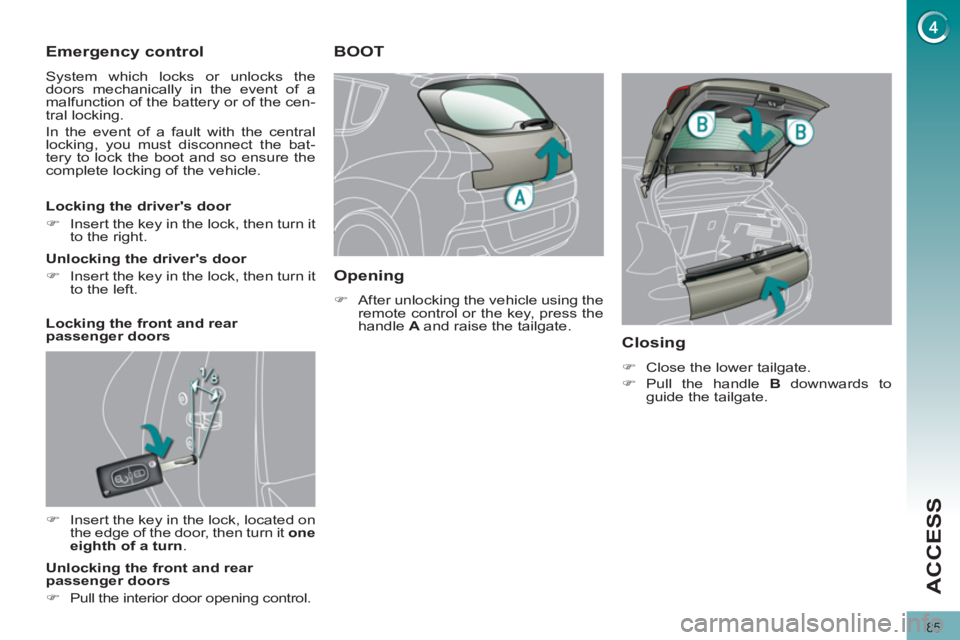

Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
In the event of a fault with the central
locking, you must disconnect the bat-
tery to lock the boot and so ensure the
complete locking of the vehicle.
)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn
.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.
BOOT
Closing
)
Close the lower tailgate.
)
Pull the handle B
downwards to
guide the tailgate.
Page 93 of 328
91
VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition
has been switched off makes the driver's
exit easier when the light is poor.
Switching on
)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.
)
A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
Daytime running lamps
System which permits switching on of the
special lamps at the front (low power), so
that you can be seen during the daytime.
The daytime running lamps come on au-
tomatically when the vehicle is started,
if fi tted * .
The instruments and controls (multi-
function screen, air conditioning control
panel, ...) are not lit, except when the
lighting is switched on manually or auto-
matically.
*
According to country.
EXTERIOR WELCOME
LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.
Switching on
Switching off
Programming
In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
multifunction screen confi g-
uration menu.
Programming
The lighting duration is se-
lected via the vehicle con-
fi guration menu.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting.
In countries in which it is imposed by
regulations:
- by default, this function is activated,
- the sidelamps and the number plate
lamps are also switched on * .
)
Press the open padlock
on the remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
In some weather conditions
(e.g. low temperature or hu-
midity), the presence of mist-
ing on the internal surface
of the glass of the headlamps and
rear lamps is normal; it disappears
after the lamps have been on for a
few minutes.
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
