2011.5 PEUGEOT 3008 clock

141
DRIVING

Front left seat moved back fully.

In the event of the electric parking brake
malfunctioning or the battery running
fl at, an emergency manual device can
release the parking brake.

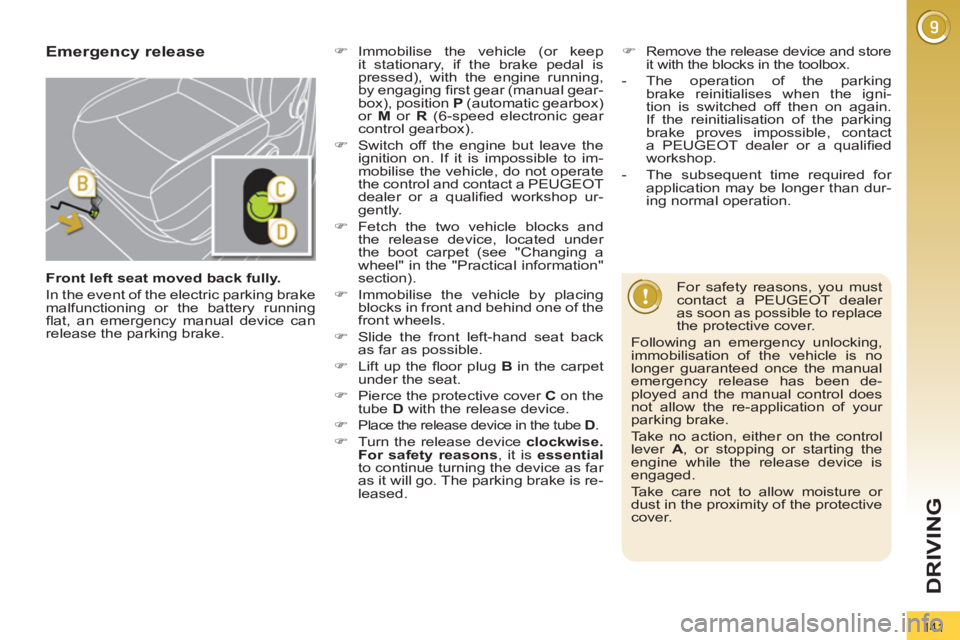

Emergency release


)
Immobilise the vehicle (or keep
it stationary, if the brake pedal is
pressed), with the engine running,
by engaging fi rst gear (manual gear-
box), position P
(automatic gearbox)
or M
or R
(6-speed electronic gear
control gearbox).

)
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not operate
the control and contact a PEUGEOT
dealer or a qualifi ed workshop ur-
gently.

)
Fetch the two vehicle blocks and
the release device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).

)
Immobilise the vehicle by placing
blocks in front and behind one of the
front wheels.

)
Slide the front left-hand seat back
as far as possible.

)
Lift up the fl oor plug B
in the carpet
under the seat.

)
Pierce the protective cover C
on the
tube D
with the release device.

)

Place the release device in the tube D
.


)
Turn the release device clockwise.

For safety reasons
, it is essential

to continue turning the device as far
as it will go. The parking brake is re-
leased.
)
Remove the release device and store
it with the blocks in the toolbox.


- The operation of the parking
brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact
a PEUGEOT dealer or a qualifi ed
workshop.

- The subsequent time required for
application may be longer than dur-
ing normal operation.


For safety reasons, you must
contact a PEUGEOT dealer
as soon as possible to replace
the protective cover.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency release has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on the control
lever A
, or stopping or starting the
engine while the release device is
engaged.
Take care not to allow moisture or
dust in the proximity of the protective
cover.

T
U
318
ALPHABETICAL INDEX
Table of weights ......... 206, 208, 209
Tables of engines................205, 207
Tables of fuses............................190
Tank, fuel ......................................88
Technical data..................... 205-209
Telephone .... 215, 245-247, 281, 282
Telephone, hands-free ........ 245-247
Temperature, coolant ....................37
Temperature control
for heated seats .........................67
Temporary tyre repair kit .............174
Third brake lamp.........................189
TMC (Traffi c info) ................237, 275
Tools ...................................180, 182
Torch ..................................... 99, 112
Total distance recorder .................41
Towbar ........................................202
Towed loads............... 206, 208, 209
Towing another vehicle ...............200
Traction control (ASR) ........127, 128
Traffi c information
(TA) ................. 238, 276, 277, 298
Traffi c information
(TMC) ............. 237, 238, 275, 276
Trip computer ...................54, 55, 57
Trip distance recorder ...................41
Tyre pressures ............................ 211
Tyres .............................................25
Tyre under-infl ation detection .....125 Screen, multifunction
(without audio equipment) .........42
Screen-wash reservoir................171
Screen menu
map ................. 251, 285, 308, 310
Screenwash, front.........................95
Screenwash fl uid level ..........95, 171
Seat adjustment......................65, 66
Seat belts............................ 130-132
Seats, electric ...............................66
Seats, rear ....................................69
Serial number, vehicle ................ 211
Service indicator ...........................38
Servicing .......................................25
Setting
the clock ......... 250, 284, 306, 307
Short-cut menus .........................265
Sidelamps ..................... 89, 185-188
Side repeater ..............................187
SIM card .............................101, 248
Ski fl ap ........................................105
Spare wheel........................180, 182
Spectacles storage .....................100
Speed limiter...............................149
Speedometer ................................27
Spotlamps, side ............................98
Stability control (ESP).................127
Starting the vehicle ...... 76, 154, 158
Steering mounted
controls, audio .................222, 295
Stopping the vehicle .... 76, 154, 158
Stop & Start .............. 57, 61, 63, 87,
161, 167, 172, 197
Storage .............. 100, 102, 105, 107
Storage box ................................101
Storage wells ..............................107
Stowing rings ..............................107
Sun visor.....................................101
Synchronising the remote
control ........................................77
System, ASR ..............................128
System, navigation .............228, 267
Systems, ASR and ESP .............127 Reduction of electrical load ........199
Reinitialising the electric
windows .....................................81
Reinitialising the remote
control ........................................77
Remote control .................74, 75, 78
Removable screen
(snow shield) ...........................203
Removing a wheel ......................183
Removing the mat ......................103
Repair kit, puncture ....................174
Replacing bulbs ......... 185, 188, 189
Replacing fuses ..........................190
Replacing the air fi lter .................172
Replacing the oil fi lter .................172
Replacing the particle
emission fi lter ...........................173
Replacing the passenger
compartment fi lter ....................172
Replacing wiper blades ........96, 200
Resetting the service indicator .....39
Resetting the trip recorder ............41
Rev counter ..................................27
Reversing lamp...........................188
Risk areas (update) ............235, 274
Roof bars ....................................203
Routine checks ...................172, 173
Running out of fuel
(Diesel) ....................................168
Under-infl ation (detection) ..........125
Under fl oor storage ..................... 110
Unlocking ......................................74
Unlocking from the inside .............84
Update risk areas ...............235, 274
S
Safety for children......... 81, 118, 123
Screen, colour 16/9 ...........223, 224,
226, 251, 264, 285
Screen,
monochrome ........... 296, 308, 310
Screen, monochrome C................55
Screen, multifunction (with audio
equipment) ........ 44, 46, 49, 51, 53
