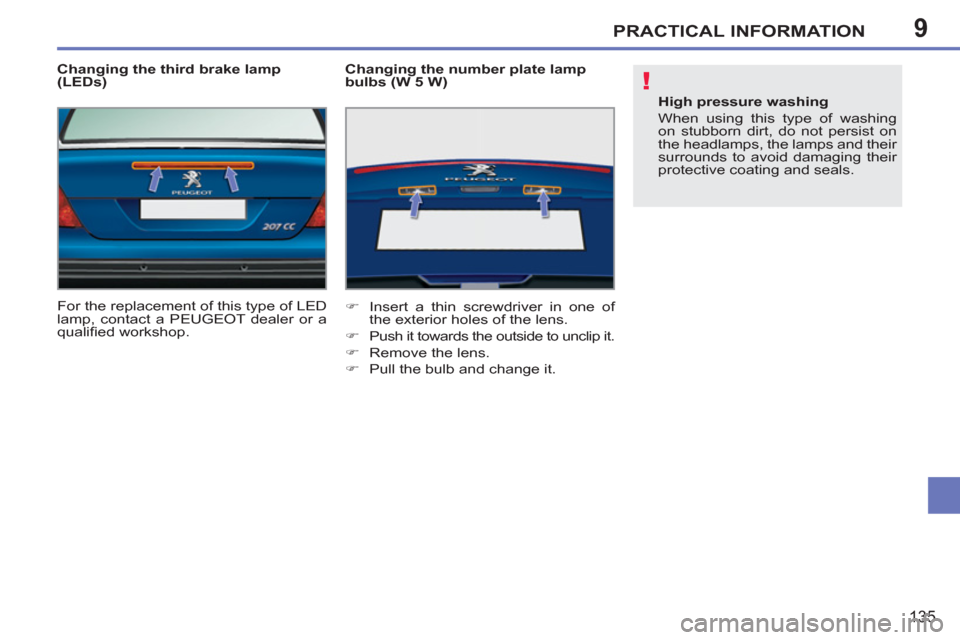

Changing the third brake lamp
(LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.
Changing the number plate lamp
bulbs (W 5 W)


)
Insert a thin screwdriver in one of
the exterior holes of the lens.

)
Push it towards the outside to unclip it.

)
Remove the lens.

)
Pull the bulb and change it.

High pressure washing

When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
surrounds to avoid damaging their
protective coating and seals.

9
!
i
i
PRACTICAL INFORMATION
136
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
ed exceeds 10 milliamperes.
Installation of electrical acces-
sories
Your vehicle’s electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT deal-
er or a qualifi ed workshop.

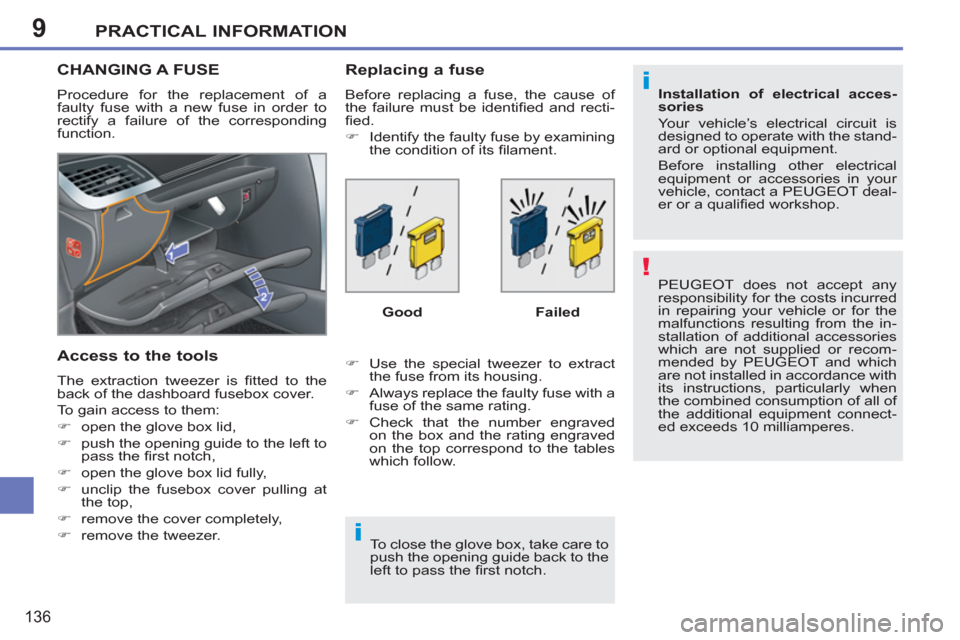

CHANGING A FUSE

Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.

Access to the tools

The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to them:


)
open the glove box lid,

)
push the opening guide to the left to
pass the fi rst notch,

)
open the glove box lid fully,

)
unclip the fusebox cover pulling at
the top,

)
remove the cover completely,

)
remove the tweezer.
Replacing a fuse

Before replacing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the faulty fuse by examining
the condition of its fi lament.




)
Use the special tweezer to extract
the fuse from its housing.

)
Always replace the faulty fuse with a
fuse of the same rating.

)
Check that the number engraved
on the box and the rating engraved
on the top correspond to the tables
which follow.
Good


Failed

To close the glove box, take care to
push the opening guide back to the
left to pass the fi rst notch.

9PRACTICAL INFORMATION
137

Dashboard fuses

The fusebox is placed in the lower part
of the dashboard (left-hand side).

Access to the fuses


)
refer to the "Access to the tools"
paragraph.


Fuse N°



Rating



Functions




G37



30 A

Retractable roof unit supply.


G38



20 A

Hi-Fi amplifi er.


G39



-

Not used.


G40



40 A

Trailer fuse box supply.


Fuse N°



Rating



Functions




F1



-

Not used.


F2



-

Not used.


F3



5 A

Airbags and pre-tensioners control unit.


F4



10 A

Clutch pedal switch, diagnostic socket,
electrochromatic interior mirror, air conditioning,
steering wheel angle sensor, particle emission fi lter
pump (Diesel).


F5



30 A

Rear electric windows, retractable roof.


F6



30 A

Front electric windows, folding mirrors supply.


F7



5 A

Front courtesy lamp, map reading lamps, sun visor
lighting, glove box lighting.

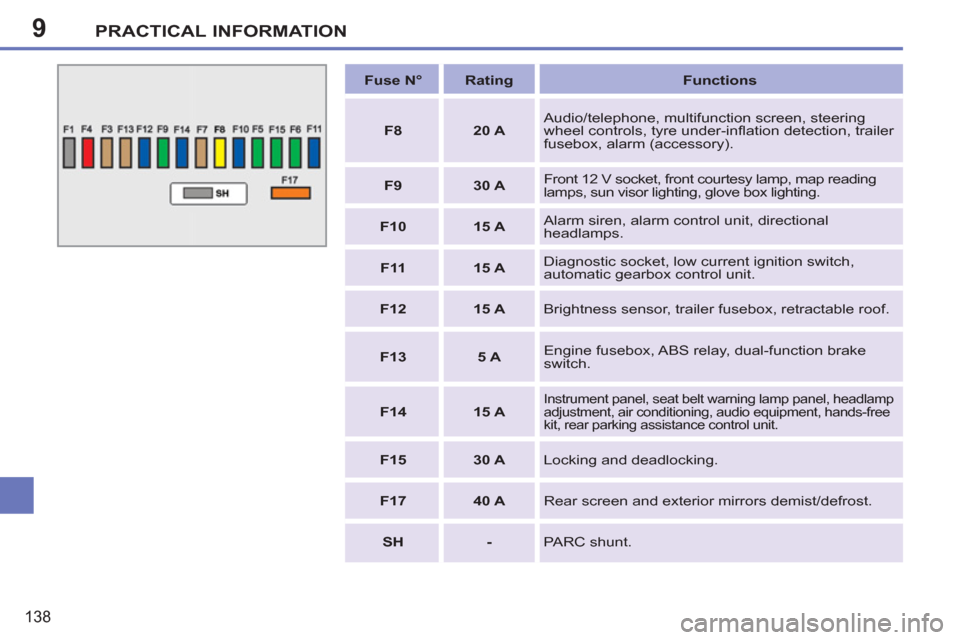

Fuse table

9PRACTICAL INFORMATION
138


Fuse N°



Rating



Functions




F8



20 A

Audio/telephone, multifunction screen, steering
wheel controls, tyre under-infl ation detection, trailer
fusebox, alarm (accessory).


F9



30 A

Front 12 V socket, front courtesy lamp, map reading
lamps, sun visor lighting, glove box lighting.


F10



15 A

Alarm siren, alarm control unit, directional
headlamps.


F11



15 A

Diagnostic socket, low current ignition switch,
automatic gearbox control unit.


F12



15 A

Brightness sensor, trailer fusebox, retractable roof.


F13



5 A

Engine fusebox, ABS relay, dual-function brake
switch.


F14



15 A



Instrument panel, seat belt warning lamp panel, headlamp
adjustment, air conditioning, audio equipment, hands-free
kit, rear parking assistance control unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and exterior mirrors demist/defrost.


SH



-

PARC shunt.

9PRACTICAL INFORMATION
139


Fuse N°



Rating



Functions




F1



20 A

Engine control unit and fan assembly control
relay supply, timing and canister electrovalves
(1.6 litre16V THP), air fl ow sensor (Diesel),
injection pump (Diesel), water in diesel sensor
(Diesel), EGR electrovalves, air heating (Diesel).


F2



15 A

Horn.


F3



10 A

Front wash-wipe.


F4



20 A

Headlamp wash.


F5



15 A

Fuel pump (petrol), Turbo electrovalves
(1.6 litre 16V THP).


F6



10 A

Vehicle speed sensor, automatic gearbox.


F7



10 A

Electric power steering, directional headlamps,
directional headlamps control relay, switching and
protection unit (Diesel).


F8



20 A

Starter control.


F9



10 A

ABS/ESP control unit, brake pedal switch.


F10



30 A

Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
electronic thermostat) (Diesel: electrovalves,
heaters).


F11



40 A

Air conditioning blower.


F12



30 A

Windscreen wipers Low/High speed.


F13



40 A

Built-in systems interface supply (ignition positive).

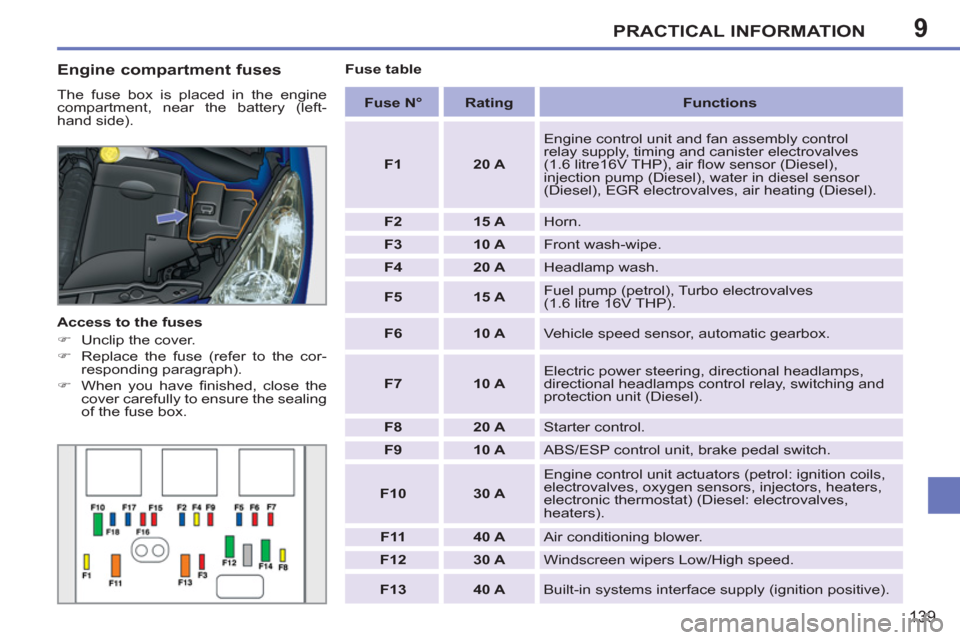

Engine compartment fuses

The fuse box is placed in the engine
compartment, near the battery (left-
hand side).

Access to the fuses


)
Unclip the cover.

)
Replace the fuse (refer to the cor-
responding paragraph).

)
When you have fi nished, close the
cover carefully to ensure the sealing
of the fuse box.

Fuse table

9PRACTICAL INFORMATION
140


Fuse N°



Rating



Functions




F14



30 A

Diesel heater (Diesel).


F15



10 A

Left main beam headlamp.


F16



10 A

Right main beam headlamp.


F17



15 A

Left dipped beam headlamp.


F18



15 A

Right dipped beam headlamp.






Fuse N°



Rating



Functions





Box 1





MF1

*


70 A

Fan assembly.


MF2

*


20 A/30 A

ABS/ESP pump.


MF3

*


20 A/30 A

ABS/ESP electrovalves.


MF4

*


60 A

Built-in systems interface supply.


MF5

*


60 A

Built-in systems interface supply.


MF6

*


30 A

Additional fan assembly (1.6 litre 16V THP).


MF7

*


80 A

Passenger compartment fusebox.


MF8

*


-

Not used.



Box 2





MF9

*


80 A

Heating unit (Diesel).


MF10

*


80 A

Electric power steering.


MF11

*


40 A

Valvetronic electric motor (1.6 litre 16V THP).
*

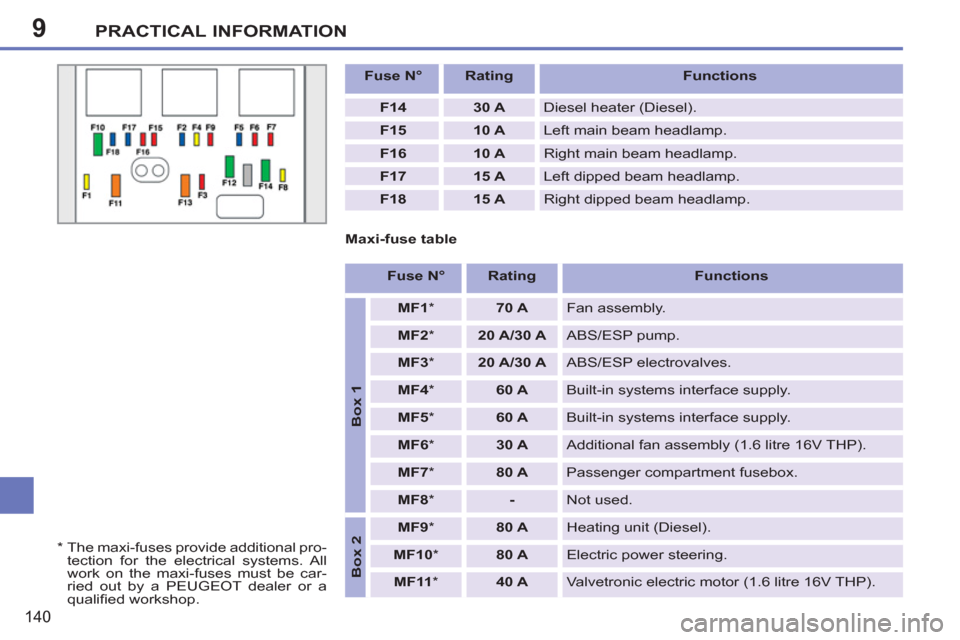

The maxi-fuses provide additional pro-
tection for the electrical systems. All
work on the maxi-fuses must be car-
ried out by a PEUGEOT dealer or a
qualifi ed workshop.
Maxi-fuse table

9PRACTICAL INFORMATION
141
BATTERY
Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.

Access to the battery Startin
g using another battery


)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
.

)
Connect the other end of the green
or black cable to the vehicle's offset
earth point.

)
Start the support vehicle.

)
Operate the starter of the broken
down vehicle and let the engine
run.

)
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior re-
lease lever, then the exterior safety
catch,

)
secure the bonnet stay,

)

lift the plastic cover on the (+) terminal.

9
!
i
PRACTICAL INFORMATION
142
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not disconnect the terminals
while the engine is running.
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.

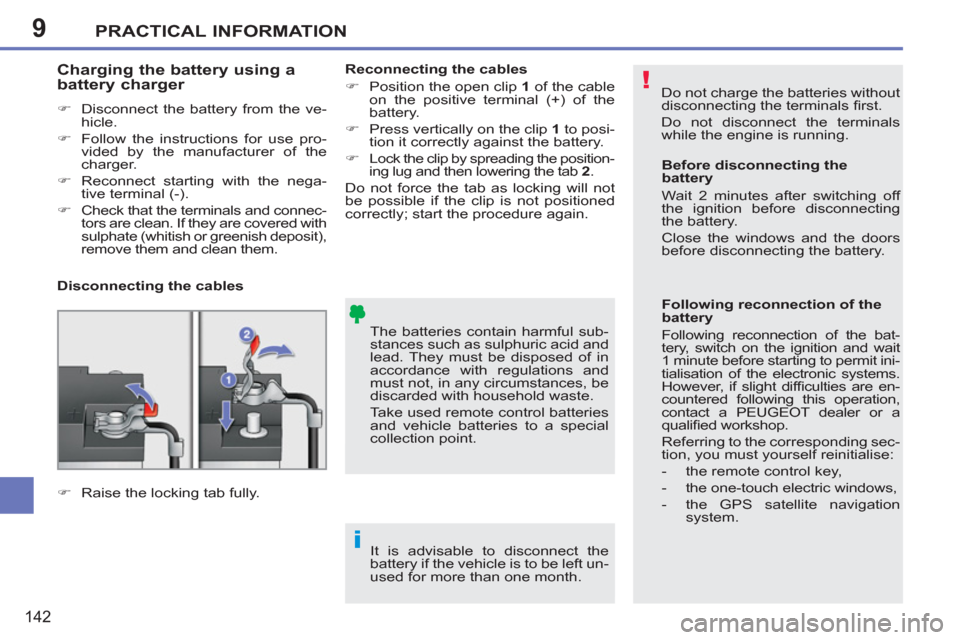

Charging the battery using a
battery charger


)
Disconnect the battery from the ve-
hicle.

)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Reconnect starting with the nega-
tive terminal (-).

)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit ini-
tialisation of the electronic systems.
However, if slight diffi culties are en-
countered following this operation,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Referring to the corresponding sec-
tion, you must yourself reinitialise:


- the remote control key,

- the one-touch electric windows,

- the GPS satellite navigation
system.



Disconnecting the cables
Reconnecting the cables


)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by spreading the position-
ing lug and then lowering the tab 2
.
Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.



)
Raise the locking tab fully.
