2011.5 Citroen DS5 HYBRID4 RHD display

54Instrument panel
55Indicator and warning lamps
64 Gauges and indicators
68Adjustment buttons
69 Clock
70 Tr i p c o m p u ter
74 Electronic key - remote control
82Boot
83Alarm
85Electric windows
87Cockpit glass roof
89 Fuel tank
90 Misfuel prevention (Diesel)
94 Front seats
99Rear seats
102Mirrors
103 Steering wheel adjustment
104Interior fi ttings
108Boot fi ttings
109Tr i a ngle (stowing)
110Heating and Ventilation
112 Dual-zone digital air conditioning
116 Rear screen demist - defrost
28 Presentation
31 Starting/switching off your
vehicle
35 Ready lamp
35 Hybrid4 mode selector
38 Energy consumption/generation indicator
40Display of hybrid power fl ow
43 Eco off
44Eco-driving
46 Consumption
47High voltage battery
51 Vehicle recovery
001001002002003003COMFORT ACCESS MONITORING HYBRID SYSTEM

SAFETY CHILD SAFETY VISIBILITY
146 Lighting controls
149Daytime running lamps
150Automatic illumination of headlamps
151 Automatic headlamp dipping
154Headlamp adjustment
155 Directional lighting
157 Wiper controls
159 Automatic rain sensitivewipers
161Courtesy lamps
162Interior mood lighting
166Child seats
172 ISOFIX child seats
175Child lock
178Direction indicators
179 Emergency or assistance call
179 Horn
180 Tyre under-infl ation detection
181ESP system
184 Seat belts
187 Airbags
DRIVING
120 Electric parking brake
128Hill start assist
1296 -speed electronic gear control gearbox
133 Lane depar ture warningsystem
134Head-up display
137Speed limiter
139 Cruise control
141Parking sensors
143 Reversing camera
005005006006007007004004

9Familiarisation





For economical driving, caring for the environment


The fuel consumptionof a vehicle varies greatly:


- according to the driver's style of driving
(moderate, aggressive, fast, ...),

- according to the type of journeys
made (urban, main road, motor way, flowing, heavy traffic, …) and the speed.


Main recommendations for driving economically


Hybrid mode selector

To optimise fuel consumption, use the Automodeof the selector whenever possible (the mode is activated
automatically when starting) including for urban journeys.
This mode optimises the use of the energy sources (internal combustion engine and/or electric) contrary to other modes, which are for use in par ticular cases.


Gear lever
Use the automatic
mode A
as much as possible as this optimises gear changes to suit the requirements.


Causes of high consumption and checks
As with any vehicle, limit overloading, wind resistance (windows open above 30 mph (50 km/h), roof rack, loaded or not, …), the use of power consumers (air conditioning, heated seats, heated rear screen, …).
Obser ve the recommendations on checks (regular check of tyre pressures, correct tyre pressures, …) and routine servicing.



Drive smoothly
Stay in the "eco" zonedisplayed in the energy consumption/generation indicator: accelerate gently, drive at steady speeds
using the speed limiter or cruise control as soon as possible. Use the "charge"zone: anticipate the need to slow down by taking your foot off the accelerator rather than braking. Themovement of the energy consumption/generation indicator needle (into the "charge" zone), shows the level of energy recovery.


Consumption history
See the impact of your style of driving and the type of journey by reviewing the history of your energy consumption.Refer to the "Multifunction screens" section.

13Familiarisation

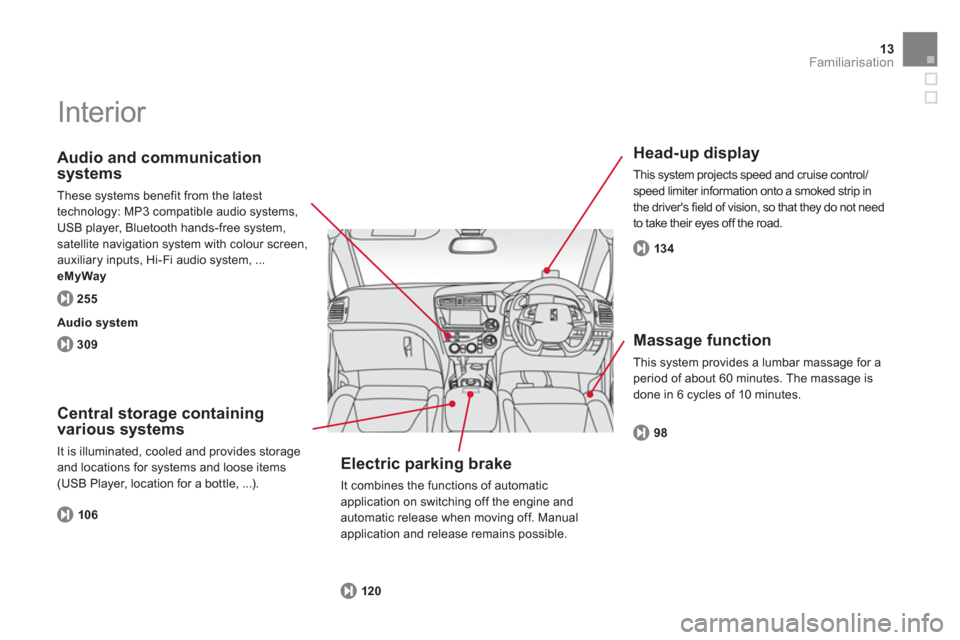

Interior


Head-up display

This system projects speed and cruise control/speed limiter information onto a smoked strip in
the driver's field of vision, so that they do not need
to take their eyes off the road.

Central storage containing various systems

It is illuminated, cooled and provides storage
and locations for systems and loose items(USB Player, location for a bottle, ...).

Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems, USB player, Bluetooth hands-free system, satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...

eMyWay
134
106
309
255
Audio system


Massage function

This system provides a lumbar massage for aperiod of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.
98
Electric parking brake
It combines the functions of automatic application on switching off the engine and automatic release when moving off. Manual application and release remains possible.
120

14 . Controls for electric windows/electric child lock/central locking.
15. eMyWay controls.
16.Gear lever.
17. Hybrid4 mode selector.
18
. Heating/air conditioning controls.
19.Audio system.
20.Hazard warning lamps. 21. Multifunction screen.22.Central adjustable air vents.
23.Clock.
24.Starting with the STA R T/STOP button.
25. Electronic key reader.
26. Wiper/screenwash/trip computer stalk.

Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box/Passenger's airbag deactivationinside.10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t /auxiliary socket.13.Electric parking brake.
27. Audio equipment steering mountedcontrols. 28.
Driver's airbag.
Horn. 29. Cruise control/speed limiter controls.
30.
Switch panel (see previous page).31.Door mirror adjustment.32.
Lighting and direction indicator stalk33.
Instrument panel. 34.Seat belt and airbag warning lamps. 35.Cour tesy lamp. 36.Head-up display controls. 37.
Controls for cockpit glass roof blind. 38.CITROËN Localised Emergency Call -CITROËN Localised Assistance Call.

25
Familiarisation
Driving safely


Speed limiter "LIMIT"
1.
Selecting speed limiter mode.2.Decrease the programmed value.3.Increase the programmed value.4.
Pause/resume speed limiter.
5. Display of the memorised speeds (by the audio system memory).
These values must be set with the hybrid system active.
137
139
Cruise control "CRUISE"
1.Selecting cruise control mode.
2. Programming a speed/Decrease the
programmed value.3. Programming a speed/Increase the
programmed value.4. Pause/resume cruise control.
5. Display of the memorised speeds(by the audio system memory).In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least 2 nd gear engaged.


Display in the instrument panel
The cruise control or speed limiter mode
appears in the instrument panel when selected.
Cruise control
S
peed limiter

Hybrid system
Starting your vehicle



- Ensure that the gear lever is in position N.


- Inser t the electronic key in the reader or, if fitted with Keyless Entry and Star ting, keep the electronic key in the vehicle.

- Press firmly on the brake pedal, then press the START/STOP switch to star t up the hybrid system.



-
The instrument panel and the Readylamp light up. The power graduation is displayedprogressively, indicating that the hybrid system is active, confirmed by a message "hybrid
system active"
; the dial in the centre console is in AUTOmode (default mode for starting).

- The hybrid system determines whether it is necessary to star t the Diesel engine.



- With the brake still applied, move the
gear lever to position Ato go for wards or R
(by lifting the
lever slightly) for reverse.

- Lift your foot off the brake pedal, you can move off.

- The parking brake is released automatically as you move off, if configured to do so (otherwise, release the parking brake manually).

View hybrid fl ow information
Hybrid modes
1.
Hybrid mode selected (AUTO, ZEV, SPORT, 4WD).
2.
Messages, e.g.: "Zero Emission" if the Diesel engine is off (0 g/km CO2).


Operation / Energy flows
6.
The Diesel engine supplies the battery (if needed).
7.Arrow from left to right: the battery powers the electric motor (when
the electric motor is operating).
Arrow from right to left: the electric motor/generator recharges the
battery (energy recovery phases).8. The Diesel engine drives the front wheels. 9.The electric motor drives the rear wheels.
Vehicle infrastructure
3.
Diesel engine.4.
Tr a c t i o n b a t t e ry state of charge. 5.
Electric Motor/Generator. Information on the active h
ybrid mode, arrows for energy flows and the state of charge of the battery, is displayed in the instrument panel screen or
the screen.
