Page 5 of 352
CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Seat belts 131Airbags 135
■■■■■■■■■
VIII-SAFETY 126 Î138
Electric parking brake 139Hill start assist 146Manual gearbox 147Gear effi ciency indicator 1486-speed electronic gearbox system 149Stop & Start 153Automatic gearbox 156Fixed centred controlssteering wheel 160Speed limiter 162Cruise control 164Parking space sensors 166Lane departure warning system 168Parking sensors 169Pneumatic suspension 171
■■■■■
■■■
■■■■■■
IX - DRIVING 139 Î172
Bonnet 174Running out of fuel (Diesel) 176Petrol engines 177Diesel engines 178Checking levels 179Checks 181
■■■■■■
X - CHECKS 173 Î 182
Temporary puncture repair kit 183Changing a wheel 186Changing a bulb 190Changing a fuse 19712 V battery 203Energy economy mode 206Towing the vehicle 207Towing a trailer 209Roof bars 210Very cold climate screen 210Accessories 211
■■■■■■■■■■■
XI - PRACTICALINFORMATION 183 Î 212
Petrol engines 213Petrol weights 214Diesel engines 215Diesel weights 217Petrol/Diesel weights - commercial versions 221Dimensions 223Identifi cation markings 226
■■■■■
■■
XII - TECHNICALDATA 213 Î226
Emergency or assistance 227NaviDrive 231MyWay 275Audio system 307Video pack 329
■■■■■
AUDIO andTELEMATICS 227 Î336
VISUALSEARCH 337 Î 341
ALPHABETICALINDEX 342 Î 348
Page 11 of 352
9
FAMILIARISATION
6-speed electronic gearbox
system
This offers a fully automatic mode, a
manual mode and an auto-sequential
mode which combines the advantages
of the automatic and manual modes,
using the steering mounted paddles.
149
Speed limiter/Cruise control
These functions control the speed of
the vehicle to the value that you have
programmed.
162, 164
Electric parking brake
For holding and releasing the vehicle.
Operation is automatic with manual
operation possible using the dash-
board control.
139
Scented air freshener
This diffuses the fragrance that you
have chosen throughout the passen-
ger compartment from its location in
the ventilation system.
65
Interior mood lighting
This soft lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
104
INTERIOR
Page 13 of 352
11
FAMILIARISATION
8.
Controls:
- Trip mileage recorder reset
button
- Lighting rheostat
9.
Warning lamps display (with the
MyWay or NaviDrive multifunction
screen)
10.
Electric parking brake
11 .
Instrument panel
12.
Hazard warning lamps
13.
Switch panels:
- Emergency or assistance
- Lane departure warning system
14.
ESP deactivation button
15.
Steering lock - Ignition switch
16.
Steering mounted controls for
multifunction screen
17.
Horn
1.
Controls:
- Lighting
- Direction indicators
- Front and rear foglamps
2.
Paddles for automatic gearbox or
6-speed electronic gearbox system
3.
Cruise control and speed limiter
(steering mounted controls)
4.
Direction indicator warning lamps
5.
Audio and telematics system
steering mounted controls
6.
Selector for automatic gearbox or
6-speed electronic gearbox system
7.
Controls:
- Windscreen wipe
- Screenwash
- Rear screen wipe
- Trip computer
INSTRUMENTS AND CONTROLS
18.
Optional function controls
(steering mounted controls)
19.
Fusebox access cover
20.
Controls:
- Fuel fi ller fl ap
- Front and rear parking sensors
- Stop & Start
- Volumetric alarm deactivation
- Headlamp adjustment
21.
Bonnet release
22.
Mirror controls
Page 179 of 352
X
177
CHECKS
PETROL ENGINES
The covers and caps provide access for checking the levels of the various fl uids and for replacing certain components.
1.
Power steering fl uid reservoir.
2.
Screenwash and headlamp
wash reservoir.
3.
Coolant header tank.
4.
Air fi lter.
5.
Brake fl uid reservoir.
6.
Battery/Fuses.
7.
Fusebox.
8.
Engine oil fi ller cap.
9.
Engine oil dipstick.
Page 180 of 352
X
178
CHECKS
*
According to engine.

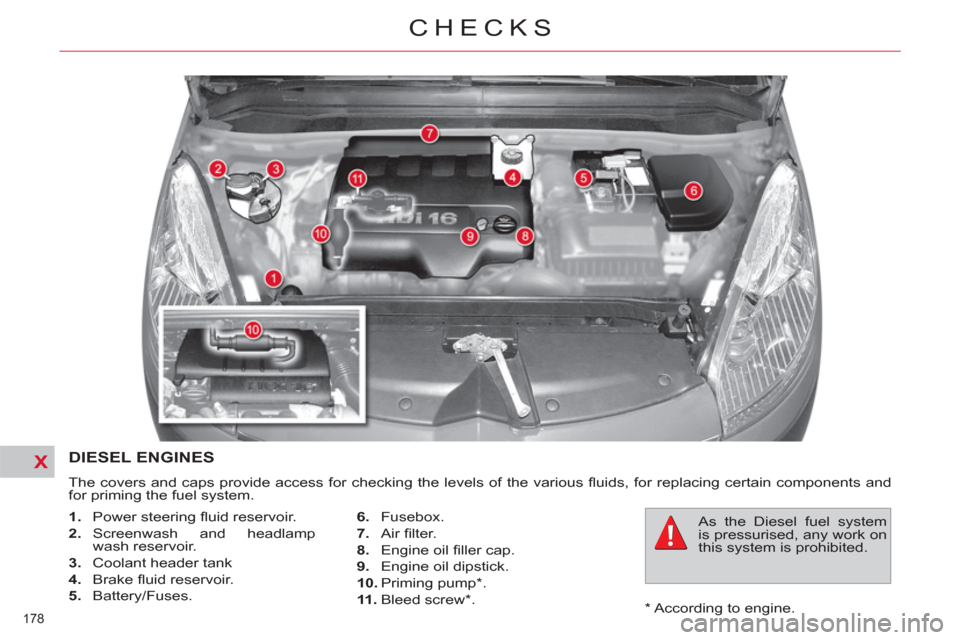

DIESEL ENGINES
The covers and caps provide access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.
1.
Power steering fl uid reservoir.
2.
Screenwash and headlamp
wash reservoir.
3.
Coolant header tank
4.
Brake fl uid reservoir.
5.
Battery/Fuses.
6.
Fusebox.
7.
Air fi lter.
8.
Engine oil fi ller cap.
9.
Engine oil dipstick.
10.
Priming pump * .
11 .
Bleed screw * . As the Diesel fuel system
is pressurised, any work on
this system is prohibited.
Page 199 of 352
XI
197
PRACTICAL INFORMATION
CHANGING A FUSE
Access to tools
The extraction tweezer A
is located
on the back of the dashboard fuse-
box cover.
For access to it:
)
open the glove box lid,
)
unclip the fusebox cover by pull-
ing the top right, then left,
)
pull the cover down,
)
remove the tweezer.
Changing a fuse
)
Use the special tweezer A
to re-
move the fuse from its housing
and check the condition of the
fi lament.
)
Replace the failed fuse with a
fuse of the same rating (same
colour)
.
A different rating may cause a
malfunction (risk of fi re).
If the fault occurs again soon after
replacing the fuse, have the electri-
cal system checked by a CITROËN
dealer or a qualifi ed workshop.
God
Failed
Tweezer A
Fuses in the dashboard
Your vehicle’s electrical
system is designed to oper-
ate with either standard or
optional equipment.
Before installing electrical equip-
ment or accessories on your vehi-
cle, consult a CITROËN dealer or a
qualifi ed workshop.
CITROËN declines all responsibil-
ity for the consequences and costs
that are caused by faults or repairs
on your vehicle resulting from the in-
stallation of accessories that are not
supplied and/or not recommended by
CITROËN and not installed according
to its instructions, particularly when
the energy consumption of all of the
additional accessories connected ex-
ceeds 10 milliamperes (Ma). Before replacing a fuse:
- the cause of the failure must be
identifi ed and rectifi ed,
- all electrical consumers must be
switched off,
- your vehicle must be stationary
with the engine off.
Identify the failed fuse by reference
to the tables and layout drawings
below.
Page 200 of 352
XI
198
PRACTICAL INFORMATION
Access to the fuses
)
Open the glove box.
)
Undo the screw by a quarter turn
and pivot the housing.
Table of fuses
Fuse N°
Rating
Functions
F1
15 A
Rear screen wipe
F2
30 A
Locking and unlocking earth
F3
5 A
Airbags and pretensioners
F4
10 A
Multimedia, photochromic rear view mirror, particle
fi lter, diagnostic socket, air conditioning, manual
headlamp height adjustment
F5
30 A
Front windows, front door electronic control panel,
panoramic sunroof
F6
30 A
Rear windows
F7
5 A
Interior lamps, cooled glove box, radio
F8
20 A
Multifunction screen, radio, steering mounted
controls, multimedia, defl ation detection, alarm,
trailer
F9
30 A
Multimedia, front 12 V sockets, torch, radio
F10
15 A
Height corrector (suspension)
F11
15 A
Brake switch, ignition switch
F12
15 A
Parking sensors, automatic screen wipe and
lighting, passenger’s electric seat, lane departure
warning system, Hi-Fi amplifi er, trailer
F13
5 A
Engine relay unit (BSM), driver’s electric seat
F14
15 A
Air conditioning, Bluetooth
®
hands-free kit,
automatic gearbox lever, airbags, instrument panel
F15
30 A
Locking and unlocking
F16
-
SHUNT
F17
40 A
Heated rear screen
Fuses under the dashboard
Page 201 of 352
XI
199
PRACTICAL INFORMATION
Access to the second dashboard
fusebox
After any operation on the fuses
in the fusebox, check that the
fusebox cover is put back cor-
rectly for their protection.
Table of fuses
Fuse N°
Rating
Functions
F29
20 A
Heated seats
F30
-
Not used
F31
40 A
Trailer relay unit
F32
15 A
Rear 12V socket
F33
5 A
Parking sensors, automatic rain sensitive
wipers and automatic illumination of headlamps,
passenger’s electric seat, lane departure warning
system, Hi-Fi amplifi er
F34
5 A
Trailer
F35
-
Not used
F36
20 A
Hi-Fi amplifi er
F37
10 A
Air conditioning, lighting pack
F38
30 A
Driver’s electric seat
F39
5 A
Fuel fi ller fl ap
F40
30 A
Passenger’s electric seat, panoramic sunroof
