CHILD SAFETY
MANUAL CHILD LOCK

Locking


)
Using the ignition key, turn the
red control one eighth of a turn,
following the instructions on the
label.


Unlocking


)
Using the ignition key, turn the
red control one eighth of a turn
to return to the original position.


ELECTRIC CHILD LOCK

Mechanical system to prevent open-
ing of the rear door using its interior
control.
The control is located on the edge of
each rear door. Remote control system to prevent
opening of the rear doors using their
interior controls and use of the rear
electric windows.

Activation


)
Press button A
.
Deactivation


)
Press button A
again.
This system is independent of and
in no circumstances takes the place of the central locking system.
Check the status of the child
lock each time you switch on the
ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated automatically to permit the exit of
the rear passengers.

This warning lamp comes
on temporarily on the instru-
ment panel when the child
lock is activated.
It also comes on when the ignition is
switched on, then goes off approxi-
mately ten seconds after the engine
is started. The control is located on the driver's
door, with the electric window controls.

VIII
129
SAFETY
TRAJECTORY CONTROL
SYSTEMS

Anti-slip regulation (ASR)
and electronic stability
programme (ESP)

The anti-slip regulation (also known
as Traction Control) optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels
and on the engine to keep the vehicle
on the trajectory required by the driver,
within the limits of the laws of physics.

Deactivation
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground...), it may be
advisable to deactivate the ASR and
ESP systems, so that the wheels
can move freely and regain grip.


)
Press the "ESP OFF"
button, lo-
cated in the centre of the dash-
board.
If this warning lamp comes
on in the instrument panel
and the indicator lamp on the
button comes on, this indi-
cates that the ASR and ESP
systems are deactivated. This is indicated by fl ashing
of this warning lamp in the
instrument panel.

Activation
These systems are activated auto-
matically each time the vehicle is
started.
They come into operation in the event
of a grip or trajectory problem.

Intelligent Traction Control
system *

Your vehicle has a system to help
driving on snow.
This automatic system continuously
checks for situations of diffi cult sur-
face adhesion that could make it dif-
fi cult to move off or make progress
on deep fresh snow or compacted
snow.
In these situations, the system takes
over from the ASR
system by opti-
mising the amount of wheel slip to
provide the best traction and trajec-
tory control, even without snow tyres
and with or without chains.
In extremely severe conditions (snow on top of ice, sand, deep mud…), it
can be useful to deactivate the ESP/
ASR
systems to allow a degree of
wheel spin and so recover grip.

*
Depending on engine type.

IX
139
DRIVING
ELECTRIC PARKING BRAKE
The electric parking brake operates
as follows:


- automatic application/release

Application is automatic when
the engine stops, release is au-
tomatic on use of the accelerator
(active by default).

- manual application/release

Manual application/release of
the parking brake is possible
by pulling control lever A
while
pressing the brake pedal.


Manual application

With the vehicle stationary, to apply
the parking brake whether the en-
gine is running or not, pull
control
lever A
.


Manual release

With the ignition on or the engine
running, to release the parking
brake, press on the brake pedal, or
the accelerator, pull then release

control lever A
.


- the warning lamp P
in con-
trol lever A
and in the in-
strument panel going off,

- the display of a message
"Parking brake off" in the multi-
function screen. The application of the parking brake
is confi rmed by:


-
the illumination of the warn-
ing lamp P
in control lever A

and in the instrument panel,

- the display of a message
"Parking brake on" in the multi-
function screen.
When the driver’s door is
opened with the engine run-ning, a beep is heard and a
message displayed if the parking
brake has not been applied.
Before getting out of the vehicle,
check that the warning lamp P
is
on fi xed in the instrument panel
(not fl ashing). The full application of the parking
brake is confi rmed by:
If you pull control lever A

without pressing the brake
pedal, the parking brake
will not be released and
the "Foot on brake" warn-
ing lamp will come on in
the instrument panel.

IX
140
DRIVING

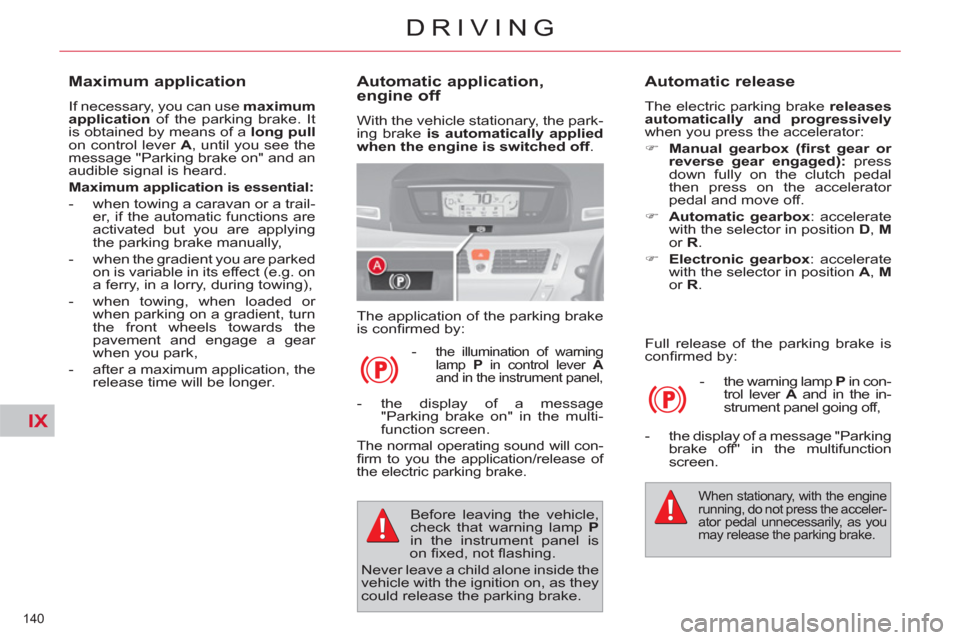

Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off.
The application of the parking brake
is confi rmed by:


-
the illumination of warning
lamp P
in control lever A

and in the instrument panel,

Automatic release

The electric parking brake releases
automatically and progressively

when you press the accelerator:


)
Manual gearbox
(fi rst gear or
reverse gear engaged): press
down fully on the clutch pedal
then press on the accelerator
pedal and move off.

)
Automatic gearbox
: accelerate
with the selector in position D
, M

or R
.

)
Electronic gearbox
: accelerate
with the selector in position A
, M

or R
.
Full release of the parking brake is
confi rmed by:


- the warning lamp P
in con-
trol lever A
and in the in-
strument panel going off,

- the display of a message "Parking
brake off" in the multifunction
screen.

When stationary, with the engine
running, do not press the acceler-
ator pedal unnecessarily, as you
may release the parking brake.


Maximum application

If necessary, you can use maximum
application
of the parking brake. It
is obtained by means of a long pull

on control lever A
, until you see the
message "Parking brake on" and an
audible signal is heard.

Maximum application is essential:



- when towing a caravan or a trail-
er, if the automatic functions are
activated but you are applying
the parking brake manually,

- when the gradient you are parked
on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),


- when towing, when loaded or
when parking on a gradient, turn
the front wheels towards the
pavement and engage a gear
when you park,

- after a maximum application, the
release time will be longer.

Before leaving the vehicle,
check that warning lamp P

in the instrument panel is
on fi xed, not fl ashing.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message
"Parking brake on" in the multi-
function screen.

The normal operating sound will con-
fi rm to you the application/release of
the electric parking brake.

IX
141
DRIVING

To immobilise the vehicle,
engine running
To immobilise the vehicle when sta-
tionary with the engine running, you
must apply the parking brake manu-
ally by pulling
on control lever A
.
The application of the parking brake
is confi rmed by:


- the illumination of warning
lamp P
in control A
and in
the instrument panel,

- the display of a message
"Parking brake on" in the multi-
function screen.
When the driver’s door is opened, a
beep is heard and a message dis-
played if the parking brake has not
been applied.
Before leaving the vehicle,
check that warning lamp P

in the instrument panel is
on fi xed (not fl ashing).


Particular situations

In certain situations (e.g. starting
the engine), the parking brake can
automatically alter its force. This is
normal operation.
To move your vehicle without start-
ing the engine (towing, etc...), but
with the ignition on
, press the brake
pedal and release the parking brake
by pulling
then releasing
control
lever A
.
The full release of the parking brake
is confi rmed by the warning lamp P

(red) in the instrument panel going
off and the display of a message
"Parking brake off" in the multifunc-
tion screen.
If the parking brake malfunctions
while applied or if the battery
runs
fl at, an emergency release remains
possible.


Activation/Deactivation of the
automatic functions *

The automatic application when
the engine is switched off and the
automatic release when you press
the accelerator can be deactivated.
Activation/deactivation is performed
using the confi guration menu of the
multifunction screen. To do so, se-
lect "Vehicle parameters/Comfort/
Automatic handbrake".
The deactivation of these
functions is confi rmed by the
lighting of this warning lamp
in the instrument panel.

* According to country With the automatic functions deacti-
vated, the application and release of
the parking brake are done manually.

IX
145
DRIVING


SITUATION



CONSEQUENCES




4

Display of message " Parking brake faulty
"
and the following warning lamps:
and/or fl ashing

- The automatic functions are deactivated.

- Hill start assist is not available.
To apply the electric parking brake:


)
Immobilise the vehicle and switch off the ignition

)
Pull the control lever for at least 5 seconds or until maximum
application.

)
Switch on the ignition and check that the electric parking brake
warning lamps are on.


- Application may take longer than in normal operation.

- If warning lamp P
fl ashes or if the warning lamps do not come
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer or a qualifi ed workshop.
To release the electric parking brake:


)
Switch on the ignition.

)
Pull the control lever and hold it for approximately 3 seconds.


5

Display of message " Parking brake control
faulty – auto parking brake activated
" and
the following warning lamps:
and/or fl ashing

- Only the functions for automatic application on switching off the
engine and automatic release on acceleration are available.

- Manual application/release of the electric parking brake and
dynamic emergency braking are unavailable.


6

Battery fault

- Lighting of the battery warning lamp makes it essential to stop
the vehicle as soon as traffi c allows. Stop and immobilise your
vehicle.

- Apply the electric parking brake before switching off the engine.

IX
146
DRIVING
HILL START ASSIST
System which holds your vehicle tem-
porarily (approximately 2 seconds)
when starting on a slope, the time it
takes to move your foot from the brake
pedal to the accelerator pedal.
This function is only active when:


- the vehicle is completely station-
ary, with your foot on the brake
pedal,

- in particular conditions on a
slope,

- with the driver’s door closed.
The hill start assist cannot be deac-
tivated.

Operation

Operating fault

If a malfunction of the system oc-
curs, these warning lamps come
on. Contact a CITROËN dealer or a
qualifi ed workshop to have the sys-
tem checked.
On an ascending slope, with the
vehicle stationary, the vehicle is
held for a brief moment when you
release the brake pedal:



- provided you are in fi rst gear or
neutral on a manual gearbox,

- provided you are in position A

or M
with the electronic gearbox
system,

- provided you are in position D
or
M
on an automatic gearbox.
On a descending slope, with the
vehicle stationary and reverse
gear engaged, the vehicle is held
momentarily when you release
the brake pedal.



Do not exit the vehicle while
it is being held in the hill
start assist phase.
If you need to exit the ve-
hicle with the engine running, man-
ually apply the parking brake and
ensure that the warning lamp P

(red) in the instrument panel is on
(not fl ashing).

IX
147
DRIVING
5-SPEED MANUALGEARBOX

Starting the vehicle



)
Check that the gear lever is in
neutral.

)
Do not touch the accelerator.

)
For Diesel engines: turn the
key to position M
and wait until
the pre-heating warning lamp
switches off if it has come on.

)
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).

)
In temperatures lower than 0°C,
declutch while operating the
starter to facilitate starting.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.


Engaging reverse gear



)
Move the gear lever to the right
then back.
