Visibility

Rear courtesy lamp


Position 1 "ON"

The cour tesy lamp is permanently on.
Position 2 "●"
The cour tesy lamp comes on when a door or
the tailgate is opened. When the door or the
tailgate is closed again, the lighting gradually
dims for a few seconds before switching off.
However, the cour tesy lamp is switched off immediately in the following cases:
- When the doors and the tailgate are closedand the ignition switch is placed in the"ON"
position.
- When the doors and the tailgate are closed
and you lock the vehicle.
Position 3 "OFF"
The cour tesy lamp is permanently off.

Courtesy lamps automatic
switch off
The duration of lighting of the rear courtesy lamps can be configured viathe colour screen "Equipment" menu. With the en
gine off, the cour tesy lamps,
map reading lamps and boot lamp switch off automatically after 30 minutes to prevent
discharging of the battery.
The cour tesy lamps are switched on again if
the ignition switch is placed in the "ON"
or "ACC"
position, if you open then close a door or the tailgate or if you use the remote control.

144
Visibility





Boot lamp
This comes on automatically when the boot is
opened and goes off automatically when the boot is closed.





Panoramic roof lighting


When active, the panoramic roof lighting comes
on if the ignition switch is placed in the "ON"or
"ACC"position.

Deactivation
When the ignition switch is placed inposition "ON"or "ACC":)Press this button repeatedly until the
lighting goes off.

Settings

When the ignition switch is placed inposition "ON"or "ACC":)Press this button repeatedly to obtain the
desired lighting level (high, medium, low).

170
Practical information
This kit is installed in the boot under the floor. Complete s
ystem consisting of a compressor and a sealant car tridge which permits the
temporary repair of a tyre so that you can rdrive to the nearest garage.It is designed to repair most punctures which could affect the tyre, located on the tyre tread or shoulder.



















Temporary puncture repair kit
Access to the kit
1.12 V compressor with integral pressuregauge, to measure and adjust the tyre pressure.
F
or access to it:
)Open the boot.)Lift and remove the floor. )Ta k e out the kit.




Composition of the kit

The speed restriction sticker must beaffixed to the vehicle's steering wheel toremind you that a wheel is in temporaryuse.

Do not exceed a speed of 50 mph (80 km/h) when driving with a tyre repaired using this type of kit.
2.Sealant car tridge for the temporary repair
of a tyre. 3.Replacement valve core.4. Valve core removal/fitting tool.
5. Injection pipe.
6.Suction pipe, to remove the sealant product
if necessary.
7
. Speed limit sticker.

174
Practical information

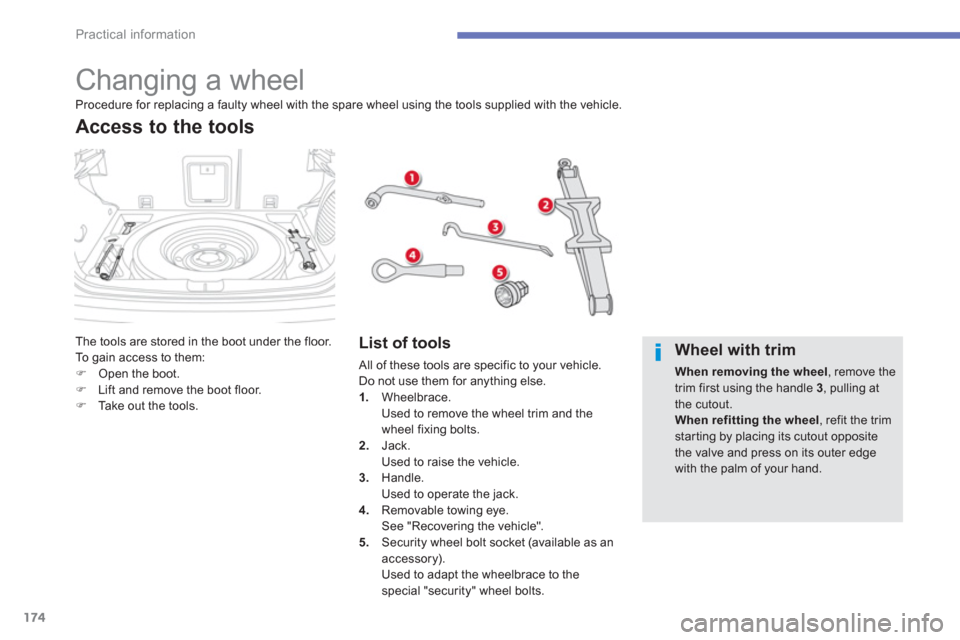

Changing a wheel
The tools are stored in the boot under the floor.
To gain access to them: )Open the boot.)Lift and remove the boot floor. )Ta k e out the tools.
Access to the tools

List of tools

All of these tools are specific to your vehicle. Do not use them for anything else.1.Wheelbrace.
Used to remove the wheel trim and the
wheel fixing bolts.
2. Jack.
Used to raise the vehicle.
3. Handle.
Used to operate the jack. 4.Removable towing eye.
See "Recovering the vehicle".
5
.Security wheel bolt socket (available as an
accessory).
Used to adapt the wheelbrace to thespecial "security" wheel bolts. Procedure for replacin
g a faulty wheel with the spare wheel using the tools supplied with the vehicle.

Wheel with trim
When removing the wheel , remove the trim first using the handle 3
, pulling atthe cutout.When refitting the wheel
, refit the trim starting by placing its cutout opposite the valve and press on its outer edgewith the palm of your hand.

175
7
Practical information
the floor.
Depending on version, the spare wheel may be
a standard size steel or alloy wheel, or for some countries it is the "space saver" type.
For access to the spare wheel, see "Access to
t
he tools".
Access to the spare wheel
Ta k i ng out the standard wheel
)Unscrew the central bolt A . )Raise the spare wheel towards you from
the rear.)Take the wheel out of the boot.

Putting the standard wheel backin place
)
Put the wheel back in its housing.)
Put the central bolt Ain place in the centre of the wheel. )
Tighten fully to retain the wheel correctly.

184
Practical information
1.Third brake lamp (LEDs).2.Number plate lamps (W5W-5W).3.Rear foglamp (W21W-21W).4.Reversing lamp (W16W-16W).5.Direction indicators (W Y21W-21W).6.Sidelamps / brake lamps (W21-5W).
Rear lamps
Amber coloured bulbs, such as the direction indicators, must be replaced with bulbs of identical specification andcolour. These bulbs are chan
ged from outside the boot. )
Open the boot. )
Remove the two fixing screws. )
Unclip the lamp unit carefully extract it
pulling it towards the rear.) Turn the bulb holder a quar ter of a turn to
the left and pull it out.
) Pull the bulb out and change it.

To reassemble, carry out these operations in reverse order.
Take care to align the pins on the lamp unit with
the locations on the bod
ywork.
Changing sidelamp / brake
lamp (6), direction indicator (5),
and foglamp (3) bulbs
)Open the boot.)Inser t a screwdriver into the aper ture of thecover and lever it open.)Turn the bulb holder a quarter of a turn to
th
e left.)Pull the bulb out and change it.
To r e a s s e m b l e , c a r ry out these operations in
reverse order.
You can also contact a CITROËN dealer or a qualified workshop for the replacement of thesebulbs.

Changing reversing lamp
bulbs (4)

198
Practical information
) On the rear bumper, remove the cover by
pulling at the bottom using the jack handle 1 . )Screw in the towing eye 2fully using the
wheelbrace 3.)Install the towing bar. )Switch on the hazard warning lamps on both vehicles.)Move off gently and travel slowly for a shor t distance only.
To w i ng another vehicle
Access to the tooling
The towing eye and the tools are stored under
the boot floor. To gain access to them: )open the boot,
)lift and remove the boot floor, )take the towing eye and the tools required.
List of tools1. Jack handle. 2.
To w i ng eye.
3.Wheelbrace.

202
Practical information




Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
front and rear parking sensors, smoker'skit, coat hanger on head restraint, insulatedmodule, aluminium footrest, reading lamp, air
deflectors, sun blinds...
"Transport solutions":
towbar with quickly detachable ball, rear carrying platform (easy base), roof bars, boot
liner, boot spacers, bicycle carrier for roof bars, ski carrier, canoe carrier, rigid roof boxes, flexible roof boxes, boot net...

"Style":

16 inch alloy wheels, 18 inch alloy wheels, chromed door handle shells, chromed mirror
shells, front spoiler, brushed aluminium interior
trim kit, gloss black interior trim kit, parkingbrake lever trim, aluminium gear knob, leather
steering wheel...

"Security and safety":

anti-intrusion alarm, warning triangle, high
visibility vest, breathalyser, first aid kit, snowchains, anti-slip covers, wheel security bolts, child seats, fire extinguisher, foglamp kit, dog guard, stolen vehicle tracking system,
accessories for pets (seat belts, seat and boot
protectors, cage)...

"Protection":

mat *
, boot carpet, side protective mouldings, door sill protectors, boot sill protector, vehiclecover, front and rear bumper protectivemouldings...
Conversion kits
You can obtain an "Enterprise" kit to conver t a
trade vehicle to a private car and vice-versa.



If a towbar and its harness is fitted outside the CITROËN dealer network, this must be done in line with themanufacturer's instructions.

*

To prevent any risk of jamming of thepedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.
