Page 2 of 88
EAU26945
Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.

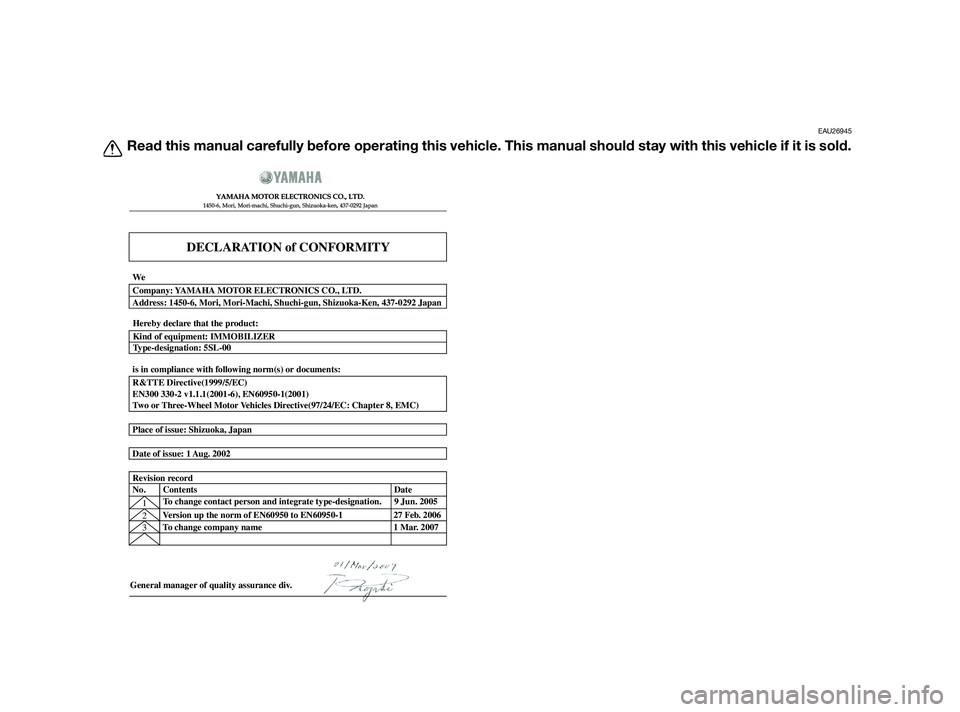

DECLARATION of CONFORMITY
General manager of quality assurance div.
1Version up the norm of EN60950 to EN60950-1
To change company name27 Feb. 2006
1 Mar. 20072
3
Revision record
No. Contents Date
To change contact person and integrate type-designation. 9 Jun. 2005
Date of issue: 1 Aug. 2002
Place of issue: Shizuoka, Japan
R&TTE Directive(1999/5/EC)
EN300 330-2 v1.1.1(2001-6), EN60950-1(2001)
Two or Three-Wheel Motor Vehicles Directive(97/24/EC: Chapter 8, EMC) is in compliance with following norm(s) or documents:
Kind of equipment: IMMOBILIZER
Type-designation: 5SL-00 Hereby declare that the product:
Company: YAMAHA MOTOR ELECTRONICS CO., LTD.
Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 JapanWe
39D-F8199-E0 4/11/09 20:21 Página 2
Page 55 of 88
1. Final transmission oil filler cap
2. O-ring
5. Install the final transmission oil
drain bolt, and then tighten it to
the specified torque.
1. Final transmission oil drain bolt
6. Refill with the specified amount
of the recommended final trans-
mission oil, and then install and
tighten the oil filler cap. WAR-
NING! Make sure that no
foreign material enters the final
transmission case. Make sure
that no oil gets on the tire or
wheel.
[EWA11311]
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUS1670
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
TIP
The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
2. Check the coolant level through
the check window.
Recommended final transmission
oil:
See page 8-1
Oil quantity:
0.21 L (0.22 US qt, 0.18 Imp.qt)
Tightening torque:
Final transmission oil drain bolt:
20 Nm (2.0 m•kgf, 14 ft•lbf)
ZAUM07031
PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
39D-F8199-E0 4/11/09 20:21 Página 55
Page 60 of 88
TIP
The tire tread depth limits may differ
from country to country. Always
comply with the local regulations.
Tire information
This model is equipped with tubeless
tires.
After extensive tests, only the tires lis-
ted below have been approved for
this model by Yamaha Motor Co., Ltd.
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
vehicle with excessively worn
tires decreases riding stability
and can lead to loss of control.
The replacement of all wheel
and brake related parts, inclu-
ding the tires, should be left to
a Yamaha dealer, who has the
necessary professional know-
ledge and experience.
EAU21960
Cast wheels
To maximize the performance, durabi-
lity, and safe operation of your vehi-
cle, note the following points regar-
ding the specified wheels.
The wheel rims should be chec-
ked for cracks, bends or warpage
before each ride. If any damage
is found, have a Yamaha dealer
replace the wheel. Do not
attempt even the smallest repair
to the wheel. A deformed or crac-
ked wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for
it to develop its optimal characte-
ristics.
WARNING
Front tire:
Size:
120/70-15 M/C 56P - 56S
Manufacturer/model:
MICHELIN/GOLD STANDARD
MICHELIN/CITY GRIP
PIRELLI/GTS23
METZELER/FEELFREE
Rear tire:
Size:
140/70-14 M/C 68P - 68S
Manufacturer/model:
MICHELIN/GOLD STANDARD
MICHELIN/CITY GRIP
PIRELLI/GTS24
METZELER/FEELFREE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
39D-F8199-E0 4/11/09 20:21 Página 60
