EAU10263
Be a Responsible Owner
As the vehicle’s owner, you are res-
ponsible for the safe and proper ope-
ration of your scooter.
Scooters are single-track vehicles.
Their safe use and operation are
dependent upon the use of proper
riding techniques as well as the
expertise of the operator. Every ope-
rator should know the following requi-
rements before riding this scooter.
He or she should:
Obtain thorough instructions
from a competent source on all
aspects of scooter operation.
Observe the warnings and main-
tenance requirements in this
Owner’s Manual.
Obtain qualified training in safe
and proper riding techniques.
Obtain professional technical
service as indicated in this
Owner’s Manual and/or when
made necessary by mechanical
conditions.
Safe Riding
Perform the pre-operation checkseach time you use the vehicle to
make sure it is in safe operating con-
dition. Failure to inspect or maintain
the vehicle properly increases the
possibility of an accident or equip-
ment damage. See page 4-1 for a list
of pre-operation checks.
This scooter is designed to carry
the operator and a passenger.
The failure of motorists to detect
and recognize scooters in traffic
is the predominating cause of
automobile/scooter accidents.
Many accidents have been cau-
sed by an automobile driver who
did not see the scooter. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you
are approaching and passing
through intersections, since
intersections are the most
likely places for scooter acci-
dents to occur.• Ride where other motorists can
see you. Avoid riding in anot-
her motorist’s blind spot.
Many accidents involve inexpe-
rienced operators. In fact, many
operators who have been invol-
ved in accidents do not even
have a current driver’s license.
• Make sure that you are quali-
fied and that you only lend your
scooter to other qualified ope-
rators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your scooter where
there is no traffic until you have
become thoroughly familiar
with the scooter and all of its
controls.
Many accidents have been cau-
sed by error of the scooter ope-
rator. A typical error made by the
operator is veering wide on a turn
due to excessive speed or under-
cornering (insufficient lean angle
for the speed).
1
SAFETY INFORMATION
1-1
39D-F8199-E0 4/11/09 20:21 Página 8

EAUS1820
Periodic inspection, adjustment, and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. Safety is an obligation
of the vehicle owner/operator. The
most important points of vehicle ins-
pection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, depending on
the weather, terrain, geographical
location, and individual use, the main-
tenance intervals may need to be
shortened.
EWA10321
Failure to properly maintain the
vehicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
EWA15121
Turn off the engine when perfor-
ming maintenance unless otherwi-
se specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while servi-
cing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more
information about carbon
monoxide.
EWA10330
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.Consult a Yamaha dealer for proper
maintenance intervals.
WARNING
WARNING
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
39D-F8199-E0 4/11/09 20:21 Página 42

EAUS1830
Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located under
the seat. (See page 3-15).
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
TIP
If you do not have the tools or expe-
rience required for a particular job,
have a Yamaha dealer perform it for
you.
TIP
Fuse tongs and a bag containing spa-
re fuses are included in the owner’s
tool kit. Be careful not to lose these
items when opening the tool kit.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
39D-F8199-E0 4/11/09 20:21 Página 43

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU38262
TIP
Engine air filter and V-belt air filter
• This model’s engine air filter is equipped with a disposable oil-coated paper eleme\
nt, which must not be cleaned with compressed air to avoid damaging it.
• The engine air filter element needs to be replaced and the V-belt air filter element needs to be serviced more fre- quently when riding in unusually wet or dusty areas.
Hydraulic brake service
• After disassembling the brake master cylinders and calipers, always chan\
ge the fluid. Regularly check the brake fluid levels and fill the reservoirs as required.
• Every two years replace the internal components of the brake master cylinders and calipers, and change th\
e bra- ke fluid.
• Replace the brake hoses every four years and if cracked or damaged.
39D-F819D-E0 20/10/09 15:57 Página 48

TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4–1/2 turn past finger tight. Howe-
ver, the spark plug should be tighte-
ned to the specified torque as soon
as possible.
EAUS1701
Engine oil
The engine oil level should be chec-
ked before each ride. In addition, the
oil must be changed at the intervals
specified in the periodic maintenance
and lubrication chart and when the
service indicator light comes on.
To check the engine oil level
1. Place the scooter on the centers-
tand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil
settles, remove the oil filler cap,
wipe the dipstick clean, insert it
back into the oil filler hole (wit-
hout screwing it in), and then
remove it again to check the oil
level.
TIP
The engine oil should be between the
minimum and maximum level marks.
1. Engine oil filler cap
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to rai-
se it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the engine oil (with or
without oil filter element
replacement)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
ZAUM07011
Tightening torque:
Spark plug:
12.5 Nm (1.25 m•kgf, 9.0 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
39D-F8199-E0 4/11/09 20:21 Página 51

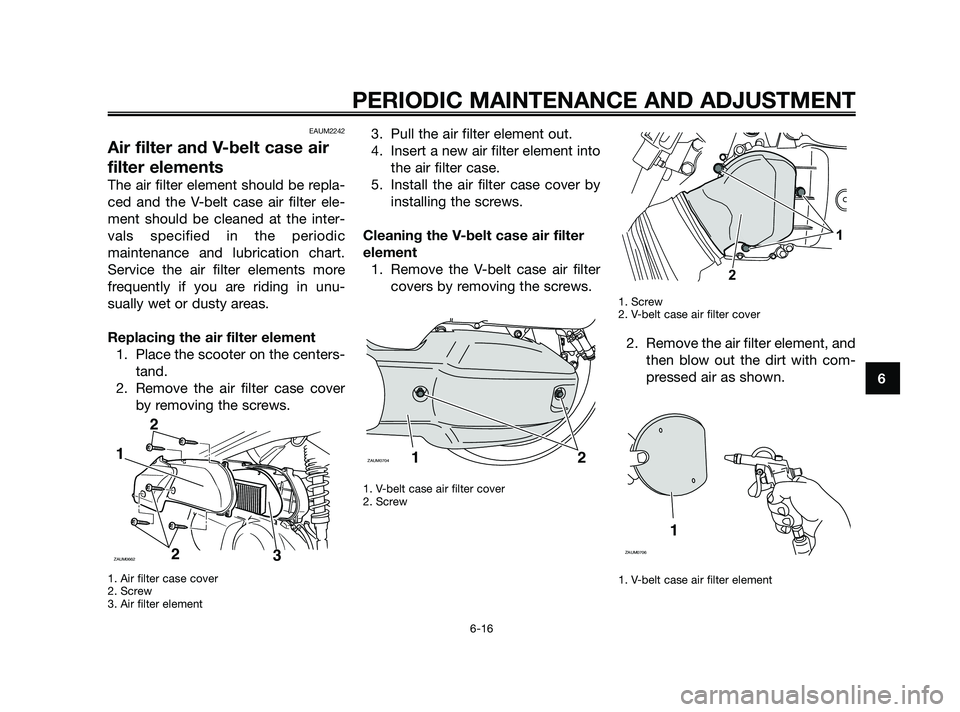

EAUM2242
Air filter and V-belt case air
filter elements
The air filter element should be repla-
ced and the V-belt case air filter ele-
ment should be cleaned at the inter-
vals specified in the periodic
maintenance and lubrication chart.
Service the air filter elements more
frequently if you are riding in unu-
sually wet or dusty areas.
Replacing the air filter element
1. Place the scooter on the centers-
tand.
2. Remove the air filter case cover
by removing the screws.
1. Air filter case cover
2. Screw
3. Air filter element
3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case.
5. Install the air filter case cover by
installing the screws.
Cleaning the V-belt case air filter
element
1. Remove the V-belt case air filter
covers by removing the screws.
1. V-belt case air filter cover
2. Screw1. Screw
2. V-belt case air filter cover
2. Remove the air filter element, and
then blow out the dirt with com-
pressed air as shown.
1. V-belt case air filter element
1
ZAUM0706
1
2
2 1ZAUM07041
2 2
ZAUM06623
PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6
39D-F8199-E0 4/11/09 20:21 Página 57

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU43231
Replacing an auxiliary light
bulb
This model is equipped with two auxi-
liary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the socket (together
with the bulb) by pulling it out.
1. Auxiliary light bulb socket
2. Remove the burnt out bulb by
pulling it out.
3. Insert a new bulb into the socket.
4. Install the socket (together with
the bulb) by pushing it in.
EAU25881
Troubleshooting
Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition sys-
tems, for example, can cause poor
starting and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter
require any repair, take it to a Yamaha
dealer, whose skilled technicians
have the necessary tools, experience,
and know-how to service the scooter
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
EWA15141
When checking the fuel system, do
not smoke, and make sure there
are no open flames or sparks in the
area, including pilot lights from
water heaters or furnaces. Gasoli-
ne or gasoline vapors can ignite or
explode, causing severe injury or
property damage.
WARNING


39D-F8199-E0 4/11/09 20:21 Página 71

Dimensions:Overall length:
2201 mm (86.7 in)
Overall width:
776 mm (30.6 in)
Overall height:
1337 mm (52.6 in)
Seat height:
792 mm (31.2 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance:
134 mm (5.30 in)
Minimum turning radius:
1805 mm (71.1 in)
Weight:With oil and fuel:
171.6 kg (378 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124 cm
3
Bore x stroke:
52.0 x 58.6 mm (2.05 x 2.31 in)
Compression ratio:
11.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO stan-
dard MA
Engine oil quantity:Without oil filter element replacement:
1.40 L (1.48 US qt, 1.23 Imp.qt)
With oil filter element replacement:
1.50 L (1.59 US qt, 1.32 Imp.qt)
Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.21 L (0.22 US qt, 0.18 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
1.00 L (1.06 US qt, 0.88 Imp.qt)
Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
11.8 L (3.12 US gal, 2.60 Imp.gal)
Fuel reserve amount:
1.7 L (0.45 US gal, 0.37 Imp.gal)
Throttle body:ID mark:
1B91 00
Manufacturer:
AISAN
Spark plug (s):Manufacturer/model:
NGK/CPR9EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Clutch:Clutch type:
Dry. centrifugal automatic
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
41/14 (2.929)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
44/13 (3.385)
Transmission type:
V-belt automatic
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40
SAE 20W-40
SAE 20W-50
SAE 10W-40
SAE 10W-50
SPECIFICATIONS
8-1
8
39D-F8199-E0 4/11/09 20:21 Página 78
