DESCRIPTION
2-3
2
EAU10430

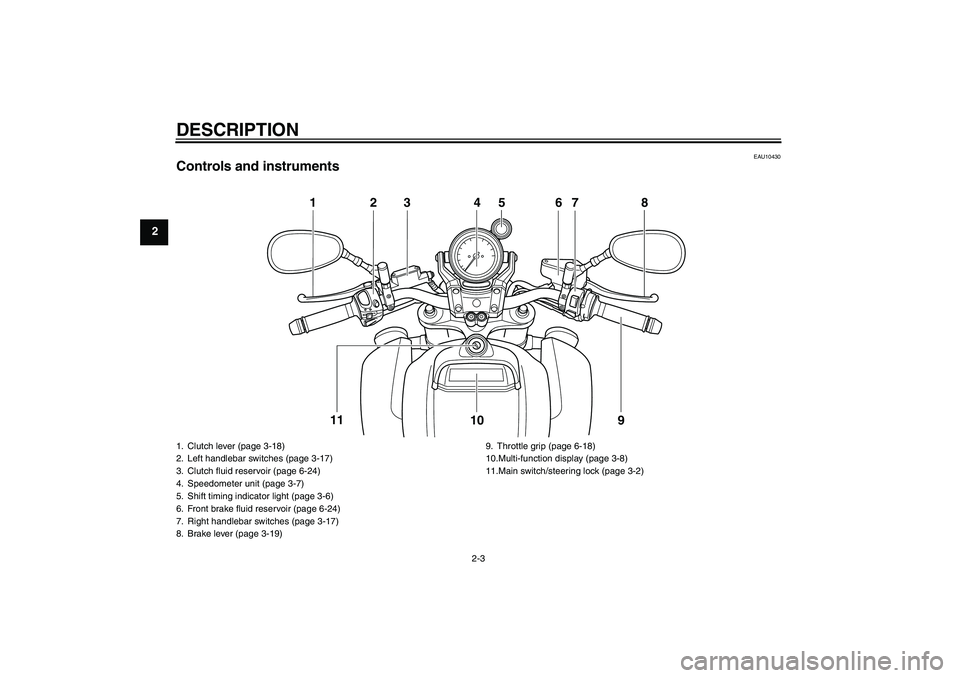

Controls and instruments
123 4 67 8
9 10 11
5
1. Clutch lever (page 3-18)
2. Left handlebar switches (page 3-17)
3. Clutch fluid reservoir (page 6-24)
4. Speedometer unit (page 3-7)
5. Shift timing indicator light (page 3-6)
6. Front brake fluid reservoir (page 6-24)
7. Right handlebar switches (page 3-17)
8. Brake lever (page 3-19)9. Throttle grip (page 6-18)
10.Multi-function display (page 3-8)
11.Main switch/steering lock (page 3-2)U2S3E1E0.book Page 3 Friday, August 7, 2009 1:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU46587
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.A “SELECT” button and a “RESET”
button are located on the handlebar
holder. These buttons allow you to con-
trol or change the settings in the multi-
function display.The multi-function display is set to the
Normal mode every time the key is
turned to “ON”.
Normal mode
The following functions are available in
the Normal mode:


an odometer


a clock


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a fuel meter


a transmission gear indicator


a coolant temperature meter


a self-diagnosis device
TIPFor the U.K. only:
The speedometer and odometer/trip-
meter displays can be switched be-
tween kilometers and miles. To switch
the speedometer and odometer/tripme-
ter displays, press “SELECT” for at
least two seconds.
1. Multi-function display
1
1.“SELECT” button
2.“RESET” button
12
1. Odometer
2. Clock
3. Tripmeter/fuel reser ve tripmeter
4. Coolant temperature warning indicator“”
5. Coolant temperature meter
6. Transmission gear indicator
7. Fuel level warning indicator“”
8. Fuel meter
123
865
7
4
U2S3E1E0.book Page 8 Friday, August 7, 2009 1:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3 Tripmeters
Turn the key to “ON”. Push “SELECT”
to switch the display between the trip-
meters “TRIP-1” and “TRIP-2” in the fol-
lowing order.
TRIP-1 → TRIP-2 → TRIP-1
When the fuel amount in the fuel tank
decreases to 3.9 L (1.03 US gal,
0.86 Imp.gal), the fuel level warning
light comes on, and the tripmeter auto-
matically changes to the fuel reserve
tripmeter “TRIP-F” and starts counting
the distance traveled from that point. In
that case, push “SELECT” to switch the
display between the various tripmeters
in the following order:
TRIP-F → TRIP-1 → TRIP-2 → TRIP-F
If you continue to ride the vehicle after
the fuel reserve tripmeter “TRIP-F” ap-
pears, the fuel meter and fuel level
warning indicator“” start flashing.
To reset a tripmeter, select it by push-
ing “SELECT”, and then push “RESET”
for at least one second. If you do not re-
set the fuel reserve tripmeter manually,
it resets itself automatically and the dis-
play returns to the prior meter after re-
fueling and traveling 5 km (3 mi).Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The fuel level dis-
played decreases towards “E” (Empty)
as the fuel tank level decreases. When
the fuel amount in the fuel tank de-
creases to 3.9 L (1.03 US gal,
0.86 Imp.gal), the fuel level warning
light comes on. If this occurs, refuel as
soon as possible.
If you continue to ride the vehicle after
the fuel reserve tripmeter “TRIP-F” ap-
pears, the fuel meter and fuel level
warning indicator“” start flashing.
Transmission gear indicatorThis indicator shows the selected gear.
The neutral position is indicated by“”
and by the neutral indicator light.
Coolant temperature meterWith the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the coolant temperature warning light
comes on, and the top segment and thecoolant temperature warning indicator
flash, stop the vehicle and let the en-
gine cool. (See page 6-39.)
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.Select mode
The various functions of this multi-func-
tion display are adjusted in the Select
mode.TIP

The transmission must be in neu-
tral to change settings in this
mode.


Shifting the transmission into gear
saves all settings made, then can-
cels the Select mode and displays
the Normal mode in all screens.


Depending on the screen, pushing
“RESET” saves settings or can-
cels the Select mode to display the
Normal mode.
Push and hold “SELECT” and “RESET”
for at least three seconds to enter the
Select mode.
U2S3E1E0.book Page 9 Friday, August 7, 2009 1:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3The following items can be set/adjusted
in this mode:


brightness


shift timing indicator light


clock


stopwatch


countdown clock


system status


maintenance counters
TIPTo return to the Normal mode, push
“SELECT” to scroll to“”, then push
“RESET”.Adjusting the brightnessThis function allows you to adjust the
brightness of the tachometer panel and
speedometer (“Meter panel”), the ta-
chometer needle (“Needle”), and the
multi-function display (“Display”) to suit
the outside lighting conditions.
1. Push “SELECT” to highlight
“Brightness”.2. Push “RESET”, then push “SE-
LECT” to scroll through the func-
tions and to highlight an item.
3. Push “RESET”; the brightness lev-
el segments for the selected item
starts flashing.
4. Push “SELECT” to highlight the
desired brightness level.
5. Push “RESET” to set the bright-
ness level.
6. Push “SELECT” to scroll to“”,
then push “RESET” to return to the
previous menu.Selecting the shift timing indicator light
settingsThis function allows you to choose
whether or not the shift timing indicator
light is activated and whether it flashes
or stays on when activated.
1. Push “SELECT” to highlight “Shift
light”.
2. Push “RESET”.
3. Push “SELECT” to highlight “Oper-
ation selection”.1. Shift timing indicator light
1
U2S3E1E0.book Page 10 Friday, August 7, 2009 1:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 4. Push “RESET”.
Push “SELECT” and highlight “On”
to activate the indicator light; the
indicator light comes on and stays
on when activated.
Push “SELECT” and highlight
“Flash” to activate the indicator
light; the indicator light flashes
when activated.
Push “SELECT” and highlight “Off”
to deactivate the indicator light; the
indicator light neither comes on
nor flashes.
TIPThe indicator light flashes once every
two seconds to show that it has been
deactivated. The indicator light goes off
after this menu is exited.5. Push “RESET” to set the shift tim-
ing indicator light activity.
6. Push “RESET” again to return to
the previous menu.
Setting the r/min in relation to the shifttiming indicator lightThis function allows you to select the
engine speed at which the indicator
light is activated and deactivated. All
gears can be set to the same activa-
tion/deactivation r/min or the gears can
be set individually.
Push “SELECT” to highlight “r/min set-
ting”, then push “RESET”.
TIPThe shift timing indicator light can be
set to activate between 3000 r/min and
10500 r/min and deactivate between
3500 r/min and 11000 r/min in incre-
ments of 500 r/min.To set all gears to the same r/min:
1. Push “SELECT” to highlight “All”.
2. Push “RESET”; “On” is displayed.
3. Push “RESET” and the r/min digits
start flashing.
4. Push “SELECT” to highlight the
engine speed at which the shift
timing indicator light is activated.
U2S3E1E0.book Page 11 Friday, August 7, 2009 1:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
35. Push “RESET” to set the selected
engine speed. “Off” is highlighted
and the r/min digits start flashing.
6. Push “SELECT” to highlight the
engine speed at which the shift
timing indicator light is deactivat-
ed.
7. Push “RESET” to set the selected
engine speed.
8. Push “RESET” again to return to
the previous menu.
To set individual gear r/min:
1. Push “SELECT” to highlight gears
from “1st” through “5th”, then push
“RESET”.
2. Push “RESET” and the r/min digits
for the highlighted gear start flash-
ing, then perform steps 4–8 under
“To set all gears to the same
r/min:” in order to set the r/min for
the individual gears.
TIPAfter setting r/min for individual gears, if
“All” is chosen, all previously set r/min
for individual gears return to the default
settings of 9000 (activation) and 11000
(deactivation).3. Push “SELECT” to scroll to“”,
then push “RESET” to return to the
previous menu.
Setting the shift timing indicator lightbrightnessThis function allows you to adjust the
brightness of the shift timing indicator
light.
1. Push “SELECT” to highlight
“Brightness”.
2. Push “RESET” and the brightness
level segments start flashing.3. Push “SELECT” to highlight the
desired brightness level.
4. Push “RESET” to set the selected
brightness level.
5. Push “RESET” to return to the pre-
vious menu.
6. Push “SELECT” to scroll to“”,
then push “RESET”. This allows
you to select another item in the
menu.
Setting the clock
1. Push “SELECT” to highlight “Dis-
play”.
2. Push “RESET”; the following
screen is displayed.
3. Push “RESET” and the hour digits
start flashing.
4. Push “SELECT” to increment the
hours.
U2S3E1E0.book Page 12 Friday, August 7, 2009 1:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3 5. Push “RESET”, and the minute
digits start flashing.
6. Push “SELECT” to increment the
minutes.
7. Push “RESET” to start the clock.
8. Push “RESET” again to return to
the previous menu.
Resetting all the brightness and shift
timing indicator light functions:This resets ALL settings made to the
brightness and shift timing indicator
light functions.
1. Push “SELECT” to highlight “Dis-
play”.
2. Push “RESET”.
3. Push “SELECT” to highlight “All re-
set”.
4. Push “RESET”, then push “SE-
LECT” to highlight “Yes”.5. Push “RESET” to reset the bright-
ness and shift timing light indicator
values to the factory setting. The
display returns to the Normal
mode.
TIPTo perform further multi-function dis-
play settings, enter the Select mode
again by pushing and holding “SE-
LECT” and “RESET” for at least three
seconds.Using the stopwatchThe stopwatch can be activated as fol-
lows.
1. Push “SELECT” to highlight “Stop-
watch”.
2. Push “RESET”.3. Push “SELECT” to highlight “Stop-
watch”.
4. Push “RESET”.
The multi-function display chang-
es to the Normal mode and the
stopwatch is displayed in place of
the clock.
5. Push “SELECT” to start the stop-
watch.
6. Push the start switch“” or “SE-
LECT” to stop the stopwatch.
7. Push “RESET” to reset the stop-
watch.
TIP

If neither “SELECT” nor “RESET”
are pushed for one minute, the
screen automatically changes to
the Normal mode.
U2S3E1E0.book Page 13 Friday, August 7, 2009 1:06 PM
