2010 YAMAHA MAJESTY 400 Owners Manual

SPECIFICATIONS
8-3
2
3
4
5
6
7
89

Voltage, capacity:
12 V, 8.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×× × ×
quantity:
Headlight:
12 V, 60 W/55 W
×
1
Headlight:
12 V, 55 W
×
1
Tail/brake light:
LED
Front turn signal light:
12 V, 21.0 W
×
2
Rear turn signal light:
12 V, 21.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
2
License plate light:
12 V, 5.0 W
×
1
Meter lighting:
12 V, 2.0 W
×
3
High beam indicator light:
12 V, 1.4 W
×
1
Turn signal indicator light:
12 V, 1.4 W
×
2
Engine trouble warning light:
12 V, 1.4 W
×
1
ABS warning light:
YP400A 12 V, 1.4 W
×
1
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
10.0 A
Hazard fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
YP400A 10.0 A
ABS motor fuse:
YP400A 30.0 A
ABS solenoid fuse:
YP400A 20.0 A
Backup fuse:
10.0 A

9-1
1
2
3
4
5
6
7
8
9

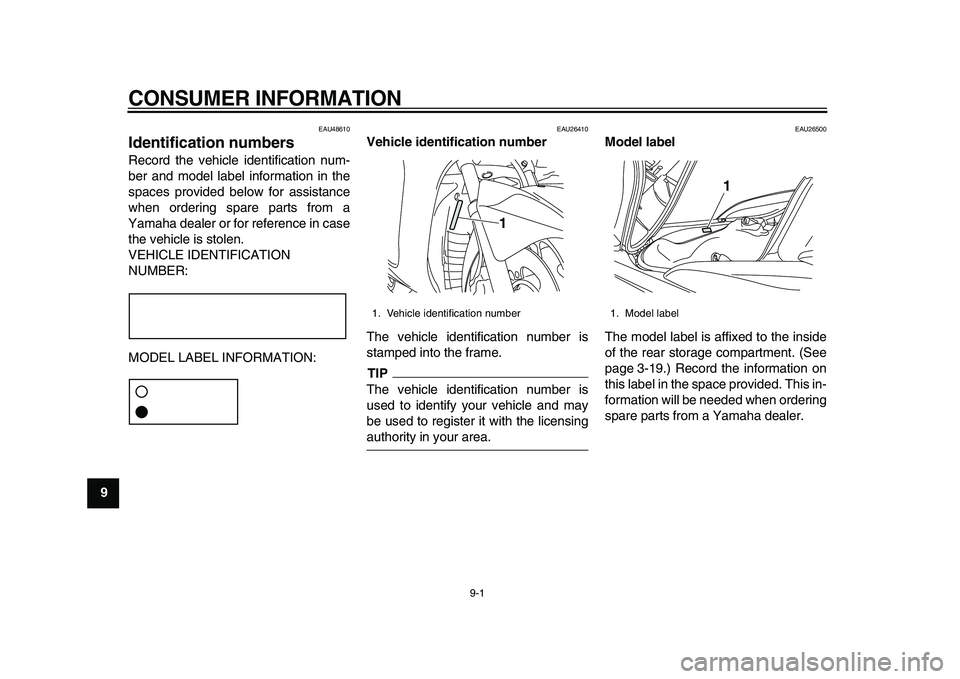

CONSUMER INFORMATION
EAU48610
Identification numbers
Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.
TIP

The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
EAU26500
Model label
The model label is affixed to the inside
of the rear storage compartment. (See
page 3-19.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1

1. Model label
1

INDEX
A
ABS (for ABS models) ............................. 3-13
ABS warning light (for ABS models) .......... 3-4
Acceleration and deceleration ................... 5-2
Air filter elements and check hoses
and V-belt case air filter element ........... 6-17
Anti-theft alarm (optional) .......................... 3-9
Auxiliary light bulb.................................... 6-36
B
Battery ..................................................... 6-30
Brake fluid, changing ............................... 6-26
Brake fluid level, checking ....................... 6-25
Brake lever, front ..................................... 3-11
Brake lever, rear ...................................... 3-12
Brake levers, lubricating .......................... 6-27
Braking ...................................................... 5-3
C
Cables, checking and lubricating ............. 6-26
Care ........................................................... 7-1
Catalytic converters ................................. 3-16
Centerstand and sidestand, checking
and lubricating ....................................... 6-28
Coolant .................................................... 6-16
Cowlings and panels, removing and
installing .................................................. 6-7
D
Dimmer switch ......................................... 3-10
E
Engine break-in ......................................... 5-4
Engine oil and oil filter element................ 6-12
Engine stop switch................................... 3-10
Engine trouble warning light ...................... 3-3
F
Final transmission oil ............................... 6-15Front and rear brake lever free play ........ 6-23
Front and rear brake pads, checking....... 6-24
Front fork, checking ................................. 6-28
Front turn signal light ............................... 6-34
Fuel ......................................................... 3-15
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ........................................... 3-14
Fuses, replacing ...................................... 6-31
H
Handlebar switches ................................. 3-10
Hazard switch .......................................... 3-11
Headlight bulb, replacing ......................... 6-33
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-10
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-22
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
L
License plate light bulb, replacing ........... 6-35
M
Main switch/steering lock .......................... 3-2
Maintenance and lubrication, periodic ....... 6-4
Maintenance, emission control system ..... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display ................................. 3-5
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................. 3-10
R
Rear brake lock lever .............................. 3-12
Rear brake lock lever cable, adjusting .... 6-24
Rider seat, adjusting ............................... 3-18
S
Safe-riding points ...................................... 1-5
Safety information ..................................... 1-1
Seats ....................................................... 3-17
Shock absorber assemblies,
adjusting ............................................... 3-21
Sidestand ................................................ 3-21
Spark plug, checking............................... 6-10
Specifications ............................................ 8-1
Speedometer ............................................ 3-5
Starting off................................................. 5-2
Starting the engine .................................... 5-1
Start switch ............................................. 3-10
Steering, checking .................................. 6-29
Storage ..................................................... 7-3
Storage compartments............................ 3-19
T
Tachometer ............................................... 3-5
Tail/brake light......................................... 6-34
Throttle cable free play, checking ........... 6-20
Throttle grip and cable, checking and
lubricating ............................................. 6-27
Tires ........................................................ 6-21
Tool kit ...................................................... 6-1
Troubleshooting ...................................... 6-36
Troubleshooting charts ........................... 6-37
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (rear), replacing .... 6-34
Turn signal switch ................................... 3-10

INDEX
V
Valve clearance ...................................... 6-20
Vehicle identification number .................... 9-1
W
Wheel bearings, checking ....................... 6-29
Wheels .................................................... 6-22

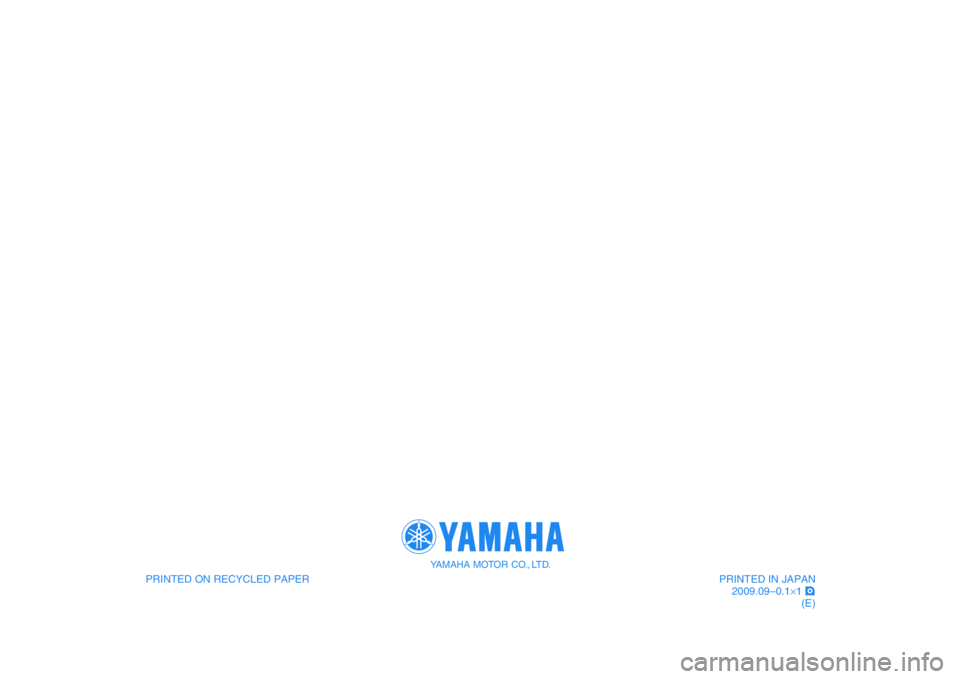

PRINTED ON RECYCLED PAPER
