2010 YAMAHA GRIZZLY 700 engine

10-2
10
Type:
SAE 5W-30 or SAE 10W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement:
2.10 L (2.22 US qt, 1.85 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)Differential gear oil:Type:
SAE 80 API GL-4 Hypoid gear oilQuantity:
0.22 L (0.23 US qt, 0.19 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)
Radiator capacity (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
YFM700FAPZ Unleaded gasoline only
YFM7FGPHZ Regular unleaded gasoline only
YFM7FGPZ Regular unleaded gasoline only
Fuel tank capacity:
20.0 L (5.28 US gal, 4.40 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)Fuel injection:Throttle body:
Type/quantity:
44EIS/1Spark plug (s):Manufacturer/model:
NGK/LMAR6A-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, centrifugal automatic
0 10 30 50 70 90 110 130 ˚F -20 -10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-40
SAE 20W-50
U43P62E0.book Page 2 Tuesday, February 17, 2009 1:09 PM

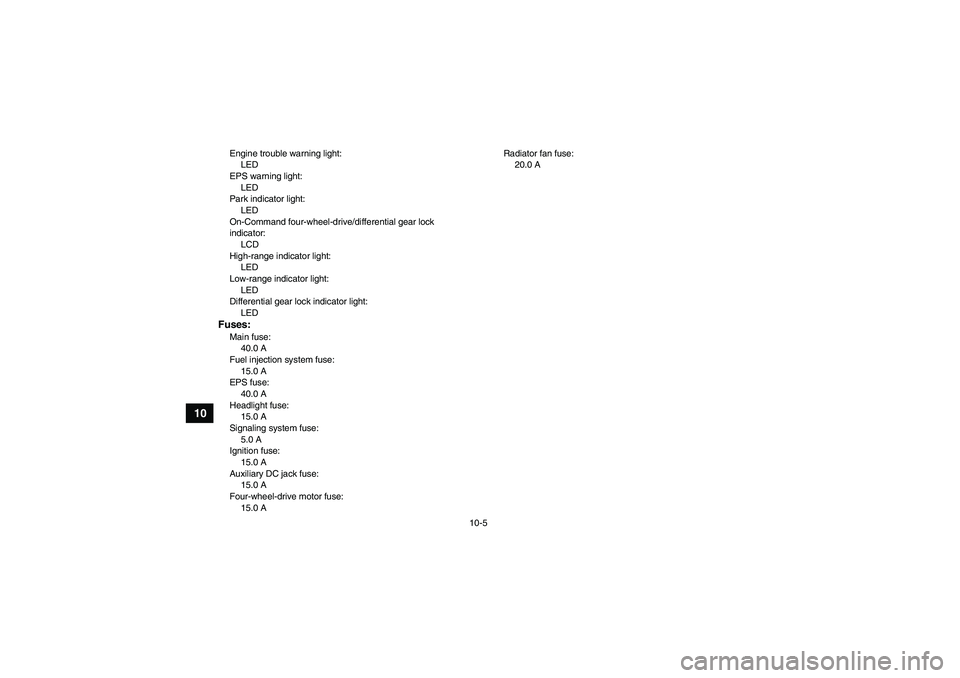

10-5
10
Engine trouble warning light:
LED
EPS warning light:
LED
Park indicator light:
LED
On-Command four-wheel-drive/differential gear lock
indicator:
LCD
High-range indicator light:
LED
Low-range indicator light:
LED
Differential gear lock indicator light:
LEDFuses:Main fuse:
40.0 A
Fuel injection system fuse:
15.0 A
EPS fuse:
40.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
5.0 A
Ignition fuse:
15.0 A
Auxiliary DC jack fuse:
15.0 A
Four-wheel-drive motor fuse:
15.0 ARadiator fan fuse:
20.0 A
U43P62E0.book Page 5 Tuesday, February 17, 2009 1:09 PM
