2010 YAMAHA GRIZZLY 700 engine coolant

8-31
8
TIPThe coolant should be between the minimum and
maximum level marks.3. If the coolant is at or below the minimum level
mark, remove panel D. (See page 8-8.)
4. Remove the coolant reservoir cap, add cool-
ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panel. NOTICE: If coolant is not avail-
able, use distilled water or soft tap water
instead. Do not use hard water or salt wa-
ter since they are harmful to the engine. Ifwater has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be
protected against frost and corrosion. If
water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01011]
1. Maximum level mark
2. Minimum level mark
1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
U43P62E0.book Page 31 Tuesday, February 17, 2009 1:09 PM

8-32
8
TIP
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-63 for fur-
ther instructions.EBU27762To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap.1. Place the ATV on a level surface.
2. Remove panels D and F. (See page 8-8.)3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent coolant
from spilling on the engine guard.) Coolant reservoir capacity (up to the maximum
level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)
1. Coolant drain bolt
U43P62E0.book Page 32 Tuesday, February 17, 2009 1:09 PM

8-34
810. Connect the coolant reservoir hose.
11. Pour the recommended coolant into the radia-
tor until it is full.
12. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap. NOTICE: Mix
antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft
water may be used for refilling. Do not use
hard water or salt water since they are
harmful to the engine.
[ECB00991]
13. Loosen the water pump air bleed bolt, without
removing it, to allow all of the air to escape
from the air bleed bolt hole.
14. When coolant begins to flow out of the bolt
hole, tighten the water pump air bleed bolt to
the specified torque.
15. Remove panel E. (See page 8-8.)
16. Loosen the clamp screw, and then remove the
V-belt cooling duct. Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)1. Water pump air bleed boltTightening torque:
Water pump air bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U43P62E0.book Page 34 Tuesday, February 17, 2009 1:09 PM

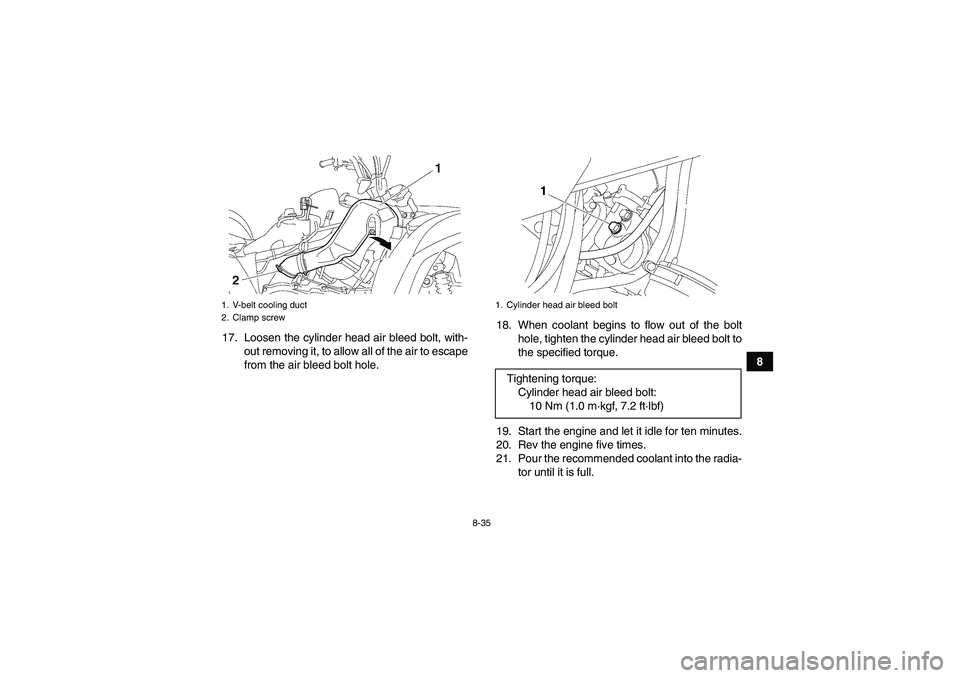

8-35
8 17. Loosen the cylinder head air bleed bolt, with-
out removing it, to allow all of the air to escape
from the air bleed bolt hole.18. When coolant begins to flow out of the bolt
hole, tighten the cylinder head air bleed bolt to
the specified torque.
19. Start the engine and let it idle for ten minutes.
20. Rev the engine five times.
21. Pour the recommended coolant into the radia-
tor until it is full.
1. V-belt cooling duct
2. Clamp screw
1. Cylinder head air bleed boltTightening torque:
Cylinder head air bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U43P62E0.book Page 35 Tuesday, February 17, 2009 1:09 PM

8-36
822. Stop the engine and allow it to cool. If the cool-
ant level has dropped after the engine has
cooled, add sufficient coolant until it reaches
the top of the radiator, and then install the ra-
diator cap.
23. Start the engine, and then check for coolant
leakage.
TIPIf any leakage is found, have a Yamaha dealer
check the cooling system.24. Install the V-belt cooling duct, and then tighten
the clamp screw.
25. Install the panels.EBU27805Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.TIPThere are two check hoses at the bottom of the air
filter case, which are located behind panels D and
E. (See page 8-8 for an explanation on removingthe panels.) Check the hoses periodically and, if
dust or water collects in them, empty them and
clean the air filter element and air filter case.
1. Air filter case check hose
U43P62E0.book Page 36 Tuesday, February 17, 2009 1:09 PM

8-64
8Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-
ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U43P62E0.book Page 64 Tuesday, February 17, 2009 1:09 PM

10-2
10
Type:
SAE 5W-30 or SAE 10W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement:
2.10 L (2.22 US qt, 1.85 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)Differential gear oil:Type:
SAE 80 API GL-4 Hypoid gear oilQuantity:
0.22 L (0.23 US qt, 0.19 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)
Radiator capacity (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
YFM700FAPZ Unleaded gasoline only
YFM7FGPHZ Regular unleaded gasoline only
YFM7FGPZ Regular unleaded gasoline only
Fuel tank capacity:
20.0 L (5.28 US gal, 4.40 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)Fuel injection:Throttle body:
Type/quantity:
44EIS/1Spark plug (s):Manufacturer/model:
NGK/LMAR6A-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, centrifugal automatic
0 10 30 50 70 90 110 130 ˚F -20 -10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-40
SAE 20W-50
U43P62E0.book Page 2 Tuesday, February 17, 2009 1:09 PM

INDEX
AAccessories and loading ................................................ 6-6
Accessories, auxiliary jack ........................................... 4-23
Air filter element, cleaning ............................................ 8-36
Axle boots .................................................................... 8-49BBattery .......................................................................... 8-53
Brake fluid, changing .................................................... 8-46
Brake fluid level, checking ............................................ 8-45
Brake hose protectors, checking the rear .................... 8-44
Brake lever, front .......................................................... 4-14
Brake levers, checking and lubricating ......................... 8-50
Brake pads, checking the front and rear ...................... 8-43
Brake pedal and rear brake lever ................................. 4-14
Brake pedal, checking and lubricating ......................... 8-51
Brake pedal free play, adjusting ................................... 8-47
Brakes .......................................................................... 8-43
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-50
Carrier, front ................................................................. 4-21
Carrier, rear .................................................................. 4-21
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant .................................................................. 5-3, 8-30
Coolant temperature warning light ................................. 4-2DDifferential gear oil ................................................ 5-3, 8-28Drive select lever .......................................................... 4-15
Drive select lever and driving in reverse ........................ 6-2
Drive select lever safety system cable, adjusting ......... 8-43
EEngine break-in .............................................................. 6-4
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-22
Engine stop switch ......................................................... 4-7
Engine trouble warning light ........................................... 4-3
EPS warning light ........................................................... 4-3FFinal gear oil .......................................................... 5-3, 8-26
Four-wheel-drive/differential gear lock indicator ............ 4-4
Front and rear brake lever free play, checking ............. 8-46
Fuel ....................................................................... 4-16, 5-3
Fuel tank cap ................................................................ 4-15
Fuses, replacing ........................................................... 8-56HHandlebar switches ........................................................ 4-7
Headlight beam, adjusting ............................................ 8-59
Headlight bulb, replacing .............................................. 8-58
High-range indicator light ............................................... 4-4
Horn switch .................................................................... 4-8IIdentification numbers .................................................. 11-1
Indicator lights and warning lights .................................. 4-2
Instruments, lights and switches .................................... 5-7
