2010 YAMAHA GRIZZLY 350 Owners Manual

8-33

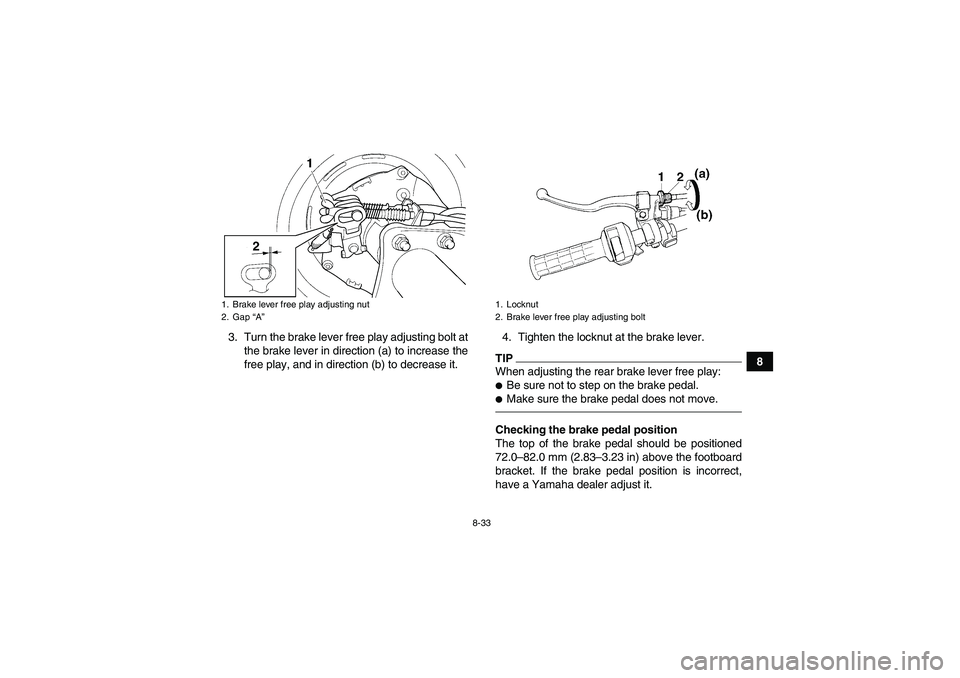

8 3. Turn the brake lever free play adjusting bolt at
the brake lever in direction (a) to increase the
free play, and in direction (b) to decrease it.4. Tighten the locknut at the brake lever.
TIPWhen adjusting the rear brake lever free play:
Be sure not to step on the brake pedal.
Make sure the brake pedal does not move.Checking the brake pedal position
The top of the brake pedal should be positioned
72.0–82.0 mm (2.83–3.23 in) above the footboard
bracket. If the brake pedal position is incorrect,
have a Yamaha dealer adjust it.
1. Brake lever free play adjusting nut
2. Gap “A”
1. Locknut
2. Brake lever free play adjusting bolt
U1AB60E0.book Page 33 Wednesday, April 29, 2009 10:19 AM

8-34
8

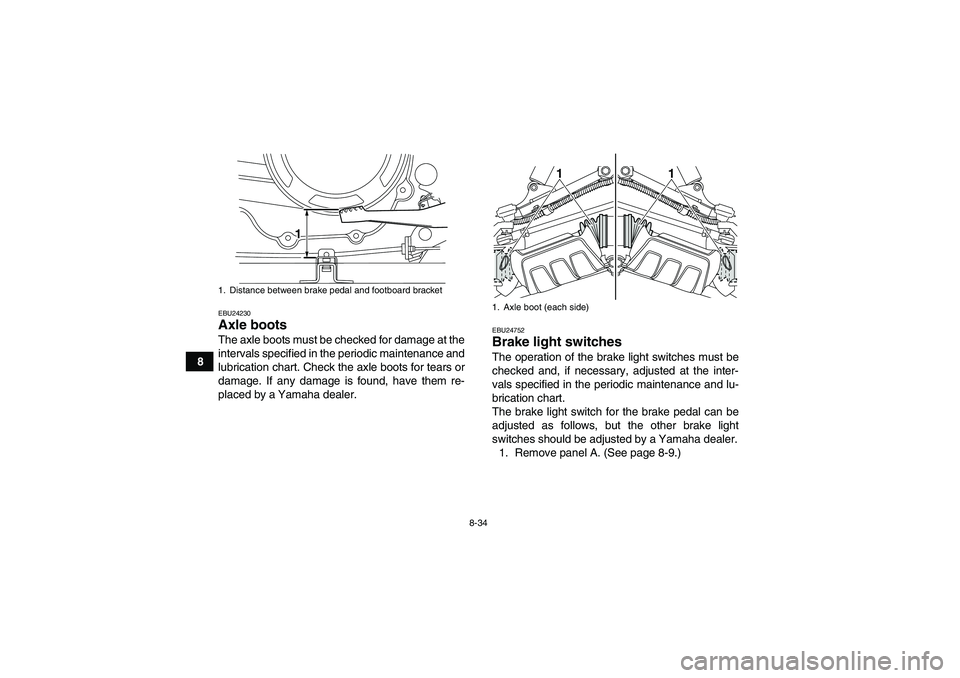

EBU24230Axle boots The axle boots must be checked for damage at the
intervals specified in the periodic maintenance and
lubrication chart. Check the axle boots for tears or
damage. If any damage is found, have them re-
placed by a Yamaha dealer.
EBU24752Brake light switches The operation of the brake light switches must be
checked and, if necessary, adjusted at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
The brake light switch for the brake pedal can be
adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.
1. Remove panel A. (See page 8-9.)
1. Distance between brake pedal and footboard bracket
1 1
1. Axle boot (each side)
11
U1AB60E0.book Page 34 Wednesday, April 29, 2009 10:19 AM

8-35
8
TIPThe brake light switch is properly adjusted when
the brake light comes on just before braking takes
effect.2. Turn the brake light switch adjusting nut while
holding the brake light switch in place. To
make the brake light come on earlier, turn the
adjusting nut in direction (a). To make the
brake light come on later, turn the adjusting
nut in direction (b).
3. Install the panel.
EBU24901Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02581
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could
restrict the operation of controls and lead to
an accident or injury.
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision.
1. Brake light switch
2. Brake light switch adjusting nut
Recommended lubricant:
Engine oil
U1AB60E0.book Page 35 Wednesday, April 29, 2009 10:19 AM

8-36
8

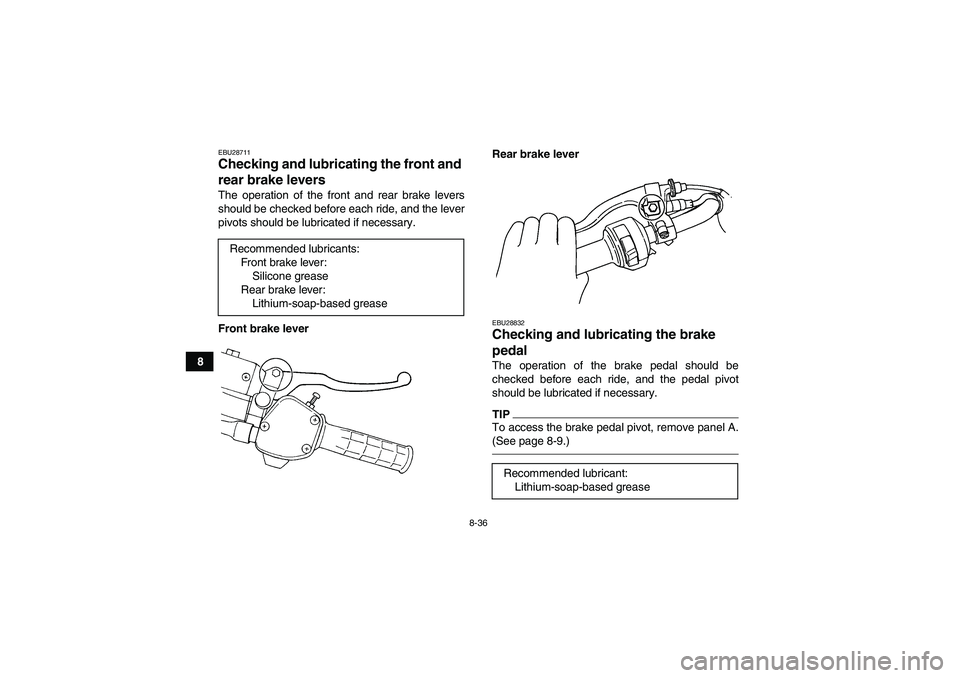

EBU28711Checking and lubricating the front and
rear brake levers The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Front brake leverRear brake lever
EBU28832Checking and lubricating the brake
pedal The operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.TIPTo access the brake pedal pivot, remove panel A.
(See page 8-9.)
Recommended lubricants:
Front brake lever:
Silicone grease
Rear brake lever:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
U1AB60E0.book Page 36 Wednesday, April 29, 2009 10:19 AM

8-37
8

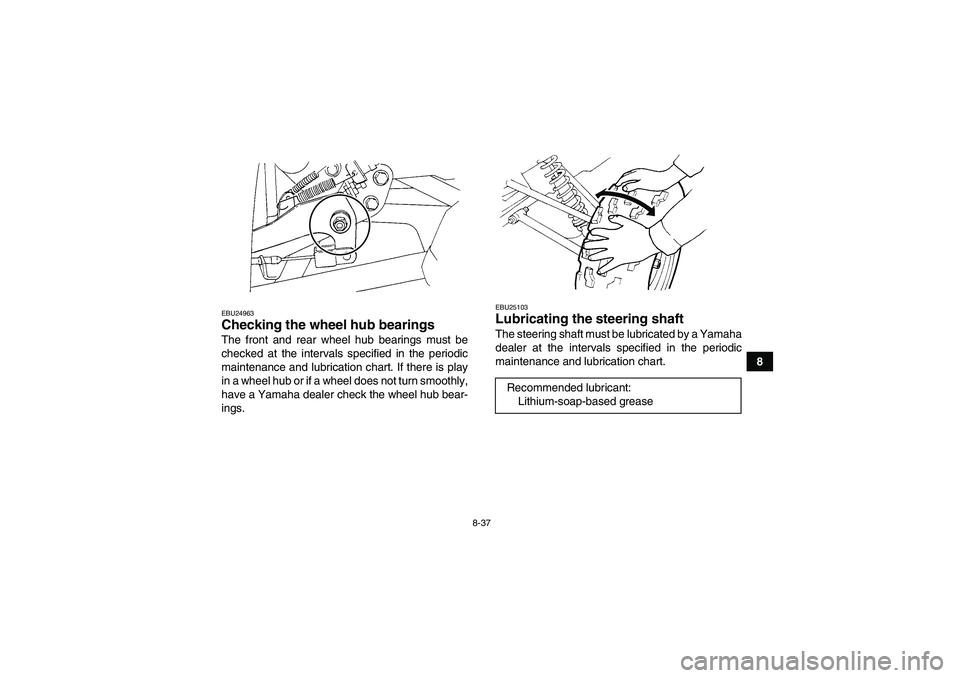

EBU24963Checking the wheel hub bearings The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.
EBU25103Lubricating the steering shaft The steering shaft must be lubricated by a Yamaha
dealer at the intervals specified in the periodic
maintenance and lubrication chart.Recommended lubricant:
Lithium-soap-based grease
U1AB60E0.book Page 37 Wednesday, April 29, 2009 10:19 AM

8-38
8

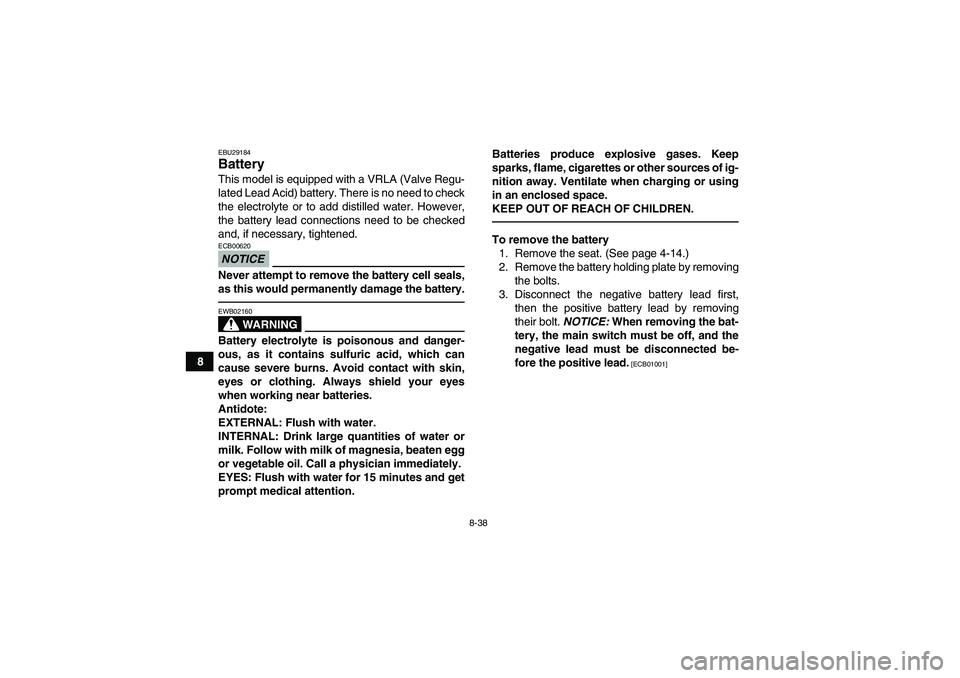

EBU29184Battery This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to check
the electrolyte or to add distilled water. However,
the battery lead connections need to be checked
and, if necessary, tightened.NOTICEECB00620Never attempt to remove the battery cell seals,
as this would permanently damage the battery.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN.
To remove the battery
1. Remove the seat. (See page 4-14.)
2. Remove the battery holding plate by removing
the bolts.
3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01001]
U1AB60E0.book Page 38 Wednesday, April 29, 2009 10:19 AM

8-39
8

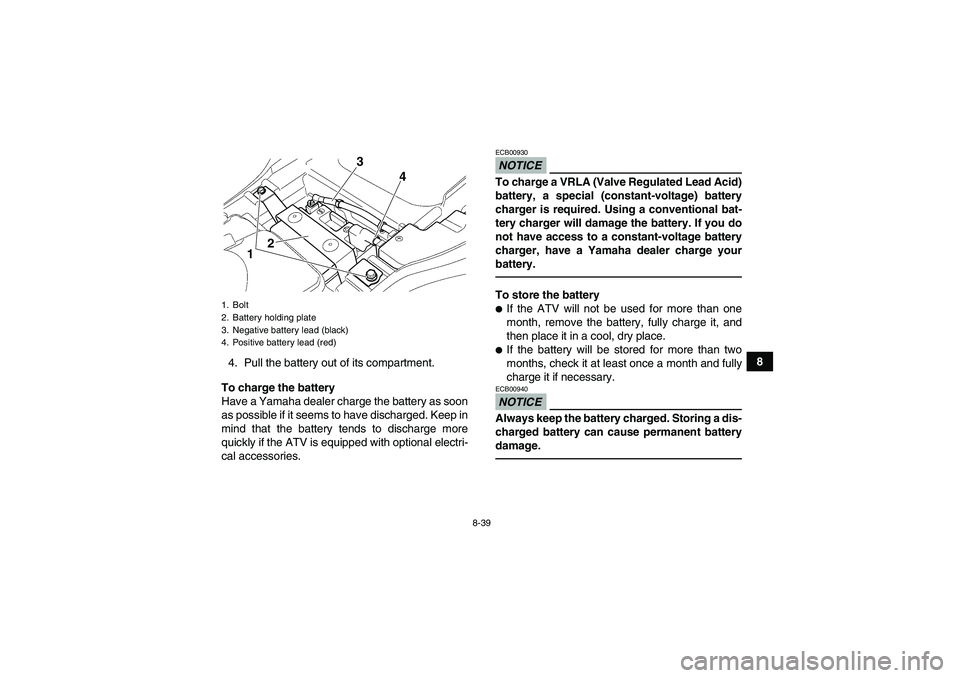

4. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.
NOTICEECB00930To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery. If you do
not have access to a constant-voltage battery
charger, have a Yamaha dealer charge your
battery.To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00940Always keep the battery charged. Storing a dis-
charged battery can cause permanent battery
damage.
1. Bolt
2. Battery holding plate
3. Negative battery lead (black)
4. Positive battery lead (red)
123
4
U1AB60E0.book Page 39 Wednesday, April 29, 2009 10:19 AM

8-40
8To install the battery
TIPBe sure the battery is fully charged.1. Place the battery in its compartment.
2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt.
3. Install the battery holding plate by installing
the bolts.
4. Install the seat. (See page 4-14.)
EBU25326Replacing a fuse The main fuse and the fuse box are located under
the seat. (See page 4-14.)
1. Positive battery lead (red)
2. Negative battery lead (black)
2
1
1. Main fuse
2. Spare main fuse
3. Fuse box
U1AB60E0.book Page 40 Wednesday, April 29, 2009 10:19 AM
