2010 YAMAHA FZ1-N Owners Manual

SPECIFICATIONS
8-3
8
Charging system:
AC magnetoBattery:Model:
YTZ14S
Voltage, capacity:
12 V, 11.2 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LEDCoolant temperature warning light:
LED
Engine trouble warning light:
LED
ABS warning light:
FZ1-NA LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Radiator fan fuse:
10.0 A × 2
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
FZ1-NA 10.0 A
ABS motor fuse:
FZ1-NA 30.0 A
Backup fuse:
10.0 A
U2D1E4E0.book Page 3 Tuesday, July 7, 2009 7:05 PM

CONSUMER INFORMATION
9-1
9
EAU26352

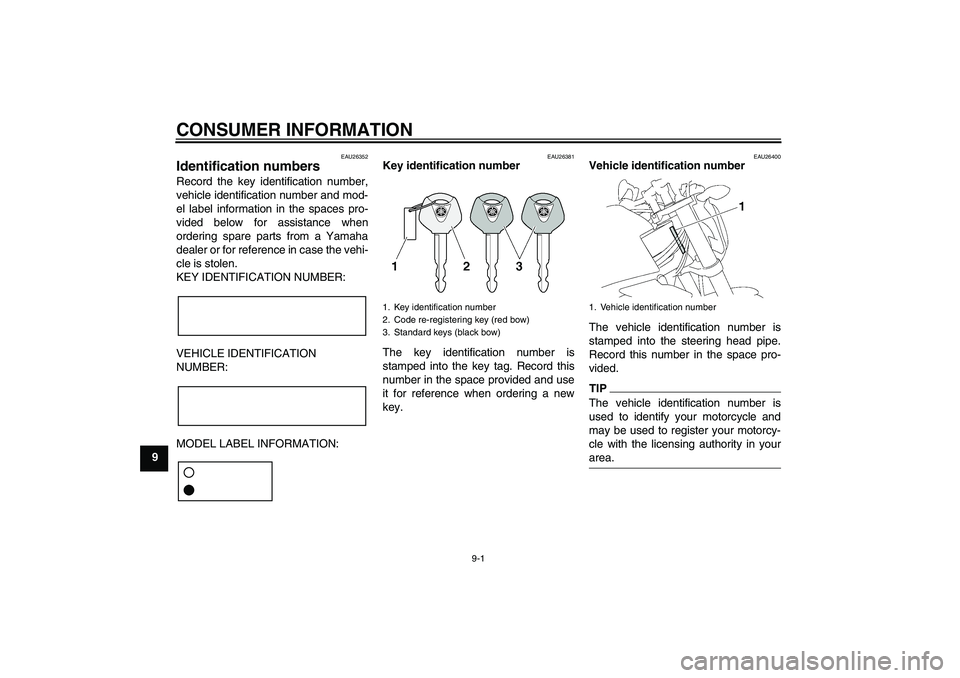

Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U2D1E4E0.book Page 1 Tuesday, July 7, 2009 7:05 PM

CONSUMER INFORMATION
9-2
9
EAU26470

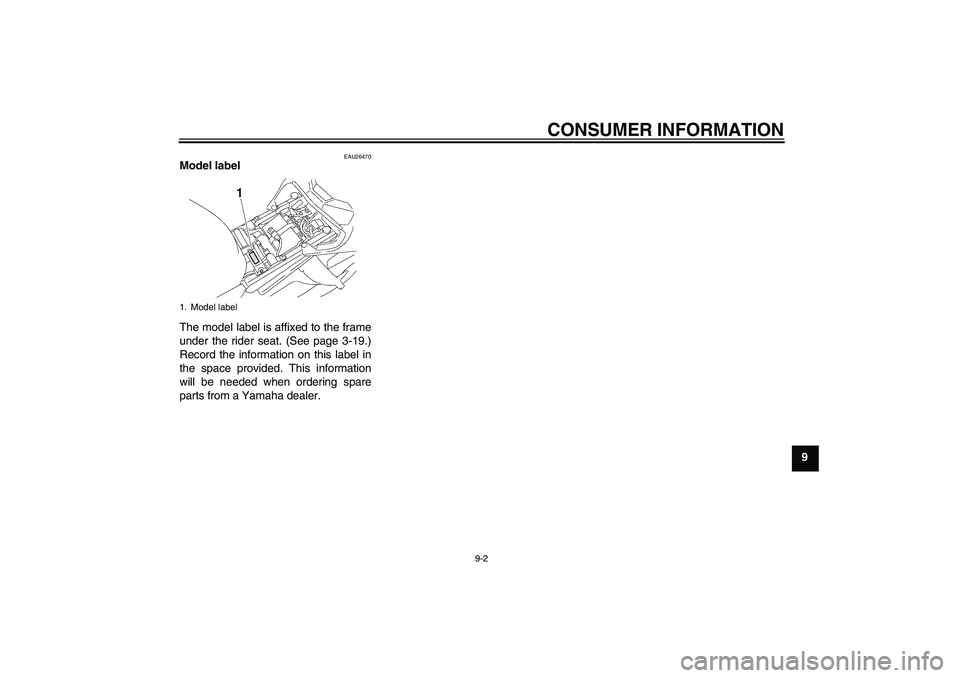

Model label
The model label is affixed to the frame
under the rider seat. (See page 3-19.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
U2D1E4E0.book Page 2 Tuesday, July 7, 2009 7:05 PM

INDEXAABS (for ABS models) .......................... 3-15
ABS warning light (for ABS models) ....... 3-7
Air filter element, replacing ................... 6-13
Anti-theft alarm (optional)...................... 3-12
Auxiliary light bulb, replacing ................ 6-34BBattery................................................... 6-28
Brake and clutch levers, checking and
lubricating ........................................... 6-26
Brake and shift pedals, checking and
lubricating ........................................... 6-25
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ............................................ 3-15
Brake light switches (FZ1-N)................. 6-19
Brake light switches (FZ1-NA) .............. 6-20
Brake pedal ........................................... 3-15CCables, checking and lubricating .......... 6-24
Care ........................................................ 7-1
Catalytic converters .............................. 3-19
Clutch lever ........................................... 3-14
Clutch lever free play, adjusting ............ 6-19
Coolant.................................................. 6-11
Coolant temperature warning light .......... 3-4DDimmer switch ...................................... 3-13
Drive chain, cleaning and lubricating .... 6-24
Drive chain slack ................................... 6-22EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-15
Engine oil and oil filter cartridge .............. 6-9Engine stop switch................................ 3-13
Engine trouble warning light ................... 3-7
EXUP system ....................................... 3-26
FFront and rear brake pads, checking .... 6-20
Front fork, adjusting .............................. 3-21
Front fork, checking .............................. 6-27
Fuel....................................................... 3-17
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather/overflow hose ......... 3-18
Fuel tank cap ........................................ 3-16
Fuses, replacing ................................... 6-29HHandlebar switches .............................. 3-13
Hazard switch ....................................... 3-14
Headlight bulb, replacing ...................... 6-32
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-13IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-27
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-7
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-34
Luggage strap holders .......................... 3-25MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1Model label .............................................. 9-2
Multi-function meter unit .......................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-7
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13SSafety information ................................... 1-1
Seats ..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-14
Shock absorber assembly, adjusting .... 3-23
Sidestand .............................................. 3-26
Sidestand, checking and lubricating...... 6-26
Spark plugs, checking ............................. 6-8
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-13
Steering, checking................................. 6-27
Storage.................................................... 7-3
Storage compartment (FZ1-N) .............. 3-21
Supporting the motorcycle .................... 6-35TTail/brake light bulb, replacing .............. 6-33
Throttle cable free play, checking ......... 6-15
Throttle grip and cable, checking and
lubricating ........................................... 6-25
Tires ...................................................... 6-16
Tool kit..................................................... 6-1
U2D1E4E0.book Page 1 Tuesday, July 7, 2009 7:05 PM

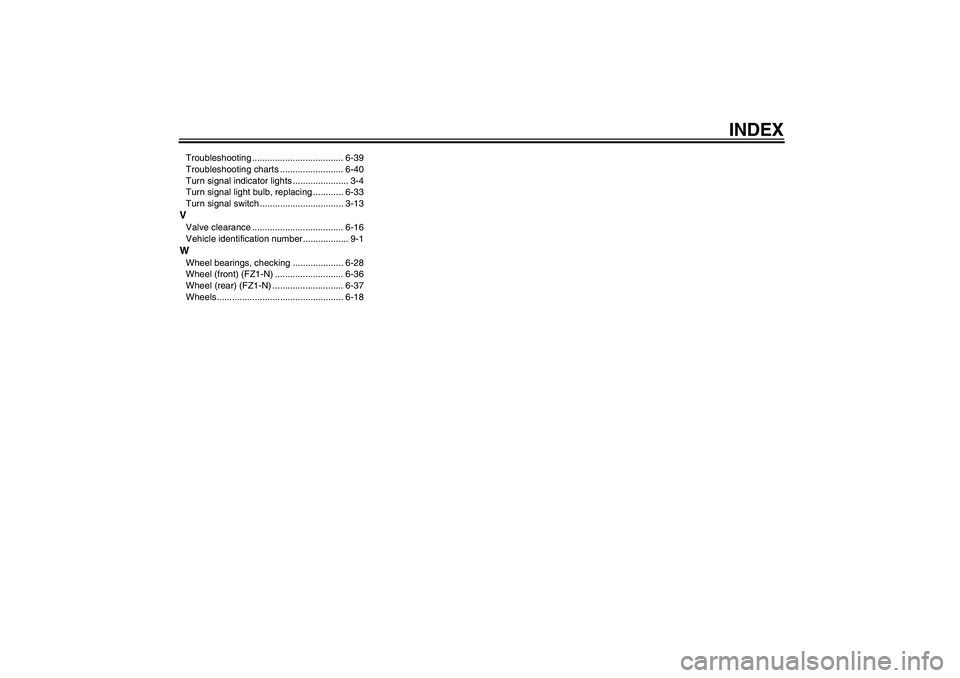

INDEX
Troubleshooting .................................... 6-39
Troubleshooting charts ......................... 6-40
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-33
Turn signal switch ................................. 3-13VValve clearance .................................... 6-16
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-28
Wheel (front) (FZ1-N) ........................... 6-36
Wheel (rear) (FZ1-N) ............................ 6-37
Wheels.................................................. 6-18
U2D1E4E0.book Page 2 Tuesday, July 7, 2009 7:05 PM
