INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU40472
YCC-S system This vehicle features the YCC-S
(Yamaha Chip Controlled-Shift) sys-
tem.
The basic function of this system allows
the rider to shift gears without the use of
a clutch lever. Furthermore, a shift lever
is equipped on the handlebar, allowing
the rider to choose to shift gears either
with the shift pedal or by hand.
When the engine is started and the shift
pedal or the shift lever is moved, a sig-
nal is sent to the MCU (Motor Control
Unit) which disengages the clutch, then
the shift is made. The MCU engages
the clutch once the engine is running at
the proper speed. Clutch engagement
is controlled optimally by the MCU ac-
cording to engine r/min, engine require-
ments, and riding conditions. See
“Handlebar switches” (page 3-15) and
OPERATION AND IMPORTANT
RIDING POINTS (page 5-1) for further
explanation of this system.
TIPThis is not an automatic transmission,
only the clutch system is automatic.
The gears must be shifted by the rider.
EAU10976
Immobilizer system This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing:

a code re-registering key (with a
red bow)


two standard keys (with a black
bow) that can be re-registered with
new codes


a transponder (which is installed in
the code re-registering key)


an immobilizer unit


an ECU
1. Code re-registering key (red bow)
2. Standard keys (black bow)
U1DAE0E0.book Page 1 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11123
Oil level warning light“”
This warning light comes on if the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
TIPEven if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
EAU40518
Engine trouble“”/YCC-S
“SHIFT” indicators and warning
light
Engine trouble indicator“” andwarning lightThis indicator is displayed and the
warning light comes on or flashes if a
problem is detected in the electrical cir-cuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-13
for an explanation of the self-diagnosis
device.)
YCC-S indicator “SHIFT” and warning
lightThis indicator is displayed and the
warning light comes on if there is a mal-
function in the YCC-S. If this occurs:

The YCC-S is disabled, so it will be
impossible to shift out of the gear
you are in.


The clutch may stay engaged, so a
shuddering sensation may be felt
as you come to a stop.
1. Engine trouble indicator“” and warning
light
1. YCC-S indicator “SHIFT” and warning light
U1DAE0E0.book Page 5 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3Stop the vehicle when it is safe to do so,
and park it away from traffic. Have a
Yamaha dealer check the YCC-S.
TIPIn order to be able to move the vehicle
after it has stopped, if shifting is impos-
sible using the hand shift lever and shift
pedal, proceed as follows:
Place the vehicle on the centerstand,
then while rotating the rear wheel, push
the shift pedal rod and pivot forward un-
til the transmission is in the neutral po-
sition.
The electrical circuit of the indicators
and the warning light can be checked
by turning the key to “ON”. The indica-
tors and the warning light should come
on for a few seconds, and then go off.
If an indicator or the warning light does
not come on initially when the key is
turned to “ON”, or if an indicator or the
warning light remains on, have a
Yamaha dealer check the electrical cir-
cuit.
EAU39502
ABS warning light“”
If this warning light comes on or flashes
while riding, the ABS may not work cor-
rectly. If this occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-19.)
WARNING
EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning lightcomes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU38624
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
1. Shift pedal rod pivot
2. Shift pedal rod
ABS
U1DAE0E0.book Page 6 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU40538
Multi-function display
WARNING
EWA14431
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.The multi-function display is equipped
with the following:

an odometer


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a fuel meter


a coolant temperature meter


a transmission gear display


an ambient temperature display


a fuel consumption display (instan-
taneous and average consumption
functions)


a self-diagnosis device
TIPBe sure to turn the key to “ON” before
using the select and reset buttons.
Odometer and tripmeter modes
Pushing the select button switches the
display between the odometer mode
“ODO” and the tripmeter modes “Trip 1”
and “Trip 2” in the following order:
ODO → Trip 1 → Trip 2 → ODOTIPWhen selecting “Trip 1” or “Trip 2”, the
display flashes for five seconds.When approximately 5.5 L (1.45 US
gal, 1.21 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “Trip F” and start counting the
distance traveled from that point. In that
1. Multi-function display
2. Select button
3. Reset button
1. Odometer/tripmeter/fuel reserve tripmeter
2. Select button
3. Reset button
U1DAE0E0.book Page 8 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3segments will start flashing. If this oc-
curs, have a Yamaha dealer check the
electrical circuit.
Coolant temperature meter
The coolant temperature meter indi-
cates the temperature of the coolant.
The coolant temperature varies with
changes in the weather and engine
load. If the top segment flashes, stop
the vehicle, then stop the engine, and
let the engine cool. (See page 6-35.)
When the key is turned to “ON”, all dis-
play segments come on once in order
to test the electrical circuit.
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
To avoid damaging the YCC-S clutch,
the display flashes when it is necessary
to downshift. If this occurs, downshift
until the display stops flashing.Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes
(except for the UK)
Push the reset button to switch the dis-
play between the ambient temperature
mode “Air”, the instantaneous fuel con-
sumption mode “km/L” or “L/100 km”
and the average fuel consumption
mode “AV_ _._ km/L” or “AV_ _._ L/100
km” in the following order:
Air → km/L or L/100 km → AV_ _._
km/L or AV_ _._ L/100 km → Air
1. Coolant temperature meter
1. Transmission gear display
2. Neutral indicator light“”
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2. Select button
3. Reset button
U1DAE0E0.book Page 10 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU40381

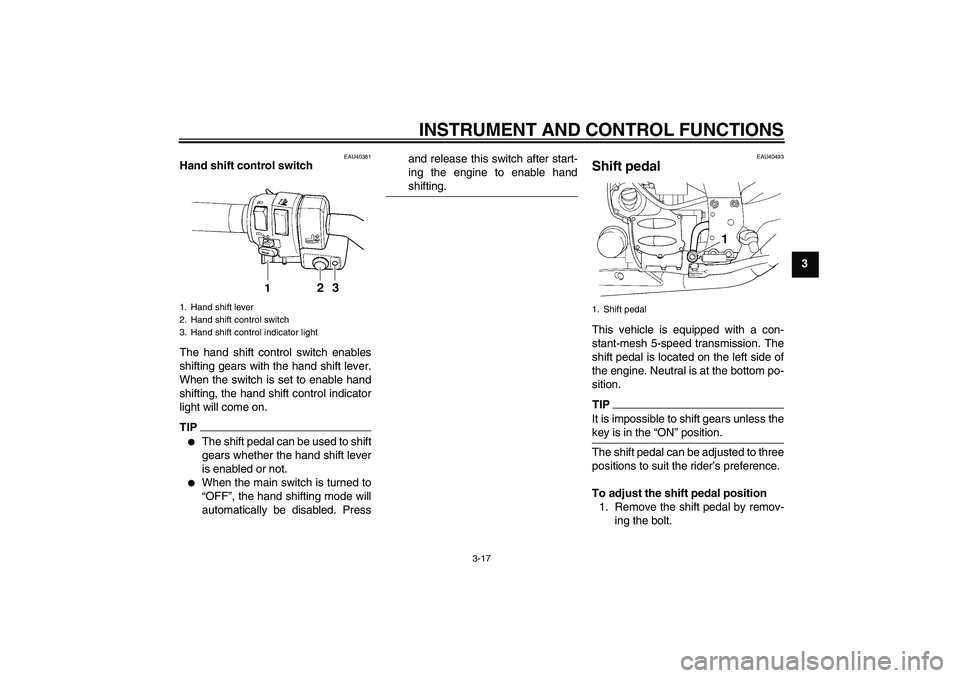

Hand shift control switch
The hand shift control switch enables
shifting gears with the hand shift lever.
When the switch is set to enable hand
shifting, the hand shift control indicator
light will come on.TIP

The shift pedal can be used to shift
gears whether the hand shift lever
is enabled or not.


When the main switch is turned to
“OFF”, the hand shifting mode will
automatically be disabled. Pressand release this switch after start-
ing the engine to enable hand
shifting.
EAU40493
Shift pedal This vehicle is equipped with a con-
stant-mesh 5-speed transmission. The
shift pedal is located on the left side of
the engine. Neutral is at the bottom po-
sition.TIPIt is impossible to shift gears unless the
key is in the “ON” position.The shift pedal can be adjusted to three
positions to suit the rider’s preference.
To adjust the shift pedal position
1. Remove the shift pedal by remov-
ing the bolt.
1. Hand shift lever
2. Hand shift control switch
3. Hand shift control indicator light
1. Shift pedal
U1DAE0E0.book Page 17 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-35
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Keep the front or rear brake applied.
6. Push the start switch.
Does the engine start?
With the engine still running:
7. Move the sidestand up.
8. Keep the front or rear brake applied.
9. Shift the transmission into gear.
10. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
11. Move the sidestand up.
12. Release the brake.
13. Push the start switch.
Does the engine start?
The system is OK. The vehicle can be ridden.
NO YES YES NO YES NO
The neutral, the brake switch or the YCC-S
system may not be working correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.
A brake switch may not be working correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.The sidestand switch may not be working correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U1DAE0E0.book Page 35 Friday, January 15, 2010 4:03 PM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU46632
TIPThis model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.


an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function display indicates
error code 70, but this is not a mal-
function. Push the start switch to
clear the error code and to restart
the engine.
EAU40336
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The front or rear brake is applied
with the transmission in the neutral
position whether the sidestand is
up or down.


The front or rear brake is applied
with the transmission in gear and
the sidestand is up.
See page 3-34 for more informa-
tion.WARNING
EWA14541
Always apply the front or rear brake
while the main switch is in the “ON”
position and the transmission is in
gear, otherwise the rear wheel will
move freely.1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
The following warning lights, indi-
cator light and indicators should
come on for a few seconds, then
go off.


Oil level warning light
U1DAE0E0.book Page 1 Friday, January 15, 2010 4:03 PM
