02 Instruments and controls
Instrument panel
02

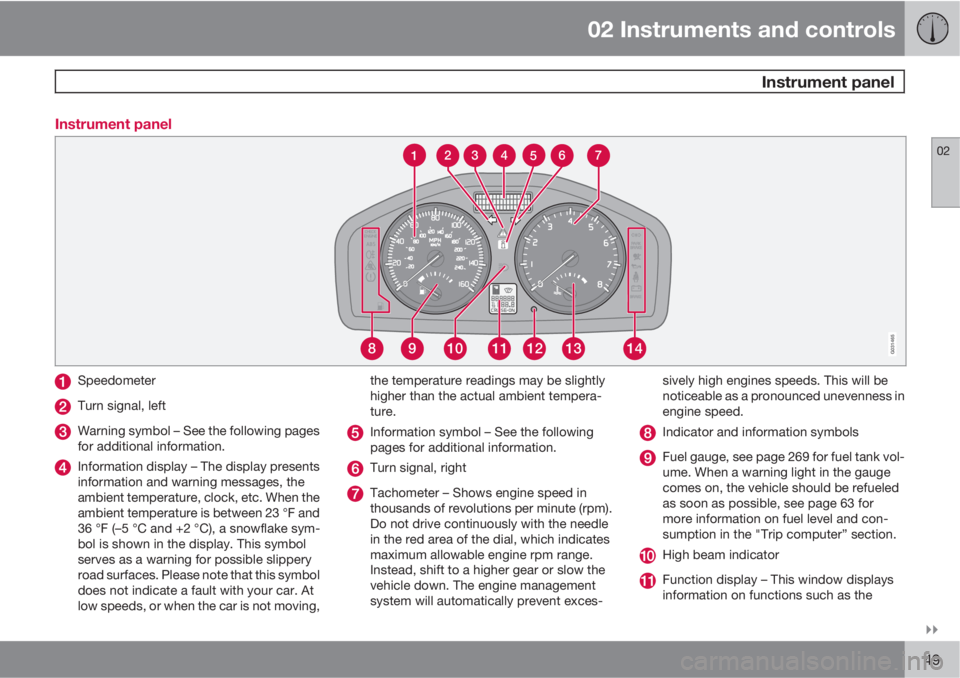

49 Instrument panel
891112131410G031465
4 3 2
567
1
Speedometer
Turn signal, left
Warning symbol – See the following pages
for additional information.
Information display – The display presents
information and warning messages, the
ambient temperature, clock, etc. When the
ambient temperature is between 23 °F and
36 °F (–5 °C and +2 °C), a snowflake sym-
bol is shown in the display. This symbol
serves as a warning for possible slippery
road surfaces. Please note that this symbol
does not indicate a fault with your car. At
low speeds, or when the car is not moving,the temperature readings may be slightly
higher than the actual ambient tempera-
ture.
Information symbol – See the following
pages for additional information.
Turn signal, right
Tachometer – Shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needle
in the red area of the dial, which indicates
maximum allowable engine rpm range.
Instead, shift to a higher gear or slow the
vehicle down. The engine management
system will automatically prevent exces-sively high engines speeds. This will be
noticeable as a pronounced unevenness in
engine speed.
Indicator and information symbols
Fuel gauge, see page 269 for fuel tank vol-
ume. When a warning light in the gauge
comes on, the vehicle should be refueled
as soon as possible, see page 63 for
more information on fuel level and con-
sumption in the "Trip computer” section.
High beam indicator
Function display – This window displays
information on functions such as the

02 Instruments and controls
Lighting panel
02

* Option/accessory, for more information, see Introduction.59 Parking lights
G026415
Light switch
Thumb wheel for adjusting brightness of
instrument lighting
Daytime running lights
To unlock the fuel filler door
Rear fog light
Pos.Lighting
All lighting off. Low beam head-
lights (daytime running lights)
will automatically come on if the
ignition key is in position II.
Front and rear parking lights
and license plate lights will also
be on. High beams can be
briefly flashed. The headlights
switch off automatically when
the ignition key is removed.
Parking lights
Daytime running lights. High
beams and high beam flash can
be used in this position.
The front and rear parking lights can be turned
on even when the ignition is switched off.

Turn switch (1) to the parking light position.
The license plate lights also illuminate when the
parking lights are switched on.
Headlights
1.
Turn the ignition key to position II.
2. The low beam headlights (daytime running
lights) illuminate automatically, except
when the light switch (1) is in the parking
light position
1.
NOTE
See page 61 for information on switching
between high and low beams.
Brake lights
The brake lights come on automatically when
the brakes are applied.
Fog lights
Front fog lights*The front fog lights can be used in combination
with either the headlights or the parking lights.
1.
Turn the ignition key to position II.
2. Press button (3) to turn on the front fog
lights.
An indicator light in the button illuminates when
the front fog lights are on.
1On Canadian models, the daytime running lights will remain on with the light switch in this position.

02 Instruments and controls
Lighting panel
02
60
Rear fog lightThe single rear fog light is located in the driver's
side taillight cluster.
The rear fog light will only function in combi-
nation with the high/low beam headlights or the
optional front fog lights.
1.
Turn the ignition key to position II.
2. Press button (5) to turn on the rear fog light.
An indicator light in the button illuminates when
the rear fog light is on.
NOTE
The rear fog light is considerably brighter
than the normal taillights and should be
used only when conditions such as fog, rain,
snow, smoke or dust reduce visibility for
other vehicles to less than 500 ft.
(150 meters).
Instrument panel lighting
The instrument panel lighting illuminates when
the ignition is in position II and the light
switch (1) is in either position
or .
NOTE
To make it easier to read the odometer, trip
odometer, clock, and ambient temperature,
these gauges illuminate when the vehicle is
unlocked and when the key has been
removed from the ignition switch. The light-
ing will go out when the vehicle is locked.
Move the thumb wheel (2) up to increase
brightness or down to decrease brightness.
Unlocking the fuel filler door
With the ignition switched off, press button (4)
to unlock the fuel filler door. Please note that
the fuel filler door will remain unlocked until the
car begins to move forward.
An audible click will be heard when the fuel filler
door re-locks.
Manually unlocking the fuel filler door
G020951
If it should be necessary to manually unlock the
fuel filler door from the trunk, the power retract-
able hard top should be up.
1. Remove the panel covering the taillight
housing on the right side of the trunk.
2. Pull the cord that is attached to a hook to
pop open the fuel filler door.
When the fuel filler door has opened, return the
cord to the hook and replace the taillight cover
panel.

02 Instruments and controls
Left-side steering wheel lever
02

61 Lever positions
G026954
Turn signals, lane change position
Turn signals, position for normal turns
High beam flash
Toggle between high and low beams,
Home Safe lighting
Turn signals
When turning
Move the lever as far up or down as pos-
sible (to position 2) to start the turn signals.
The turn signals will be cancelled automatically
by the movement of the steering wheel, or the
lever can be returned to its initial position by
hand.
When changing lanesThe driver can automatically flash the turn sig-
nals 3 times by:
•Moving the turn signal lever up or down to
position 1 and releasing it.
•Moving the lever up or down to position 2
and immediately back to its original posi-
tion.
NOTE
•This automatic flashing sequence can
be interrupted by immediately moving
the lever in the opposite direction.
•If the turn signal indicator flashes faster
than normal, check for a burned-out
turn signal bulb.
High/low beam headlights
Continuous high beams1.
Turn the ignition key to position II.
2.
With the light switch (1) in position
,
see page 59, pull the turn signal lever
toward the steering wheel (position 4) to
toggle between high and low beams.
High beam flash1.
Turn the ignition key to position II.
2. Pull the turn signal lever to position 3. The
high beams will remain on until the lever is
released.
Home safe lightingWhen you leave your car at night, you can
make use of the home safe lighting function to
illuminate the area in front of the car.
1. Remove the key from the ignition switch.
2. Pull the direction indicator lever as far as
possible towards the steering wheel (to
position 4) and release it.
3. Exit the car and lock the doors.
The headlights and parking lights will illuminate
and remain on for 30
1, 60 or 90 seconds. The
time interval can be changed according to your
1Factory setting.

02 Instruments and controls
Right-side steering wheel lever
02

67 Windshield wipers
0
0
A
CB
G025419
Windshield/headlight washers
Rain sensor – on/of, see page 67
Thumb wheel
Windshield wipers offThe windshield wipers are off when
the lever is in position 0.
Manual wiper functionFrom position 0, move the lever
upward. The windshield wipers will
sweep one stroke at a time for as
long as the lever is held up.
Intermittent wiper functionWith the lever in this position, you
can set the wiper interval by mov-
ing the thumb wheel (C) upward to
increase wiper speed or down-
ward to decrease the speed.
Continuous wiper functionThe wipers operate at "normal"
speed.
High speed wiper function.
– Windshield washers
Pull the lever toward the steering wheel and
release it. The wipers will make 2–3 sweeps
across the windshield after the lever has been
released.
CAUTION
•Use ample washer fluid when washing
the windshield. The windshield should
be thoroughly wet when the wipers are
in operation.
•Before using the wipers, ice and snow
should be removed from the wind-
shield/rear window. Be sure the wiper
blades are not frozen in place.
Headlight washers (certain models)
When the lever has been pulled, high pressure
jets mounted in the bumper will spray the head-
lights.
The following applies to conserve washer fluid,
see page 59 for information on the light switch
positions:
Low/high beam headlights onThe headlights will be washed the first time the
windshield is washed. Thereafter, the head-
lights will only be washed once for every five
times the windshield is washed within a
10 minute period.
Parking lights onOptional Dual Xenon headlights will be washed
once for every five times the windshield is
washed.
Normal halogen headlights will not be washed.

02 Instruments and controls
Personal settings
02
76* Option/accessory, for more information, see Introduction.
•Global (All doors) – unlocks all doors and
the trunk with one press on the remote key.
•Two Step (Two-stage unlocking) – This
alternative unlocks the driver's door with
one press on the remote key. A second
press unlocks the passenger's door and
the trunk
Automatically folding the door mirrorsThe setting makes it possible to automatically
fold the door mirrors in or out when the vehicle
is locked or unlocked. See page 73.
Operating side windowsThe following alternative can be selected for
opening all side windows at the same time by
pressing and holding the Unlock button on the
central locking system’s remote key, (see
page 128 for additional information).
•Auto open all windows On/Off
Temporarily turning off the double
locking function and alarm sensor(s)
The double locking function and the alarm sen-
sors can be temporarily turned off (if, for exam-
ple, a person or a pet remains in the vehicle
when the doors are locked from outside with
the remote key, and the power retractable hard
top is down. There are two alternatives:
Activate once and Ask on exit, see
page 131 for additional information.
Approach lightingThis alternative determines the length of time
for which the car's lights will remain on when
the Approach light button on the central lock-
ing system's remote key is pressed. Intervals
of 30/60/90 seconds may be selected, see the
section "Remote key functions" for more infor-
mation.
Home safe lightingThis alternative determines the length of time
for which the car's lights will remain on when
the high beam lever on the steering column is
pulled toward the wheel with the ignition
switched off. Intervals of 30/60/90 seconds
may be selected, see page 61 for information
on using this function.
Information
•VIN number – The VIN (Vehicle Identifica-
tion Number) is the car's unique identity
number.
•Number of Keys – the number of keys reg-
istered for the car is displayed here.
Climate functions
•Blower speed in AUTO mode – the blower
speed can be set to AUTO mode in modelsequipped with ECC. Choose between
"Low", "Normal" and "High".
•Timer for recirculation – when the timer is
active, the air recirculates in the car for
3–12 minutes depending on the ambient
temperature. Select On/Off depending on
whether the recirculation timer is to be
active or not.
Keyless locking and unlocking*The following alternatives can be selected for
locking and unlocking the doors and trunk:
•All doors – all doors are locked or unlocked
at the same time.
•Doors on the same side – front and rear
doors on the same side are unlocked
together.
•Both front doors – both front doors are
unlocked together.
•One front door – either of the front doors
can be unlocked separately1.
Reset to factory settingsUse this alternative to return to the default cli-
mate system settings.
1Factory default.

06 Starting and driving
General information
06
138
water Down to –18 °F (–28 °C): 1 part
washer solvent and 1 part water.
•Use Volvo Teflon Lock Spray in the locks.
NOTE
Avoid using de-icing sprays as they can
cause damage to the locks.
Conserving electrical current
Keep the following in mind to help minimize
battery drain:
•When the engine is not running, avoid turn-
ing the ignition key to position II. Many
electrical systems (the audio system, the
optional navigation system, power win-
dows, etc) will function with the ignition key
in position I. This position reduces drain on
the battery.
•Please keep in mind that using systems,
accessories, etc that consume a great deal
of current when the engine is not running
could result in the battery being completely
drained.
•The optional 12 volt socket in the trunk
(certain models only) provides electrical
current even with the ignition switched off,
which drains the battery.
NOTE
•If the ignition is switched on, a warning
message will be displayed in the text
window in the instrument panel when
the battery charge is low.
•An energy conserving function
designed into the vehicle's electrical
system will switch off certain functions
or reduce the load on the battery by,
e.g., reducing the audio system's vol-
ume.
Before a long distance trip
It is always worthwhile to have your vehicle
checked at a trained and qualified Volvo serv-
ice technician before driving long distances.
Your trained and qualified Volvo service tech-
nician will also be able to supply you with
bulbs, fuses, spark plugs and wiper blades for
your use in the event that problems occur.
As a minimum, the following items should be
checked before any long trip:
•Check that engine runs smoothly and that
fuel consumption is normal.
•Check for fuel, oil, and fluid leakage
•Have the transmission oil level checked2.
•Check condition of drive belts.
•Check state of the battery's charge.
•Examine tires carefully (the spare tire as
well), and replace those that are worn.
Check tire pressures.
•The brakes, front wheel alignment, and
steering gear should be checked by your
Volvo retailer only.
•Check all lights, including high beams.
•Reflective warning triangles are legally
required in some states/provinces.
•Have a word with your Volvo retailer if you
intend to drive in countries where it may be
difficult to obtain the correct fuel.
•Consider your destination. If you will be
driving through an area where snow or ice
are likely to occur, consider snow tires.
2To prevent injury from contact with hot surfaces, do not inspect your vehicle's transmission fluid yourself. Have your vehicle's transmission fluid level inspected by a qualified Volvo service technician.

09 Maintenance and servicing
Replacing bulbs09

221 Introduction
Before replacing bulbs in your vehicle, please
keep the following points in mind:
NOTE
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.
The optional Dual Xenon headlight bulbs
contain trace amounts of mercury. These
bulbs should always be disposed of by a
trained and qualified Volvo service techni-
cian.
Certain bulbs should only be replaced by a
trained and qualified Volvo service techni-
cian:
•Courtesylighting
•Reading lights
•Glove compartment lights
•Turn signals and courtesy lights in the
side door mirrors
•High-mounted brake lights
•Dual Xenon headlights, Brake lights
Removing the headlight housing
WARNING
•The engine should not be running when
changing bulbs.
•When changing in the headlight hous-
ing, if the engine has been running just
prior to replacing bulbs, please be
aware that components in the engine
compartment will be hot.
G007334
The entire headlight housing must be lifted out
when replacing the high/low beam, parkinglight, turn signal, and side marker bulbs. To lift
out the housing:
1. Remove the key from the ignition and turn
the headlight switch to position
.
2. Open the hood.
3. Pull up the headlight housing's retaining
pin.
4. Pull out the headlight housing.
4
G007612
5. Disconnect the wiring connector by press-
ing down the clip with your thumb while at
the same time pulling the connector with
your other hand.
