2010 VOLVO C70 CONVERTIBLE high beam

09 Maintenance and servicing
Replacing bulbs 09
222* Option/accessory, for more information, see Introduction.
6. Lift out the headlight housing and place it
on a soft surface to avoid scratching the
lens.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
After the defective bulb has been replaced,
reinsert the housing in the reverse order. Check
that the retaining pin is correctly inserted.
WARNING
Dual Xenon headlights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a trained
and qualified Volvo service technician.
Low beam bulb
G020255
Cover with retaining clamps
1. Open the hood and remove the headlight
housing (see page 221 for instructions).
2. Release the retaining clamps on the cover.
3. Release the bulb's retaining spring holding
the bulb in place by pressing it first to the
left and then moving it outward and down-
ward.
4. Pull out the bulb.
G007339
Low beam bulb
Installing a new bulb1. Insert the new bulb. It can only be installed
in one position.
2. Press the retaining spring inward and
upward and slightly to the right until it
snaps into place.
3. Press the wiring connector onto the bulb.
4. Put the plastic cover in place.
5. Press the retaining clamps back into place.
6. Reinstall the headlight housing (see
page 221).

09 Maintenance and servicing
Replacing bulbs09

* Option/accessory, for more information, see Introduction.223 High beam bulb
G007338
Halogen high beam bulb
1. Open the hood.
2. Remove the headlight housing (see
page 221).
NOTE
The halogen high beam bulb has a different
socket on vehicles equipped with the
optional Dual Xenon headlights. On these
models, pull the bulb straight out.
WARNING
Dual Xenon headlights* – due to the high
voltage used by these headlights, the Dual
Xenon bulbs should only be replaced by a
trained and qualified Volvo service techni-
cian.
3. Driver's side headlight: Turn the bulb
holder counterclockwise.
Passenger's side headlight: Turn the bulb
holder clockwise.
4. Pull out the bulb holder and replace the
bulb.
5. Reinstall the bulb holder. It can only be
installed in one position.
6. Reinstall the headlight housing (see
page 221).
Parking light bulb
G007392
1. Pull out the bulb holder with a pair of pliers.
The bulb holder should not be pulled out
by the wire.
2. Replace the bulb.
3. Press the bulb holder back into place. It
can only be installed in one position.

09 Maintenance and servicing
Fuses09

* Option/accessory, for more information, see Introduction.233

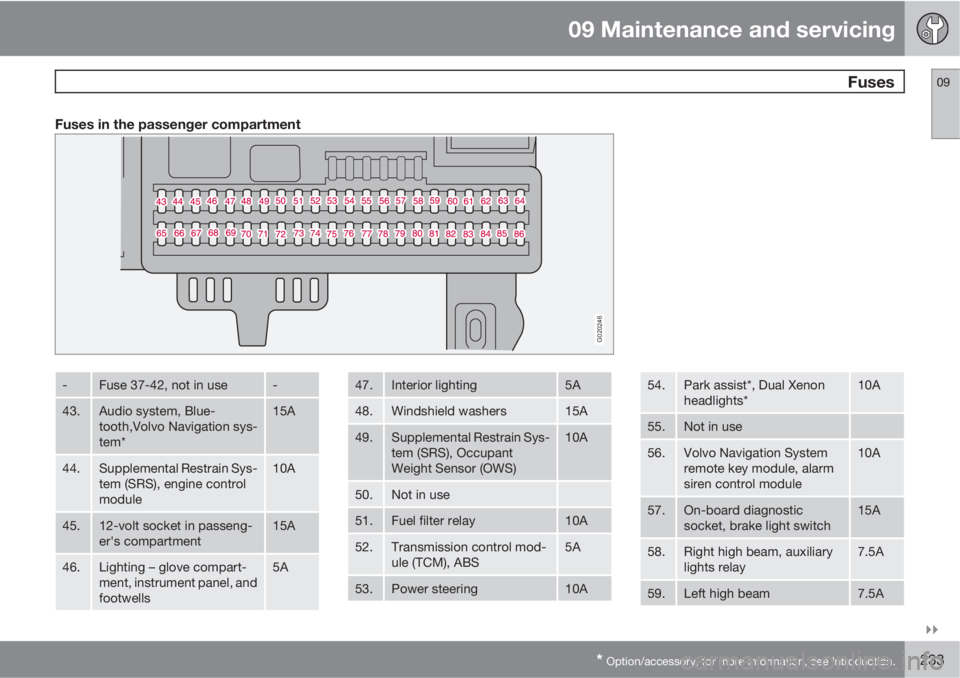

Fuses in the passenger compartment
G020246
-Fuse 37-42, not in use-
43.Audio system, Blue-
tooth,Volvo Navigation sys-
tem*15A
44.Supplemental Restrain Sys-
tem (SRS), engine control
module10A
45.12-volt socket in passeng-
er's compartment15A
46.Lighting – glove compart-
ment, instrument panel, and
footwells5A
47.Interior lighting5A
48.Windshield washers15A
49.Supplemental Restrain Sys-
tem (SRS), Occupant
Weight Sensor (OWS)10A
50.Not in use
51.Fuel filter relay10A
52.Transmission control mod-
ule (TCM), ABS5A
53.Power steering10A
54.Park assist*, Dual Xenon
headlights*10A
55.Not in use
56.Volvo Navigation System
remote key module, alarm
siren control module10A
57.On-board diagnostic
socket, brake light switch15A
58.Right high beam, auxiliary
lights relay7.5A
59.Left high beam7.5A

11 Specifications
Electrical system
11
274
General information
12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.
Battery
Voltage12 V12 V
Cold start capacity
(CCA)600 AA700 AB
Reserve capacity
(RC)120 min135 min
Capacity (Ah)7080
AModels equipped with the High Performance audio system.BModels equipped with the Premium Sound audio system,
the Volvo Navigation System and/or keyless drive.
If the battery must be replaced, replace it with
one with the same cold start capacity and
reserve capacity as the original (see the decal
on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Bulbs used in the car
BulbOutputType
Low beam headlight55WH7
High beam headlight55WH9
Extra high beam (models with Dual Xenon headlights only)55WH7
