2010 TOYOTA SIENNA turn signal bulb

172
2-1. Driving procedures
Tur n signal lever
■Turn signals can be operated when
The engine switch is in the “ON” position.
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.

486
4-3. Do-it-yourself maintenance

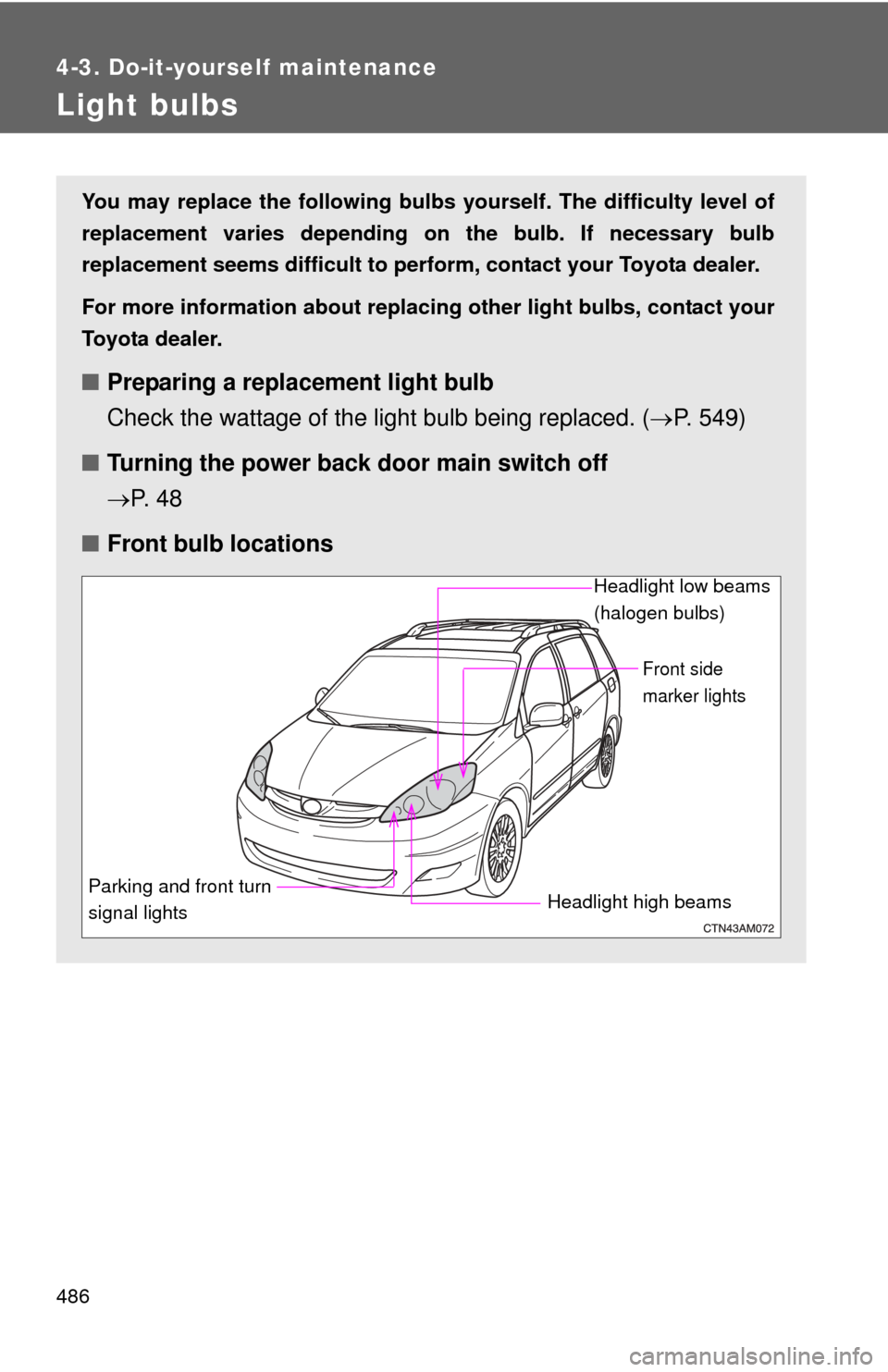

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. ( P. 549)
■ Turning the power back door main switch off
P. 4 8
■ Front bulb locations
Headlight low beams
(halogen bulbs)
Front side
marker lights
Parking and front turn
signal lightsHeadlight high beams

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlight (halogen bulbs)
Turn the bulb base counterclock-
wise.
Headlight (high beam)
Headlight (low beam)
Pull out the light bulb while
depressing the lock release.

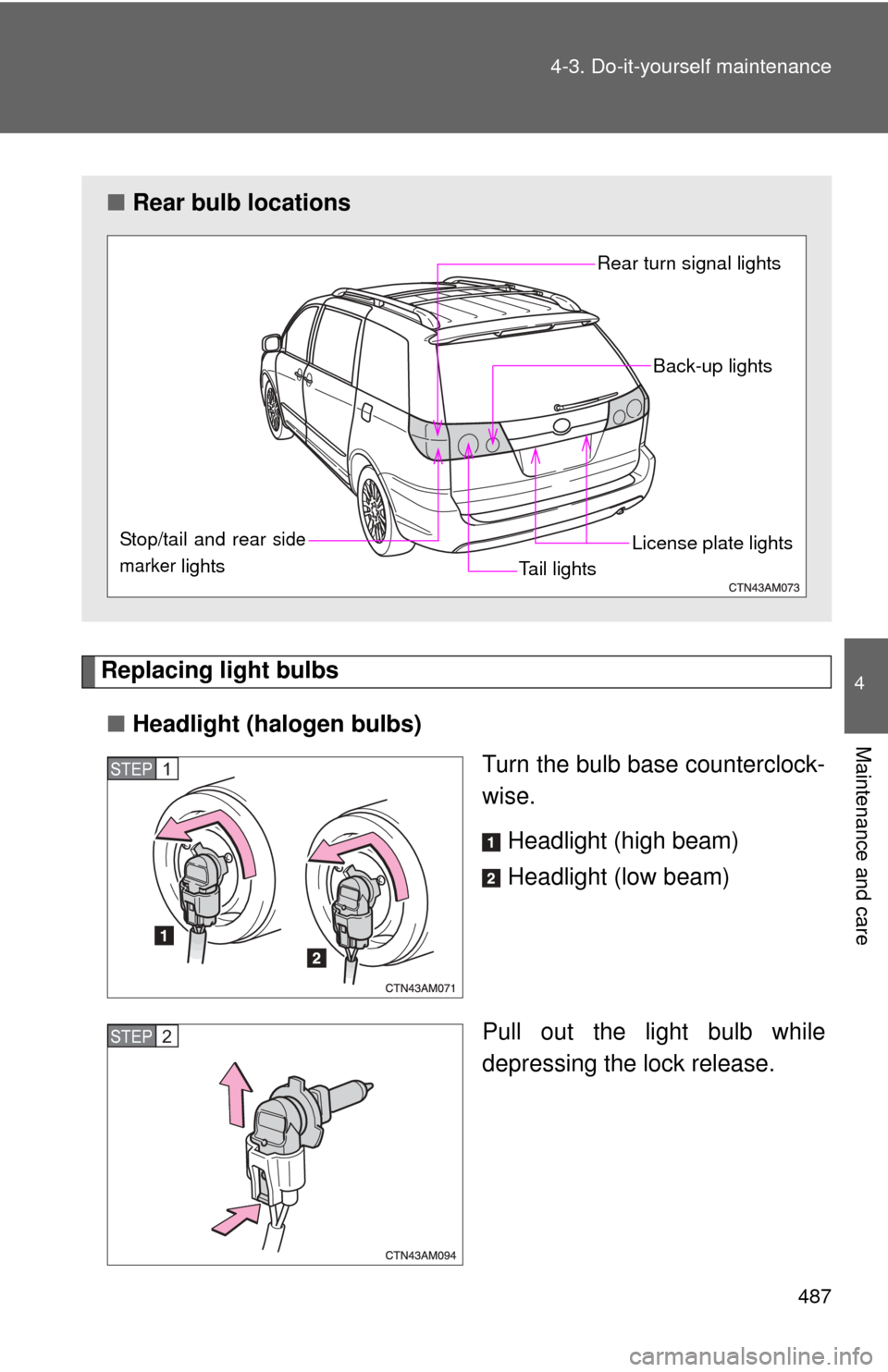

■ Rear bulb locations
Back-up lights
Rear turn signal lights
Stop/tail and rear
side
marker
lights
License plate lights
Ta i l lights
STEP1
STEP2

489
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Parking and front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2

490 4-3. Do-it-yourself maintenance
■Rear turn signal, stop/tail a nd rear side marker lights
Remove the securing bolts and
remove the unit.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
tration.
Turn the bulb bases counter-
clockwise.
Remove the light bulbs.
Rear turn signal light
Stop/tail and rear side marker
light
STEP1
STEP2
STEP3

549
6-1. Specifications
6
Vehicle specifications
Light bulbs
A: D2R discharge bulbs
B: HB4 halogen bulbs
C: HB3 halogen bulbs D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber) F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights (low beam)
With discharge headlights
Without discharge headlights 
9006 35
51A
B
Headlights (high beam) 9005 60 C
Front fog lights 9006 51 B
Front turn signal and parking
lights 3457A 27/7 E
Front side marker lights 5E
Rear turn signal lights 7440 21 D
Stop/tail and rear side marker
lights 7443 21/5 D
Tail lights 194 3.8 D
Back-up lights 921 16 D
License plate lights 5D
Outer foot lights 6D
InteriorFront personal/interior lights
4.9 D
Rear personal/interior lights 5.0 D
Luggage compartment light 5F
Vanity lights 3F
Front door courtesy lights 6F
Sliding door courtesy lights 3.8 D
