210 3-3. Using the hands-free phone system (for cellular phone)
■Steering wheel
Vo l u m e
The voice guidance volume
cannot be adjusted by using
this button.
Hands-free phone system
on/starts a call (off-hook
switch)
Hands-free phone system
off/ends a call/refuses a call
(on-hook switch)
Press: Voice command sys-
tem on
Press and hold: Voice com-
mand system off
(talk switch)

256 3-6. Other interior features
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
115 V
Do not use a 115 V appliance that requires more than 100 W.
If a 115 V appliance that consumes more than 100 W is used, the protection
circuit will cut the power supply.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is off.
■Appliances that may not operate properly (115 V)
The following 115 V appliances may not operate properly even if their power
consumption is under 100 W.
●Appliances with high initial peak wattage
●Measuring devices that process precise data
●Other appliances that require an extremely stable power supply

Maintenance and care4
273
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior......... 274
Cleaning and protecting
the vehicle interior.......... 276
4-2. Maintenance
Maintenance
requirements .................. 279
General maintenance....... 281
Emission inspection and
maintenance (I/M)
programs........................ 2844-3. Do-it-yourself maintenance
Do-it-yourself service
precautions .................... 285
Hood ................................ 289
Positioning a floor jack ..... 291
Engine compartment ........ 294
Tires ................................. 308
Tire inflation pressure ...... 317
Wheels ............................. 321
Air conditioning filter......... 323
Key battery ....................... 325
Checking and replacing
fuses .............................. 328
Light bulbs........................ 337

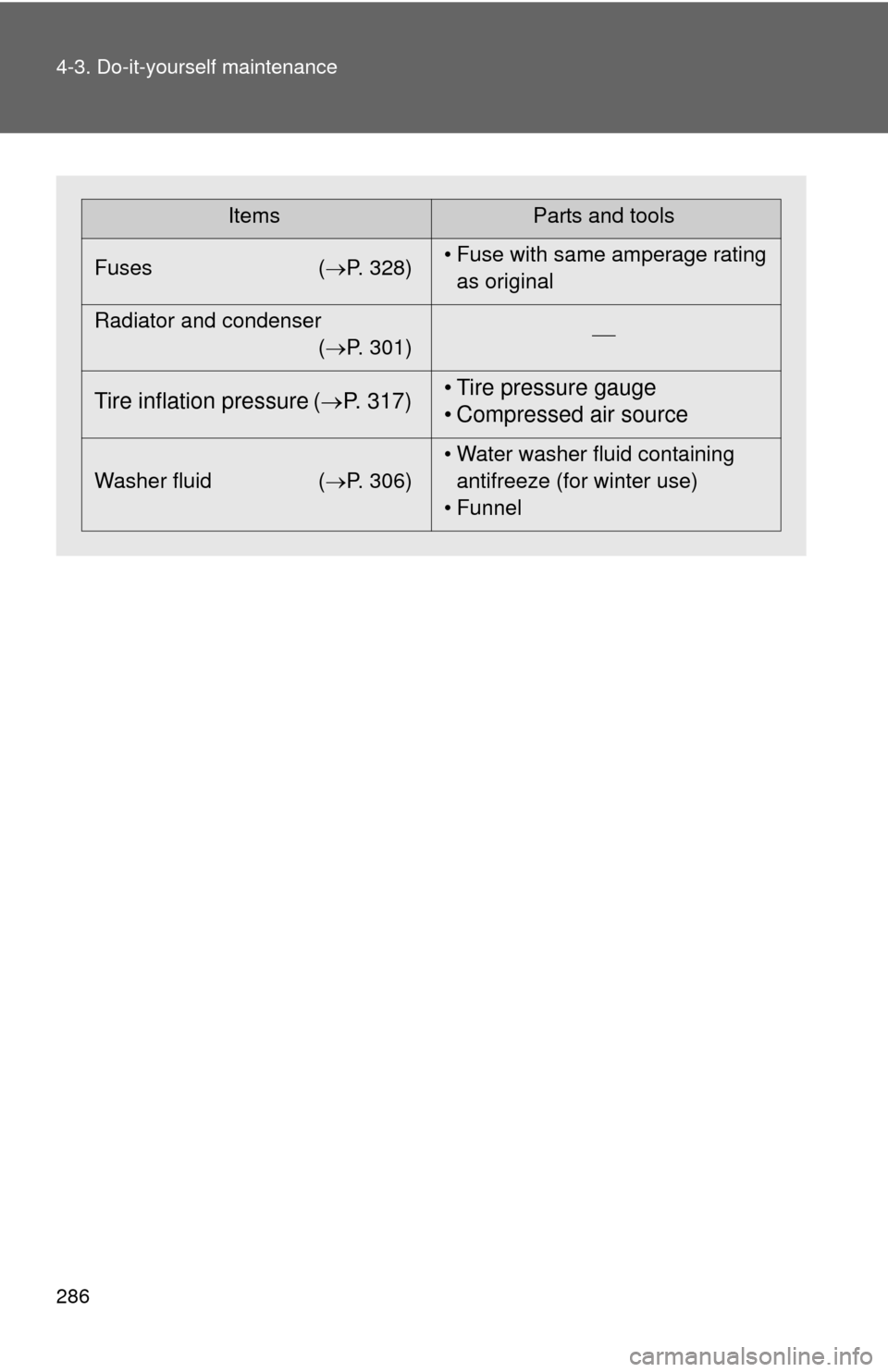

286 4-3. Do-it-yourself maintenance
ItemsParts and tools
Fuses (P. 328)• Fuse with same amperage rating
as original
Radiator and condenser
(P. 301)
Tire inflation pressure (P. 317)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 306)• Water washer fluid containing
antifreeze (for winter use)
• Funnel

294
4-3. Do-it-yourself maintenance
Engine compar tment
1.8 L 4-cylinder (2ZR-FE) engine
Engine oil filler cap
(P. 297)
Engine oil level dipstick
(P. 296)
Brake fluid reservoir
(P. 302)
Fuse box (P. 328)Battery (P. 304)
Radiator (P. 301)
Electric cooling fan
Condenser (P. 301)
Engine coolant reservoir
(P. 300)
Washer fluid tank (P. 306)

295 4-3. Do-it-yourself maintenance
4
Maintenance and care
2.4 L 4-cylinder (2AZ-FE) engine
Engine coolant reservoir
(P. 300)
Engine oil filler cap
(P. 297)
Engine oil level dipstick
(P. 296)
Brake fluid reservoir
(P. 302)Fuse box (P. 328)
Battery (P. 304)
Radiator (P. 301)
Electric cooling fans
Condenser (P. 301)
Washer fluid tank (P. 306)

328
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 331) for details about which fuse to check.STEP1
STEP2
STEP3
