2010 TOYOTA LAND CRUISER navigation

9
L/C200_U
Overhead console P. 375
Garage door opener switches Moon roof switches “SOS” button

P. 397
P. 89
P. 404
Anti-glare inside rear view mirror P. 82
Vanity mirror P. 383
SRS curtain shield airbag P. 103
Interior light P. 370
Sun visor P. 382
Interior light P. 370
A
Personal lights P. 371
Personal lights
Interior light P. 371
P. 370
Rear seat entertainment system
*
: If equipped
*: Refer to “Navigation System Owner’s Manual”.

13
L/C200_U
A
Windshield wiper
de-icer switch

P. 261
Clock P. 384
Security indicator
light
P. 96
Audio system
P. 262
Front passenger AIR BAG
ON and AIR BAG OFF
indicator
P. 118
Front passenger’s seat belt
reminder light
P. 503
Air conditioning
system
P. 246
Rear air conditioning control
switch
P. 256
Emergency flasher
switch
P. 490
Rear window defogger
switch
P. 260
Without navigation system
: If equipped
Outside temperature
display
P. 385

14
L/C200_U
Pictorial indexInstrument panel
A
Audio system*
Front passenger’s seat belt
reminder light
P. 503
Front passenger AIR BAG ON and
AIR BAG OFF indicator
P. 118
Clock* Outside temperature
display
P. 385
Air conditioning
system
*
Emergency flasher
switch
P. 490
Security indicator
light
P. 96
With naviga tion system
Rear window
defogger switch

P. 260
Navigation system*

15
L/C200_U
B
Talk switch* P. 336
Telephone switch* P. 336
Cruise control switch P. 184
DISP switch P. 170
*: Refer to “Navigation System Owner’s Manual”.

96
L/C200_U
1-6. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
Vehicles with navigation system
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF
to indicate that the system is
operating.
Vehicles without navigation system

98
1-6. Theft deterrent system
L/C200_U
Alarm
The system sounds the alarm and flashes lights when forcible entry
is detected.
■ Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door is unlocked or o pened in any way other than by
using the smart key system, t he wireless remote control or
using the mechanical key. (The doors will lock again automat-
ically)
● The hood is opened while t he vehicle is locked.
● The battery is reconnected.
■ Setting the alarm system
Vehicles with navigation system
Close the doors and hood,
and lock all doors.
The system will be set auto-
matically after 30 seconds.
The indicator light changes
from being on to flashing when
the system is set.
Vehicles without navigation system

167
2-2. Instrument cluster
2
When driving
L/C200_U

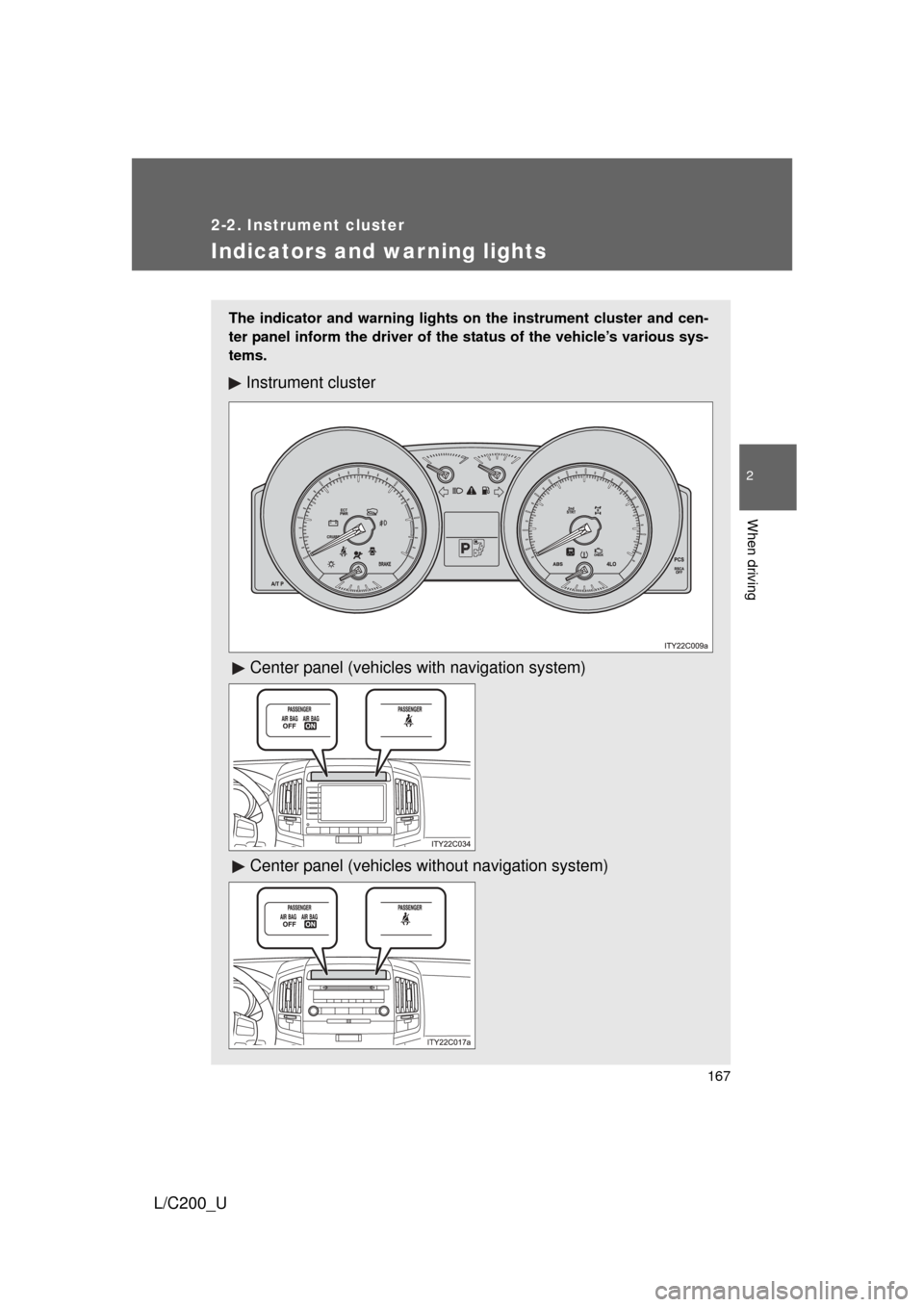

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel (vehicles with navigation system)
Center panel (vehicles wi thout navigation system)

169
2-2. Instrument cluster
2
When driving
L/C200_U
CAUTION
■
If a safety system warning light does not come on
Should a safety system light such as Multi Terrain ABS and the SRS airbag
warning lights not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accident, which
could result in death or serious injury. Have the vehicle inspected by your
Toyota dealer immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 500)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if the lights do not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: Vehicles with navigation system
*3: Vehicles without navigation system
*4: If equipped
*1*1*1*1*1*1*1
*1 ,
4*2*3
