2010 TOYOTA 4RUNNER Quick Reference Guide

CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
00505-QRG10-4RUN Printed in U.S.A. 9/09
08-TCS-03067
413623M1.indd 29/8/09 11:19:05 AM
QUICK REFERENCE
GUIDE
4RUNNER
2010
413623M1.indd 19/8/09 11:18:59 AM

2010
4Runner
!Awordaboutsafevehicleoperations ThisQuick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
TheQuick Reference Guideis not intended as a substitute for
theOwner’s Manuallocated in the vehicle’s glove box. We
strongly encourage you to review theOwner’s Manualand
supplementary manuals so you will have a better understanding
of the vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new 4Runner.
ThisQuick Reference Guideis not a full description of
4Runner operations. Every 4Runner owner should review the
Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout theOwner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in thisQuick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Doors-Child safety locks
Rear door
Sparetire&tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end through the opening in the bumper, and into
the lowering screw.
(3) Turn the jack handle counterclockwise.
Refer to theOwner’s Manualfor tire changing and jack positioning
procedures.
Tool bag
Jack
(1)
(2)
(3)
Spare tire

1
Engine maintenance8Fuel tank door and cap 6Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3
Keyless entry16Smart Key system17
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions1,29Automatic Transmission 9
Bluetooth®audio 23Clock 14Cruise control 17Four-wheel drive 10Garage door opener (HomeLink®)319iPod®/USB/AUX audio jack 21Light control-Instrument panel15Lights1& turn signals 16Moonroof114Parking brake 9Power outlets-12V DC 23Power outlets-120V AC 22Seat adjustments-Front 11Seat adjustments-Second row seats 11Seat heaters18Seats-Folding down second row seats 12Seats-Head restraints 13Seats-Returning third row seats 13Seats-Stowing third row seats 13Telephone controls (Bluetooth®)22Tilt and telescopic steering wheel 10VSC OFF button 15Windows114Window-Back window115
Windshield wipers & washers17
Door locks24Doors-Child safety locks 25Seat belts 24Seat belts-Shoulder belt anchor 24Sparetire&tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

Power rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator
1
Tilt and telescopic steering lock release
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch
120V AC Power outlet ON/OFF switch
1
Windshield wiper de-icer switch1
Headlight, turn signal and front fog light1control
Wiper and washer controls
Accessory meter/Outside temperature display
Emergency flasher switch
Audio system
1or navigation system2
Back window and outside rearview mirror defoggers switch
Front passenger seat belt reminder light
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator
1
12V DC Power outlet
2
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Without Smart Key system
With Smart Key systemManual Air

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
USB adapter1
AUX adapter
Four-wheel drive selector1
Hood release
Steering wheel audio controls1,2
Voice command button1,2
Telephone switches1,2
Ignition switch (standard key)/“ENGINE START STOP” button (Smart Key)1
Party mode switch
Cruise control1
Seat heater switch1
120V AC Power outlet1
Power back window switch
1If equipped2For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”
Conditioning
Automatic Air Conditioning2WD models
Part-time 4WD models
Full-time 4WD models

4
OVERVIEW
Low Tire Pressure Warning1
Open door warning1
Airbag SRS warning1
Tachometer
Speedometer
Display change button
Engine coolant temperature
Fuel gauge
Eco driving indicator zone display
Odometer, trip meter and average fuel consumption display
Shift position and shift range indicators
Vo l t m e t e r
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Optitron type meters
AIR BAG ON and AIR BAG OFF indicator
Turn signal indicatorHeadlight low/high beam indicator
1For details, refer to “If a warning light turns on or a warning buzzer sounds...” Section 5-2,
2010 Owner’s Manual.
2For details, see “SRS airbags” Section 1-7, 2010 Owner’s Manual.
Low fuel level warning1
Non-Optitron type meters

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Automatic Transmission fluid temperature warning1
Crawl Control indicator
Front fog light indicator
Four-wheel drive indicator
3
Low speed four-wheel drive indicator3
Center differential lock indicator3
Slip indicator1
Vehicle Stability Control OFF indicator
Downhill Assist Control indicator AUTO Limited Slip Differential indicator
Cruise control/Cruise control SET indicator4
Roll Sensing of Curtain shield Airbag OFF indicator2
Engine immobilizer/Theft deterrent system indicator
Anti-lock Brake System warning
1
3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2010 Owner’s Manual.4If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Multi-terrain select
Rear differential lock indicator Active traction control indicator
Power steering system warning1
Kinetic Dynamic Suspension System indicator1
Unengaged Park warning light1
Smart Key system warning
Intuitive parking assist indicator
Eco driving indicator light Traction Control OFF indicator

6
OVERVIEW

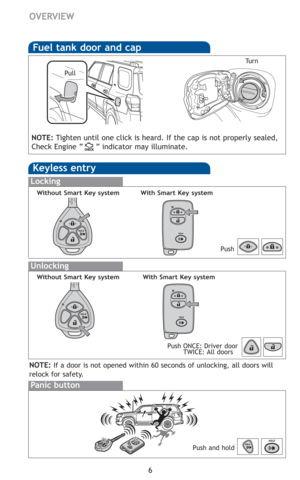

Fuel tank door and cap
Pull
Tu r n
NOTE:Tighten until one click is heard. If the cap is not properly sealed,
Check Engine “ ” indicator may illuminate.
Keyless entry
Locking
Unlocking
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Push ONCE: Driver door
TWICE: All doors
Push
Without Smart Key systemWith Smart Key system
Without Smart Key systemWith Smart Key system
