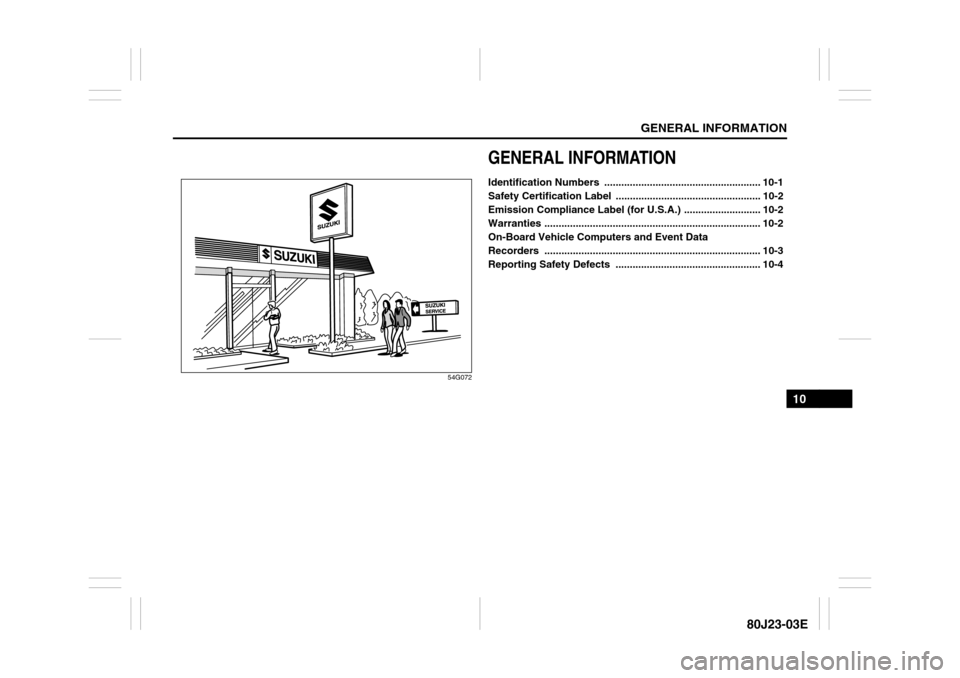

GENERAL INFORMATIONIdentification Numbers ....................................................... 10-1
Safety Certification Label ................................................... 10-2
Emission Compliance Label (for U.S.A.) ........................... 10-2
Warranties ............................................................................ 10-2
On-Board Vehicle Computers and Event Data
Recorders ............................................................................ 10-3
Reporting Safety Defects ................................................... 10-4

10-1GENERAL INFORMATION
80J23-03E

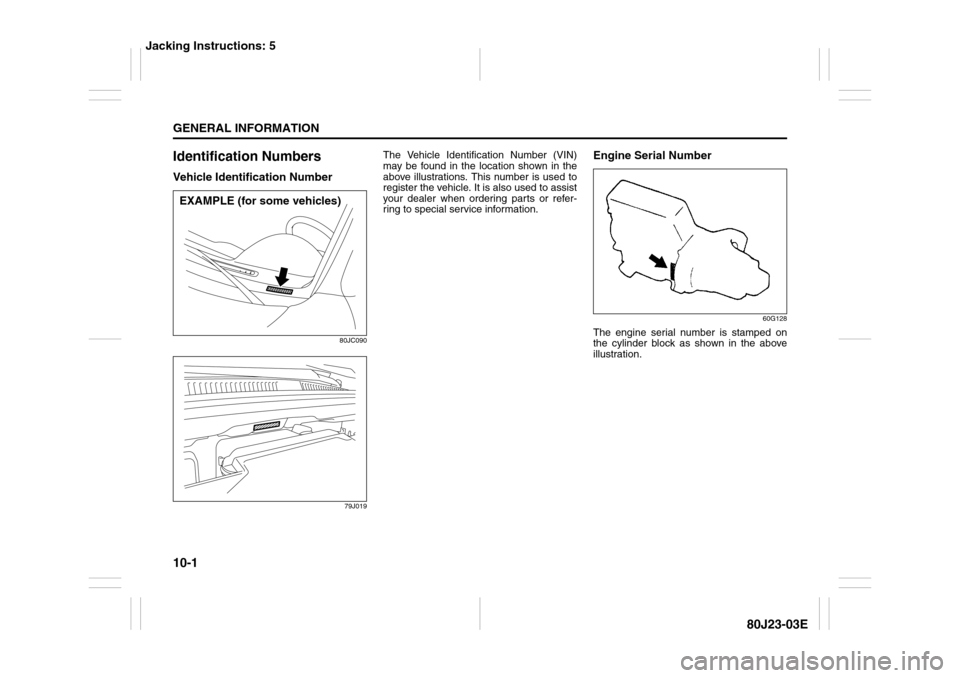

Identification NumbersVehicle Identification Number
80JC090
79J019
The Vehicle Identification Number (VIN)
may be found in the location shown in the
above illustrations. This number is used to
register the vehicle. It is also used to assist
your dealer when ordering parts or refer-
ring to special service information.
Engine Serial Number
60G128
The engine serial number is stamped on
the cylinder block as shown in the above
illustration.
EXAMPLE (for some vehicles)
Jacking Instructions: 5

10-2
GENERAL INFORMATION
80J23-03E

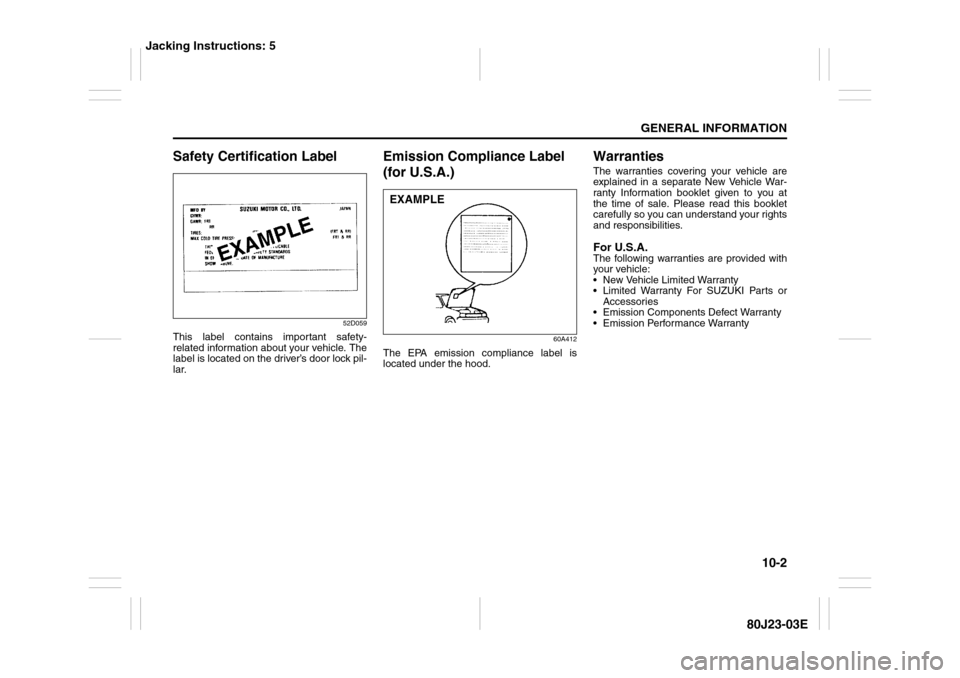

Safety Certification Label
52D059
This label contains important safety-
related information about your vehicle. The
label is located on the driver’s door lock pil-
lar.
Emission Compliance Label
(for U.S.A.)
60A412
The EPA emission compliance label is
located under the hood.
WarrantiesThe warranties covering your vehicle are
explained in a separate New Vehicle War-
ranty Information booklet given to you at
the time of sale. Please read this booklet
carefully so you can understand your rights
and responsibilities.For U.S.A.The following warranties are provided with
your vehicle:
 New Vehicle Limited Warranty
 Limited Warranty For SUZUKI Parts or
Accessories
 Emission Components Defect Warranty
 Emission Performance Warranty
EXAMPLE
Jacking Instructions: 5

10-3GENERAL INFORMATION
80J23-03E
On-Board Vehicle Computers
and Event Data RecordersYour vehicle is equipped with on-board
computer systems which monitor and
control several aspects of vehicle per-
formance, including the following:
 Emission-related components and
engine parameters such as engine
speed and throttle position are moni-
tored to provide emissions control
and to provide optimum fuel econ-
omy. Your vehicle also has an on-
board diagnostic system which mon-
itors and records information about
emission-related malfunctions.
 Signals from various sensors are
monitored to provide air bag deploy-
ment.
 If your vehicle is equipped with
antilock brakes, conditions such as
vehicle speed and brake perfor-
mance are monitored, so that the
ABS system can provide effective
antilock braking. If your vehicle has
an Electronic Stability Program
(ESP
®) system, conditions such as
yaw rate, lateral acceleration, and
brake fluid pressure are monitored,
so that the ESP
® system can help
the driver control the vehicle in diffi-
cult driving situations.
Some information may be stored by
the on-board computers during normaloperation of the vehicle. This stored
information can assist technicians in
repairing the vehicle when malfunc-
tions occur. Other information is stored
only in the event of crash, by computer
systems that are commonly called
Event Data Recorders (EDRs).
In a crash event, EDRs such as the
Airbag Sensing and Diagnostic Mod-
ule (SDM) in your vehicle may record
information about the condition of the
vehicle and how it was operated, such
as data related to airbag readiness,
airbag performance, safety belt usage,
and the severity of the collision. These
data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur and lead to
the designing of safer vehicles. The
SDM in your vehicle does not collect
or store personal information.
To read the stored information, special
equipment is needed and access to
the vehicle or storage device is
required. SUZUKI will not access infor-
mation about a crash event or share it
with others other than with the consent
of the vehicle owner or lessee, in
response to an official request from
the police or similar government office,
as part of SUZUKI’s defense of litiga-
tion through the discovery process, or
as required by law.In addition, once SUZUKI collects or
receives data, SUZUKI may use the
data for research conducted by
SUZUKI, make the data available for
outside research if need is shown and
confidentiality is assured, or make
summary data which does not identify
specific vehicles available for outside
research.
Others, such as law enforcement per-
sonnel, may have access to the spe-
cial equipment that can read the
information if they have access to the
vehicle or storage device.
Jacking Instructions: 5

10-4
GENERAL INFORMATION
80J23-03E
Reporting Safety DefectsIf you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying American Suzuki Motor Corp.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Suzuki Motor
Corp.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to: Administrator, NHTSA, 1200 New
Jersey Ave., SE., Washington, D.C.
20590. You can also obtain other infor-
mation about motor vehicle safety
from http://www.safercar.gov.To contact American Suzuki, owners
in the continental United States can
call toll-free 1-800-934-0934, or write
to:
American Suzuki Motor Corporation
Automotive Customer Relations
3251 East Imperial Highway
Brea, CA 92821-6795
For owners outside the continental
United States, please refer to the dis-
tributor’s address listed in your War-
ranty Information booklet.
For vehicles registered for use and
principally operated in Canada please
contact Suzuki Canada Inc. at 1-905-
889-2677 extension 2254 or write to:
Suzuki Canada Inc.
Customer Relations
100 East Beaver Creek Road
Richmond Hill, On
L4B 1J6
Jacking Instructions: 5
Jump Starting Instructions: 7

10-5GENERAL INFORMATION
80J23-03E
MEMO
Jump Starting Instructions: 7
Towing a Disabled Vehicle: 6

11-1
FUSES AND PROTECTED CIRCUITS
80J23-03E
11
FUSES AND PROTECTED CIRCUITS
80J101
COLOR/SIZE (AMPS)
PROTECTED CIRCUIT
In engine
compartment MAIN
FUSE
BOX(1) BLACK (80) All electric load
(2) RED (50) Power window, Ignition, Wiper, Starter
(3) RED (50) Tail light, Rear defogger, Door lock, Hazard/Horn, Dome
(4) – Blank
(5) – Blank
(6) BLUE (15) Head light (Right) fuse
(7) BLUE (15) Head light (Left) fuse
(8) YELLOW (20) Front fog light fuse
(9) – Blank
(10) GREEN (40) ABS motor fuse
(1)
(2) (3)
(28) (27) (26) (25) (6) (7) (9) (11)
(15) (16) (17) (18) (19)
(24)
(8) (4) (5) (10)
(22) (21)
(23)(20)(12) (13) (14)
(30)
(29)
Fuses and Protected Circuits: 7

11-2FUSES AND PROTECTED CIRCUITS
80J23-03E
80J101
COLOR/SIZE (AMPS)
PROTECTED CIRCUIT
In engine
compartment MAIN
FUSE
BOX(11) PINK (30) Radiator fan fuse
(12) PINK (30) ABS solenoid fuse
(13) PINK (30) Starting motor fuse
(14) RED (50) Ignition switch fuse
(15) PINK (30) Blower fan fuse
(16) YELLOW (20) Air compressor fuse
(17) BLUE (15) Throttle motor fuse
(18) BLUE (15) Automatic transaxle fuse
(19) BLUE (15) Fuel injection fuse
(20) – Automatic transaxle relay
(1)
(2) (3)
(28) (27) (26) (25) (6) (7) (9) (11)
(15) (16) (17) (18) (19)
(24)
(8) (4) (5) (10)
(22) (21)
(23)(20)(12) (13) (14)
(30)
(29)
