2010 SKODA OCTAVIA fuel consumption

Quality and consumption of LPG
2
ised service station, which employs properly qualified staff, while observing
the corresponding sa fety instructions.•
The pressure tanks must not be exposed to a heat source.
•
In the event of an accident or fire in the vehicle, always switch off the igni-
tion!Note
•
Please refer to the information and warning messages in the information display.
•
Have the LPG system inspected regularly by a specialist garage in accordance with
the service schedule page 6, “Service work”.
•
In countries where no Škoda service network is available, we recommend to solely
use petrol as fuel.
Quality and consumption of LPGThe quality demands on LPG are stipulated in the EN 589 standard uniformly across
Europe and therefore ensure a cross-border use without any problem.
There is a distinction between winter LPG and summer LPG. Winter LPG has a higher
percentage of propane. This can cause your vehicle to have a higher consumption with
winter LPG than with summer LPG.
The consumption is around 10 - 15 % higher than when using petrol for the same style
of driving.

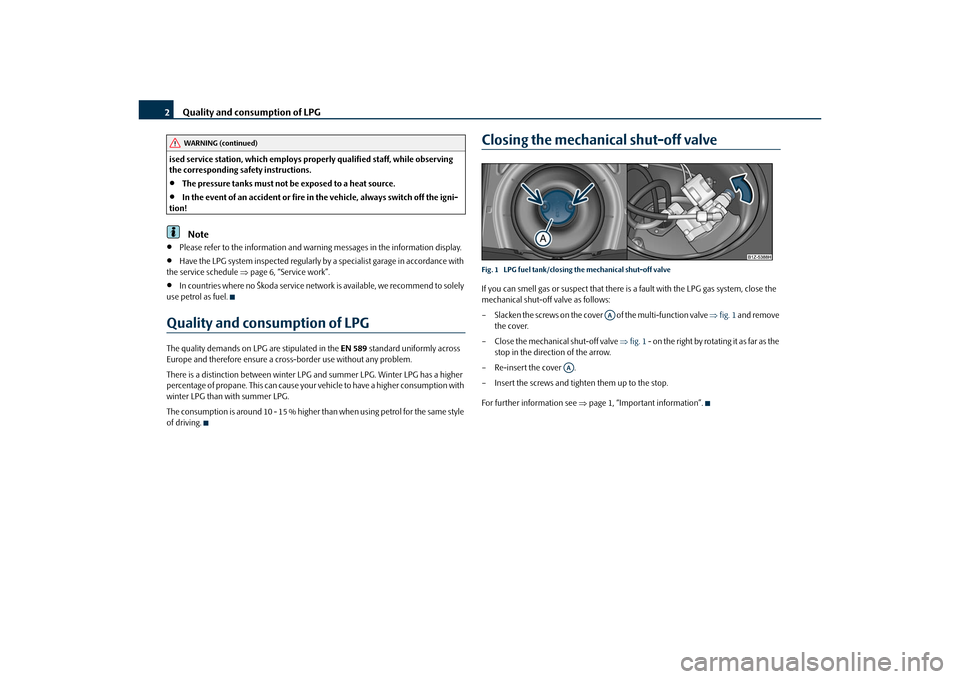

Closing the mechanical shut-off valveFig. 1 LPG fuel tank/closing the mechanical shut-off valveIf you can smell gas or suspect that there is a fault with the LPG gas system, close the
mechanical shut-off valve as follows:
– Slacken the screws on the cover of the multi-function valve fig. 1 and remove
the cover.
– Close the mechanical shut-off valve fig. 1 - on the right by rotating it as far as the
stop in the direction of the arrow.
– Re-insert the cover .
– Insert the screws and tighten them up to the stop.
For further information see page 1, “Important information”.
WARNING (continued)
AA
AA
s5h8.8.book Page 2 Wednesda y, October 27, 2010 11:20 AM

Multi-functional indicator (onboard computer) 5
Multi-functional indicator (onboard computer)The following data for the multi-functional indicator only relate to the current oper-
ating mode (LPG/petrol):•
Current consumption,
•
average fuel consumption,
•
range.
Driving with LPGThe vehicles with LPG drive can be used wi th LPG which complies with the standard
EN 589 as well as unleaded petrol wh ich complies with the standard EN 228.
The LPG fuel tank is housed in the spare wheel well under the luggage compartment
cover.
Starting the engine
The engine always starts in petrol mode, ev en if the vehicle was parked in LPG mode.
Automatically switching over from petrol mode to LPG mode
Switching over from petrol mode to LPG mode is performed automatically after a
system check if the follo wing conditions are met:•
sufficient LPG in the LPG fuel tank,
•
the engine has reached its operating temperature (the warning light
 in the
instrument clus ter goes out),
•
The engine speed is higher than 1 200 rpm.
If these conditions are met, the system automatically switches to LPG mode.
The warning light
 in the instrument cluster then comes on.
Automatically switching over from LPG mode to petrol mode
When one of the conditions are met, the vehicle automatically switches over from LPG
mode to petrol mode:
•
when starting the engine,
•
when the LPG fuel tank is empty,
•
if the outside temperature is lower than -10 °C,
•
when there is a system fault in the LPG system.
The warning light
 in the instrument cluster goes out.
Manually switching over from petrol mode to LPG mode
Manually switching between LPG to petrol can be performed when the engine is
running by pressing the button even while the vehicle is in motion fig. 5 . When
the following conditions are met, the vehicl e switches over from petrol mode to LPG
mode:
•
The button is pressed,
•
sufficient LPG in the LPG fuel tank,
•
coolant temperature of the vehicle higher than +30 °C,
•
Engine speed when running higher than 1 200 rpm.
The warning light
 in the instrument cluster then comes on.
Manually switching over from LPG mode to petrol mode
Switching over is performed by pressing the button . The warning light
 in the
instrument cluster goes out.
Driving in petrol mode
If you drive mostly short distances at regular intervals, then use the petrol mode in
order to prevent any problems which may arise with the petrol system.
Fig. 5 LPG switch
GAS
GAS
GAS
s5h8.8.book Page 5 Wednesda y, October 27, 2010 11:20 AM

Technical Data7
Technical Data1.6 ltr./75 (72) kW - EU5Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
75/5600 (72/5600)
a)
a)In LPG mode.Maximum torque
Nm per rpm
148/3800 (144/3800)
a)
OCTAVIA
M5
CO M B IM5
Maximum speed
km/h
190/186
a)
a)In LPG mode.
188/184
a)
Acceleration 0 - 100 km/h
s
12,8/13,0
a)
12,9/13,1
a)
Urban
9,8/12,3
a)
a)In LPG mode.Non-urban
5,7/7,3
a)
Combination
7,2/9,2
a)
CO2 emission - combination
168/149
a)
s5h8.8.book Page 7 Wednesda y, October 27, 2010 11:20 AM

Technical Data
8
Weight (in kg)
Škoda Auto pursues a policy of constant product and model development. We trust
that you will understand that changes to models in terms of shape, equipment and
engineering, may be introduced at any time . The information about scope of delivery,
appearance, performances, di mensions, weight, fuel consumption, standards and
functions of the vehicle is only correct at the time of publication. Certain items of
equipment might only be installed later on (information given by the local authorised
Škoda Service Partner) and only envisaged fo r particular markets. It is therefore not
possible for legal claims to be made based on the data, illustrations and descriptions
contained in this Owner's Manual. Reprinting, reproduction or translation, eith
er in whole or in part, is not permitted
without the written consent of Škoda Auto.
Škoda Auto expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2010
OCTAVIA M5
COMBIM5
Permissible gross weight
1915
1930/1920
a)
a)Vehicles of the group N1.Unladen weight ready for operation
1330
1345
Loading capacity
660
660/650
a)
Loading capacity when using the TLC
585
585/575
a)
Max. permissible gross weight pe r axle (in kg) - front/rear axle
930/1040
(900/1150)
a)
930/1060
(900/1150)
a)
s5h8.8.book Page 8 Wednesda y, October 27, 2010 11:20 AM
