2010 SKODA OCTAVIA display

Range selector key MEDIA
18
Buttons on the unit for controlling the current audio sources
The arrow buttons on unit or will always affect the currently heard audio source,
irrespective of the current menu used.
- briefly press to go to the beginning of the current track, press repeatedly to return
to the beginning of the previous track.
- brief pressing changes over to the beginning of the next track.
When in the menu of the currently played au dio source it is also possible to change
titles using the setting up button.
- by briefly pressing, you can select the display for the additional information of the
audio sources.
Selectable audio sources in the AUDIO menu
CD - changes over to an inserted CD.
CD 1-6* - changes over to a connected external CD changer.
SD card - changes over to an inserted memory card.
, or * - changes over to a connected external audio source.
Operating an externally connected audio sour ce is possible, with certain restrictions,
via the radio navigation unit and depends pr imarily on the type of the connected unit.
Additional function keys in the AUDIO menu - opens a pop-up window where the random play function Mix, the automatic
play Scan or the replay of the track or the folder can be started.
- opens the list of the tracks for the current audio source in order to select
another track.Inserting or ejecting a CDInserting the CD– Push a CD with the writ ten side facing up as far as possible into the CD case until it
is automatically drawn in. The play function will start automatically. Taking out the CD– Press the button to move the CD in the internal CD drive into the eject position.If a CD is not taken out in the initial position, it will be reinserted after approximately
10 seconds for safety reasons.
Inserting or removing a memory cardInserting a memory card– Push the memory card into the memory ca
rd case with the trimmed edge to the
front top, until it is locked in position . The play function will start automatically.Taking out a memory card– Press the button and then the function key .
– You can select the function key using the menu control button .
– Press against the spring resistance of the inserted memory card, the memory card “skips” back into the Eject position.
– After removing the SD card, confirm with on the screen.
Memory card empty or data not readable
If a memory card is inserted, on which no audio data has been stored, it will not be
switched over into the memory card mode after the loading procedure.
Requirements of the memory card•
Memory cards measuring 32 mm x 24 mm x 2.1 mm or 1.4 mm can be inserted into
the memory card case.
•
SD (Secure Digital Memory Cards) and MMC (Multimedia Cards) memory cards
with a capacity up to 4 GB.
•
SDHC (Secure Digital High-Capacity Memory Cards) memory cards with a capacity
up to 32 GB.
•
Due to the differing demands on quality of the card manufacturer, it is possible that
some of the data on the memory cards canno t be played or their play is restricted.
ƒ
„
ƒ„ºIII KAUX
MDI
Bluetooth audio
ExtrasSelect
š
SETUP
System
Remove SD card
A10
OK
s34g.6.book Page 18 Thursday, January 14, 2010 8:48 AM

Range selector key MEDIA19
Audio menu Select title or audio sourceChange audio source– Press the range selector key to switch to the main menu MEDIA.
– Press one of the top function keys to select the corresponding audio source. The
play function of the selected audio source will continue from the last played point.Opening the selection menu of the available audio sources– When in the Audio menu, press the function key to display the title list of the
currently played audio source. The currentl y played track is shown as highlighted.
– If one of the buttons of the audio source da ta is pressed, the contents of the folder
or the data carrier is displayed.Changing track or selecting track manuallyPress the range selector key to switch to the main menu MEDIA.Select track– Briefly press the arrow key on the unit or while in the MEDIA menu.Fast forward/reverse– Hold the arrow key on the unit or pressed.
– If you have reached the desired title sequence, release the button.Audio CD– Press on the function key , in order to display the title list of the currently
played audio CD.
– Select the desired track from the title list using the menu control button .
MP3 Data: Select track– Press on the function key , in order to display the title list with the currently
played title and, if necessar y, to display the sub-folder contained in this folder.
– Press on the display of a data folder to open it.
– Press on the function key to open the appropriate higher priority folder.
– By pressing repetitively, you can reach the root folder of the played medium while moving from folder to folder. Then the function key is inactive.Repeat track– Press the function key in the Media menu and then the function key
(repeats the current track) or (constantly repeats all the
tracks in the folder).Random play function – Press on the function key in MEDIA.
– Press on the function key in the po p-up window. All titles of the current
audio source will now be played in random order.
– If you press the function key in the pop-up window, the tracks of the current folder are played in random order.
– Use the function key to terminate the function of the current title. The normal play function contin ues with the current title.Automatic play (Scan function)– Press on the function key in MEDIA.
– Press on in the pop-up window. All th e titles of the current audio source are
played for approximately 10 seconds.
– Press to terminate the play function of the current title. The normal play
function continues with the current title.
Alternatively, start and end the automatic play by briefly pressing the menu control
button .
MEDIA
Select
MEDIA
ƒ
„
ƒ
„
Select
A10
SelectUp
Up
Up
Extras
Repeat track
Repeat folder
MIXExtrasMix allMix folder
b Mix
Extras
ScanbScanA10
s34g.6.book Page 19 Thursday, January 14, 2010 8:48 AM

Range selector key MEDIA
20
MP3 and WMA dataGeneral information for MP3 operationRequirements for the MP3 data and data carrier•
CD-ROM, CD-R, CD-RW with a capa city of 650 MB and 700 MB.
•
The CDs must correspond to the ISO 9660 Level 1 or Level 2 standard as well as the
Joliet data system (single and multi-session).
•
Data names must be no longer than 256 characters.
•
The list structure is restricted to a depth of 8 list levels.
•
A MP3 CD must not have more than 50°folders and 500°data.
•
A memory card must not have more than 5°000°folders and 15°000°data. Thus,
one folder must not have more than 6°000 data.
•
The name of the artist, the album and the title of the reproduced MP3 data can be
shown as ID3 tag, providing this information is available. The list and data name will be
displayed if there is no ID3 tag.
•
Playlists are not supported.
•
WMA data ( Windows Media Audio) can also be played even if the copyright is
additionally protected by the DRM procedure ( Digital Rights Management). Such
WMA data is not supported by the unit.
Bit rate (data flow per time unit)
•
The system supports MP3 data with bit rates of 32 to 320 KB/s as well as MP3 data
with variable bit rates.
•
The indicated playing time data with variable bit rates is not reliable.Note
For the correct display of the specific characte rs in Czech in ID3 day (name of the artist,
the album and the track), the text must correspond to the standard ID3°V2 and the UTF
coding.
External sources*External sources - OverviewInput AUX– Activate the AUX socket in the menu Setup Media by pressing the function key
.
– The input for an external audio source is located on the unit.
– External audio sources, which are connected to the AUX socket, cannot be oper-
ated via the radio.Input MDI - Multimedia socket– The input MDI is located under the armrest of the front seats or in the storage compartment on the front passenger side.
Fig. 9 Socket MDI
BAT-15H1138
Fig. 10 Menu of the audio source via the

multimedia socket MDI
AUX
s34g.6.book Page 20 Thursday, January 14, 2010 8:48 AM

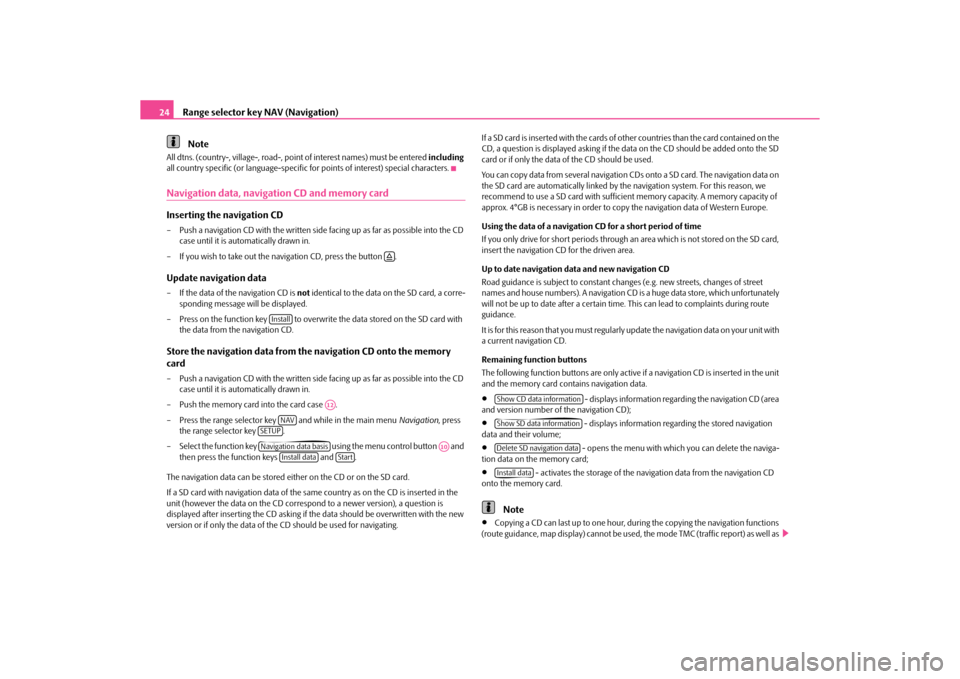

Range selector key NAV (Navigation)
24
Note
All dtns. (country-, village-, road-, poin t of interest names) must be entered including
all country specific (or lang uage-specific for points of interest) special characters.Navigation data, navigation CD and memory cardInserting the navigation CD– Push a navigation CD with the written side facing up as far as possible into the CD
case until it is automatically drawn in.
– If you wish to take out the navigation CD, press the button .Update navigation data– If the data of the navigation CD is not identical to the data on the SD card, a corre-
sponding message will be displayed.
– Press on the function key to overwrit e the data stored on the SD card with
the data from the navigation CD.Store the navigation data from th e navigation CD onto the memory
card– Push a navigation CD with the written side facing up as far as possible into the CD
case until it is automatically drawn in.
– Push the memory card into the card case .
– Press the range selector key and while in the main menu Navigation, press
the range selector key .
– Select the function key using the menu control button and
then press the function keys and .
The navigation data can be stored ei ther on the CD or on the SD card.
If a SD card with navigation data of the sa me country as on the CD is inserted in the
unit (however the data on the CD correspo nd to a newer version), a question is
displayed after inserting the CD asking if the data should be overwritten with the new
version or if only the data of the CD should be used for navigating. If a SD card is inserted with the cards of
other countries than the card contained on the
CD, a question is displayed asking if the data on the CD should be added onto the SD
card or if only the data of the CD should be used.
You can copy data from several navigation CD s onto a SD card. The navigation data on
the SD card are automatically linked by the navigation system. For this reason, we
recommend to use a SD card with sufficient memory capacity. A memory capacity of
approx. 4°GB is necessary in order to copy the navigation data of Western Europe.
Using the data of a navigation CD for a short period of time
If you only drive for short pe riods through an area which is not stored on the SD card,
insert the navigation CD for the driven area.
Up to date navigation data and new navigation CD
Road guidance is subject to constant changes (e.g. new streets, changes of street
names and house numbers). A navigation CD is a huge data store, which unfortunately
will not be up to date after a certain time. This can lead to complaints during route
guidance.
It is for this reason that you must regularly update the navigation data on your unit with
a current navigation CD.
Remaining function buttons
The following function buttons are only active if a navigation CD is inserted in the unit
and the memory card cont ains navigation data.
•
- displays information regarding the navigation CD (area
and version number of the navigation CD);
•
- displays information regarding the stored navigation
data and their volume;
•
- opens the menu with which you can delete the naviga-
tion data on the memory card;
•
- activates the storage of the naviga tion data from the navigation CD
onto the memory card.
Note
•
Copying a CD can last up to one hour, du ring the copying the navigation functions
(route guidance, map display) cannot be used, the mode TMC (traffic report) as well as
š
Install
A12
NAV
SETUPNavigation data basis
A10
Install data
Start
Show CD data informationShow SD data informationDelete SD navigation dataInstall data
s34g.6.book Page 24 Thursday, January 14, 2010 8:48 AM

Range selector key NAV (Navigation)25
the MP3 play function of the SD card are not available. In the menus Radio and Media ,
the symbol of the SD card is displaye d on the top left during the copying
K.
•
Do not remove the SD card from the unit during the copying of the data from the
navigation CD onto the SD card.
Main menu Navigation– Press the range selector key . The last opened menu in the navigation will be
displayed.
– If the main menu Navigation is not displayed, press once again on the range
selector key .
Function keys in the main menu Navigation
Address - serves as address entry via an input mask for selecting a destination
address.
Destin. memory - serves for opening the stored destinations.
Last destinations - serves for opening the last destinations.
Petrol station - serves for opening the list of close-by petrol stations.
Car park - serves for opening the list of close-by car parks.
Point of interest - opens a search mask to search for a point of interest. To search
for an area, you can enter the current position or a random town .
- for starting the route guidance to the destination which is stored as
home address.
Destination entrySelect destination addressPress on the function key Address while in the main menu Navigation .Select destination address– Open the input masks (country, village, street, house number) for selecting the
destination address. A destination address must always be selected in the
displayed sequence, first of all the country, then the city and so on.
– If the information is sufficent for route guidance, the function key will be active.Selecting a stored destinationStarting a route guidance to a stored “Home address”– Press on the function key while in the main menu Navigation. If a
home address has been stored, the unit will change to the map display and the
route guidance will start automatically.Start route guidance to one of the stored destinations– Press the function key Destin. memory or Last destinations while in the
main menu Navigation. A list of the manually stored destinations or the list of the
last destinations is displayed.
Fig. 11 Main menu NavigationFig. 12 Map display
NAV
NAV
$*
$$0'
Here
To w n
Home addr.
$
Finish
Home addr.
*
$$
s34g.6.book Page 25 Thursday, January 14, 2010 8:48 AM

Range selector key NAV (Navigation)
26
Select petrol station or car parks– Press the function key Petrol station or Car park while in the main menu
Navigation , a list of the surrounding petrol stations or car parks is displayed.
– Press one of the displayed destinations. The unit will change to the map display
and the route guidance to this travel destination will start automatically.
– In order to display the deta iled information about the destination, press the func-
tion key .
– Start a route guidance by pressing the function key .Selecting a point of interest as a travel destinationDetermine search area– Press the function key Point of interest while in the main menu Navigation.
– In order to determine the search area where you intend to search for a point of interest, either choose the current position or a town centre . Select a point of interest category– A search mask opens for selecting the point of interest by means of entering a
“keyword” or a word which is part of the name for the point of interest. The point
of interest is searched for within a surrounding area of 75 km.
– You can enter as a “keyword” e.g hotel, stadium, food or a part of a name for a point of interest e.g rooster, lake.
– Pay attention to the correct entry of the “keyword” (including special characters).Starting the search– If you have completed your entries in th e search mask, press on the function key
. A pop-up window will open and the se arch for the points of interest, which
correspond to the entry, will start.
– The surrounding area where the points of interest are searched for is displayed and continues to increase.
– If you press on the function key , the search will be terminated without a display of the results. – From the moment when all the points of interest are found, which correspond to
the entered text, they are displayed in the list.
– The search extends up to a distance of approx. 75 km from the entered position.
You can interrupt the search of the displaye d distance by pressing the function key
.
– When the search has ended, the function key changes to the function key .
Select a point of interest from the search results– Selecting the menu point from the list of the points of interest found, starts the
route guidance.
– If several points of interest were found, they will first of all be displayed in a list. At the top of the list you can find the points of interest closest to the entered search
area (distance and direction information refer to linear distance).
– If you press the function key , the details for the point of interest are displayed. A route guidance is started after pressing the function key .
– In the list of the points of interest or in the display of the details for a destination, you can store the point of interest in a destination memory by pressing the function
key .Destin. memoryStore last destinations– Press on the function key Last destinations while in the main menu Naviga-
tion .
– Press one of the displayed destinations. The unit will change to the map display
and the route guidance to this travel destination will start automatically.
– If you press the function key , the detailed information for the destination is displayed.
– If you wish to store a destination, press on the function key .

0
Details
Start
'
Here
To w n
Find
Cancel
Exit
Exit
Details
Details
Start
Store
$$Details
Store
s34g.6.book Page 26 Thursday, January 14, 2010 8:48 AM

Range selector key NAV (Navigation)27
Store destinations in the destination memory– If you press the function key , an in put mask for entering the destination
name opens.
– After entering the destination name, press the function key .
– If you wish to change the destination name, press the function key and select your own destination name.Edit stored destinations– Press the function key Destin. memory while in the main menu Navigation. A
list of the manually stored destinations in the destinations memory is displayed.
– Press one of the displayed destinations. The unit will change to the map display and the route guidance to this travel destination will start automatically.
– If you press the function key , the detailed information for the destination is displayed. You can modify the entry here.
– If you wish to change the displayed destination name, select the menu point .
– A route guidance to the displayed destination is started with the function key .
– If you press the function key , the destination is deleted.Store additional window and “Flagged destination”
Display additional window– The additional window open s by pressing the button .
– If the route guidance is not active, the ad ditional window opens with details for the
current position.
– If the route guidance is active, the additional window for the travel destination opens.Store flagged destination– If you press the function key in the additional window, the current posi-tion is stored as “Flagged destination”.
– Only one destination can be stored in the destination memory under “Flagged destination”. If the “Flagged destination” is not renamed, it is overwritten by
renewed pressing of the function key . If you wish to keep a
stored “Flagged destination”, you must rename it.Rename flagged destination– Press the function key Destin. memory while in the main menu Navigation.
– Select “Flagged destination” in the list.
– Press the function key and then the function key . An input mask opens in which you can edit the na me of the “Flagged destination”.
Additional window for the current position
You can use the menu control button to display further information.
Store
OK
Delete
*
Details
Name:
Start
Delete
Fig. 13 Additional window: Display of
the details for the current position
Fig. 14 Flagged destination
º
Flag dtns.
Flagged destination
*Details
Name:
A10
s34g.6.book Page 27 Thursday, January 14, 2010 8:48 AM

Range selector key NAV (Navigation)
28
•
Position;
•
latitude and longitude;
•
height (if at least 4 satellites are available);
•
GPS status (GPS_FIX - the position can be determined, GPS_FIX_3D - the height
can be determined);
•
The number of available and tracked satellit es (the number of available satellites
determines the GPS status).
Delete destinations in the destinat ion memory or in the list of the last destinations– Press the button while in a random menu of the Navigation.
– You can select the function key using the menu control
button .
– In the pop-up window, you can delete all manually and automatically stored desti-
nations or only the last destinatio ns using the function keys or
.Store or edit your home addressSave the current position as a home address– Press on the function key while in the main menu Navigation.
– If your home address has not yet been stored, confirm the following question with the function key .
– Press on the function key and your current position is stored as home address.Edit saved home address– If your home address has already been stored, the automatic route guidance starts after pressing the function key .
– If you wish to change your home ad dress, press the button and then the
menu point while in the menu Navigation.
Route guidanceEntering a stopover destinationIf, in addition to the displayed travel destination, a stopover destination is added,
proceed as follows. The stopover destinatio n can only be entered when starting the
route guidance.
– Select the destination and start the route guidance.
– Press on the range selector key to change into the main menu Navigation.
– Select a destination and start the route guidance.
– If you wish to store the newly entered destination as a stopover destination, press the function key .
– If you wish to end the route guidance wh ich has started, press the function key
.
Only one destination and one stopover destination can be entered during the route
guidance.
A corresponding navigation anno unce ment s ounds whe n re aching the stopover desti-
nation. The route guidance is renewed afte r a few seconds. Then you can re-enter a
new stopover destination.
If you enter a new stopover destination befo re reaching the original destination, you
must decide if you wish to overwrite the “old” stopover destination with the “new”
stopover destination.Route options The menu Route options is used to determine the criteria according to which a route
is to be calculated and what types of destin ations you wish to allow for the route calcu-
lation. The route options can also be changed during a route guidance.
– Press the button and then the function key while in the main
menu Navigation.
– Press on the function key .
SETUP
Delete destination memory
A10
All dtns.
Last destinations
Home addr.
Ye s
Position
Home addr.
SETUP
Enter home address
NAV
Stopover
New dtn.
SETUP
Route options
Route criteria
s34g.6.book Page 28 Thursday, January 14, 2010 8:48 AM
