The buttons apply for the respective operating mode of the current radio or navigation system.
Note

The loudspeakers in the vehicle are matched to a power output of the radio and
navigation system of 4x 20°W.
For the equipment sound system*, the loudspeakers are matched to a power
output of the amplifier of 4x40°W + 6x20 W.Mobile phones and tw
o-way radio systems
The installation of a mobile phone and two-way radio system in a vehicle should be carried out by a specialist garage. Mobile phones send and receive radio wave
s during a conversation as well as in
standby mode. Radio waves can be harmful
to the human body if their frequency
exceeds certain limit values. Škoda Auto permits the operation of mobile
phones and two-way radio systems with
a professionally installed external aerial and a maximum transmission power of up to 10 watts. It is essential that you inform a specialist garage about the possibilites to assemble and operate mobile phones and two-way radio sets which have a power output of more than 10 W. They will inform you which technical possibilities exist for retrofitting mobile phones. When using a mobille phone inside the vehicl
e, which is not inserted into the phone
adapter, and thus has no connection to the
external aerial, the electromagnetic radia-
tion can exceed the current limit value. We therefore recommend to operate a mobile phone in the vehicle only when it is conne
cted to an external aerial via the phone
adapter. This improves the quality of the connection. Operation of mobile phones or two-way ra
dio systems may interfere with functioning
of the electronic systems of your vehicle. The reasons for this may be:
no external aerial,

external aerial incorrectly installed,

transmission power gr
eater than 10 watts.
WARNING

If a mobile phone or a two-way radio
system is operated in the vehicle
without using a special external aerial
or an external aerial which has been
incorrectly installed, this can increase
the strength of the electromagnetic field
in the interior of the vehicle.
Please concentrate fully at
all times on your driving!

You must not install two-way radio systems, mobile phones or mounts on
the covers of the airbags or within the immediate deployment range of airbags. This might result in injuries to the
occupants in the event of an accident.

Never leave a mobile phone on a seat, on
the dash panel or in another area,
from which it can be thrown during a sudden braking manoeuver, an accident or a collision. In this case, the occupants of the vehicle might be injured.
Note
Observe the country-specific regulations for the use of mobile phones in vehicles.Universal telephone preinstallation GSM II*IntroductionThe universal telephone preinstallation GSM
II is a built-in “hands-free system”, it
provides a voice operated convenience mode via the multifunction steering wheel* or the navigation system*. All communication between a telephone and
the hands-free system of your vehicle
can only be established with the help of the Bluetooth
® technology. The adapter*
serves only for charging the telephone and fo
r transmitting the signal to the external
aerial of the vehicle.
a)On vehicles which are equipped with the universal telephone prei
nstallation GSM II, pressing the button only allows to operate
the telephone.
A1
s3j8.a.book Page 105 Tuesday, April 20, 2010 1:10 PM

Communication
106
To ensure an optimum signal transmission, always leave the telephone with the adapter* in the telephone mount. Furthermore the volume can be changed indivi
dually during the call at any time with
the button for setting the radio* or navigation system* or with the buttons on the multifunction steering wheel*.
WARNING
Pay attention primarily to the traffic situation! As the driver you are fully responsible for road safety. Use the teleph
one system only to such an extent, so
that you are in full control of your vehicle at any time.
Note

Please refer to the following guidelines
page 105.

Should you have any questions, please
contact an authorised Škoda Service
Par tner.Phone PhonebookA phone phonebook is part of the mobile ph
one preinstallation with voice control. In
the phone phonebook there are 2 500 free memory locations available. This phone phonebook can be used in line
with the mobile telephone.
After the first connection of the telephone, the system begins to load the phone book from the phone and the SIM card into the memory of the control unit. Each time the telephone has establishe
d a new connection with the hands-free
system, an update of the relevant phone b
ook is performed. The updating can take a
few minutes. During this time the phone book, which was stored after the last update was completed, is available. Newly stored telephone numbers are only shown after the updating has ended. If the number of contacts loaded exceed
s 2 500, the phone book is not complete.
If a telephone event (e.g. incoming or outgoing call, dialogue of the voice control) occurs during the updating pr
ocedure, the updating is interrupted. After the telephone
event has ended, the updating starts anew.
Connection of the mobile phone with the hands-free systemIn order to connect a mobile phone with th
e hands-free system, it is necessary to
connect the telephone to the hands-free sy
stem. Detailed information on this is
provided in the operating instructions of your mobile phone. The following steps must be carried out for the connection: – Activate the Bluetooth
® in your telephone and the visibility of the mobile phone.
– Switch on the ignition.– Select the menu
Phone
- Phone search
in the information display and wait until
the control unit has ended the search.
– Select your mobile phone in the menu of the units found.–Confirm the PIN (as standard
1234
).
– If the hands-free system
announces (as standard
Skoda UHV
) on the display of the
mobile phone, enter the PIN (as standard
1234
) within 30 seconds and wait until
the connection is established.
10)
– After ending the connection, confirm in the information display that a new user
profile was created.
If no more free space is available for creating a new user profile, delete an existing user profile. If you have not managed to
connect your mobile phone with the hands-free system
within 3 minutes after switching on the ignition, switch the ignition off and then again on. The visibility of the hands-free system is established again for 3 minutes. The visi- bility of the Bluetooth
® device is automatically switched
off if the vehicle starts off or
if the mobile phone connects to the device. During the connecting procedure, no other
mobile phone may be connected with the
hands-free system. Up to four mobile phones ca
n be paired to the hands-fr
ee system, whereby only one
mobile phone can communicate
with the hands-free system.
10)Some mobile phones have a menu, in which the authorization for establishing a Bluetooth
®
connection is performed via the input of a code. If the input for the authorization is necessary, it must always be performed when re-e
stablishing the Bluetooth connection.
s3j8.a.book Page 106 Tuesday, April 20, 2010 1:10 PM

Communication
108

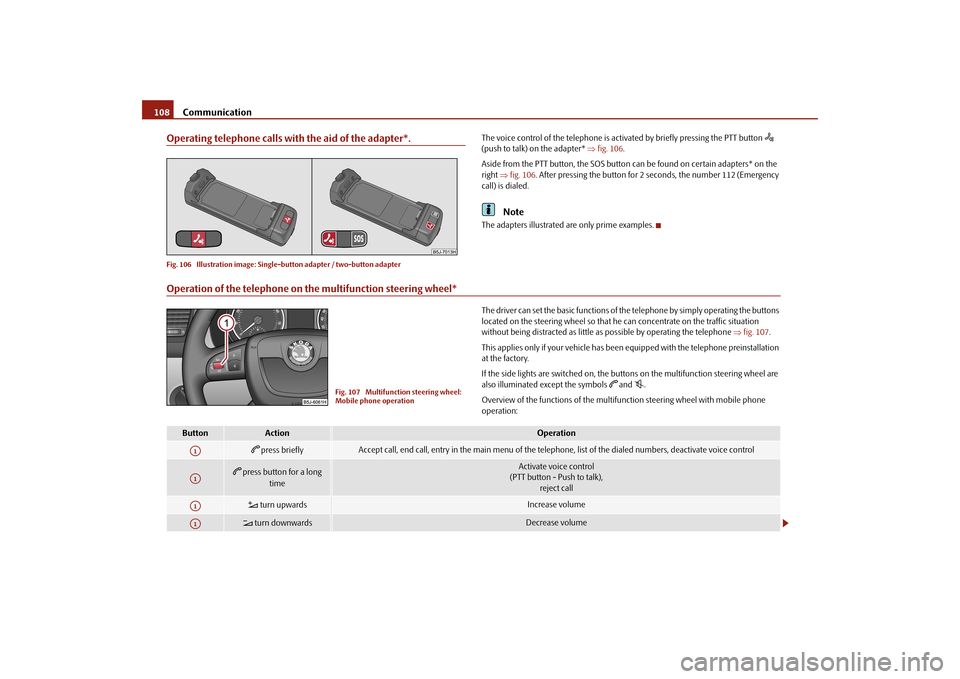

Operating telephone calls with the aid of the adapter*.Fig. 106 Illustration image: Single
-button adapter / two-button adapter
The voice control of the telephone is acti
vated by briefly pressing the PTT button

(push to talk) on the adapter*
fig. 106
.
Aside from the PTT button, the SOS button
can be found on certain adapters* on the
right
fig. 106
. After pressing the button for 2 seconds, the number 112 (Emergency
call) is dialed.
Note
The adapters illustrated
are only prime examples.
Operation of the telephone on the multifunction steering wheel*
The driver can set the basic functions of th
e telephone by simply operating the buttons
located on the steering wheel so that he can concentrate on the traffic situation without being distracted as little as
possible by operating the telephone
fig. 107
.
This applies only if your vehicle has been equipped with the telephone preinstallation at the factory. If the side lights are switched on, the buttons on the multifunction steering wheel are also illuminated except the symbols
 and
.
Overview of the functions of the multifunction steering wheel with mobile phone operation:
Fig. 107 Multifunction steering wheel: Mobile phone operation
Button
Action
Operation

 press briefly
Accept call, end call, entry in
the main menu of the telephone, list of
the dialed numbers, deactivate voice control

 press button for a long
time
Activate voice control (PTT button - Push to talk),
reject call

 turn upwards
Increase volume

 turn downwards
Decrease volume
A1A1A1A1
s3j8.a.book Page 108 Tuesday, April 20, 2010 1:10 PM

Communication
109
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The buttons operate the functions for the operating mode of the current telephone.Operate the telephone via the information display*The display of texts in the menu
Phone
is possible in the following languages:
Czech, English, German, French, Italia
n, Spanish, Russian and Portuguese.
In the menu
Phone
you can select the following menu points:

Phone book

Dial number

Call register

Voice mailbox

Bluetooth

Settings

Back
Phone book In the menu point
Phone book
is the list of the loaded contacts from the telephone
memory and the SIM card of the mobile phone. In the phone phonebook there are 2 500 free memory locations available. Dial number In the menu point
Dial number
, you can write any telephone number. Select in
sequence the desired digits with the aid of
the handwheel and confirm it by pressing
the handwheel. You can select the numbers
0 - 9
, the symbols
+, , # and the func-
tions
Delete, Call, Cancel
.
Call register In the menu point
Call register
, you can select the following menu points:

Missed calls

Received calls

Last calls
Voice mailbox In the menu
Voice mailbox
, it is possible to set the number of the voice mailbox and
then dial the number. Bluetooth In the menu
Bluetooth
you can select the following menu points:

User
- the overview of the stored users

New user
- Search for new telephones which are in the reception range

Visibility
- Switching on the visibility of
the telephone unit for other devices

Media player
Active device

Paired devices

Search

Phone name
- the possibility to change the name of the telephone unit (pre-set
SKODA UHV) Settings In the menu
Settings
you can select the following menu points:

Phone book
Update

List
Surname

First name

Ring tone
Back Return in the basic menu of the telephone.
Note
The readout of the menu
Phone
and the voice control are no
t possible in the Chinese
language.
