2010 Seat Leon 5D key

Unlocking and locking99
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Unlocking and lockingCentral locking Basic functions
The central locking system enables you to lock and unlock all
doors by just pushing the button.Description
Central locking can be activated by using any of the following options:•the key, by inserting it into the driver door cylinder and rotating it manu-
ally,•the central locking button in the vehicle interior ⇒page 101.•the remote control, using the buttons on the key ⇒page 106.
Various functions are available to improve the vehicle safety:
– Safe locking system
– Selective unlocking system*
– Automatic speed-dependent locking and unlocking system*
– Self-locking system to prevent involuntary unlocking
– Emergency unlocking system
Unlocking the vehicle*
–Press button ⇒page 106, fig. 62 on the remote control to unlock all
the doors and tailgate.
Locking the vehicle*
– Press button ⇒page 106, fig. 62 on the remote control to lock all
doors and the tailgate or turn the key in the door to lock all doors and the
tailgate.
WARNING
•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year, thus causing serious injuries/illness. It could even have
fatal consequences. Close and lock both the tailgate and all the other doors
when you are not using the vehicle.•Always take you car keys with you when you leave the vehicle. Misuse
of the keys, for example, by children, may result in serious damage and
accident.
−The engine may accidentally be started and be out of control.
− If the ignition is switched on, the electric equipment could be acti-
vated with risk of injury, for example, in the electric windows.
− The doors can be locked using the remote control key. This could
make the aid difficult in an emergency situation.
− Always take the key with you when you leave the vehicle.•Never remove the key from the ignition if the vehicle is in motion. The
steering lock could suddenly engage, and you would not be able to turn the
steering wheel.Note
•While the driver door is open, the vehicle cannot be locked with the
remote control. This avoids the user from forgetting his key inside the vehicle.•If the driver door is unlocked with the key shaft, only the driver door is
unlocked, the rest of the doors remain locked. When the ignition is switched

Leon_EN.book Seite 99 Mittwoch, 1. September 2010 6:16 18

Unlocking and locking
100on, the door deadlock function is deactivated (although the doors remain
locked) and the central locking button is activated. See ⇒page 108.•If the central locking or anti-theft alarm are faulty, the driver door warning
lamp remains lit for approx. 30 seconds after locking the vehicle.•For anti-theft security, only the driver door is fitted with a lock cylinder.Safe security system
The Safe deadlock makes it more difficult to break into the
vehicle because the door release lever and the central locking
button are not active (depending upon country).Activating deadlock
–Press once the locking button on the remote control. or
–Turn the key once in the driver door lock to lock. A warning lamp
in the driver door flashes to indicate the Safe deadlock is
working. The warning lamp flashes for approx. two seconds at
short intervals and then more slowly.
Deactivating deadlock when the vehicle is locked
– Press the locking button on the remote control twice within
two seconds. The vehicle is locked without activating the dead-
lock. The driver door warning lamp flashes for approx. two
seconds and then goes out. After approx. 30 seconds it starts
flashing again.The doors can be unlocked and opened from the inside if the Safe deadlock
has not been activated. You will have to pull the door release lever once.
When the Safe deadlock is off, the anti-theft alarm* ⇒page 108 remains active. The vehicle interior monitoring system* and the anti-tow system are
deactivated*.
WARNING
Nobod y s hould remain in the vehicle if t he a nt i- tow s ystem d ead lock mech-
anism has been activated. It is not possible to open the doors from the
inside. Locked doors could make it more difficult to assist vehicle occu-
pants in the event of an accident. People could become trapped inside in an
emergency.Selective unlocking system*
This system allows unlocking either just the driver door or the
entire vehicle.Using the remote control,
press the unlock button on the remote once. The
Safe system for all the vehicle is deactivated, only the driver door is unlocked
and both the alarm and the warning lamp are also turned off.
Unlocking all doors and the luggage compartment
The unlock button on the remote control must be pressed twice so that all
doors and the luggage compartment can be opened.
Press twice within 2 seconds to deactivate the Safe system for the entire
vehicle, to unlock all doors and to use the luggage compartment. The warning
lamp and the alarm (only vehicles fitted with one) are turned off.



Leon_EN.book Seite 100 Mittwoch, 1. September 2010 6:16 18

Unlocking and locking101
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Automatic speed dependent locking and unlocking system*
This is a safety system which prevent the access to the vehicle
from the outside when it is running (for example, when
stopped at a traffic light).Locking
The doors and the tailgate are automatically locked when vehicle speed
exceeds 15 km/h.
If the vehicle is stopped and one of the doors is opened, when the vehicle
moves off again and exceeds a speed of 15 km/h, the unlocked door(s) will
be locked once more.
Unlocking
The driver door automatically unlocks when the key is removed from the igni-
tion.
Each door can be unlocked and opened independently from the inside (for
example, when a passenger gets out of it). To do it, simply operate the lever
inside the door.
WARNING
The door handles must not be operated when the vehicle is running: the
door would open.Automatic locking system for involuntary unlocking*
It is an anti-theft system and prevents the unintentional
unlocking of the vehicle.If the vehicle is unlocked and any of the doors (including the tailgate) are
opened within 30 seconds, it gets re-locked automatically. This function prevents the vehicle from remaining unlocked if the unlock button is pressed
by mistake.
Emergency unlocking systemIf the airbags are triggered during an accident, the vehicle is unlocked, except
for the luggage compartment. It is possible to lock the vehicle from inside
with the central locking, after turning the ignition off and back on again.
If the doors must be locked from the outside, see “Emergency locking of the
doors”Central locking button
The central locking button allows you to lock and unlock the
vehicle from the inside.
Fig. 57 Detailed view of
the centre console:
central locking button
Leon_EN.book Seite 101 Mittwoch, 1. September 2010 6:16 18

Unlocking and locking
102
Locking the vehicle
–Press the button ⇒.
Unlocking the doors
–Press button .The central locking button is still operative when the ignition is switched off.
Except when the Safe security system is activated.
Please note the following if you lock your vehicle with the central locking
button:•For safety reasons it is not possible to open the doors or the tailgate from
the outside (for instance, when stopped at a traffic light).•The driver door and/or front passenger door cannot be locked if any of the
vehicle doors (except the tailgate) are open. This avoids the user from forget-
ting his key inside the vehicle.•Repeated operation of the central locking will deactivate the central
locking button for 30 seconds. Once this time has passed, the button if oper-
ative again.•There is a danger of leaving the key inside the vehicle if the vehicle is
locked by the central locking button when the driver door is closed and any of
the rear doors open. On closing any of the rear doors, the vehicle locks and
the keys remain inside it.•All doors can be locked separately from inside the vehicle. Do this by
pulling the door release lever once.WARNING
•If the vehicle is locked, children and disabled people may be trapped
inside it.•The central locking button is not operative in the following cases:
•When the vehicle is locked from the outside (with the remote control or
the key).•While the ignition is not activated after unlocking the door lock cylinder
with the key.Note
•Vehicle locked, button , amber•Vehicle unlocked, button , redUnlocking and locking - Manual personalisation Activating selective unlocking
With the driver door open, turn the key to unlock for approx. 3 s
Deactivating selective unlocking
With the driver door open, turn the key to lock for approx. 3 s
The turn signal lamps flash to confirm activation or deactivation.
Activation of automatic locking
Press the lock button on the central locking button for 3 seconds.
Deactivation of automatic locking
Press the unlock button on the central locking button for 3 seconds.
The lock button lamp flashes to confirm activation or deactivation.


WARNING (continued)


Leon_EN.book Seite 102 Mittwoch, 1. September 2010 6:16 18

Unlocking and locking103
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Emergency manual locking
This permits mechanical locking of the doors in case of
central locking system failure.Locking the driver door manually
Insert the key in the door lock cylinder and rotate in a clockwise direction for
the left hand side door and anti-clockwise for the right hand side door.
Once the door has been closed it can no longer be opened from the outside.
Manual (emergency) locking of the remaining doors
Open the door and remove the cap ⇒fig. 58 printed with a lock image.
This will expose a circular element with a groove in the centre. Insert the key
into the groove and rotate the element clockwise for the right hand side doors
and anticlockwise for the left hand side doors.
Replace the cap and close the door. Once the door has been closed it can no
longer be opened from the outside. Unlocking the manually (emergency) locked driver door
Insert the key in the door lock cylinder and rotate anti-clockwise for the left
hand side doors and clockwise for the right hand side doors.
T h e do or lo ck is r eleas ed a nd th e do or m ay b e op e ne d using the ex te r io r do o r
handle.
Unlocking the remaining manually (emergency) locked doors
First the driver door must be unlocked to gain entry to the vehicle. Operate the
internal door handle for the required door. If the childproof lock is activated
on the rear doors, when the interior door release lever is operated the door is
unlocked but does not open. The door must be opened from the outside.
Note
Once the vehicle is open, if you wish to lock it manually (emergency locking),
repeat the previous instructions.
Fig. 58 Locking the doors
manually
AA
Leon_EN.book Seite 103 Mittwoch, 1. September 2010 6:16 18

Unlocking and locking

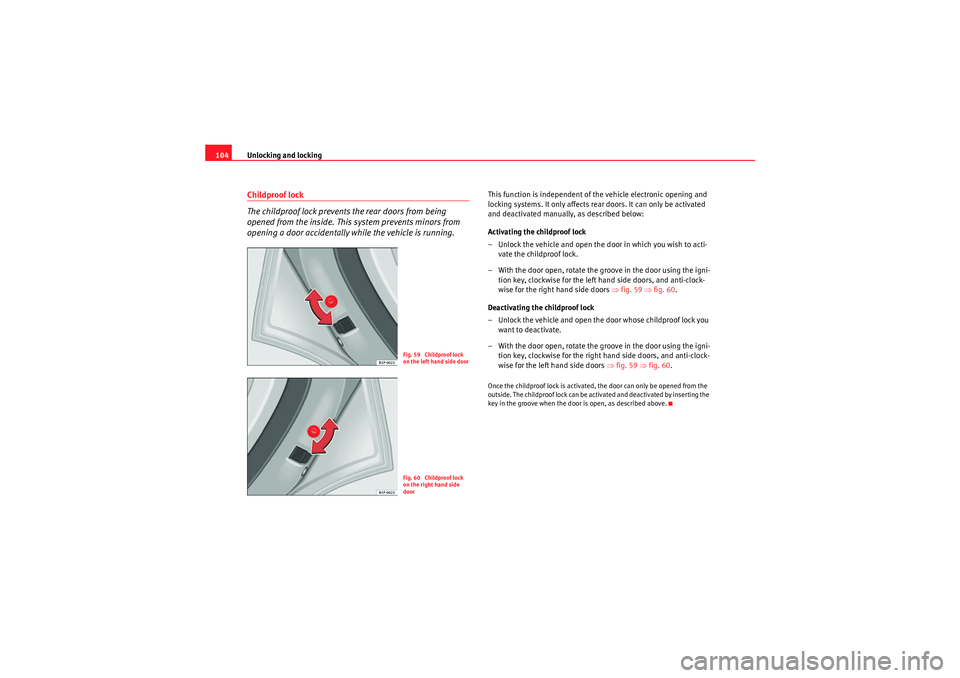

104Childproof lock
The childproof lock prevents the rear doors from being
opened from the inside. This system prevents minors from
opening a door accidentally while the vehicle is running.
This function is independent of the vehicle electronic opening and
locking systems. It only affects rear doors. It can only be activated
and deactivated manually, as described below:
Activating the childproof lock
– Unlock the vehicle and open the door in which you wish to acti- vate the childproof lock.
– With the door open, rotate the groove in the door using the igni- tion key, clockwise for the left hand side doors, and anti-clock-
wise for the right hand side doors ⇒fig. 59 ⇒ fig. 60 .
Deactivating the childproof lock
– Unlock the vehicle and open the door whose childproof lock you want to deactivate.
– With the door open, rotate the groove in the door using the igni- tion key, clockwise for the right hand side doors, and anti-clock-
wise for the left hand side doors ⇒fig. 59 ⇒ fig. 60 .Once the childproof lock is activated, the door can only be opened from the
outside. The childproof lock can be activated and deactivated by inserting the
key in the groove when the door is open, as described above.
Fig. 59 Childproof lock
on the left hand side doorFig. 60 Childproof lock
on the right hand side
door
Leon_EN.book Seite 104 Mittwoch, 1. September 2010 6:16 18

Unlocking and locking105
Safety First
Operating Instructions
Practical Tips
Technical Specifications
KeysSet of keys
The set of keys includes a remote control, a key without a
remote control and a plastic key tab*The set of keys belonging to your vehicle consists of the following items:•one remote control key ⇒fig. 61 with folding key bit,•a key without remote control ,•a plastic key tab* .
Duplicate keys
If you need a replacement key, go to an Authorised Service Centre with your
vehicle identification number.
WARNING
•An incorrect use of the keys can cause serious injuries.•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•An uncontrolled use of the key could start the engine or activate any
electric equipment (e.g. electric windows), causing risk of accident. The
doors can be locked using the remote control key. This could make the aid
difficult in an emergency situation.•Never forget the keys inside the vehicle. An unauthorised use of your
vehicle could result in injury, damage or theft. Always take the key with you
when you leave the vehicle.•Never remove the key from the ignition if the vehicle is in motion.
Otherwise, the steering could suddenly block and it would be impossible
to turn the steering wheel.Caution
There are electronic components in the remote control key. Avoid wetting and
hitting the keys
Fig. 61 Set of keys
AA
AB
AC
Leon_EN.book Seite 105 Mittwoch, 1. September 2010 6:16 18

Unlocking and locking
106Radio frequency remote controlLocking and unlocking the vehicle
The remote control key is used to lock and unlock the vehicle
from a distance.
Using the button ⇒fig. 62 (arrow) on the control, the key blade is released.
Unlocking the vehicle ⇒fig. 62 . The doors and the tailgate are
unlocked.
Locking the vehicle ⇒fig. 62 .
Unlocking the tailgate. Press button ⇒fig. 62 until all the turn signals
on the vehicle flash briefly. When the unlocking button is pressed,
you have 2 minutes to open the door. Once this time has passed, it will lock
again.
Also, the battery indicator on the key ⇒fig. 62 , will flash.
The remote control transmitter and the batteries are integrated in the key. The
receiver is inside the vehicle. The maximum range depends on different
factors. The range is reduced as the batteries start to lose power.
Selective unlocking*
When the button is pressed once the driver door is unlocked, all others
remain locked.
Press the button twice to unlock all doors.
Fig. 62 Assignment of
buttons on the remote
control key
Fig. 63 Range of the
remote control

A1

A2
A3
A3
A1A1
Leon_EN.book Seite 106 Mittwoch, 1. September 2010 6:16 18
