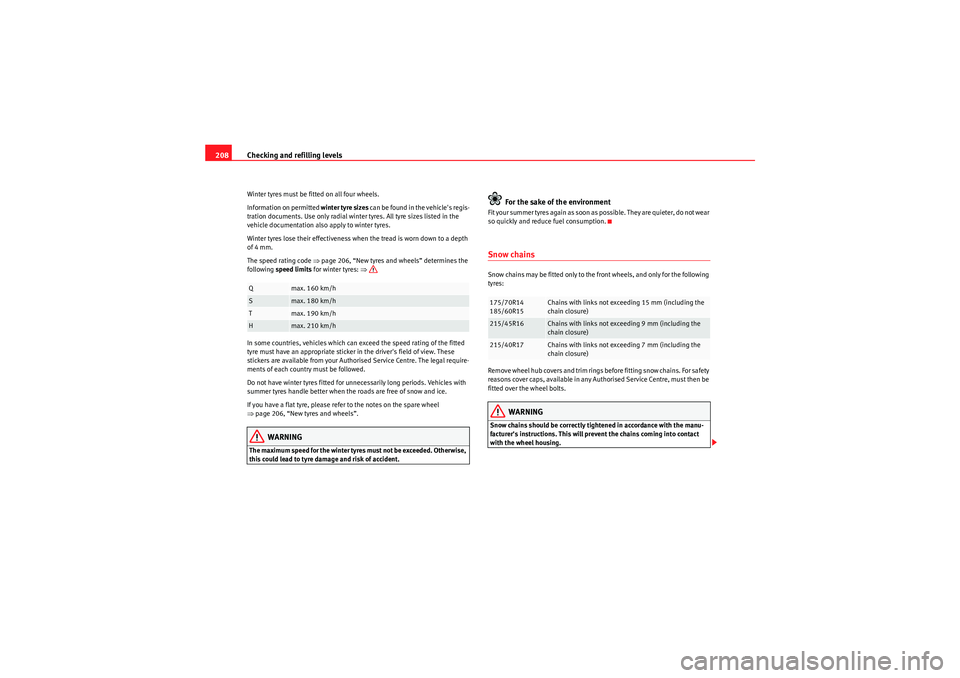

2010 Seat Ibiza ST service

Checking and refilling levels
208Winter tyres must be fitted on all four wheels.
Information on permitted winter tyre sizes can be found in the vehicle's regis-
tration documents. Use only radial winter tyres. All tyre sizes listed in the
vehicle documentation also apply to winter tyres.
Winter tyres lose their effectiveness when the tread is worn down to a depth
of 4 mm.
The speed rating code ⇒page 206, “New tyres and wheels” determines the
following speed limits for winter tyres: ⇒
In some countries, vehicles which can exceed the speed rating of the fitted
tyre must have an appropriate sticker in the driver's field of view. These
stickers are available from your Authorised Service Centre. The legal require-
ments of each country must be followed.
Do not have winter tyres fitted for unnecessarily long periods. Vehicles with
summer tyres handle better when the roads are free of snow and ice.
If you have a flat tyre, please refer to the notes on the spare wheel
⇒ page 206, “New tyres and wheels”.
WARNING
The maximum speed for the winter tyres must not be exceeded. Otherwise,
this could lead to tyre damage and risk of accident.
For the sake of the environment
Fit your summer tyres again as soon as possible. They are quieter, do not wear
so quickly and reduce fuel consumption.Snow chainsSnow chains may be fitted only to the front wheels, and only for the following
tyres:
Remove wheel hub covers and trim rings before fitting snow chains. For safety
reasons cover caps, available in any Authorised Service Centre, must then be
fitted over the wheel bolts.
WARNING
Snow chains should be correctly tightened in accordance with the manu-
facturer's instructions. This will prevent the chains coming into contact
with the wheel housing.
Q
max. 160 km/h
S
max. 180 km/h
T
max. 190 km/h
H
max. 210 km/h
175/70R14
185/60R15
Chains with links not exceeding 15 mm (including the
chain closure)
215/45R16
Chains with links not exceeding 9 mm (including the
chain closure)
215/40R17
Chains with links not exceeding 7 mm (including the
chain closure)
IbizaST_EN.book Seite 208 Dienstag, 14. September 2010 1:31 13

If and when
216Anti-theft wheel bolts*
A special adapter is required to turn the anti-theft wheel
bolts. This is found in the tool box.– Insert the adapter onto the wheel bolt and push it on as far as it
will go ⇒fig. 140 .
– Fit the box spanner as far as it will go over the adapter.
– Loosen or tighten the wheel bolt as appropriate.Code
The code number of the anti-theft wheel bolt is stamped onto the front part of
the adaptor.
The code number should be noted and kept in a safe place, as it is only by
using the code number that a duplicate adaptor can be obtained from an
Authorised Service Centre.
Tyres with directional tread pattern
Tyres with directional tread pattern must be fitted so that they
rotate in the correct direction.A directional tread pattern can be identified by arrows on the sidewall that
point in the direction of rotation. Always note the direction of rotation indi-
cated when fitting the wheel. This is important so that these tyres can give
maximum grip and avoid excessive noise, tread wear and aquaplaning.
If, in an emergency, you have to fit the spare wheel so it rotates in the wrong
direction, you must drive extremely carefully. The tyre will not give optimum
performance. This is particularly important when driving on wet roads.
To benefit from the advantages of tyres with this type of tread pattern, the
defective tyre should be replaced as soon as possible so that all tyres again
rotate in the correct direction.Tyre repair kit (Tyre-Mobility-System)*General information and safety notesYour vehicle is equipped with a tyre repair kit: the Tyre Mobilit y System.
In the event of a tyre puncture, a sealing compound and an air compressor are
located in the luggage compartment under the floor panel.
The Tyre Mobility System will reliably seal punctures caused by the penetra-
tion of a foreign body of up to about 4 mm in diameter.
It is not necessary to remove the foreign body from the tyre.
Instructions for the sealing compound are located on the sealing compound
container.
Fig. 140 Anti-theft wheel
bolt
IbizaST_EN.book Seite 216 Dienstag, 14. September 2010 1:31 13

If and when217
Safety First
Operating Instructions
Practical Tips
Technical Specifications
It also contains the instructions for using the compressor.
WARNING
•Do not attempt to repair a puncture with the sealing compound if the
tyre has been damaged by driving the vehicle after the tyre has lost its air.•Always observe warnings and follow safety instructions concerning
compressor and sealing compound carefully.•Do not drive faster than 80 km/h, avoid heavy acceleration, hard
braking and fast cornering.•Tyres which have been repaired with sealing compound are only suit-
able for temporary use over a short period. Therefore, please drive carefully
to the next available specialised workshop.For the sake of the environment
If you have to dispose of a sealant can, go to a specialised waste ser vice or to
a SEAT Technical Service, where the product can be recycled in an appropriate
waste container.
Note
•If sealant should leak out, leave it to dry. This way you can pull it off like a
piece of foil.•Observe the expiry date stated on the sealing compound can. Have the
sealing compound exchanged by a specialised workshop.•Seek professional assistance if the repair of a tyre puncture is not
possible with the sealing compound.
What to do first
Certain steps must be taken before repairing a tyre.– If you have a flat tyre or puncture, park the vehicle as far away from the flow of traffic as possible.
–Apply the handbrake firmly.
– Engage first gear , or put the selector lever to position P.
–All passengers should leave the vehicle. They should wait in a
safe area (for instance behind the roadside crash barrier).
– Check whether a repair is possibl e using the Tyre Mobility System
“General information and safety notes.”
– Unscrew inflation cap from the affected wheel.
– Take the tyre repair kit out of the luggage compartment.
WARNING
Switch on the hazard warning lights and place the warning triangles in
position. This is for your own safety and also warns other road users.
Caution
Take special care if you have to repair a tyre on a slope.
Note
•Please observe legal requirements when doing so.•Remember to replace the sealing compound as soon as possible.
IbizaST_EN.book Seite 217 Dienstag, 14. September 2010 1:31 13

If and when231
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– First fit the glass with the fastening tabs over the frame of the
switch. Next press the front part until the two long tabs click on
the support.Additional brake lights*Given the difficulty involved in the replacement of this light it should be done
by the Technical Service.Luggage compartment light
– Extract the tulip shaped fitting by pressing on the inside edge of this -arrow- using the flat side of a screwdriver ⇒fig. 161 .
– Press the bulb sideways and remove it from its housing
⇒ fig. 162 .Jump-startingJump leads
The jump lead must have a su fficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Fig. 161 Luggage
compartment light
Fig. 162 Luggage
compartment light
IbizaST_EN.book Seite 231 Dienstag, 14. September 2010 1:31 13

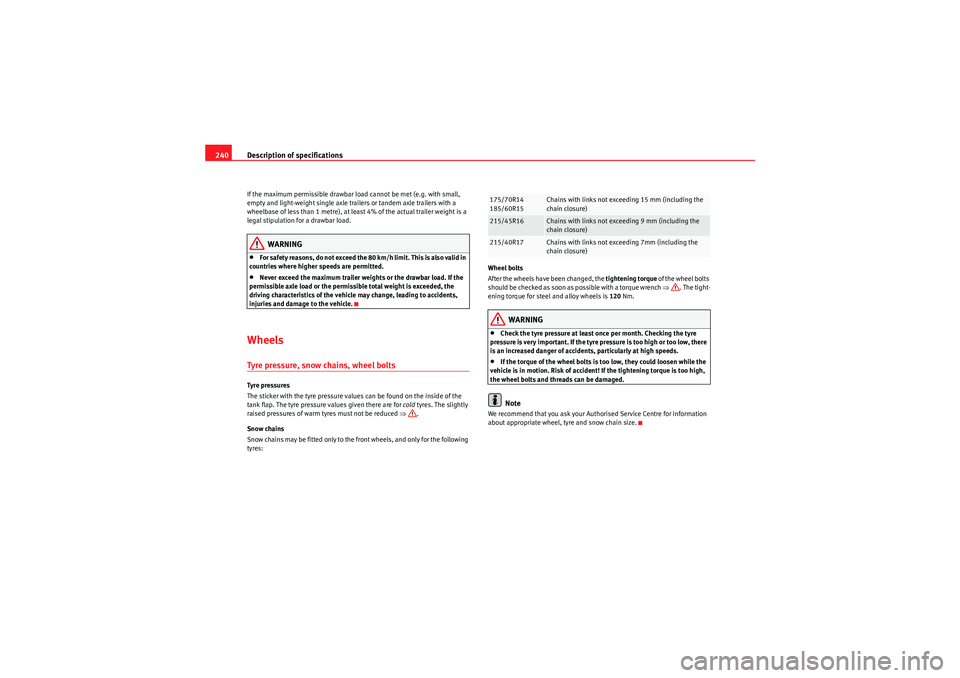

Description of specifications
240If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with a
wheelbase of less than 1 metre), at least 4% of the actual trailer weight is a
legal stipulation for a drawbar load.
WARNING
•For safet y reas ons , d o not excee d the 8 0 k m/h limit . Th is is als o valid in
countries where higher speeds are permitted.•Never exceed the maximum trailer weights or the drawbar load. If the
permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
WheelsTyre pressure, snow chains, wheel boltsTyre pressures
The sticker with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given there are for cold tyres. The slightly
raised pressures of warm tyres must not be reduced ⇒.
Snow chains
Snow chains may be fitted only to the front wheels, and only for the following
tyres: Wheel bolts
After the wheels have been changed, the tightening torque
of the wheel bolts
s ho uld b e che cke d as s o on as p ossible wit h a to rqu e w re nch ⇒ . The tight-
ening torque for steel and alloy wheels is 120 Nm.
WARNING
•Check the tyre pressure at least once per month. Checking the tyre
pressure is very important. If the tyre pressure is too high or too low, there
is an increased danger of accidents, particularly at high speeds.•If the torque of the wheel bolts is too low, they could loosen while the
vehicle is in motion. Risk of accident! If the tightening torque is too high,
the wheel bolts and threads can be damaged.Note
We recommend that you ask your Authorised Service Centre for information
about appropriate wheel, tyre and snow chain size.175/70R14
185/60R15
Chains with links not exceeding 15 mm (including the
chain closure)
215/45R16
Chains with links not exceeding 9 mm (including the
chain closure)
215/40R17
Chains with links not exceeding 7mm (including the
chain closure)
IbizaST_EN.book Seite 240 Dienstag, 14. September 2010 1:31 13

Technical Specifications241
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Technical SpecificationsChecking fluid levelsFrom time to time, the levels of the different fluids in the
vehicle must be checked. Never fill with incorrect fluids,
otherwise serious damage to the engine may be caused.
Coolant expansion tank
Engine oil dipstick
Engine oil filler cap
Brake fluid reservoir
Vehicle battery
Windscreen washer fluid container
The checking and refilling of service fluids are carried out on the components
mentioned above. These operations are described in the ⇒page 188. Overview
You will find further explanations, instructions and restrictions on the tech-
nical specifications as of
⇒page 237.
Note
The layout of parts may vary depending on the engine.
Fig. 168 Diagram for the
location of the various
elements
A1A2A3A4A5A6
IbizaST_EN.book Seite 241 Dienstag, 14. September 2010 1:31 13

Index
256Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Fog lights with cornering function . . . . . . . . . . . 94
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 115
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 98
Front passenger airbag deactivation . . . . . . . . . 37
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 99
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 109
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Fuel reserve Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 66
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 185
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 66
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 142 General overview of the engine compartment 241
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 112
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 139
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Warning lamp . . . . . . . . . . . . . . . . . . . . 65, 151
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 96
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 107, 108
Adjustment of the head restraint angle . . . 108
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . . . 97
Headlight range control . . . . . . . . . . . . . . . . . . . 93
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 169
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Headlight washer . . . . . . . . . . . . . . . . . . . . 103
Heated exterior mirrors* . . . . . . . . . . . . . . . . . . 104
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 110
Heated rear window Heating element wires . . . . . . . . . . . . . . . . 176
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 126
High pressure cleaners . . . . . . . . . . . . . . . . . . . 174
Hill-start assist . . . . . . . . . . . . . . . . . . . . . . . . . 152
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 How to jump start description . . . . . . . . . . . . . 232
Hydraulic Brake Assist
Automatic hazard warning lights activation . . .159
IIdentification number . . . . . . . . . . . . . . . . . . . . 238
Identification plate . . . . . . . . . . . . . . . . . . . . . . 238
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Information in the multifunction display
Memory displays . . . . . . . . . . . . . . . . . . . . . . 54
Instrument and switch lighting . . . . . . . . . . . . . 93
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 49
Instrument panel Service interval display . . . . . . . . . . . . . . . . 56
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Interior monitoring and anti-towing alarm* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 44JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 231KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
IbizaST_EN.book Seite 256 Dienstag, 14. September 2010 1:31 13

Index
258Rear fog light
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 91
Rear head restraints . . . . . . . . . . . . . . . . . . . . . . 13
Rear seat folding down . . . . . . . . . . . . . . . . . . . . . . . . 111
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Rear shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Rear shelf with storage compartment Storage compartment . . . . . . . . . . . . . . . . . 123
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . 103
Rear window automatic wiper/washer . . . . . . 102
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 102
Recommended gear display . . . . . . . . . . . . . . . . 53
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Remote control key Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 81
Removing and fitting the wheel . . . . . . . . . . . . 215
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 79
Replacement of parts . . . . . . . . . . . . . . . . . . . . 181
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . 142
Roll-back function Panorama/ tilting sunroof . . . . . . . . . . . . . . 90
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 Roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Running in
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 164
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Running in tyres . . . . . . . . . . . . . . . . . . . . . . . . 164
SSafe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safe Security system . . . . . . . . . . . . . . . . . . . . . . 74
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions Coolant temperature . . . . . . . . . . . . . . . . . . . 68
Safety notes Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Deactivating front passenger airbag . . . . . . 38
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 32
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 26
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using child seats . . . . . . . . . . . . . . . . . . . . . . 39
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 21
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Seat adjustment . . . . . . . . . . . . . . . . . . . . 106, 109
Seat belt cleaning . . . . . . . . . . . . . . . . . . . . . . . 180
Seat belt position Pregnant women . . . . . . . . . . . . . . . . . . . . . . 24
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Seat belt protection . . . . . . . . . . . . . . . . . . . . . . 21
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . . 25
Seat belt tensioner
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 28
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . . 18
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Incorrectly fastened . . . . . . . . . . . . . . . . . . . 25
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 18
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Selective opening* . . . . . . . . . . . . . . . . . . . . . . . 75
Semiautomatic air conditioning controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Service interval display . . . . . . . . . . . . . . . . . . . 56
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front passenger . . . . . . . . . . . . . . . . . . . . . . 10
Sitting position, occupants . . . . . . . . . . . . . . . . . 9
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 208, 240
Soot accumulation in the diesel engine particulate filter
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
Spanner symbol . . . . . . . . . . . . . . . . . . . . . . . . . 57
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
IbizaST_EN.book Seite 258 Dienstag, 14. September 2010 1:31 13
