2010 Seat Ibiza ST tailgate

Seats and storage compartments
122Rear shelfRemoving the shelf
– Unhook the loops ⇒ fig. 93 from housings
– With the half open position, pull the shelf upwards.
WARNING
Do not place heavy or hard objects on the rear shelf, because they will
endanger the vehicle occupants in case of sudden braking.
Caution
•Before closing the tailgate, ensure that the rear shelf is correctly fitted.•An overloaded luggage compartment could mean that the rear shelf is not
correctly seated and it may be bent or damaged.•If the luggage compartment is overloaded, remove the tray.
Note
•Ensure that, when placing items of clothing on the luggage compartment
cover, rear visibility is not reduced.

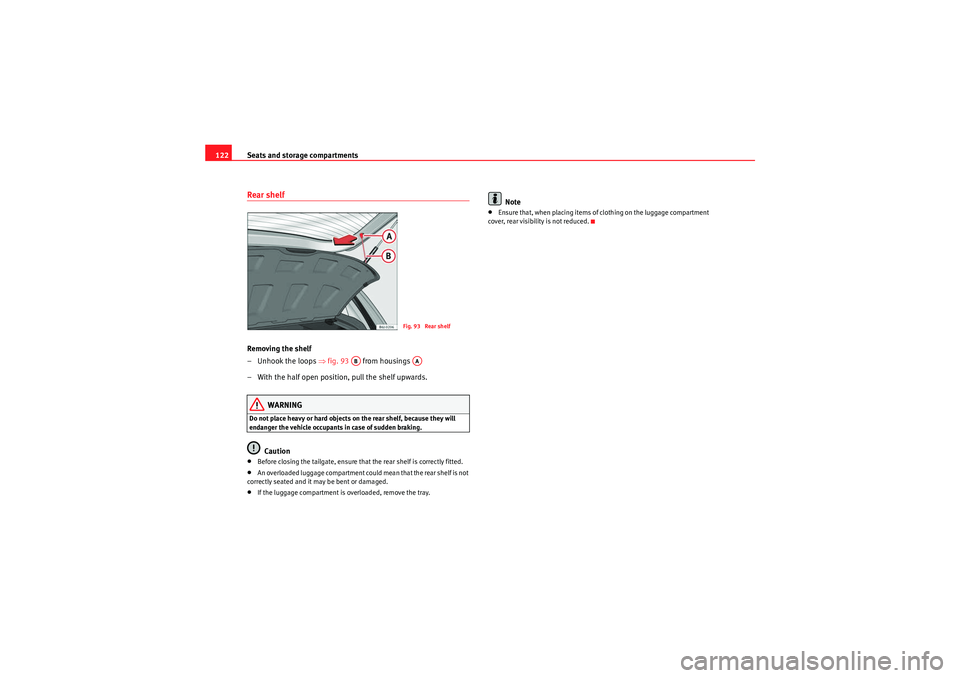

Fig. 93 Rear shelf
AB
AA
IbizaST_EN.book Seite 122 Dienstag, 14. September 2010 1:31 13

Seats and storage compartments123
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Rear shelf with storage compartment*
To remove the storage compartment
– Remove the rear shelf and pull the storage compartment
upwards holding it by the edges ⇒fig. 94 .The storage compartment can be accessed from the rear seats by lifting the
front side of the rear shelf ⇒fig. 95 .
WARNING
Do not place heavy or hard objects on the rear shelf, because they will
endanger the vehicle occupants in case of sudden braking.
Caution
•Before closing the tailgate, ensure that the rear shelf is correctly fitted.•An overloaded luggage compartment could mean that the rear shelf is not
correctly seated and it may be bent or damaged.•If the luggage compartment is overloaded, remove the tray.•The load in the storage compartment should not exceed 3 kg.Note
•Ensure that, when placing items of clothing on the luggage compartment
cover, rear visibility is not reduced.•If your vehicle has a storage compartment*, only place light objects
inside.Roof rack*Please observe the following points if you intend to carry loads on the roof:
Fig. 94 Removing
storage compartmentFig. 95 Accessing
storage compartment
IbizaST_EN.book Seite 123 Dienstag, 14. September 2010 1:31 13

Vehicle maintenance and cleaning
174•Water, ice and salt on the brakes can reduce braking efficiency. Risk of
accident.Caution
•Never remove dirt, mud or dust if the vehicle surface is dry. Never use a
dry cloth or sponge for cleaning purposes. This could scratch the paintwork
or glass on your vehicle.•Washing the vehicle in low temperatures: when washing the vehicle with
a hose, do not direct water into the lock cylinders or the gaps around the
doors, tailgate, or sunroof. Risk of freezing.For the sake of the environment
To protect environment, the vehicle should be washed only in specially
provided wash bays. This prevents toxic, oil-laden waste water entering the
sewerage system. In some places, washing vehicles outside wash bays is
prohibited.
Note
Do not wash the vehicle in direct sunlight.Washing the vehicle with a high pressure cleaner
Be particularly careful when using a high pressure cleaner!– Always observe the instructions for the high-pressure cleaner,
particularly those concerning the pressure and the spraying
distance. – Increase the spraying distance for soft materials and painted
bumpers.
– Do not use a high pressure cleaner to remove ice or snow from windows ⇒page 175.
– Never use concentrated jet nozzles (“rotating jets”) ⇒.
– After washing, avoid sudden and sharp braking. Dry the brakes by braking several times ⇒page 164.
WARNING
•Never wash tyres with a concentrated jet (“rotating nozzle”). Even at
large spraying distances and short cleaning times, visible and invisible
damage can occur to the tyres. This may cause an accident.•Water, ice and salt on the brakes can reduce braking efficiency. Risk of
accident.Caution
•Do not use water hotter than 60 °C. This could damage the vehicle.•To avoid damage to the vehicle, keep a sufficient distance from sensitive
materials such as flexible hoses, plastic, soundproofing material, etc. This is
also important for bumpers painted in the colour of the bodywork. The closer
the nozzle is to the surface, the greater the wear on the material.Vehicle paint maintenance
Regular waxing protects the paintwork.You need to apply wax to your vehicle if water does not form small drops and
run off the paintwork when it is clean .
WARNING (continued)
IbizaST_EN.book Seite 174 Dienstag, 14. September 2010 1:31 13

Vehicle maintenance and cleaning
176If possible, use a de-icing spray to remove ice. If you use an ice scraper, push
it in one direction only without swinging it.
Use window cleaner or a silicone remover to clean rubber, oil, grease and sili-
cone deposits off.
Wax deposits can be removed with a special cleaner available in your Author-
ised Service Centre. Wax deposits on the windscreen could cause the wiper
blades to judder. Adding a window clea ner that dissolves wax to the wind-
screen washer fluid prevents wiper blades from juddering, but wax deposits
are not removed.
Caution
•Never use warm or hot water to remove snow and ice from windows and
mirrors. This could cause the glass to crack!•The heating element for the rear window is located on the inner side of the
window. To prevent damage, do not put stickers on the heating elements
inside the window.Cleaning windscreen wiper bladesClean wiper blades improve visibility.
1. Use a soft cloth to remove dust and dirt from the windscreen wiper blades.
2. Use window cleaner to clean the windscreen wiper blades. Use a sponge or a cloth to remove stubborn dirt.
Rubber seals maintenance
If rubber seals are well looked after, they will not freeze so
quickly.1. Use a soft cloth to remove dust and dirt from the rubber seals.
2. Apply a specialist care product to the rubber seals.The rubber strips on the doors, windows, bonnet and tailgate will remain
pliable and last longer if they are treated with a suitable care product (for
example silicone spray).
Caring for rubber seals will also prevent premature ageing and leaks. The
doors will be easier to open. If rubber seals are well looked after, they will not
freeze so quickly in winter.Door lock cylinders
The door lock cylinders can freeze up in winter.To de-ice the lock cylinders you should only use spray with lubricating and
anti-corrosive properties.Cleaning chrome parts1. Clean chrome parts with a damp cloth.
2. Polish chrome parts with a soft, dry cloth.
IbizaST_EN.book Seite 176 Dienstag, 14. September 2010 1:31 13

If and when227
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– Remove the bulb holder ⇒page 226, fig. 152 outwards.
– Replace the bulb by pulling it out and inserting the replacement.
– Installation is done in the reverse order.Turn signal bulb– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 153 to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Changing the rear lights (on the wing)Overview of tail lightsTail lights on side panel•Brake lights•Side lights•Turn signalAccessing the side light bulbs–Open the tailgate.
– Look for a lid with a grill behind the side lights.
A4
Fig. 153 Single turn
signal lamp
AA
Fig. 154 Side lights
IbizaST_EN.book Seite 227 Dienstag, 14. September 2010 1:31 13

If and when
228
– Remove the lid with a flat screwdriver, placing it in notch ⇒page 227, fig. 154.Changing bulbs– Remove the bulb holder by pressing the clip ⇒fig. 155 and
pulling outwards.
– Replace the faulty bulb, rotating it to the left and outwards.
– To refit follow the steps in reverse order, taking special care when fitting the bulb holder.
Changing the rear lights (on the tailgate)Overview of tail lightsLights on the tailgate•Reverse lights•Side lights•Fog lightsAccessing the tailgate lights–Open the tailgate.
– On the tailgate lining there is a lid behind each light.
AA
Fig. 155 Removing the
bulb holderAB
Fig. 156 Lights on the
tailgate
IbizaST_EN.book Seite 228 Dienstag, 14. September 2010 1:31 13
