2010 Seat Ibiza ST ESP

Cockpit
64•If the brake fluid level is correct, the fault in the brake system may have
been caused by a failure of the ABS system. This could cause the rear
wheels to lock quickly when you brake. This could cause the rear to break
away. Risk of skidding. Stop the vehicle and seek technical assistance.
Differential lock fault (EDL)*
EDL operates along with the ABS in vehicles equipped with an
Electronic Stability Programme (ESP)*A malfunction in the EDL is indicated by the ABS warning lamp
J. Take the
vehicle to a specialised workshop as soon as possible. For further informa-
tion on the EDL see ⇒page 162, “Electronic differential lock (EDL)*”.
Traction control system (TCS)*
/l
The traction control system prevents the driven wheels from
spinning when the vehicle is acceleratingThere are two warning lamps for the traction control system:
 and
l. The
warning lamp
 lights up when the ignition is switched on and should turn
off after 2 seconds, which is the time taken for the function check.
The
 lamp has the following function:
•It flashes when the TCS is on, and the vehicle is moving.
If the system is deactivated or if it has any fault, the warning lamp will remain
li t . I t will als o co m e o n i f a fa ul t s hould occur in the A B S b e caus e t he TCS o pe r -
ates in conjunction with the ABS. For further information, see ⇒page 159,
“Brakes” The
l lamp provides information about the disconnection status of the
system:
•It stays lit when the TCS is disconnected after pressing the TCS OFF switch.
By pressing again, TCS function is reactivated and the warning lamp switched
off.Electronic Stability Programme (ESP)*
/ l
There are two warning lamps for the electronic stability
programme. The
 lamp provides information concerning
the function and the l provides information on the discon-
nection status
The warning lamp
 lights up when the ignition is switched on and should
turn off after 2 seconds, which is the time taken for the function check.
This programme includes the ABS, EDL and TCS. This also includes the brake
assist system (BAS), automatic cleaning of the brake discs and the trailer
stability programme (TSP).
The warning lamp  has the following functions:
•It flashes when the TCS/ESP is activated when driving.•It will light up continuously if there is a malfunction in the ESP.•It will also come on if a fault should occur in the ABS because the ESP
operates in conjunction with the ABS.
If the ESP warning lamp
 lights up and stays on after the engine is started,
this may mean that the control system has temporarily switched off the ESP.
In this case the ESP can be reactivated by switching the ignition off and then
on again. If the warning lamp goes out, this means the system is fully func-
tional.
WARNING (continued)
IbizaST_EN.book Seite 64 Dienstag, 14. September 2010 1:31 13

Cockpit65
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The
l lamp provides information about the disconnection status of the
system:
•It stays lit when the TCS is disconnected after pressing the
l switch.
Brake system* / handbrake
H
The warning lamp lights up if the handbrake is applied, if the
brake fluid level falls too low or if there is a fault in the brake
system.
This warning lamp
H lights up if
•the handbrake is on.•the brake fluid level is too low ⇒page 200.•there is a fault in the brake system.
This warning lamp can light up together with the ABS system warning lamp.WARNING
•If the brake warning lamp does not go out, or if it lights up when
driving, the brake fluid level ⇒page 200, “Brake fluid” in the reservoir is
too low. Risk of accident. Stop the vehicle and do not drive on. Obtain tech-
nical assistance.•If the brake warning lamp
H lights up together with the ABS warning
lamp
J, the control function of the ABS could be out of action. This could
cause the rear wheels to lock quickly when you brake. This could cause the
rear to break away. Risk of skidding. Stop the vehicle and seek technical
assistance.
Cruise control system*

The warning lamp comes on when the cruise control system
is switched on.The warning lamp
 lights up when the cruise control system is switched on.
For further information on the cruise control system, see ⇒page 154.
Tyre pressure*
~
The tyre warning lamp
5) compares wheel revolutions and with this informa-
tion, the diameter of each wheel using the ESP sensors. If the diameter of a
wheel changes, the tyre warning lamp ~ lights up. The wheel diameter
changes when:
•Tyre pressure is insufficient.5)Depending on the model version
Fig. 38 Centre console:
tyre monitor system
button
IbizaST_EN.book Seite 65 Dienstag, 14. September 2010 1:31 13

Cockpit
66•The tyre structure is damaged.•The vehicle is unbalanced because of a load.•The wheels of one axle are under more pressure (for example, driving with
a trailer or on extreme slopes).•The vehicle is fitted with snow chains.•The temporary spare wheel is fitted.•The wheel on one axle is changed.
Tyre pressure adjustment
Following the modification to tyre pressure or changing one or more wheels,
the button ⇒page 65, fig. 38 must be kept pressed while the ignition is on
until an acoustic signal is heard.
If the wheels are under excessive load (for example, driving with a trailer or
heavy load), the tyre pressure must be increased to the recommended value
for a full load (see the sticker on the inside of the fuel flap). If the tyre m onitor
system button is pressed down, the new tyre pressures are confirmed.
The tyre pressure warning lamp
~ lights up
If the tyre pressure of a wheel is much lower than the value set by the driver,
then the tyre pressure warning lamp ⇒ will light up.
WARNING
•When the tyre pressure warning lamp lights up, reduce speed immedi-
ately and avoid any sudden manoeuvre or braking. Stop when possible,
and check the tyre pressure and status.•The driver is responsible for maintaining correct tyre pressures. For this
reason, tyre pressure must be regularly checked.•Under certain circumstances (for example, when driving in a sportslike
manner, in winter conditions or on a dirt track) the tyre warning lamp may
light up or function incorrectly.
Note
If the battery is disconnected, the yellow warning lamp
~ lights up after
turning the ignition on. This should turn off after a brief journey.
Speed selector lever lock*
K
The brake pedal must be depressed when this warning lamp lights up. This is
necessary when the automatic gearbox* selector lever is moved out of the
positions P or N.Fuel level/reserve
z
This symbol lights up to indicate that the fuel tank is under
the reserve level.It lights up when only 7 litres of fuel remain in the tank. Moreover, a warning
buzzer* is heard. It reminds you to fuel up the fuel tank as soon as possible
⇒ page 185.Indicates that the doors are open*
o
This warning lamp lights up if one of the doors or the tailgate
is open.The warning light
o should go off when all the doors are closed correctly.
IbizaST_EN.book Seite 66 Dienstag, 14. September 2010 1:31 13

Cockpit
68If the warning lamp lights up again after driving on for a short distance, stop
the vehicle and switch the engine off . Contact an Authorised Service Centre
or a specialised workshop.
Coolant level too low
If the warning light comes on, stop the vehicle, switch off the engine and wait
for it to cool down First check the coolant level. If the level of the coolant is
below the “MIN” mark, top up with coolant liquid ⇒.
WARNING
•If your vehicle is immobilised for technical reasons, move it to a safe
distance from traffic. Turn the engine off, turn the hazard lights on and
place the warning triangle.•Never open the bonnet if you can see or hear steam or coolant escaping
from the engine compartment. Risk of scalding. Wait until you can no
longer see or hear escaping steam or coolant.•The engine compartment is a danger ous area! Before carrying out any
work in the engine compartment, switch off the engine and allow it to cool
down. Always note the corresponding warnings ⇒page 188.
Alternator
F
This warning lamp signals a fault in the alternator.
The warning lamp
F lights up when the ignition is switched on. It should go
out when the engine has started running.
If the warning lamp F lights up while driving, the alternator is no longer
charging the battery. You should immediately drive to the nearest specialised
workshop. You should avoid using electrical equipment that is not absolutely necessary
because this will drain the battery.
If the indicator flashes the voltage is insufficient for normal vehicle
operation.
Turn signals

The indicator lamp flashes when the turn signals are in oper-
ation.Depending on which turn signal is operated, either the left
 or right

turn
signal indicator lamp flashes. Both indicator lamps will flash at the same time
when the hazard warning lights are switched on.
If any of both turn signals fails, the indicator lamp will start flashing twice
faster than normal.
For further information on the turn signals, please see ⇒page 97.
Electronic immobiliser “Safe”*
This warning lamp flashes if an unauthorised key is used.Inside the key there is a chip that deactivates the electronic immobiliser auto-
matically when the key is inserted into the ignition. The immobiliser will be
activated again automatically as soon as you pull the key out of the ignition
lock.
IbizaST_EN.book Seite 68 Dienstag, 14. September 2010 1:31 13

Lights and visibility97
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Turn signal and main beam headlight lever
The turn signal and main beam lever also operates the
parking lights and the headlight flasher.The turn signal and main beam headlight lever has the following
functions:
Switching on the turn signals
– Move the lever all the way up ⇒fig. 58 to indicate right, and
all the way down to indicate left.
Signalling a lane change
– Push the lever up or down to the point where you incur resistance and then release it. The turn signal will flash several
times. The corresponding indicator lamp will also flash. Switching main beam on and off
– Turn the light switch to position
.
– Press the lever forward ⇒fig. 58 to switch on the main
beams.
– Pull the lever back towards you to switch the main beam head- lights off again.
Headlight flashers
– Pull the lever towards the steering wheel to operate the flasher.
Switching on parking lights
– Switch the ignition off and remove the key from the lock.
– Move the lever up or down to turn the right or left-hand parking lights on, respectively.
WARNING
The main beam can dazzle other drivers. Risk of accident! Never use the
main beam headlights or the headligh t flasher if they could dazzle other
drivers.
Note
• The turn signals only work when the ignition is switched on. The corre-
sponding warning lamp
 or
flashes in the instrument panel. The warning
lamp
 flashes when the turn signals are operated, provided a trailer is
correctly attached and connected to the vehicle. If a turn signal bulb is defec-
tive, the warning lamp flashes at double speed. If the trailer turn signal bulbs
are damaged, warning lamp
 does not light up. Change the bulb.
Fig. 58 Turn signal and
main beam headlight
lever
A1
A2A1
A2
A4
A3
IbizaST_EN.book Seite 97 Dienstag, 14. September 2010 1:31 13

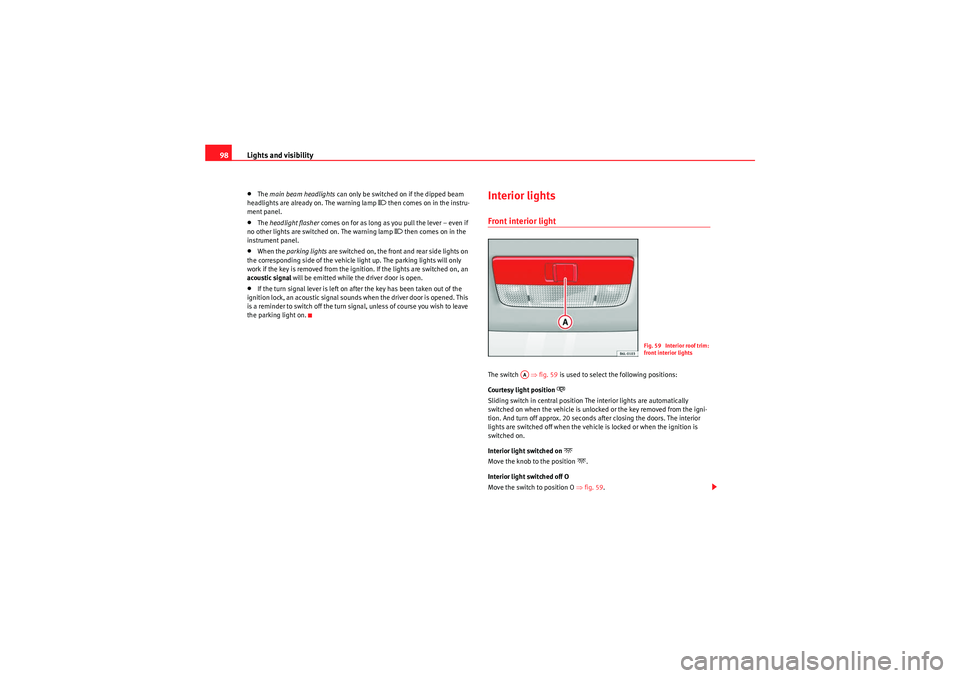

Lights and visibility
98•The main beam headlights can only be switched on if the dipped beam
headlights are already on. The warning lamp
 then comes on in the instru-
ment panel.
•The headlight flasher comes on for as long as you pull the lever – even if
no other lights are switched on. The warning lamp
 then comes on in the
instrument panel.
•When the parking lights are switched on, the front and rear side lights on
the corresponding side of the vehicle light up. The parking lights will only
work if the key is removed from the ignition. If the lights are switched on, an
acoustic signal will be emitted while the driver door is open.•If the turn signal lever is left on after the key has been taken out of the
ignition lock, an acoustic signal sounds when the driver door is opened. This
is a reminder to switch off the turn signal, unless of course you wish to leave
the parking light on.
Interior lightsFront interior light The switch ⇒fig. 59 is used to select the following positions:
Courtesy light position
o
Sliding switch in central position The interior lights are automatically
switched on when the vehicle is unlocked or the key removed from the igni-
tion. And turn off approx. 20 seconds after closing the doors. The interior
lights are switched off when the vehicle is locked or when the ignition is
switched on.
Interior light switched on

Move the knob to the position
.
Interior light switched off O
Move the switch to position O ⇒fig. 59 .
Fig. 59 Interior roof trim:
front interior lights
AA
IbizaST_EN.book Seite 98 Dienstag, 14. September 2010 1:31 13

Lights and visibility99
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
If not all the vehicle doors are closed, the interior lights will be switched off
after approx. 10 minutes, providing the key has been removed and the cour-
tesy light position selected. This prevents the battery from discharging.Front reading light*Switching on the reading light

Press the corresponding button ⇒fig. 60to switch on the reading light.
Switching the reading lights off

Press the corresponding button to switch the reading light off.
Luggage compartment light*The light is activated when the tailgate is open, even when the ignition and
lights are turned off. For this reason, ensure that the tailgate is always
closed.VisibilitySun visorsThe sun visors for the driver and the front passenger can be pulled out of their
central supports and turned towards the doors in the direction of the arrow
⇒ fig. 61 . Never pull them downwards.
The driver sun visor has compartments for cards, and the passenger sun visor
has a vanity mirror with a cover*.
Fig. 60 Front reading
light
AB
Fig. 61 Sun visor on the
driver side
IbizaST_EN.book Seite 99 Dienstag, 14. September 2010 1:31 13

Lights and visibility101
Safety First
Operating Instructions
Practical Tips
Technical Specifications
WARNING
•Worn and dirty wiper blades reduce visibility and safety levels while
driving.•In cold conditions, you should not use the wash / wipe system unless
you have warmed the windscreen with the heating and ventilation system.
The washer fluid could otherwise freeze on the windscreen and obscure
your view of the road.•Always note the corresponding warnings on ⇒page 198.Caution
In icy conditions, always check that the wiper blades are not frozen to the
glass before using the wipers for the first time. If you switch on the wipers
when the wiper blades are frozen to the windscreen, you could damage both
the wiper blades and the wiper motor.
Note
•The windscreen wipers will only work when the ignition is switched on.•The heat output of the heated jets* is controlled automatically when the
ignition is switched on, depending upon the outside temperature.•In certain versions of vehicles with alarms, the windscreen wiper will only
work in interval/rain sensor mode when the ignition is on and the bonnet
closed.•When the interval wipe function is on, the intervals are directly propor-
tional to the speed. This way, the higher the vehicle speed the shorter the
intervals.•If you stop the vehicle with the windscreen wiper in position 1 or 2, it will
automatically change to a lower position speed. The set speed will be
resumed when the vehicle pulls away.
Rain sensor*
The rain sensor controls the frequency of the windscreen
wiper intervals, depending on the amount of rain.Switching on the rain sensor
– Move the windscreen wipe r lever into position ⇒fig. 63 .
– Move the control to the left or right to set the sensitivity of the rain sensor. Control to the right: highly sensitive. Control to the
left: less sensitive.The rain sensor is part of the interval wipe function. You will have to switch
t h e r a i n s e n s o r b a ck o n i f y o u s w i tch o f f t h e i g n i t i o n . T h i s is d o n e b y s wi t ch i n g
the interval wipe function off and back on.
Fig. 63 Windscreen wiper
leverA1
AA
IbizaST_EN.book Seite 101 Dienstag, 14. September 2010 1:31 13
