2010 Seat Ibiza ST bulb

If and when
224
– Move the loop in the direction of the arrow and remove the cover ⇒page 223, fig. 144 .
– Remove connector ⇒page 223, fig. 145 by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.Dipped beam and side lights
– Raise the bonnet.
– Remove the loop ⇒fig. 146 in the direction of the arrow and
remove the cover.
– Remove the connector ⇒fig. 147 from the bulb.
– Unclip the retainer spring ⇒fig. 147 pressing inwards to the
right.
– Remove the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.
A1
A2Fig. 146 Dipped beam
headlights
Fig. 147 Dipped beam
headlights
A1
A2A3
IbizaST_EN.book Seite 224 Dienstag, 14. September 2010 1:31 13

If and when225
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Turn signal bulb– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 148 to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Changing bulbs. Single headlightSingle headlights summary
Dipped/main beam headlights
Side lights.
Turn signal
Fig. 148 Turn signal
AA
Fig. 149 Single headlight
AAABAC
IbizaST_EN.book Seite 225 Dienstag, 14. September 2010 1:31 13

If and when
226Dipped/main beam headlights – Raise the bonnet. – Remove the loop
⇒fig. 150 in the direction of the arrow and
remove the cover.
– Remove the connector ⇒fig. 151 from the bulb.
– Unclip the retainer spring ⇒fig. 151 pressing inwards to the
right.
– Remove the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.
Side lights – Raise the bonnet.
– Move the loop ⇒ fig. 150 in the direction of the arrow and
remove the cover.
Fig. 150 Dipped
beam/main beam, single
headlightFig. 151 Dipped
beam/main beam, single
headlight
A1
A2A3
Fig. 152 Side lights
A1
IbizaST_EN.book Seite 226 Dienstag, 14. September 2010 1:31 13

If and when227
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– Remove the bulb holder ⇒page 226, fig. 152 outwards.
– Replace the bulb by pulling it out and inserting the replacement.
– Installation is done in the reverse order.Turn signal bulb– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 153 to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Changing the rear lights (on the wing)Overview of tail lightsTail lights on side panel•Brake lights•Side lights•Turn signalAccessing the side light bulbs–Open the tailgate.
– Look for a lid with a grill behind the side lights.
A4
Fig. 153 Single turn
signal lamp
AA
Fig. 154 Side lights
IbizaST_EN.book Seite 227 Dienstag, 14. September 2010 1:31 13

If and when
228
– Remove the lid with a flat screwdriver, placing it in notch ⇒page 227, fig. 154.Changing bulbs– Remove the bulb holder by pressing the clip ⇒fig. 155 and
pulling outwards.
– Replace the faulty bulb, rotating it to the left and outwards.
– To refit follow the steps in reverse order, taking special care when fitting the bulb holder.
Changing the rear lights (on the tailgate)Overview of tail lightsLights on the tailgate•Reverse lights•Side lights•Fog lightsAccessing the tailgate lights–Open the tailgate.
– On the tailgate lining there is a lid behind each light.
AA
Fig. 155 Removing the
bulb holderAB
Fig. 156 Lights on the
tailgate
IbizaST_EN.book Seite 228 Dienstag, 14. September 2010 1:31 13

If and when229
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– Remove the lid with a flat screwdriver, placing it in notch
⇒page 228, fig. 156 .Changing bulbs– Remove the bulb holder by pressing the fastening clips
⇒fig. 157 and pulling outwards.
– Replace the faulty bulb, rotating it to the left and outwards.
– To refit follow the steps in reverse order, taking special care when fitting the bulb holder.
Side turn signals– Press the turn signal to the left or to the right to remove the bulb.
– Remove the bulb holder from the turn signal.
– Remove the failed bulb and replace with a new bulb.
– Insert the bulb holder in the turn signal guide until it clicks into place.
– First fit the turn signal in the op ening in the chassis, fastening the
tabs ⇒fig. 158 , and then fit in the bulb as shown by the
arrow ⇒fig. 158 .
AA
Fig. 157 Removing the
bulb holder
AB
Fig. 158 Side turn
signals
A1A2
IbizaST_EN.book Seite 229 Dienstag, 14. September 2010 1:31 13

If and when

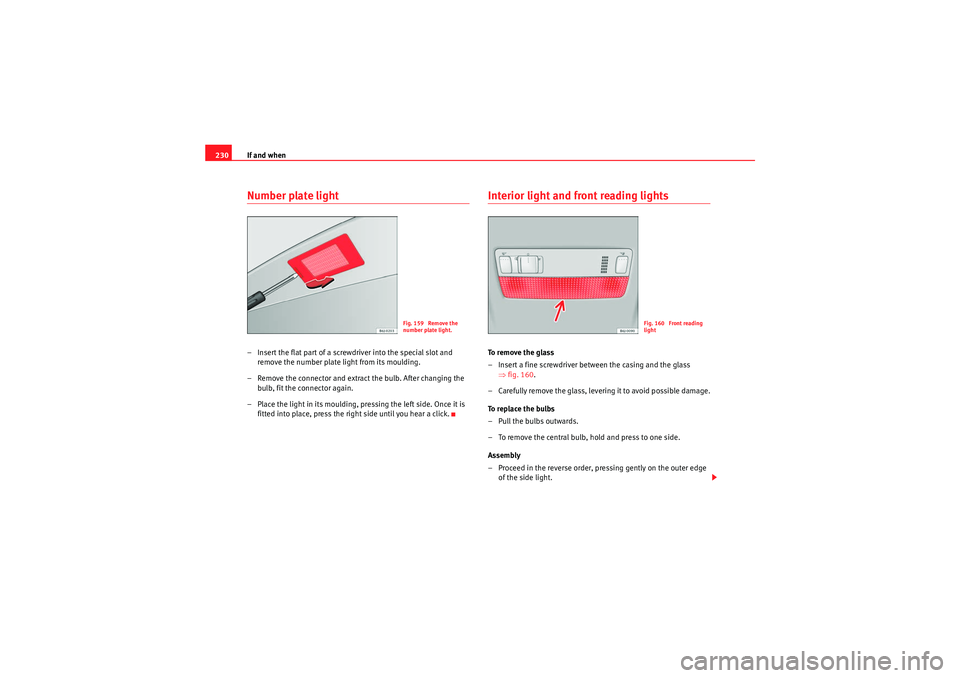

230Number plate light– Insert the flat part of a screwdriver into the special slot and
remove the number plate light from its moulding.
– Remove the connector and extract the bulb. After changing the bulb, fit the connector again.
– Place the light in its moulding, pressing the left side. Once it is fitted into place, press the right side until you hear a click.
Interior light and front reading lightsTo r e m o v e t h e g l a s s
– Insert a fine screwdriver between the casing and the glass ⇒fig. 160 .
– Carefully remove the glass, levering it to avoid possible damage.
To replace the bulbs
– Pull the bulbs outwards.
– To remove the central bulb, hold and press to one side.
Assembly
– Proceed in the reverse order, pressing gently on the outer edge of the side light.
Fig. 159 Remove the
number plate light.
Fig. 160 Front reading
light
IbizaST_EN.book Seite 230 Dienstag, 14. September 2010 1:31 13

If and when231
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– First fit the glass with the fastening tabs over the frame of the
switch. Next press the front part until the two long tabs click on
the support.Additional brake lights*Given the difficulty involved in the replacement of this light it should be done
by the Technical Service.Luggage compartment light
– Extract the tulip shaped fitting by pressing on the inside edge of this -arrow- using the flat side of a screwdriver ⇒fig. 161 .
– Press the bulb sideways and remove it from its housing
⇒ fig. 162 .Jump-startingJump leads
The jump lead must have a su fficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Fig. 161 Luggage
compartment light
Fig. 162 Luggage
compartment light
