2010 Seat Altea XL technical data

Technical Data
294Engine oil capacityDiesel engine 1.9 l TDI 77 kW (105 bhp)Engine specifications
Performance figures
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (HP) rpm 77 (105) 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CZ
Manual Automatic
Maximum speed in km/h 183183
Acceleration from 0-80 km/h in seconds 8,48,2
Acceleration from 0-100 km/h in seconds 12,612,7
Manual Automatic
Gross vehicle weight in kg 20502094
Weight in working order (with driver) in kg 15051549
Front gross axle weight in kg 10501080
Rear gross axle weight in kg 10311031
Permitted roof load in kg 75
AlteaXL_EN.book Seite 294 Dienstag, 1. September 2009 10:37 10

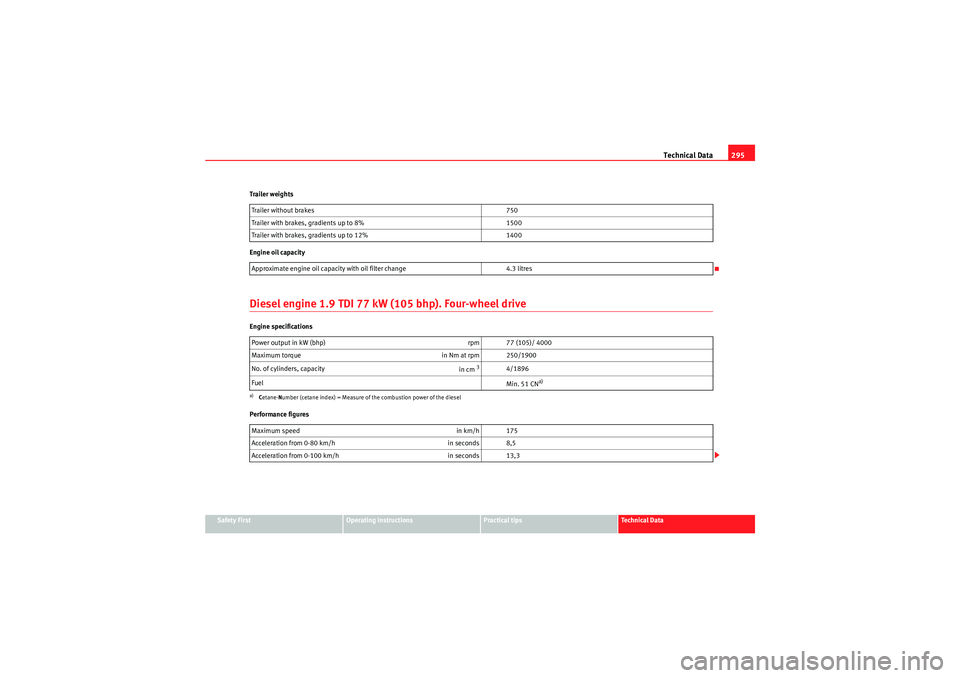

Technical Data295
Safety First
Operating instructions
Practical tips
Technical Data
Trailer weights
Engine oil capacity
Diesel engine 1.9 TDI 77 kW (105 bhp). Four-wheel driveEngine specifications
Performance figures
Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 175
Acceleration from 0-80 km/h in seconds 8,5
Acceleration from 0-100 km/h in seconds 13,3
AlteaXL_EN.book Seite 295 Dienstag, 1. September 2009 10:37 10

Technical Data
296Weights
Trailer weights
Engine oil capacity Gross vehicle weight
in kg 2128
Weight in working order (with driver) in kg 1583
Gross front axle weight in kg 1070
Gross rear axle weight in kg 1075
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
AlteaXL_EN.book Seite 296 Dienstag, 1. September 2009 10:37 10

Technical Data297
Safety First
Operating instructions
Practical tips
Technical Data
Diesel engine 2.0 l 103 kW (140 bhp)Engine specifications
Performance figures
WeightsPower output in kW (bhp)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CZ
Manual Automatic
Maximum speed in km/h 201201
Acceleration from 0-80 km/h in seconds 7,06,7
Acceleration from 0-100 km/h in seconds 10,010,0
Manual Automatic
Gross vehicle weight in kg 20892124
Weight in working order (with driver) in kg 15441579
Front gross axle weight in kg 10821112
Rear gross axle weight in kg 10241029
Permitted roof load in kg 75
AlteaXL_EN.book Seite 297 Dienstag, 1. September 2009 10:37 10

Technical Data
298Trailer weights
Engine oil capacityDiesel engine 2.0l 125 kW (170 bhp)Engine specifications
Performance figures Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750-2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CZ
Maximum speed in km/h 211
Acceleration from 0-80 km/h in seconds 6,2
Acceleration from 0-100 km/h in seconds 8,7
AlteaXL_EN.book Seite 298 Dienstag, 1. September 2009 10:37 10

Technical Data299
Safety First
Operating instructions
Practical tips
Technical Data
Weights
Trailer weights
Engine oil capacity
Gross vehicle weight
in kg 2089
Weight in working order (with driver) in kg 1544
Front gross axle weight in kg 1082
Rear gross axle weight in kg 1024
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change 4.8 litres
AlteaXL_EN.book Seite 299 Dienstag, 1. September 2009 10:37 10

Technical Data
300Dimensions and capacities
Dimensions
Length, width 4,467 mm/ 1,768 mm
Height at kerb weight 1,575 mm
Front and rear projection 913 mm/ 976 mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,527 mm 1,506 mm
1,541 mm 1,520 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Ty re p re ss u re
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
AlteaXL_EN.book Seite 300 Dienstag, 1. September 2009 10:37 10
