2010 Seat Altea XL technical data

Seats and stowage147
Safety First
Operating instructions
Practical tips
Technical Data

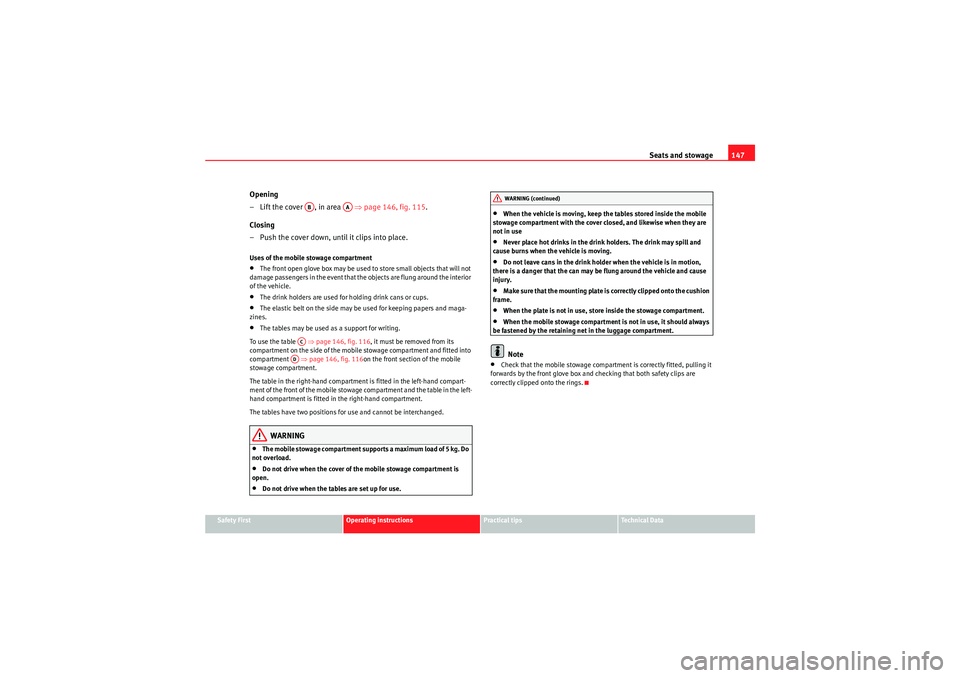

Opening
– Lift the cover , in area ⇒page 146, fig. 115 .
Closing
– Push the cover down, until it clips into place.Uses of the mobile stowage compartment•The front open glove box may be used to store small objects that will not
damage passengers in the event that the objects are flung around the interior
of the vehicle.•The drink holders are used for holding drink cans or cups.•The elastic belt on the side may be used for keeping papers and maga-
zines.•The tables may be used as a support for writing.
To use the table ⇒ page 146, fig. 116, it must be removed from its
compartment on the side of the mobile stowage compartment and fitted into
compartment ⇒page 146, fig. 116 on the front section of the mobile
stowage compartment.
The table in the right-hand compartment is fitted in the left-hand compart-
ment of the front of the mobile stowage compartment and the table in the left-
hand compartment is fitted in the right-hand compartment.
The tables have two positions for use and cannot be interchanged.WARNING
•The mobile stowage compartment supports a maximum load of 5 kg. Do
not overload.•Do not drive when the cover of the mobile stowage compartment is
open.•Do not drive when the tables are set up for use.
•When the vehicle is moving, keep the tables stored inside the mobile
stowage compartment with the cover closed, and likewise when they are
not in use•Never place hot drinks in the drink holders. The drink may spill and
cause burns when the vehicle is moving.•Do not leave cans in the drink holder when the vehicle is in motion,
there is a danger that the can may be flung around the vehicle and cause
injury.•Make sure that the mounting plate is correctly clipped onto the cushion
frame.•When the plate is not in use, store inside the stowage compartment.•When the mobile stowage compartment is not in use, it should always
be fastened by the retaining net in the luggage compartment.Note
•Check that the mobile stowage compartment is correctly fitted, pulling it
forwards by the front glove box and checking that both safety clips are
correctly clipped onto the rings.
AB
AA
ACAD
WARNING (continued)
AlteaXL_EN.book Seite 147 Dienstag, 1. September 2009 10:37 10

Seats and stowage149
Safety First
Operating instructions
Practical tips
Technical Data
Electrical sockets
Electrical equipment can be connected to any of the 12 volt
sockets.
Electrical accessories may be connected to the 12 volt socket in the front
centre console ⇒fig. 119 of the passenger compartment and that of the
boot* ⇒fig. 120 . The appliances connected to each power point must not
exceed a power rating of 120 Watt.
WARNING
The current power points and the connected accessories will only operate
when the ignition is on or when the engine is running. Improper use of the
sockets or electrical accessories can lead to serious injuries or cause a fire.
To avoid the risk of injury, never leave children alone inside the vehicle.
Note
•The use of electrical appliances with the engine switched off will cause a
battery discharge.•Before using any electrical accessories, see the instructions on
⇒ page 218.
Fig. 119 Socket, centre
console, frontFig. 120 Socket, luggage
compartment
AlteaXL_EN.book Seite 149 Dienstag, 1. September 2009 10:37 10

Seats and stowage151
Safety First
Operating instructions
Practical tips
Technical Data
MEDIA-IN* connectorFor information concerning the use of this equipment, please see the Radio
handbook.First-aid kit, warning triangle, fire
extinguisherWarning triangle and first-aid kit*The warning triangle and the first aid kit may be located in the stowage
compartment on the floor of the boot, under the carpet.
The first aid kit may be located in the stowage compartment drawer on the
boot floor under the carpet or in the stowage compartment in the boot side
lining, depending on the version.
Note
•The warning triangle and the first aid box do not belong to the standard
vehicle equipment.•The first aid kit must comply with legal requirements.•Observe the expiry date of the contents of the first aid kit. You should
purchase a new first-aid kit as soon as possible after the shelf-life date of the
first-aid kit has expired.•Before acquiring accessories and emergency equipment see the instruc-
tions on ⇒page 218.Fire extinguisherThe fire extinguisher* is attached to the luggage compartment carpet by
Vel cro.
Note
•The fire extinguisher does not belong to the standard vehicle equipment.•The fire extinguisher must comply with legal requirements.•Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.•Before acquiring accessories and emergency equipment see the instruc-
tions on ⇒page 218.
Fig. 123 Connection in
central armrest compart-
ment
AlteaXL_EN.book Seite 151 Dienstag, 1. September 2009 10:37 10

Seats and stowage153
Safety First
Operating instructions
Practical tips
Technical Data
Luggage compartment cover
Using the luggage compartment cover
– Use the handle to pull the cover back until you hear a “click”
⇒fig. 124 .
– Press the area marked “PRESS”,and the cover is retrieved auto- matically.
To remove the luggage compartment cover
– Press the side pin in the direction of the arrow, lift the cover and remove it ⇒fig. 125 .
– Follow the instructions in reverse to fit it.
WARNING
Do not place heavy or hard objects on the open stowage compartment,
because they will endanger the vehicle occupants in case of sudden
braking.
Caution
•Before closing the tailgate, ensure that the stowage compartment tray is
correctly fitted.•An overloaded boot could mean that the rear stowage tray is not correctly
seated and it may be bent or damaged.•If the boot is overloaded, remove the tray.Note
•Ensure that, when placing items of clothing on the luggage compartment
cover, rear visibility is not reduced.
Fig. 124 Using the
luggage compartment
coverFig. 125 Removing the
luggage compartment
cover
AA
AlteaXL_EN.book Seite 153 Dienstag, 1. September 2009 10:37 10

Seats and stowage
154Partition net*
The partition grille prevents loose objects in the luggage
compartment from being thrown forward into the passenger
compartment (e.g. under sudden braking).
– Pull the net from underneath between the seatback and the
folding tray and fit it to the allotments on the roof, first to the
right then to the left ⇒ fig. 126.
– Hook the belts into the front anchor rings to tense the net ⇒fig. 127 .Roof carrier*Please observe the following points if you intend to carry loads on the roof:•For safety reasons, only luggage racks and accessories approved by SEAT
should be used.•It is essential that you follow the assembly instructions included with the
bars exactly, being especially careful to position front and rear luggage
compartment cover bars on the special housings on the longitudinal bars.
You must also respect their position according to the direction of travel indi-
cated in the assembly manual. Not following these instructions may lead to
marks on the longitudinal bars.•Distribute the load evenly. A maximum load of 40 kg only is permitted for
each roof carrier system support bar, the load must be distributed evenly
along the entire length. However, the maximum load permitted for the entire
roof (including the support system) of 75 kg must not be exceeded nor should
the total weight of the vehicle be exceeded. See the chapter on “Technical
Data”.•When transporting heavy or large objects on the roof, any change in the
normal vehicle behaviour due to a change in the centre of gravity or an
increased wind resistance must be taken into account. For this reason, a suit-
able speed and driving style must be used.•For those vehicles fitted with a sunroof*, ensure that it does not interfere
with the load on the roof carrier system when opened.
Fig. 126 Separation netFig. 127 Anchor rings for
the separation net
AlteaXL_EN.book Seite 154 Dienstag, 1. September 2009 10:37 10

Heating, Ventilation and Air conditioning155
Safety First
Operating instructions
Practical tips
Technical Data
Heating, Ventilation and Air conditioningHeatingControls and equipment– Using the controls ⇒fig. 128 and and the control you
can set the temperature, air distribution and the fan speed.
– To switch a function on or off, press the appropriate button or . When the function is activated, the display window in the
lower left of the button is lit.Te m p e r a t u r e
With the regulator the heating level is determined. The required tempera-
ture inside the vehicle cannot be lower than the ambient temperature. Maximum heat output, which is needed to defrost the windows quickly, is
only available when the engine has reached its operating temperature.
Rear window heater

This function will be switched off automatically approximately
20 minutes
after being switched on. It can also be switched off beforehand by pushing
the button
Air recirculation mode

Air recirculation mode prevents strong odours in the outside air from
entering the vehicle interior, for example when passing through a tunnel or in
queuing traffic ⇒.
Fig. 128 On the dash panel there are the heating
controls
A1
A4
A5A2
A3
A1
A2
A3
AlteaXL_EN.book Seite 155 Dienstag, 1. September 2009 10:37 10

Heating, Ventilation and Air conditioning157
Safety First
Operating instructions
Practical tips
Technical Data
Climatic*Control switchesThe climatic or semi-automatic air conditioning system only works
when the engine is running and the turbine is switched on.
– Using the controls ⇒fig. 129 and and the control you
can set the temperature, air distribution and the turbine speed.
– To switch a function on or off, press the appropriate button , or . When the function is activated, the display window in
the lower corner of the button is lit.
Temperature selector ⇒page 158
Button – Heating, ventilation and air-conditioning system on/off
⇒ page 158 Button – Rear window heating. The heating will be switched off auto-
matically approximately
20 minutes after switching on. It can also be
switched off beforehand by pushing the button.
Button – Air recirculation mode ⇒page 159.
Air distribution control ⇒page 158.
Blower switch. There are four speed settings for the air flow. The air flow
should always be set at the lowest speed when driving slowly.
WARNING
For road safety all windows must be clear of ice, snow, and condensation.
This is essential to ensure good visibility. Please familiarise yourself with
the correct operation of the heating and ventilation system, including the
anti-fog/defrost functions for the windscreens.
Fig. 129 On the dash panel: Climatic controls
A1
A5
A6A2
A3
A4
A1A2
AC
A3

A4

A5A6
AlteaXL_EN.book Seite 157 Dienstag, 1. September 2009 10:37 10

Heating, Ventilation and Air conditioning159
Safety First
Operating instructions
Practical tips
Technical Data
– Use the air distribution control to guide the flow of air in the
required direction: (to the windscreen), (to the upper
body), (to the foot well) and (to the windscreen and to the
foot well).Heating
Maximum heat output, which is needed to defrost the windows quickly, is
only available when the engine has reached its operating temperature.
Air conditioner
When the air conditioning system is switched on, not only the temperature,
but also the air humidity in the vehicle interior is reduced. This improves comfort for the vehicle occupants and prevents misting of the windows when
the ambient air humidity is high.
If the air conditioning system cannot be switched on this may be caused by
the following reasons:
•The engine may not be running.•The blower is switched off.•The outside temperature is below +3°C.•The air conditioning system compressor has been temporarily switched
off because the engine coolant temperature is too high.•The air conditioning fuse is faulty.•Another fault in the vehicle. Have the air conditioning checked by a qual-
ified workshop.
Air recirculation mode
Air recirculation mode prevents fumes or unpleasant smells from coming from the outside.





Fig. 131 On the dash panel: Climatic controls
AlteaXL_EN.book Seite 159 Dienstag, 1. September 2009 10:37 10
