Safe driving 8
xCheck that the lights and turn signals operate correctly.
xCheck the tyre pressures (Ÿpage 323) and level of fuel (Ÿpage 293).
xEnsure there is good visibility through all the windows.
xMake sure that all objects and bags in the storage compartments, in the
luggage compartment and, where applicable, on the roof, are securely
fastened Ÿpage 13.
xEnsure there is nothing obstructing the free passage of the foot pedals.
xUse child retention systems appropriate for the child's body weight and
height Ÿpage 42.
xCorrectly adjust front seat, head rests and rear-view mirrors to suit your
height Ÿpage 10.
xWear close-fitting shoes which do not prevent you from using the pedals
correctly.
xThe driver's floor mat should be fixed to the floor, leaving the pedal area
unobstructed.
xBefore starting out, ensure you are correctly seated and remain in this
position throughout the journey. This applies to all passengers in the vehicle
Ÿpage 10.
xCorrectly fasten your seat belt before starting to drive and keep it securely
fastened throughout the journey. This applies to all passengers in the vehicle
Ÿpage 22.
xNever carry more passengers than the number of available seats and seat
belts in your vehicle.
xNever drive with impaired faculties (for example, due to medication,
alcohol or drugs).
xDo not allow yourself to be distracted from the traffic, for example, to reset
or switch on a menu, by other passengers or to answer a phone call.
xAlways try to adapt the speed of the vehicle and your style of driving to the
condition of the ground or the road and to weather and traffic conditions.
xObserve the highway code and speed limits.
xOn long journeys, rest at regular intervals (at least every two hours).
xIf carrying animals, make sure they are correctly restrained in accordance
with their weight and size.
WARNING
Always observe traffic regulations and speed limits and try to anticipate
traffic movements. Correctly anticipating traffic situations may mean the
difference between arriving safe and sound at your destination or having a
serious accident.
Note
Regular servicing of your vehicle not only helps to keep it in good working
order but also helps to ensure road safety. Therefore, please ensure the
vehicle is taken for service as indicated in the Maintenance Programme. If the
vehicle is subjected to hard use, it may require certain maintenance work
before the next service date. Hard use may involve frequent driving in traffic
jams, driving in dusty areas or frequent use of the tow-bar. For further infor-
mation, please refer to a SEAT dealer or specialised workshop.
Driving abroad
Check list
In some countries, certain safety regulations and requirements are in force
relating to exhaust gas emissions, which differ from the technical character-
istics of the vehicle. Before travelling abroad, SEAT recommends you consult
a SEAT dealer about the legal requirements and the following points:
xDoes the vehicle need technical modifications for driving abroad, for
example, adjustment of the headlamps?
xDoes the vehicle have all the tools, diagnostics equipment and spare
parts required for inspections and repairs?
xAre there any SEAT dealers in the destination country?

Cockpit59
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Operating instructions
Cockpit
Overview
Overview of the dash panel
This overview will help you to familiarise yourself with the
controls and displays.
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central locking button 0 1. . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch for adjusting the exterior mirrors . . . . . . . . . . . . . . . . .
Exterior mirror adjustment , 2
Heated exterior mirrors ?
Folding exterior mirrors #
Instrument panel controls and lighting control  . . . . . . . . .
Headlamp range adjustment . . . . . . . . . . . . . . . . . . . . . . . .
Light switch “. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light off --
Automatic headlight control -!54/-
Side/dipped lights
Fog lights

Controls on the multi-function steering wheel . . . . . . . . . . . .
Volume control for radio, navigation system and phone
conversations & – '
Radio mute or voice control activation Activate telephone main menu or accept an incoming
call -
SEAT information system control buttons ƒ, „, OK, E
Lever for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main beam headlights
Headlight flasher
Turn signals
Parking lights
Instrument panel:
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Digital display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn (works only when the ignition is on)/Front driver airbag
Windscreen wiper/ windscreen wash lever . . . . . . . . . . . . . . .
Windscreen wipers ()'( – ,/7
Intermittent wipe
u
“Brief wipe” x
Windscreen wipers U
Automatic windscreen wash/wipe W
Rear window wiper Z
Automatic rear window wash/wipe \
Lever with buttons for controlling the SEAT information
system 42)0- , /+/2%3%4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Left seat heating controls A. . . . . . . . . . . . . . . . . . . . . . . . . . .
A192
A283
A3130
A4113
A5113
A6113
A770
A8113
A9
64
64
61
A1033
A11124
70
A12137

Cockpit75
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Configuration Menu
Configuration
MenuFunction
Multifunction
display dataConfiguration of the multifunction display data which you
wish to see on the instrument panel display Ÿpage 73.
CompassChanging the magnetic region and calibration of the com-
pass. To calibrate the compass, please follow the instruc-
tions given on the instrument panel display.
ConvenienceChanging vehicle convenience functions Ÿpage 76.
Lights &
visibilityConfiguration of vehicle lighting Ÿpage 77.
TimeChanging the hours and minutes of the clock and the nav-
igation system. The time can be set here and the choice
can be made between the 24 hour and 12 hour display.
The S in the upper part of the display indicates that the
clock is set to summer time.
Winter tyresChanging the visual and audible speed warnings. This
function should only be used when the vehicle is fitted
with winter tyres, which are not designed for travel at
high speeds.
Settings:
LanguageChanging the language of the display texts and the navi-
gation system.
UnitsChanging the units of measurement for the temperature,
consumption and distance.
Second speedSwitching second speed display on and off
AutoholdSelecting whether the Auto-Hold function should remain
on permanently.
Travel modeChanging the headlamps for countries in which vehicles
are driven on the other side of the road. When the “mark”
is activated, the headlamps of a left-hand drive vehicle
are adjusted for driving on the left. The travel mode can
only be used for short periods of time.
ServiceCheck the service notifications or reset the service inter-
vals to zero
Manufacturer's
settings Some functions of the Configuration menu will be reset
to the factory value.
BackThe main menu is displayed again.
Configuration
MenuFunction

Cockpit77
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Lights & visibility submenu.
Personal convenience settings
When two people use a vehicle, SEAT recommends that each person always
uses “their” own remote control key. When the ignition is switched off, or the
vehicle is locked, the personal convenience settings are stored and automat-
ically allocated to the vehicle key Ÿpage 70.The values of the personalised convenience settings of the following menu
options are allocated to the vehicle key:
„Parking heating menu
„Configuration Menu
„Time
„Settings: Language
„Units
„Convenience settings menu
„Door unlock (individual opening, Auto Lock)
„Convenience handling of windows
„Rear-view mirror adjustment
„Lights & visibility adjustment menu.
„Coming home and leaving home
„Footwell light
„Convenience indicators
The stored settings are automatically activated, at the latest when the igni-
tion is switched on. Please refer to the information and tips relating to the
seat memory Ÿpage 137.
Lights &
visibility menu.Function
Coming HomeThis permits the adjustment of the time the headlamps
stay on after locking or unlocking the vehicle, the function
can also be connected or disconnected hereŸpage 119.
Leaving Home
Footwell lightThis permits the adjustment of the brightness of the foot-
well lighting when the doors are open, the function can
also be connected or disconnected here
Convenience
indicatorsSwitching convenience indicators on and off When the
convenience indicators are connected, when the indicator
is switched on, these flash at least three times
Ÿpage 113.
Manufacturer's
settingsAll the configurations in the submenu Lights & visibil. are
reset to the predefined factory values.
BackThe Configuration menu is displayed again.

Lights and visibility113
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Lights and visibility
Lights
Introduction
The legal requirements regarding the use of vehicle lights in each country
must be observed.
The driver is personally responsible for the correct use and adjustment of the
lights in all situations.
Additional information and warnings:
xSEAT information system Ÿpage 70
xChanging bulbs Ÿpage 360
WARNING
If the headlights are set too high and the main beam is not used correctly,
there is a risk of dazzling or distracting other road users. This could result
in serious accident.
xAlways make sure that the headlamps are correctly adjusted.
xNever use the main beam or flashed headlamps as this could dazzle
other drivers.

Lights and visibility115
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

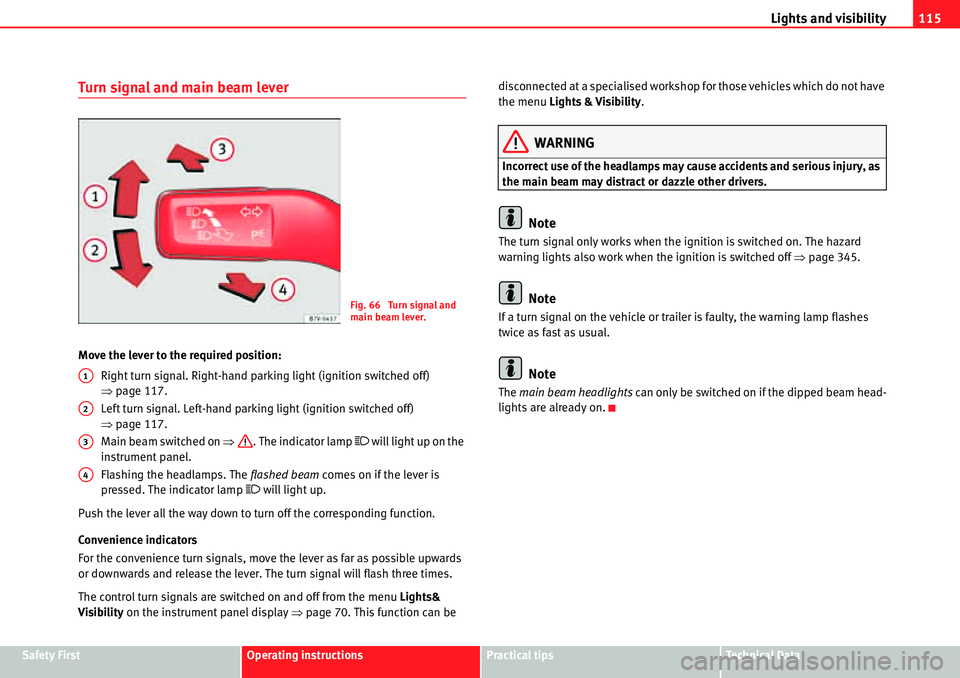

Turn signal and main beam lever
Move the lever to the required position:
Right turn signal. Right-hand parking light (ignition switched off)
Ÿpage 117.
Left turn signal. Left-hand parking light (ignition switched off)
Ÿpage 117.
Main beam switched on Ÿ. The indicator lamp
 will light up on the
instrument panel.
Flashing the headlamps. The flashed beam comes on if the lever is
pressed. The indicator lamp
 will light up.
Push the lever all the way down to turn off the corresponding function.
Convenience indicators
For the convenience turn signals, move the lever as far as possible upwards
or downwards and release the lever. The turn signal will flash three times.
The control turn signals are switched on and off from the menu Lights&
Visibility on the instrument panel display Ÿpage 70. This function can be disconnected at a specialised workshop for those vehicles which do not have
the menu Lights & Visibility.
WARNING
Incorrect use of the headlamps may cause accidents and serious injury, as
the main beam may distract or dazzle other drivers.
Note
The turn signal only works when the ignition is switched on. The hazard
warning lights also work when the ignition is switched off Ÿpage 345.
Note
If a turn signal on the vehicle or trailer is faulty, the warning lamp flashes
twice as fast as usual.
Note
The main beam headlights can only be switched on if the dipped beam head-
lights are already on.
Fig. 66 Turn signal and
main beam lever.
A1
A2
A3
A4

Lights and visibility117
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xSwitching on the fog lights : Turn the switch to position  or pull out  to the first stop.
xSwitching on the rear fog light
: turn the light switch to position  o
pull out  to the maximum.
xTo switch off the fog lights, press the light switch or turn it to position /.
Audible warnings to advise the driver that the lights have not been switched
off
If the key is not in the ignition and the driver's door is open, an audible
warning signal is heard in the following cases: This is a reminder to turn off
the lights.
xWhen the parking light is on Ÿpage 115.
xWhen the light switch is in position .
WARNING
The side lights or daytime driving lights are not bright enough to illuminate
the road ahead and to ensure that other road users are able to see you.
xAlways use your dipped beam head lights if it is raining or if visibility is
poor.
Lights and visibility: functions
Parking light
When the parking light is switched on,(right or left turn signal), the front side
light and the rear light on the corresponding side of the vehicle stay lit. The
parking lights will only work with the ignition off.
Daytime driving light
The daytime driving light consists of individual lights in the front headlamps.When the daytime driving light is switched on, only the individual lights come
on Ÿ.
The daytime lights are switched on each time the ignition is turned on if the
light switch is in position
!, 5,4 or /.
When the light switch is in position
!, 5, 4 or /, a photo sensor goes out and
the instrument and switch lighting comes on automatically.
Automatic dipped beam control
!54/
The automatic dipped beam control is merely intended as an aid and is not
able to recognise all driving situations.
When the light switch is in position
!, 5, 4 or /, the vehicle lights and the
instrument panel and switch lighting switch on and off automatically in the
following situations Ÿ:
Activating the daytime lightsDeactivating the daytime lights
Press and hold the turn signal and
main beam lever upwards and back-
wards (right turn signal and light
flasher).Press and hold the turn signal and
main beam lever downwards and
backwards (left turn signal and light
flasher).
Switch the ignition on and off for approximately 3 seconds.
Automatic switching on:Automatic switching off or switch to
daytime lighting:
The photo sensor detects darkness,
for example, when driving through a
tunnel.When adequate lighting is detected.
When driving at more than 140 km/h
for a few seconds.When driving at less than 65 km/h
for a few minutes.
The rain sensor detects rain and acti-
vates the windscreen wipers.When the windscreen wiper has
been inactive for a few minutes.

Lights and visibility119
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Note
The headlights, rear lights and turn signals may mist up temporarily on the
inside in cool or damp weather. This is normal and in no way effects the useful
life of the vehicle lighting system.
Adhesive strips for headlights or adjusting headlights
In those countries where vehicles drive on the other side of the road to the
home country, the asymmetric dipped beam may dazzle drivers of oncoming
vehicles. Therefore, when driving abroad, adhesive strips should be attached
to the headlights or the headlights should be adjusted accordingly.
The direction of the headlights can be adjusted from the instrument panel, in
the menu Settings submenu Travel mode Ÿpage 70.
For those vehicles in which it is not possible to adjust the headlights from the
menu, adhesive strips are used to cover certain parts of the headlamp cover
or the headlights may be adjusted at a specialised workshop. For further
information, please refer to a specialised workshop. SEAT recommends
visiting a qualified workshop.
Note
The use of Travel mode and adhesive strips on the headlights is only author-
ised for a short period of time. To modify the direction of the headlamps more
permanently, please take the vehicle to a specialised workshop. SEAT recom-
mends visiting a qualified workshop.
Function “Coming home” and “Leaving home” (guidance
lights)
The “Coming home” function should be switched on manually. However the
“Leaving home” function is automatically controlled by a photo sensor.
Lighting around the exterior mirrors
The lighting around the exterior mirrors illuminates the door area on entering
and leaving the vehicles. It comes on when the vehicle is unlocked, when the
vehicle door is opened and when the “Coming home” or “Leaving home”
“Coming Home”Necessary operations
To switch sys-
tem on:
– Switch off the ignition.
– Briefly flash the headlights for approximately one sec-
ond Ÿpage 115.
The “Coming home” lighting comes on when the driver's
door is opened. The delay in switching off the headlights
is counted from when the last door or tailgate is closed.
The system
switches off:
– Automatically at the end of the delay period.
– Automatically, if 30 seconds after coming on, a vehicle
door or tailgate remains open.
– If the light switch is turned to position
/.
– If the ignition is switched on.
“Leaving home”Necessary operations
To switch sys-
tem on:– Unlock the vehicle when the light switch is in position
!54/ and the photo sensor detects darkness.
The system
switches off:
– Automatically, at the end of the delay period.
– When the vehicle is locked.
– When the light switch is turned to position
/.
– When the ignition is switched on.
