2010 SATURN VUE Owners Manual

Seats and Restraints 3-5
Lumbar Adjustment
If the vehicle has this feature, the
knob is located on the inboard side
of the driver seatback.
Turn the knob clockwise to increase
lumbar support and
counterclockwise to decrease it.
Reclining Seatbacks
Manual Reclining Seatbacks
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver's seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver's seat only when
the vehicle is not moving.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
On seats with manual reclining
seatbacks, the lever used to operate
them is located on the outboard side
of the seat.
ProCarManuals.com

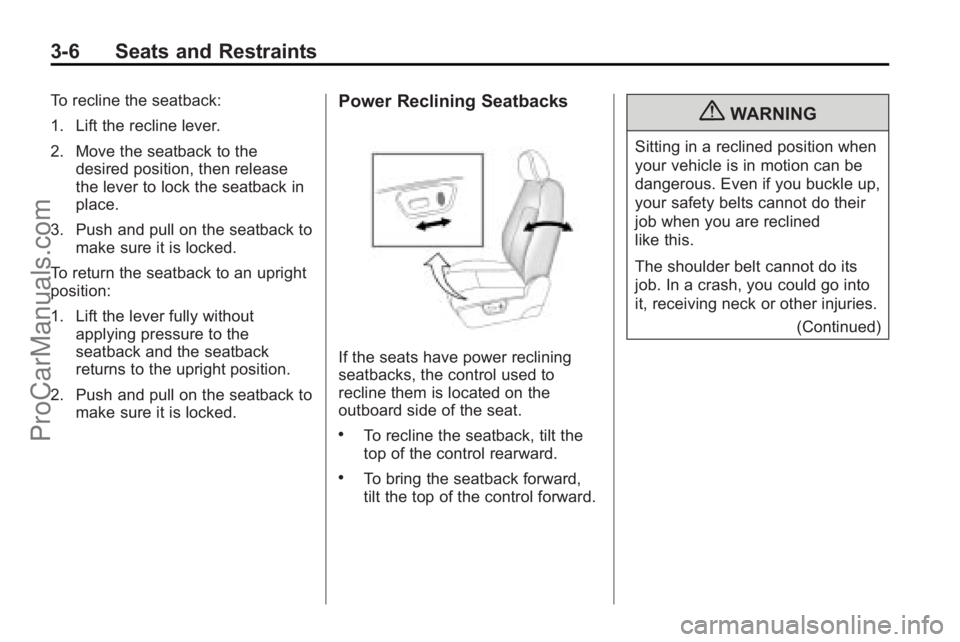

3-6 Seats and Restraints
To recline the seatback:
1. Lift the recline lever.
2. Move the seatback to thedesired position, then release
the lever to lock the seatback in
place.
3. Push and pull on the seatback to make sure it is locked.
To return the seatback to an upright
position:
1. Lift the lever fully without applying pressure to the
seatback and the seatback
returns to the upright position.
2. Push and pull on the seatback to make sure it is locked.Power Reclining Seatbacks
If the seats have power reclining
seatbacks, the control used to
recline them is located on the
outboard side of the seat.
.To recline the seatback, tilt the
top of the control rearward.
.To bring the seatback forward,
tilt the top of the control forward.
{WARNING
Sitting in a reclined position when
your vehicle is in motion can be
dangerous. Even if you buckle up,
your safety belts cannot do their
job when you are reclined
like this.
The shoulder belt cannot do its
job. In a crash, you could go into
it, receiving neck or other injuries.
(Continued)
ProCarManuals.com

Seats and Restraints 3-7
WARNING (Continued)
The lap belt cannot do its job
either. In a crash the belt could go
up over your abdomen. The belt
forces would be there, not at your
pelvic bones. This could cause
serious internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear your
safety belt properly.
Do not have a seatback reclined if
the vehicle is moving.
Heated Front Seats
On vehicles with heated front seats,
the controls are located on the
center console. The engine must be
running to operate the heated seats.
M(Heated Seat):Press this button
to turn on the heated seat.
Continue to press the button to
cycle through the temperature
settings.
.High = three indicator lights.
.Medium = two indicator lights.
.Low = one indicator light.
.Off = no indicator lights.
The passenger seat may take
longer to heat up.
ProCarManuals.com

3-8 Seats and Restraints
Folding Seatback
The front passenger seatback may
fold flat.
{WARNING
If you fold the seatback forward to
carry longer objects, such as skis,
be sure any such cargo is not
near an airbag. In a crash, an
inflating airbag might force that
object toward a person. This
could cause severe injury or even
death. Secure objects away from
the area in which an airbag would
inflate. For more information, see
Where Are the Airbags?
on
page 3‑27
and Vehicle Load
Limits on page 9‑22.
{WARNING
Things you put on this seatback
can strike and injure people in a
sudden stop or turn, or in a crash.
Remove or secure all items
before driving.
To fold the seatback:
1. Lower the head restraint all the way.
2. Lift the bar under the front of the seat to unlock it. Slide the seat
as far back as it will go and
release the bar. Try to move the
seat back and forth to make sure
it is locked into place.
3. Lift the recliner lever, located onthe outboard side of the seat, up
fully and fold the seatback
forward until it disengages.
4. Continue to fold the seat forward into the folded position.
5. Pull up on the seatback to be sure it is locked.
ProCarManuals.com

Seats and Restraints 3-9
To raise the seatback:
1. Lift the recliner lever, located onthe outboard side of the seat, up
fully and push up on the
seatback.
2. Continue raising the seatback until the seatback re-engages.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
3. Push and pull on the seatback to make sure it is locked in place.
The recliner lever is also used to
recline the seatback while a
passenger is seated. See Seat
Adjustment on page 3‑3.
Rear Seats
The rear split bench seatbacks can
be folded forward, upright,
or partially reclined, independent of
the other seatback position.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
{WARNING
A safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
rear seatback, always check to be
sure that the safety belts are
properly routed and attached, and
are not twisted.
To fold the seatback down:
Notice: Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.
1. Unbuckle all three safety belts and put the front seatback in an
upright position.
ProCarManuals.com

3-10 Seats and Restraints
2. Lift the lever located on the topof the seatback to release the
seatback and fold the seatback
forward.
To recline the seatback:
1. Lift and hold the lever located on top of the seatback.
2. Tilt the seatback rearward, then release the lever.
Safety Belts
This section of the manual
describes how to use safety belts
properly. It also describes some
things not to do with safety belts.
{WARNING
Do not let anyone ride where a
safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, the injuries can be
much worse. You can hit things
inside the vehicle harder or be
ejected from the vehicle. You and
your passenger(s) can be
seriously injured or killed. In the
same crash, you might not be,
if you are buckled up. Always
fasten your safety belt, and check
that your passenger(s) are
restrained properly too.
{WARNING
It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed. Do not allow people to ride
in any area of your vehicle that is
not equipped with seats and
safety belts. Be sure everyone in
your vehicle is in a seat and using
a safety belt properly.
This vehicle has indicators as a
reminder to buckle the safety belts.
See Safety Belt Reminders
on
page 5‑12for additional
information.
ProCarManuals.com

Seats and Restraints 3-11
In most states and in all Canadian
provinces, the law requires wearing
safety belts. Here is why:
You never know if you will be in a
crash. If you do have a crash, you
do not know if it will be a
serious one.
A few crashes are mild, and some
crashes can be so serious that even
buckled up, a person would not
survive. But most crashes are in
between. In many of them, people
who buckle up can survive and
sometimes walk away. Without
safety belts they could have been
badly hurt or killed.
After more than 40 years of safety
belts in vehicles, the facts are clear.
In most crashes buckling up does
matter ... a lot!
Why Safety Belts Work
When you ride in or on anything,
you go as fast as it goes.
Take the simplest vehicle. Suppose
it is just a seat on wheels.
Put someone on it.
Get it up to speed. Then stop the
vehicle. The rider does not stop.
ProCarManuals.com

3-12 Seats and Restraints
The person keeps going until
stopped by something. In a real
vehicle, it could be the windshield...or the instrument panel...
or the safety belts!With safety belts, you slow down as
the vehicle does. You get more time
to stop. You stop over more
distance, and your strongest bones
take the forces. That is why safety
belts make such good sense.
Questions and Answers About
Safety Belts
Q: Will I be trapped in the vehicle
after a crash if I am wearing a
safety belt?
A: You could be—whether you are
wearing a safety belt or not. But
your chance of being conscious
during and after an accident, so
you canunbuckle and get out, is
much greater if you are belted.
And you can unbuckle a safety
belt, even if you are
upside down.
