2010 PORSCHE BOXSTER S automatic transmission fluid

Maintenance, Car Care
217
Note
Door windows feature a water-repellent (hydro-
phobic) coating which prevents soiling of the
windows.
This coating is subject to natural wear and can be
renewed.
fConsult an authorized Porsche dealer.Wiper blades Wiper blades that are in perfect condition are vital
for a clear view.
fPlease see the chapter “WIPER BLADES” on
Page 212.
f Replace the wiper blades twice per year (be-
fore and after the cold season) or whenever
wiper performance deteriorates or the blades
are damaged.
f Periodically clean the wiper blades with
Porsche window cleaner, especially after the
vehicle has been washed in a car wash.
If they are very dirty (e.g. with insect remains),
they can be cleaned with a sponge or cloth.
If the wiper blades rub or squeak, this can be as a
result of the following:
– If the vehicle is washed in an automatic car wash, residues may adhere to the windshield.
These wax residues can be removed only by
using window cleaner concentrate.
– The wiper blades may be damaged or worn. – Replace damaged or worn wiper blades imme-
diately.
f Please see the chapter “WASHER FLUID” on
Page 210.
f Please contact your authorized Porsche dealer
for further information.
Undercoating As it is not possible to ex clude the risk of damage
to this protective coating in day to day driving, it
is advisable to have the underside of the car in-
spected at certain interv als – preferably before
the start of winter and again in spring – and the un-
dercoating restored as necessary.
Your authorized Porsche dealer is familiar with the
bodyseal treatment procedures and has the nec-
essary equipment for applying factory approved
materials. We recommend that you entrust them
with such work and inspections.
Unlike conventional spray oils, undercoating and
rust-proofing compounds based on bitumen or
wax do not attack the so und-proofing materials ap-
plied at the factory.
Warning!
Danger of fire resulting in serious personal
injury or death.
f Do not apply additional undercoating or rust-
proofing on or near the exhaust manifold, ex-
haust pipes, catalytic converters or heat shields. During driving the substance used for
undercoating could overheat and ignite.
f Before applying fresh underseal, carefully
remove any deposits of dirt and grease. Once
it has dried, the new undercoating compound
forms a tough protective coating which
provides efficient rust-proofing of the floor
panels and components.
f Always apply a fresh coating of suitable pre-
servative to unprotected areas after cleaning
the underside of the body, the transmission,
the engine or carrying out repairs to under-
body, engine or transmission components.
Effective rust-proofing is particularly important
during the cold weather seas on. If your car is driv-
en frequently in areas where salt has been spread
on the roads, the whole engine compartment
should be cleaned thoroughly after the winter to
prevent salt from causing any lasting damage. A
full under-body wash should also be performed at
the same time.
Stainless steel exhaust tailpipesStainless steel exhaust tailpipes can discolor due
to soiling, strong heat, and combustion residues.
The original polish can be achieved again using
commercially available metal polishing paste or
metal polish.

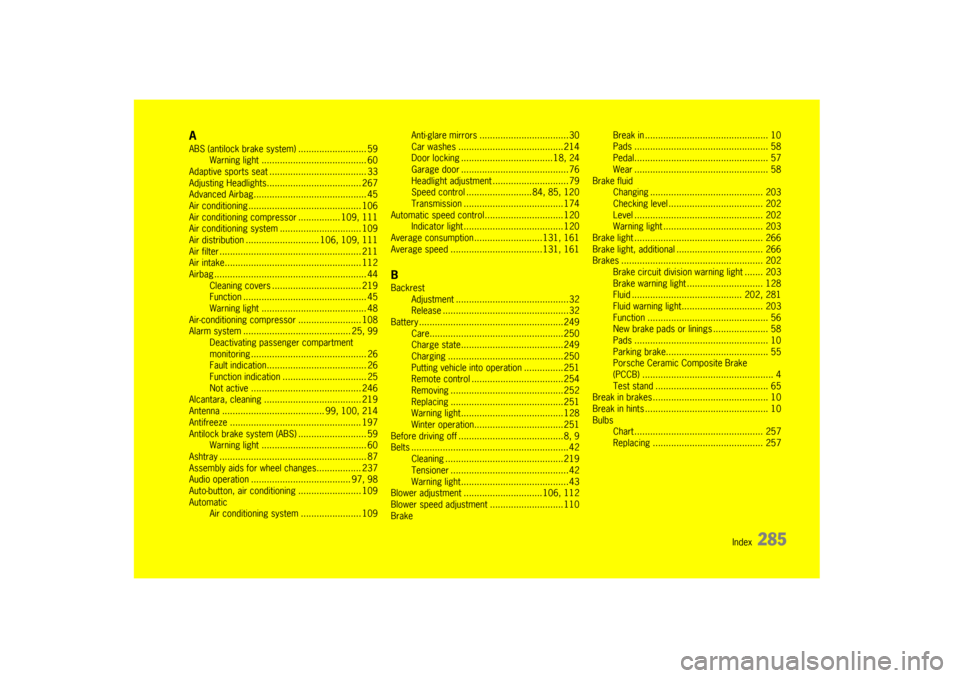

Index
285
AABS (antilock brake system) .......................... 59
Warning light .......... .............................. 60
Adaptive sports seat ..................................... 33
Adjusting Headlights.... ................................ 267
Advanced Airbag......... .................................. 45
Air conditioning ........... ................................ 106
Air conditioning compressor ................ 109, 111
Air conditioning system .................... ........... 109
Air distribution ................ ............ 106, 109, 111
Air filter ...................... ................................ 211
Air intake.................... ................................ 112
Airbag ............................ .............................. 44
Cleaning covers ...... ............................ 219
Function ..................... .......................... 45
Warning light .......... .............................. 48
Air-conditioning compressor ........................ 108
Alarm system ................. ........................ 25, 99
Deactivating passenger compartment
monitoring .............. .............................. 26
Fault indication........ .............................. 26
Function indication ................................ 25
Not active .............. ............................ 246
Alcantara, cleaning . .................................... 219
Antenna ................. ...................... 99, 100, 214
Antifreeze .................................................. 197
Antilock brake system (ABS) .......................... 59
Warning light .......... .............................. 60
Ashtray .......................... .............................. 87
Assembly aids for wheel changes................. 237
Audio operation ...................................... 97, 98
Auto-button, air conditioning ........................ 109
Automatic Air conditioning system ....................... 109 Anti-glare mirrors .......................
...........30
Car washes .............. ..........................214
Door locking ............. ......................18, 24
Garage door ......... ................................76
Headlight adjustment .............................79
Speed control .........................84, 85, 120
Transmission ............ ..........................174
Automatic speed contro l..............................120
Indicator light ........ ..............................120
Average consumption .... ......................131, 161
Average speed ............. ......................131, 161
BBackrest
Adjustment ............... ............................32
Release .................... ............................32
Battery ......................... ..............................249
Care......................... ..........................250
Charge state......... ..............................249
Charging .................. ..........................250
Putting vehicle into operation ...............251
Remote control ..... ..............................254
Removing ................. ..........................252
Replacing ................. ..........................251
Warning light......... ..............................128
Winter operation.... ..............................251
Before driving off ...... ..................................8, 9
Belts ................ ............................................42
Cleaning ................... ..........................219
Tensioner ................. ............................42
Warning light......... ................................43
Blower adjustment ........ ......................106, 112
Blower speed adjustme nt ............................110
Brake Break in ...................
............................ 10
Pads ....................... ............................ 58
Pedal....................... ............................ 57
Wear ....................... ............................ 58
Brake fluid
Changing ................. .......................... 203
Checking level ...... .............................. 202
Level ....................... .......................... 202
Warning light ............ .......................... 203
Brake light .............. ................................... 266
Brake light, addition al ................................. 266
Brakes ........................ .............................. 202
Brake circuit division warning light ....... 203
Brake warning light ............................. 128
Fluid ............................ .............. 202, 281
Fluid warning light. .............................. 203
Function .................. ............................ 56
New brake pads or linings ..................... 58
Pads ....................... ............................ 10
Parking brake....... ................................ 55
Porsche Ceramic Composite Brake
(PCCB) .................................... .............. 4
Test stand ........... ................................ 65
Break in brakes ....... ..................................... 10
Break in hints .......... ..................................... 10
Bulbs
Chart ....................... .......................... 257
Replacing ................ ..........................2

57
