2010 PORSCHE BOXSTER S clock

262
Practical Tips, Emergency Service

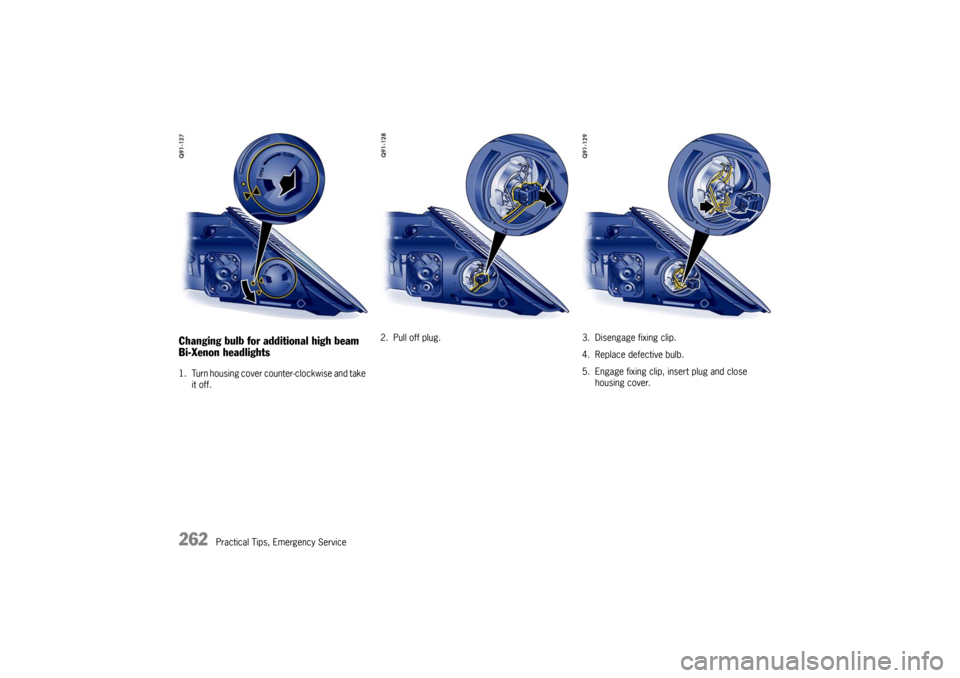

Changing bulb for additional high beam
Bi-Xenon headlights1. Turn housing cover counter-clockwise and take it off. 2. Pull off plug. 3. Disengage fixing clip.
4. Replace defective bulb.
5. Engage fixing clip, insert plug and close housing cover.

Practical Tips, Emergency Service
263

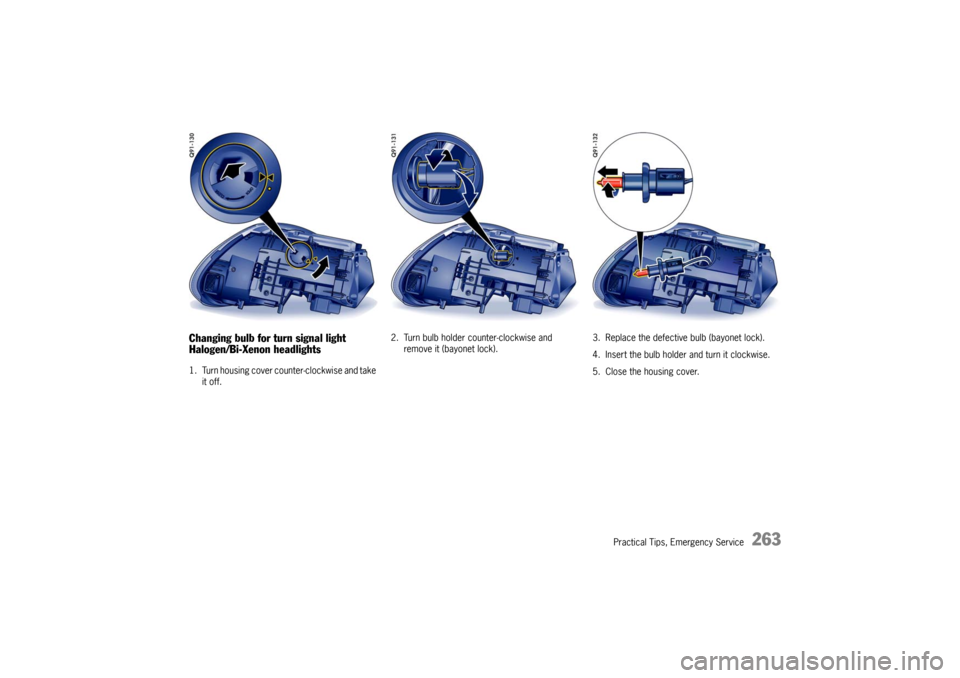

Changing bulb for turn signal light
Halogen/Bi-Xenon headlights1. Turn housing cover counter-clockwise and take it off. 2. Turn bulb holder counter-clockwise and
remove it (bayonet lock). 3. Replace the defective bulb (bayonet lock).
4. Insert the bulb holder and turn it clockwise.
5. Close the housing cover.

264
Practical Tips, Emergency Service

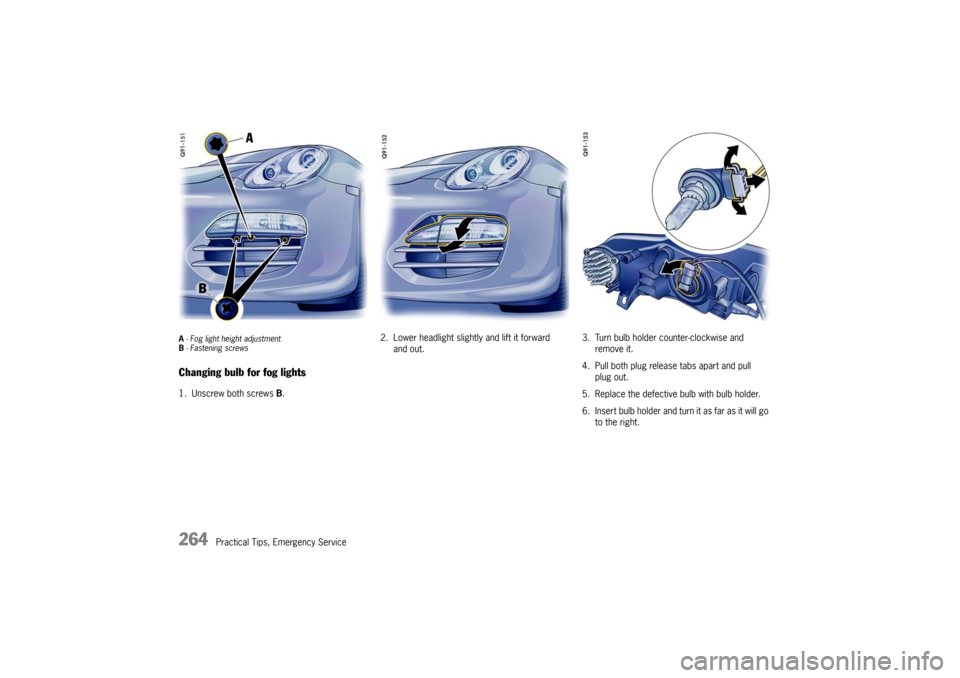

A- Fog light height adjustment
B -Fastening screwsChanging bulb for fog lights1. Unscrew both screws B. 2. Lower headlight slightly and lift it forward
and out. 3. Turn bulb holder counter-clockwise and
remove it.
4. Pull both plug release tabs apart and pull plug out.
5. Replace the defective bulb with bulb holder.
6. Insert bulb holder and turn it as far as it will go to the right.

268
Practical Tips, Emergency Service
Floor
The surface upon which the
vehicle rests is flat
and approximately level.
Screen
The screen upon which headlamp beams are pro-
jected is perpendicular to the floor and the vehi-
cle’s longitudinal axis, flat, uniformly light in color,
unobstructed, and wide and high enough to ac-
commodate the vehicle beam patterns to be
aimed.
The screen should be wide enough to provide at
least 3.3 ft. (1 m) of space outboard of the vehi-
cle’s headlamp spacing.
Adjustment screws
fDetach side carpeting in luggage compart-
ment.
Unscrew plastic nut A.
Open the cover of the appropriate adjustment
screw.
The setting is adjusted by turning the hexagon
socket screws right or left, as appropriate.
B - Headlight vertical adjustmentVertical adjustment (screw B)
f turn clockwise = beam moves down
turn counter-clockwise = beam moves up
Note
f Do not alter the lateral adjustment.

286
Index
CCabriolet .................................................... 182
Capacities, overview ... ................................ 281
Car care ........................ ............................ 213
Car telephone ............. .................................. 99
Car washes .................... ............................ 214
Carpet ....................................................... 219
Catalytic converters .... ................................ 209
Cautions ........................ .................... 196, 222
Central locking ........... ................................ 246
Emergency operation ...................... 19, 22
In cars with alarm system ...................... 21
In cars without alar m system ................. 19
Overload protection ............................ 246
Central vents .............. ................................ 112
Central warning light ................................... 128
Changing light-emitting diodes (LEDs) ........... 266
Changing wheels ........ ................................ 237
Check engine Warning light .......... ............................ 128
Check engine warning li ght .......................... 129
Opening the oil filler cap ...................... 200
Checking pressure ...... ................................ 238
Child restraint system s.................................. 50
Chime ............... ......................... ............ 78, 80
CHRONO Stopwatch.... ................................ 140
Cigarette lighter.......... .................................. 88
Circulating-air button ... ........................ 106, 110
Clock ............................................. .... 127, 160
Clutch ............... ............................. ...... 60, 172
Clutch pedal ............... .................................. 60
Combination filter ....... ................................ 211
Comfort seat .............. .................................. 33
Coming home mode.... ............................ 79, 80 Communication manage
ment ......................... 97
Compact disc Player ...................... ............................ 98
Storage .................... ............................ 90
Compartment monitoring ................ ............... 25
Convertible top ......... .................................. 182
Care ........................ .......................... 215
Coolant ........... ........................... 124, 197, 281
Checking ............................................ 197
Level .................................................. 1

97
Temperature gage .... .......................... 124
Topping off ........... .............................. 197
Warning light......... .............................. 124
Cooling system ............. ...................... 124, 197
Warning light......... .............................. 124
Cornering light .......... .................................... 78
Indicator light ........ .............................. 123
Crankcase ventilation .................................. 209
Cruise control ................................. 84, 85, 128
Cupholder ......................................... ........... 86
DData bank................................................... 274
Daytime driving lights .................................... 78
Changing bulbs ..... .............................. 266
On-board computer ............................. 160
Defrosting windows ....... ................ 31, 106, 110
Diagnostic socket ..... .................................... 11
Dimensions ....................................... ......... 282
Direction indicator lig ht, front ....................... 266
Door ............................ ................................ 18
Handles ................................................ 18
Locks....................... .................... 18, 215
Mirror....................... ............................ 30 Mirror heating ..........
.............................31
Mirrors .................... .............................29
Windows ......................... 18, 27, 182, 216
Drive-Off Assistant ....... ................................173
Driving
Hints .............. ........................................8
Winter ......................... .......................179
Driving off
Drive-Off Assistant .... ...........................173
Launch Control......... ...........................177
Driving performance .... ................................280
Drop-center rim........... ................................233
EElectrical system..... ....................................245
Emergency flasher swit ch ..............................77
Emergency operation . ...................................22
Central locking ......... .......................19, 22
Convertible top ........ ...........................185
Ignition key ......... ..................................74
Lids................ ......................... ...........248
Tank flap ................. ...........................205
Emergency service ..... ................................222
Emergency starting with jumper cables.255, 256
Emission control system ..............129, 208, 209
Engine Checking the oil leve l ...........................157
Diagram ...................... .......................283
Exhaust ................... ...............................5
Number ..............................................275
Oil consumption ....... .....................10, 199
Oil level ................... ...........................199
Oil level indicator ...................... ...........157
Oils ............................................199, 281

288
Index
Interior
....................... .................................. 69
Interior lights ......... ....................................... 69
Interior mirror ............. .................................. 30
JJumper cables ............................................ 255KKey codes ...................... .............................. 15
Keys ................. ......................... ............ 15, 16LLATCH System ............... .............................. 54
Launch Control ........................................... 177
Leather care .............. ................................ 218
License plate light................................... 78, 80
Lids ........................................... ............ 93, 95
Emergency unlocking .......................... 248
Lifting vehicle ............. ................................ 242
Light
Daytime driving ....... .............................. 78
Flasher....................... ...... 78, 80, 81, 123
Low beam .................. .............. 78, 80, 81
Sensor for instrument illumination 116, 118
Switch........................ .............. 78, 80, 81
Light alloy wheels
Inscription .............. ............................ 233
Light functions, indivi dual............................... 81
Lights ................................................. ......... 69
Care .................................................. 218
Headlight beam adju stment ................... 79
LIMIT Acoustic warning signal for speed limit 133
Load switch-off ........... ................................ 246 Loading information ..
.................................. 234
Locking ........................ .......................... 20, 23
Low beam .................... ................................ 81
Luggage Net .......................... ............................ 91
Luggage compartment . ................................. 94
Lid ........................... ............................ 92
Lid warning light.... ................................ 92
Unlocking lid ......... ................................ 16
Luggage compartment/
engine compartment lid, warning lights ........... 92
MMaintenance ................. .............................. 196
Make-up mirror ............. ................................ 41
Maximum permitted engi ne speeds ................ 10
Manual transmission ............................ 172
Mirror Folding in.............. ................................ 30
Heating .................... .................... 31, 113
Inside ................................................... 29
Mirrors ............................. ...................... 29, 71
Anti-glare ................................... ........... 30
Multi-functional steeri ng wheel ........................ 40NNavigation .................... ................................ 97
Selection field, on-board computer ....... 146
Notes on
Car care ................... .......................... 213
Maintenance ............. .......................... 196
Number plate light ........ .......................... 78, 80
Changing bulb ....... .............................. 266
OOctane rating ...................................... 206, 207
Odometer ........................ ...........................121
Off delay .................... ............................79, 80
Oil...................... ............................. ...199, 281
Change........................ .......................201
Checking level.......... ...........................157
Consumption............ .............................10
Level checks............ ...........................199
Level indicator ......... ...........................157
Recommendation ......... .......................200
Topping off engine oi l ..........................200
OIL Display and measurement
of the engine oil leve l...................................157
On-board computer ..... ................................130
Basic settings .......... ...................131, 159
Calling on-board computer functions .....131
Functions and display possibilities ........131
General information . ............................160
Language versions ... ...........................159
Operation, controls... ...........................130
Selecting a radio station ......................146
Setting the clock ...... ...........................160
Switching daytime driving lights on/off ..160
Switching on navigation .......................146
Tire pressure warnings ........................152
Warnings and messag es ......................162
On-board literature ..........................................2
Operating voice contro l ...............................130
Operating your Porsche in other Countries ....204
Orientation light ...... ......................................69
Outside temperatur indicator........................127
Oxygen sensor............ ................................209
