Exterior
15 96 94
Key
: c h a p t e r i d e n t i fi c a t i o n
: page
i d e n t i fi c a t i o n
19
Key - Remote control
Selective unlocking of the cab
and load space.
Locking of the load space only.
Complete locking of the vehicle.
Opening the bonnet
Take care when working under
the bonnet.
Raise the bonnet slightly by
r e a c h i n g i n a fl a t h a n d , p a l m
down, to make access to the
l e v e r e a s i e r . E n g a g e t h e b a s e o f
the strut in the hole provided to
hold the bonnet open.
Fix the strut in its location,
i d e n t i fi e d b y a s t i c k e r o n t h e l e f t -
hand panel side of the vehicle.
Sliding side door
Pull the handle towards you then
towards the rear and open the
door guiding the rearward sliding
until the point of resistance has
been passed.
Professional equipment -
Accessories 79
"Grip Control"
T h e a n t i - s k i d s y s t e m " G R I P
C O N T R O L " i m p r o v e s t h e r o a d -
holding of your vehicle in snow,
mud and sand.
Page 8 of 185
3
3
3
3
13
1
FAMILIARISATION
Interior
LOAD SPACE
We recommend that the load is
i m m o b i l i s e d b y s e c u r i n g i t fi r m l y u s i n g
t h e s t o w i n g r i n g s o n t h e fl o o r a n d t h a t
heavy objects are placed at the front
(towards the cab). I n c o r p o r a t e d i n t h e w a l l , t h i s l i g h t s
the boot and can be removed when
changing a wheel, ...
68 65 69
Maximum loads
O v e r h e a d s t o r a g e c o m p a r t m e n t : 5 k g .
Retractable seat, in the seat back
folded onto seat cushion position:
50 kg.
Transverse roof bars: 75 kg.
Roof rack: 120 kg.
R e a r r o o f fl a p : 1 0 0 k g v e r t i c a l l y . Partitions
Torch
Stowing rings
R e m o v a b l e fl a p
This can be removed to permit the
loading of long objects.
69
Page 17 of 185
19
Accesses
READY to SET OFF
2
From the inside
Unlock and open the side door using
this handle, guiding the rearward
sliding to the point of resistance. Pass
this point to hold the door open. Good practice
Take care not to block the guide space
o n t h e fl o o r t o a l l o w t h e d o o r t o s l i d e
correctly.
If your vehicle is parked on a slope,
guide the sliding of the side door. In
fact, the door could open or close more
rapidly due to the slope of the ground
and could cause injury.
For safety and operation reasons, do
not drive with the sliding side door open.
SLIDING SIDE DOOR
From the outside
Pull the handle towards you then
towards the rear and open the side
door, guiding the rearward sliding to
beyond the point of resistance to hold
it open.
Operation in the event of a
battery failure
Front and side passenger doors
In the event of a malfunction of the
battery or of the central locking, use
the lock to lock the doors mechanically.
To open the door and get out of the
vehicle, pull the interior control.
To lock the door, insert the key in the
lock, located on the edge of the door,
then turn it one eighth of a turn .
Driver’s door
Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.
Page 18 of 185
Accesses Practice
It is possible to drive with the right-hand
door open to make the transportation of
long loads easier. The left-hand door is
kept closed by the distinctive "yellow"
lock, positioned at the base of the door.
This closed door must not be used as a
load retainer.
Driving with the right-hand door open
is a special dispensation. Comply with
the usual safety indications to attract
the attention of other drivers.
HINGED REAR DOORS
From outside Pull the lever to open the right-hand
door.
To close, start with the right-hand door
then close the left-hand door.
To open, pull the handle towards you.
The hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
T h e y a r e fi t t e d w i t h a c e n t r a l l o c k .
W i t h t h e r o o f r e a r fl a p , t h e r e a r
bumper has been strengthened to
serve as a footrest on accessing
the vehicle.
Page 19 of 185
21
Accesses
READY to SET OFF
2
From inside
Pull the handle towards you to open
the left-hand door.
Opening to approximately 180°
A c h e c k s t r a p s y s t e m p e r m i t s e x t e n s i o n
o f t h e o p e n i n g f r o m a p p r o x i m a t e l y 9 0 °
t o a p p r o x i m a t e l y 1 8 0 ° .
Pull the yellow control when the door
is open.
The check strap will re-attach
automatically on closing.
Page 29 of 185
31
READY to SET OFF
22
Instruments and controls
Warning lamp is indicates Solution - action
Particle
e m i s s i o n fi l t e r lit. a malfunction of the particle
e m i s s i o n fi l t e r ( d i e s e l
additive level, risk of
clogging, ...). H a v e t h e fi l t e r c h e c k e d b y a P E U G E O T d e a l e r .
Chapter 6, "Levels" section.
Dipped
headlamps/
Daytime
lights
lit. a manual selection or
automatic lighting.
Turn the ring on the lights stalk to the second
position.
lighting of the dipped
headlamps from the time the
ignition is switched on: daytime
lights (depending on the country
in which the vehicle is sold).
Chapter 3, "Steering wheel controls" section.
Main beam
headlamps pulling of the stalk towards
you.
Pull the stalk to return to dipped headlamps.
Direction
indicators fl a s h i n g w i t h
buzzer. a change of direction via the
lights stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
visibility, take care to switch them off to avoid
breaking the law. "This light is a dazzling red."
Page 69 of 185
6 8
Practical information
LOAD SPACE LAYOUT

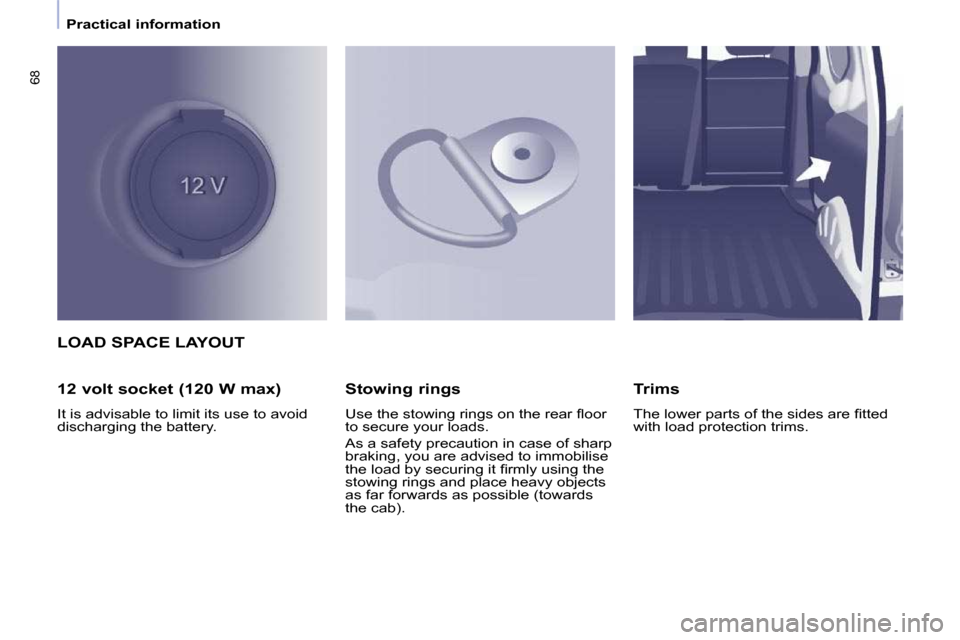

12 volt socket (120 W max)
