FAMILIARISATION

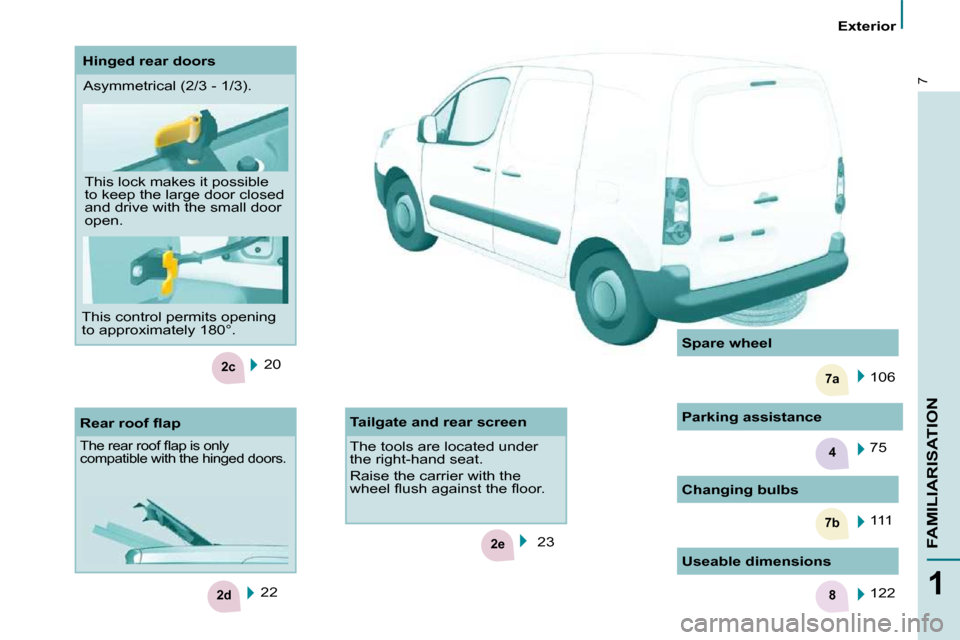

Exterior
20
22
R e a r r o o f fl a p
T h e r e a r r o o f fl a p i s o n l y
compatible with the hinged doors.
Changing bulbs
111
106
Spare wheel
Hinged rear doors
Tailgate and rear screen
The tools are located under
the right-hand seat.
Raise the carrier with the
w h e e l fl u s h a g a i n s t t h e fl o o r . 23
Asymmetrical (2/3 - 1/3).
This lock makes it possible
to keep the large door closed
and drive with the small door
open.
This control permits opening
to approximately 180°.
Useable dimensions 122
Parking assistance
75
