97
CHECKS
6
Under the bonnet
PETROL ENGINE
1. Windscreen wash reservoir.
2. F u s e b o x .
3. Engine coolant reservoir.
4. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
5. A i r fi l t e r .
6. D i p s t i c k .
7. E n g i n e o i l fi l l e r c a p .
8. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
Battery connections:
+ Positive metal point.
- N e g a t i v e m e t a l p o i n t ( e a r t h ) .
T a k e c a r e w h e n w o r k i n g u n d e r t h e
bonnet.
Page 107 of 185
102
Checks T o c h e c k t h e m a i n l e v e l s
and certain components,
in accordance with the
manufacturer's servicing schedule,
refer to the pages of the Maintenance
and Warranty Guide which correspond
to your vehicle's engine.
Bleeding the water contained
in the diesel filter
Manual gearbox
H a v e t h e l e v e l c h e c k e d i n a c c o r d a n c e
with the manufacturer's servicing
schedule.
Only use products recommended
by PEUGEOT or products
of equivalent quality and
s p e c i fi c a t i o n .
In order to optimise the operation
o f u n i t s a s i m p o r t a n t a s t h e b r a k i n g
system, PEUGEOT selects and offers
s p e c i fi c p r o d u c t s .
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
If this warning light comes
o n , b l e e d t h e fi l t e r . O t h e r w i s e
bleed regularly each time the
engine is drained.
To evacuate the water,
unscrew the bleed screw located on
t h e fi l t e r .
Operate until all of the water in the
transparent pipe has been drained out
then tighten the bleed screw.
HDi engines use advanced technology.
A l l w o r k r e q u i r e s a s p e c i a l q u a l i fi c a t i o n
which is guaranteed by a PEUGEOT
dealer.
According to country.
Page 108 of 185
103
CHECKS
6
Fuel
FILLING WITH FUEL
Low fuel level Filling
T h e f u e l t a n k m u s t b e fi l l e d
with the
engine off .
- O p e n t h e f u e l fi l l e r fl a p .
- I n s e r t t h e k e y , t h e n t u r n i t a q u a r t e r turn.
- R e m o v e t h e c a p a n d h o o k i t o n t o the clip located on the inside of
t h e fl a p .
W h e n fi l l i n g w i t h f u e l , w i t h t h e f u e l
fi l l e r fl a p o p e n , e n s u r e t h a t n o o n e
attempts to open the sliding side
door.
W h e n t h e m i n i m u m f u e l t a n k
level is reached, this warning
light comes on.
You then have approximately 8 litres
of fuel remaining. Fill up without delay
to avoid running out of fuel.
N e v e r r i s k d r i v i n g u n t i l y o u r u n o u t
of fuel as this may damage the
a n t i p o l l u t i o n a n d i n j e c t i o n s y s t e m s . Quality of the fuel used for
petrol engines
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used.
Y o u m u s t fi l l w i t h a t l e a s t 5 l i t r e s o f f u e l
for it to be registered by the fuel gauge.
W h e n t h e f u e l fi l l e r c a p i s o p e n e d ,
there may be a slight air suction noise.
This vacuum is entirely normal and is
due to the sealing of the fuel circuit.
W h e n fi l l i n g t h e f u e l t a n k , d o n o t
c o n t i n u e a f t e r t h e 3 r d c u t - o f f o f t h e
nozzle. This could cause malfunctions.
T h e c a p a c i t y o f t h e f u e l t a n k i s
a p p r o x i m a t e l y 6 0 l i t r e s .
- A f t e r fi l l i n g t h e f u e l t a n k , l o c k t h e c a p a n d c l o s e t h e fl a p . The petrol engines are perfectly
compatible with E10 type petrol
b i o f u e l s ( c o n t a i n i n g 1 0 % e t h a n o l ) ,
conforming to European standards
E N 2 2 8 a n d E N 1 5 3 7 6 .
E 8 5 t y p e f u e l s ( c o n t a i n i n g u p t o 8 5 %
e t h a n o l ) a r e r e s e r v e d e x c l u s i v e l y f o r
v e h i c l e s m a r k e t e d f o r t h e u s e o f t h i s
t y p e o f f u e l ( B i o F l e x v e h i c l e s ) . T h e
quality of the ethanol must comply with
E u r o p e a n s t a n d a r d E N 1 5 2 9 3 .
For Brazil only, special vehicles are
m a r k e t e d t o r u n o n f u e l s c o n t a i n i n g u p
t o 1 0 0 % e t h a n o l ( E 1 0 0 t y p e ) .
Page 111 of 185
105
Battery
7
BATTERY
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
d i f fi c u l t i e s a r e e x p e r i e n c e d a f t e r t h i s ,
p l e a s e c o n t a c t a P E U G E O T d e a l e r .
After changing bulbs, wait
a p p r o x i m a t e l y 3 m i n u t e s b e f o r e
reconnecting the battery.
It is advisable to disconnect the battery
if the vehicle is not andmto be used for
a p e r i o d o f m o r e t h a n o n e m o n t h .
To charge the battery using a
battery charger
- Disconnect the battery,
- Follow the instructions for use given by the battery charger
manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are
c o v e r e d w i t h s u l p h a t e ( w h i t e o r
g r e e n i s h d e p o s i t ) , d i s c o n n e c t t h e m
and clean them.
To start the vehicle from
another battery
- Connect the red cable to the p o s i t i v e ( + ) t e r m i n a l s o f t h e
two batteries,
- Connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- Connect the other end of the green o r b l a c k c a b l e t o a n e a r t h p o i n t o n
the broken down vehicle as far as
p o s s i b l e f r o m t h e b a t t e r y ,
-
O p e r a t e t h e s t a r t e r , l e t t h e e n g i n e r u n ,
- Wait for the engine to return to idle, then disconnect the cables. A f t e r t h e e n g i n e h a s s t o p p e d , w i t h
t h e k e y i n t h e i g n i t i o n p o s i t i o n , c e r t a i n
f u n c t i o n s ( w i n d s c r e e n w i p e r , e l e c t r i c
windows, courtesy lights, audio
e q u i p m e n t , e t c . ) c a n o n l y b e u s e d f o r a
cumulative duration of thirty minutes, to
p r e v e n t d i s c h a r g i n g o f t h e b a t t e r y .
O n c e t h e t h i r t y m i n u t e s a r e o v e r , t h e
a c t i v e f u n c t i o n s a r e p u t o n s t a n d b y
a n d t h e b a t t e r y w a r n i n g l i g h t fl a s h e s
a c c o m p a n i e d b y a m e s s a g e o n t h e
d i s p l a y .
T o r e s u m e t h e u s e o f t h e s e f u n c t i o n s
immediately, start the engine and let it
run for a few minutes.
T h e t i m e a v a i l a b l e w i l l t h e n b e d o u b l e
the time for which the engine was left
running. However, this time will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
A fl a t b a t t e r y w i l l p r e v e n t t h e e n g i n e
from starting.
Page 137 of 185
130
Identification features
IDENTIFICATION FEATURES
A. Manufacturer's plate. C. Tyres and paint colour reference.
B. Serial number.
This is located on the engine mounting,
on the right-hand side.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label
C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when the tyre is
cold, at least once a month),
- the paint colour reference.
Page 184 of 185
9.47

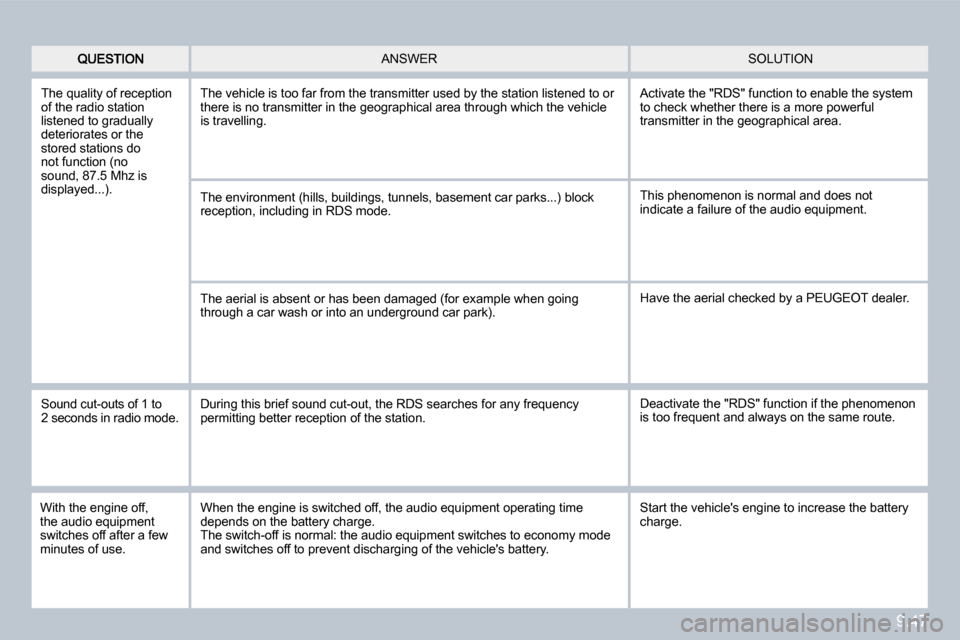

SOLUTION ANSWER
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
T h e v e h i c l e i s t o o f a r f r o m t h e t r a n s m i t t e r u s e d b y t h e s t a t i o n l i s t e n e d t o o r t h e r e i s n o t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a t h r o u g h w h i c h t h e v e h i c l e is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k r e c e p t i o n , i n c l u d i n g i n R D S m o d e .
T h e a e r i a l i s a b s e n t o r h a s b e e n d a m a g e d ( f o r e x a m p l e w h e n g o i n g through a car wash or into an underground car park).
A c t i v a t e t h e " R D S " f u n c t i o n t o e n a b l e t h e s y s t e m t o c h e c k w h e t h e r t h e r e i s a m o r e p o w e r f u l t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a .
T h i s p h e n o m e n o n i s n o r m a l a n d d o e s n o t i n d i c a t e a f a i l u r e o f t h e a u d i o e q u i p m e n t .
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 s e c o n d s i n r a d i o m o d e . During this brief sound cut-out, the RDS searches for any frequency p e r m i t t i n g b e t t e r r e c e p t i o n o f t h e s t a t i o n . D e a c t i v a t e t h e " R D S " f u n c t i o n i f t h e p h e n o m e n o n i s t o o f r e q u e n t a n d a l w a y s o n t h e s a m e r o u t e .
With the engine off, t h e a u d i o e q u i p m e n t switches off after a few m i n u t e s o f u s e .
W h e n t h e e n g i n e i s s w i t c h e d o f f , t h e a u d i o e q u i p m e n t o p e r a t i n g t i m e depends on the battery charge. T h e s w i t c h - o f f i s n o r m a l : t h e a u d i o e q u i p m e n t s w i t c h e s t o e c o n o m y m o d e a n d s w i t c h e s o f f t o p r e v e n t d i s c h a r g i n g o f t h e v e h i c l e ' s b a t t e r y .
S t a r t t h e v e h i c l e ' s e n g i n e t o i n c r e a s e t h e b a t t e r y charge.
