FAMILIARISATION
Interior
CENTRE CONSOLE
1. Gear lever.
2. Controls bar: electric window.
3. Controls bar: hazard warning
lights, central locking (passenger
compartment, load space).
4. Lighter.
5. Heating-ventilation controls.
6. Storage compartment.
7. Audio equipment.
8. Display.
79
9. Grip Control.
10. E m e r g e n c y o r a s s i s t a n c e c a l l .
81
Page 13 of 185
17
Accesses
READY to SET OFF
2
When purchasing a second-hand
vehicle:
- have the keys memorised by a PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Good practice
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a PEUGEOT dealer with the
vehicle’s V5 registration document and
y o u r i d e n t i fi c a t i o n d o c u m e n t .
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered. The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.
ALARM
I f fi t t e d o n y o u r v e h i c l e , t h i s p r o v i d e s
two types of protection:
- e x t e r i o r p r o t e c t i o n : i t s o u n d s i f a
front/rear door or the bonnet is
opened.
- interior protection: it sounds if the volume inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).
I f y o u r v e h i c l e i s fi t t e d w i t h a s e p a r a t i o n
partition, the interior protection is not
active in the load space.
Locking the vehicle with
complete alarm
Setting the alarm
- Switch off the ignition and get out of the vehicle.
- S e t t h e a l a r m w i t h i n fi v e m i n u t e s o f getting out of the vehicle, by locking
or deadlocking using the remote
control. The red diode, located
o n t h e b u t t o n , fl a s h e s o n c e p e r
second.
Page 14 of 185
17
Accesses
READY to SET OFF
2
When purchasing a second-hand
vehicle:
- have the keys memorised by a PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Good practice
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a PEUGEOT dealer with the
vehicle’s V5 registration document and
y o u r i d e n t i fi c a t i o n d o c u m e n t .
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered. The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.
ALARM
I f fi t t e d o n y o u r v e h i c l e , t h i s p r o v i d e s
two types of protection:
- e x t e r i o r p r o t e c t i o n : i t s o u n d s i f a
front/rear door or the bonnet is
opened.
- interior protection: it sounds if the volume inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).
I f y o u r v e h i c l e i s fi t t e d w i t h a s e p a r a t i o n
partition, the interior protection is not
active in the load space.
Locking the vehicle with
complete alarm
Setting the alarm
- Switch off the ignition and get out of the vehicle.
- S e t t h e a l a r m w i t h i n fi v e m i n u t e s o f getting out of the vehicle, by locking
or deadlocking using the remote
control. The red diode, located
o n t h e b u t t o n , fl a s h e s o n c e p e r
second.
Page 15 of 185
18
Accesses
FRONT DOORS
From the inside
Use the door opening control to unlock
and open the door concerned.
From the outside
Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.
Triggering
The siren sounds, the direction
i n d i c a t o r s fl a s h f o r a p p r o x i m a t e l y
3 0 s e c o n d s a n d t h e r e d d i o d e fl a s h e s
rapidly.
- To switch it off, insert the key and switch on the ignition.
When the alarm has been triggered ten
times in succession (when triggered
for the eleventh time) it is deactivated.
Repeat the rules for setting the alarm. Locking the vehicle without
alarm
- Insert the key in the lock on the
driver’s door and lock it.
Do not set the alarm when washing
your vehicle.
Failure of the remote control
When the alarm is set but the remote
control does not operate:
- Unlock the doors with the key and open the door. The alarm is
triggered.
- S w i t c h o n t h e i g n i t i o n i n t h e n e x t t e n seconds. The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the
red diode remains on for ten seconds,
there is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
Automatic setting of the alarm
Depending on the country in which
the vehicle is sold, the alarm is set
a u t o m a t i c a l l y a p p r o x i m a t e l y 2 m i n u t e s
after the last door is closed.
To prevent triggering of the alarm when
a door is opened, it is imperative to
press the remote control unlocking
button again.
D o n o t m a k e a n y m o d i fi c a t i o n s
to the alarm system as this could
cause faults.
Locking the vehicle with
exterior protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
s h o u l d c h o o s e e x t e r i o r p r o t e c t i o n o n l y .
- Switch off the ignition.
- I n t h e n e x t t e n s e c o n d s , press the button until
the red diode is on
continuously.
- Get out of the vehicle.
- W i t h i n t h e n e x t fi v e m i n u t e s , s e t the alarm by locking or deadlocking
using the remote control (the red
d i o d e fl a s h e s o n c e a s e c o n d ) .
Disarming
- Unlock the vehicle with the remote
control or switch on the ignition, the
red diode goes out.
Page 16 of 185
18
Accesses
FRONT DOORS
From the inside
Use the door opening control to unlock
and open the door concerned.
From the outside
Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.
Triggering
The siren sounds, the direction
i n d i c a t o r s fl a s h f o r a p p r o x i m a t e l y
3 0 s e c o n d s a n d t h e r e d d i o d e fl a s h e s
rapidly.
- To switch it off, insert the key and switch on the ignition.
When the alarm has been triggered ten
times in succession (when triggered
for the eleventh time) it is deactivated.
Repeat the rules for setting the alarm. Locking the vehicle without
alarm
- Insert the key in the lock on the
driver’s door and lock it.
Do not set the alarm when washing
your vehicle.
Failure of the remote control
When the alarm is set but the remote
control does not operate:
- Unlock the doors with the key and open the door. The alarm is
triggered.
- S w i t c h o n t h e i g n i t i o n i n t h e n e x t t e n seconds. The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the
red diode remains on for ten seconds,
there is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
Automatic setting of the alarm
Depending on the country in which
the vehicle is sold, the alarm is set
a u t o m a t i c a l l y a p p r o x i m a t e l y 2 m i n u t e s
after the last door is closed.
To prevent triggering of the alarm when
a door is opened, it is imperative to
press the remote control unlocking
button again.
D o n o t m a k e a n y m o d i fi c a t i o n s
to the alarm system as this could
cause faults.
Locking the vehicle with
exterior protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
s h o u l d c h o o s e e x t e r i o r p r o t e c t i o n o n l y .
- Switch off the ignition.
- I n t h e n e x t t e n s e c o n d s , press the button until
the red diode is on
continuously.
- Get out of the vehicle.
- W i t h i n t h e n e x t fi v e m i n u t e s , s e t the alarm by locking or deadlocking
using the remote control (the red
d i o d e fl a s h e s o n c e a s e c o n d ) .
Disarming
- Unlock the vehicle with the remote
control or switch on the ignition, the
red diode goes out.
Page 56 of 185
5 6
Ventilation
GOOD PRACTICE
Vents
"Leave them open"
F o r o p t i m u m d i s t r i b u t i o n a n d d i f f u s i o n
o f h o t o r c o o l a i r i n t h e p a s s e n g e r
c o m p a r t m e n t , t h e r e a r e a d j u s t a b l e
c e n t r a l a n d s i d e v e n t s w h i c h c a n
b e d i r e c t e d s i d e w a y s ( r i g h t o r l e f t )
o r v e r t i c a l l y ( u p o r d o w n ) . F o r y o u r
c o m f o r t w h i l e d r i v i n g , d o n o t c l o s e
t h e m a n d d i r e c t t h e fl o w o f a i r t o w a r d s
t h e w i n d o w s i n s t e a d .
A i r v e n t s i n t h e f o o t w e l l s a n d d i r e c t e d
t o w a r d s t h e w i n d s c r e e n c o m p l e t e t h e
equipment.
D o n o t b l o c k t h e v e n t s l o c a t e d a t t h e
w i n d s c r e e n o r t h e a i r e x t r a c t o r l o c a t e d
in the boot.
Dust filter, odour filter
(activated carbon)
T h i s fi l t e r t r a p s c e r t a i n d u s t a n d l i m i t s
odours.
E n s u r e t h a t t h i s fi l t e r i s i n g o o d
c o n d i t i o n a n d h a v e a l l o f t h e fi l t e r
e l e m e n t s r e p l a c e d r e g u l a r l y .
R e f e r t o t h e " C h e c k s " s e c t i o n o f c h a p t e r 6 .
Air conditioning
I n a l l s e a s o n s , t h e a i r c o n d i t i o n i n g
should only be used with the windows
c l o s e d . H o w e v e r , i f t h e i n t e r i o r
t e m p e r a t u r e r e m a i n s h i g h a f t e r a
p r o l o n g e d p e r i o d p a r k e d i n t h e s u n , d o
n o t h e s i t a t e t o v e n t i l a t e t h e p a s s e n g e r
c o m p a r t m e n t f o r a f e w m i n u t e s .
U s e t h e A U T O m o d e a s m u c h a s
p o s s i b l e a s i t p e r m i t s o p t i m i s e d
c o n t r o l o f a l l o f t h e f u n c t i o n s : a i r fl o w ,
p a s s e n g e r c o m p a r t m e n t c o m f o r t
t e m p e r a t u r e , a i r d i s t r i b u t i o n , a i r
i n t a k e m o d e o r a i r r e c i r c u l a t i o n i n t h e
p a s s e n g e r c o m p a r t m e n t .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m f o r
5 t o 1 0 m i n u t e s , o n c e o r t w i c e a m o n t h ,
t o k e e p i t i n p e r f e c t w o r k i n g o r d e r .
I t i s n o r m a l t h a t t h e c o n d e n s a t i o n
c r e a t e d b y t h e a i r c o n d i t i o n i n g s y s t e m
r e s u l t s i n a fl o w o f w a t e r w h i c h m a y
f o r m a p u d d l e u n d e r t h e v e h i c l e w h e n
p a r k e d .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
d o n o t u s e i t a n d c o n t a c t a P E U G E O T
d e a l e r .
Automatic mode: visibility
programme
T h e c o m f o r t p r o g r a m m e ( A U T O ) m a y
n o t b e s u f fi c i e n t t o q u i c k l y d e m i s t o r
d e - i c e t h e w i n d o w s ( h u m i d i t y , s e v e r a l
p a s s e n g e r s , i c e ) .
I n t h i s c a s e , s e l e c t t h e v i s i b i l i t y
p r o g r a m m e . T h e v i s i b i l i t y p r o g r a m m e
i n d i c a t o r l i g h t c o m e s o n .
I t a c t i v a t e s t h e a i r c o n d i t i o n i n g , t h e a i r
fl o w a n d p r o v i d e s o p t i m u m d i s t r i b u t i o n
o f t h e v e n t i l a t i o n t o t h e w i n d s c r e e n a n d
side windows.
I t d e a c t i v a t e s t h e a i r r e c i r c u l a t i o n .
Page 73 of 185
71
ERGONOMICS and COMFORT
33
Mirrors and windows
Electric exterior mirrors
- M o v e t h e c o n t r o l t o t h e r i g h t o r t o the left to select the corresponding
mirror.
- M o v e t h e c o n t r o l i n a l l f o u r d i r e c t i o n s t o a d j u s t .
- R e t u r n t h e c o n t r o l t o t h e c e n t r a l position. Electric folding/unfolding
T h e m i r r o r s c a n b e f o l d e d o r u n f o l d e d
e l e c t r i c a l l y f r o m t h e i n s i d e , w i t h t h e
v e h i c l e p a r k e d a n d t h e i g n i t i o n o n :
- P l a c e t h e c o n t r o l i n t h e c e n t r a l
position.
- T u r n t h e c o n t r o l d o w n w a r d s .
MIRRORS
Heated mirrors
Manual exterior mirrors
M o v e t h e l e v e r i n a l l f o u r d i r e c t i o n s t o
a d j u s t .
W h e n t h e v e h i c l e i s p a r k e d , t h e
e x t e r i o r m i r r o r s c a n b e f o l d e d b a c k
m a n u a l l y .
T h e m i r r o r s a r e n o t e q u i p p e d w i t h
a u t o m a t i c d e - i c i n g .
T h e e l e c t r i c m i r r o r s c a n b e
h e a t e d . P r e s s t h e r e a r s c r e e n
d e - i c i n g b u t t o n .
Page 74 of 185
7 2
Mirrors and windows
Forced folding
I f t h e m i r r o r c a s i n g h a s c o m e o u t o f
i t s i n i t i a l l o c a t i o n , w i t h t h e v e h i c l e
s t a t i o n a r y r e p o s i t i o n t h e m i r r o r c a s i n g
m a n u a l l y o r u s e t h e e l e c t r i c f o l d i n g
control. Manual interior mirror

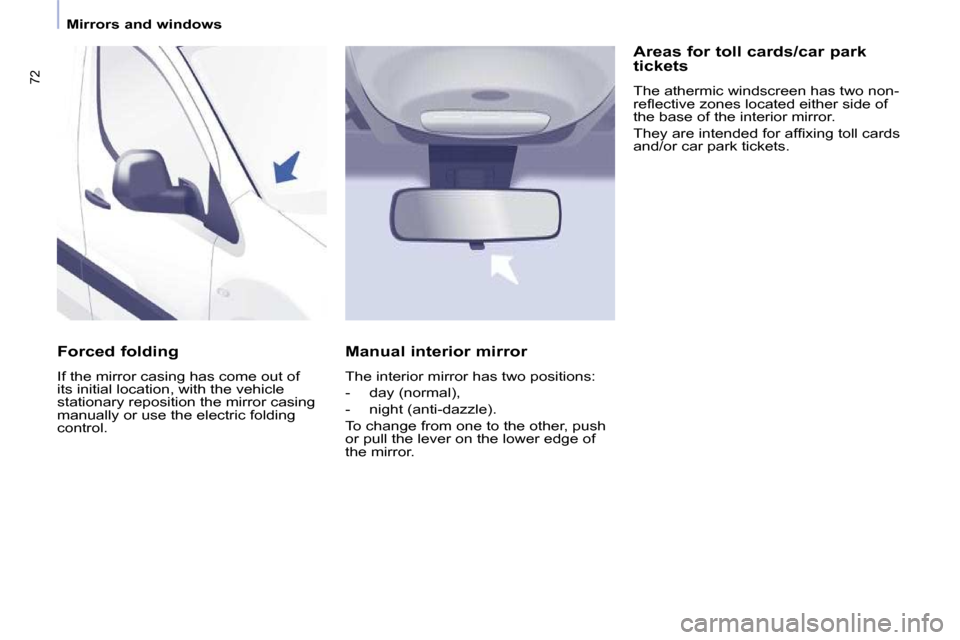

T h e i n t e r i o r m i r r o r h a s t w o p o s i t i o n s :
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
T o c h a n g e f r o m o n e t o t h e o t h e r , p u s h
o r p u l l t h e l e v e r o n t h e l o w e r e d g e o f
the mirror. Areas for toll cards/car park
tickets
T h e a t h e r m i c w i n d s c r e e n h a s t w o n o n -
r e fl e c t i v e z o n e s l o c a t e d e i t h e r s i d e o f
t h e b a s e o f t h e i n t e r i o r m i r r o r .
T h e y a r e i n t e n d e d f o r a f fi x i n g t o l l c a r d s
a n d / o r c a r p a r k t i c k e t s .
