2010 PEUGEOT 807 glove box
[x] Cancel search: glove boxPage 4 of 237
9
1
FAMILIARISATION
Interior
13. B a t t e r y / F u s e b o x .
14. Passenger air bag.
15. Passenger’s lower glove box/RCA
sockets.
16. Air conditioning controls.
17. L i g h t e r / 1 2 V a c c e s s o r i e s s o c k e t .
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. F u s e b o x .
25. Handbrake - on the right.
1. E l e c t r i c m i r r o r c o n t r o l s .
- E l e c t r i c w i n d o w c o n t r o l s .
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
26. B o n n e t r e l e a s e u n d e r c o v e r -
on the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE AND
TIME
F o r m o r e i n f o r m a t i o n a b o u t
this adjustment, refer to the
"Setting the date and time" section of
t h e " I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
B l u e t o o t h .
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. F r o n t w i n d o w d e m i s t i n g v e n t s .
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.
Page 76 of 237
ERGONOMICS and COMFORT
3
77
Practical information
1. Driver's upper glove box
FRONT INTERIOR LAYOUT
T h i s i s fi t t e d w i t h a l o c k .
T o o p e n t h e g l o v e b o x , l i f t t h e h a n d l e .
The light comes on when the cover is
o p e n e d .
It contains three sockets for the
c o n n e c t i o n o f v i d e o e q u i p m e n t a n d
access to the fascia fuse box.
I t i n c l u d e s s p e c i a l c o m p a r t m e n t s f o r
s t o r i n g m a p s , a p a c k e t o f c i g a r e t t e s ,
a n A 4 d o c u m e n t e t c .
RCA sockets.
This permits the connection of a mobile
t e l e p h o n e c h a r g e r , a b a b y ' s b o t t l e
w a r m e r , e t c .
T o o p e n , p r e s s t h e b u t t o n .
T o c l o s e , p r e s s t h e c o v e r .
I t i n c l u d e s s p e c i a l c o m p a r t m e n t s f o r
s t o r i n g a p e n , a m o b i l e t e l e p h o n e ,
c o i n s o r t o k e n s a n d c r e d i t c a r d s .
2 . A u d i o e q u i p m e n t c o n c e a l i n g fl a p
L o w e r t h e fl a p f u l l y t o l o c k i t i n p l a c e .
P r e s s t h e fl a p t o r a i s e i t .
3. Central storage compartment
4. Passenger's upper glove box
T o o p e n , p r e s s t h e b u t t o n .
T o c l o s e , p r e s s t h e c o v e r .
I t i n c l u d e s s p e c i a l c o m p a r t m e n t s f o r
s t o r i n g a p a i r o f s p e c t a c l e s , k e y s , fi v e
C D s a n d f o u r a u d i o c a s s e t t e s o r n i n e
a u d i o C D s . 5. Passenger's lower glove box
6. Lighter or 12 V socket for
accessories (120 W) 1 2 . M a t fi t t i n g / r e m o v a l
W h e n r e m o v i n g t h e f r o n t m a t , p u s h
t h e s e a t s a s f a r b a c k a s p o s s i b l e a n d
r e m o v e t h e fi x i n g s .
W h e n r e fi t t i n g , p o s i t i o n t h e m a t
c o r r e c t l y o n t h e p i n s a n d c l i p t h e
fi x i n g s . C h e c k t h a t t h e m a t i s s e c u r e d
correctly.
To prevent the mat from becoming
c a u g h t u n d e r t h e p e d a l s :
- o n l y u s e m a t s s u i t e d t o t h e fi x i n g s
a l r e a d y p r e s e n t i n t h e v e h i c l e . I t
i s i m p e r a t i v e t h a t t h e s e fi x i n g s a r e
u s e d .
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
7. Cooled compartment
I t c a n h o l d u p t o t h r e e c a n s .
S l i d e t h e c l o s e r , l o c a t e d o n t h e r i g h t , t o
o p e n ( u p w a r d s ) o r c l o s e ( d o w n w a r d s )
the air inlet.
8. Can holder and ashtray
T h i s r e t r a c t a b l e a n d l i t s u p p o r t c o n t a i n s
u p t o t w o c a n h o l d e r s , a r e m o v a b l e
a s h t r a y a n d a l o c a t i o n f o r t h e l i g h t e r
w h e n i t i s u s e d a s a 1 2 V s o c k e t
( 1 2 0 W ) . 9. Storage compartment or
additional telematics control
The storage compartment must not be
u s e d a s a n a s h t r a y .
I f fi t t e d o n y o u r v e h i c l e , t h e a d d i t i o n a l
t e l e m a t i c s c o n t r o l i s l o c a t e d o n t h e
centre console.
10. Storage compartment
11. Door tray with space for a bottle of water
Bluetooth.
Page 109 of 237
107
Other accessories
ACCESSORIES
5
OTHER ACCESSORIES
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the PEUGEOT Marque. To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
e q u i p m e n t , t h e fi t t i n g o f a n R C A
a u x i l i a r y s o c k e t i s o f f e r e d s p e c i fi c a l l y
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button. Audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ...
Alloy wheels, trims,
aluminium interior trim kit,
m u d fl a p s , . . .
Seat covers compatible with
side air bags, mats, boot tray,
sunroof, luggage net, door
d e fl e c t o r s , c o o l b o x s e c u r e d
on the slides, clip armrest, load
carrying roof bars, roof box,
snow chains, ski carrier, tailgate
bicycle carrier, interior bicycle carrier,
b o o s t e r s e a t s a n d c h i l d s e a t s , I s o fi x
seats, side sun blinds and rear blind, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y a
PEUGEOT dealer. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle. Screenwash, interior and
exterior maintenance
and cleaning products,
replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
c o n fi g u r a t i o n m e n u .
Before installing a
radiocommunication transmitter with
aerial, contact a PEUGEOT dealer who
w i l l i n f o r m y o u o f t h e s p e c i fi c a t i o n s o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window
e n g r a v i n g , fi r s t a i d k i t , s a f e t y
jacket, rear parking assistance,
warning triangle, ...
Page 170 of 237
9.30
11
2 2

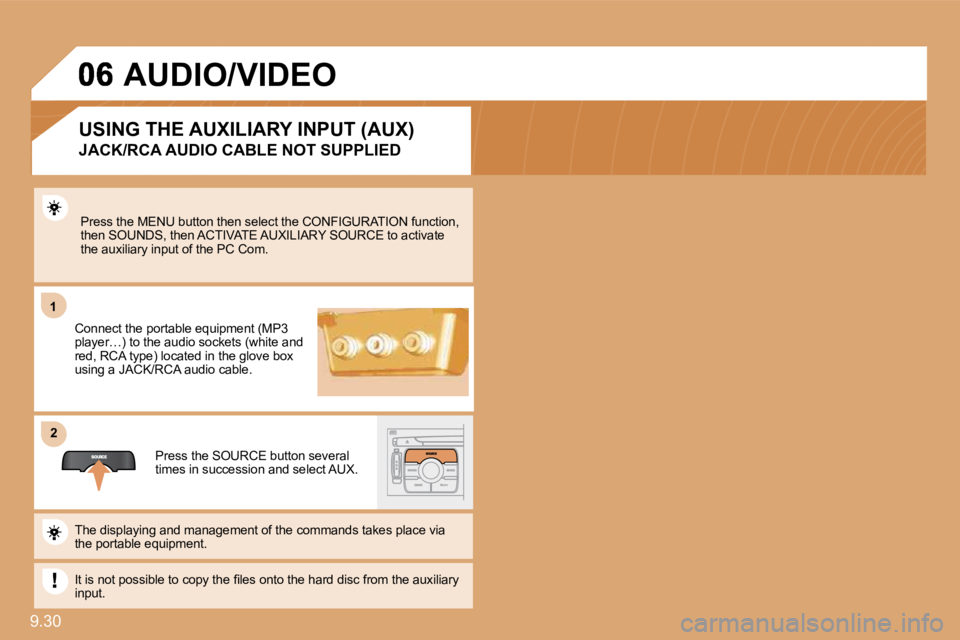

Press the MENU button then select the CONFIGURATION function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the auxiliary input of the PC Com.
Connect the portable equipment (MP3 player…) to the audio sockets (white and red, RCA type) located in the glove box using a JACK/RCA audio cable.
Press the SOURCE button several times in succession and select AUX.
The displaying and management of the commands takes place via the portable equipment.
I t i s n o t p o s s i b l e t o c o p y t h e fi l e s o n t o t h e h a r d d i s c f r o m t h e a u x i l i a r y input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED
AUDIO/VIDEO
Page 171 of 237
9.31
11
2 2
3 3
4 4
5 5
6 6
7 7
0 6

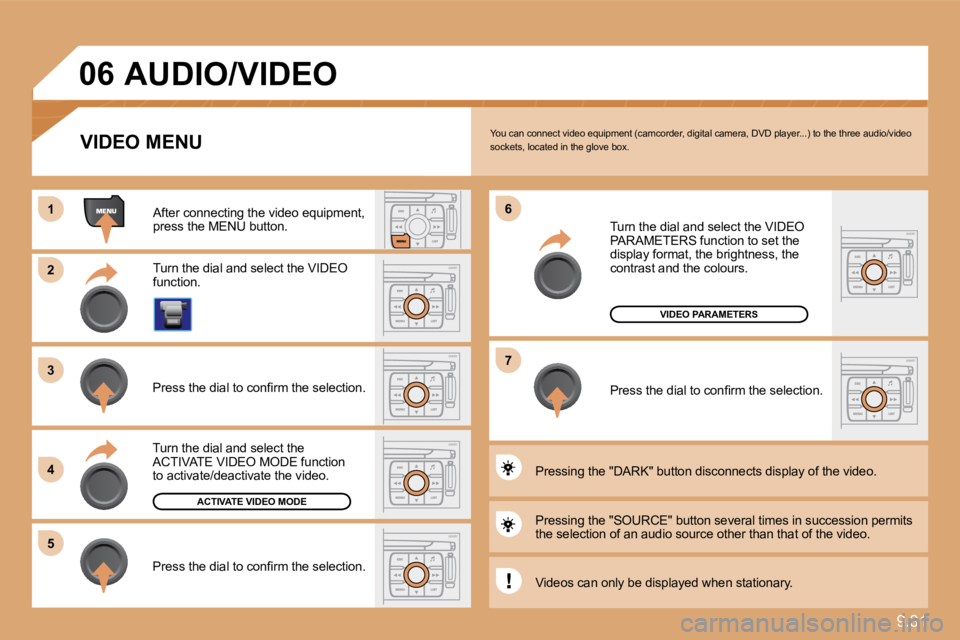

ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video sockets, located in the glove box.
Turn the dial and select the VIDEO function.
After connecting the video equipment, press the MENU button.
Turn the dial and select the ACTIVATE VIDEO MODE function to activate/deactivate the video.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Pressing the "SOURCE" button several times in suc cession permits the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects display of the video.
Turn the dial and select the VIDEO PARAMETERS function to set the display format, the brightness, the contrast and the colours.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
VIDEO MENU
Videos can only be displayed when stationary.
AUDIO/VIDEO
